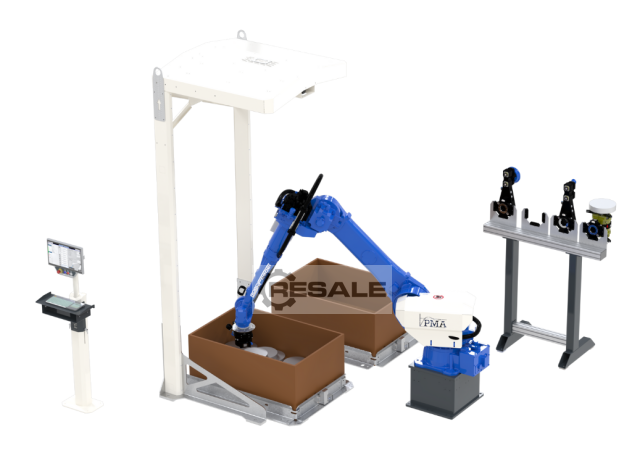

PalletFeed is a standardized solution for the fully automatic removal
of components directly from full or half-full pallets. The system is
adapted to customer requirements with our standard modules. It
processes pallet spacing and performs pallet measurement for new
pallets. The robot is guided visually, using either 2D or 3D systems
to enable pure BIN picking. Finished components are inspected
according to the specified program or data.
The system is extremely compact and requires little space on the
floor. Since it is delivered as a tested module, the installation at
your site is quick and smooth. Once commissioned, the system requires
minimal maintenance.
The system can be combined with a variety of options, such as conveyor
belts, measuring boxes, washing systems, handling stations,
marking/marking systems, etc.
At a glance:
- Small series
- Medium series
- Component weight up to 180 kg
- Handles various objects
-Turn
-Mill
- Multiple CNC machines
- Gripping pressure
-Remote maintenance
The advantages:
- Standard modules = Easy creation of customer-specific layouts
- Fully tested modules as a complete solution = fast installation
- Robot size according to requirements and requirements
- Robots on rails for operating several machines/systems
- Number of infeed and outfeed pallets as well as buffer pallets can
be adjusted as desired
- Parameter-controlled intermediate management
- Automatic measurement to correct varying pallet heights
- Visual guidance with 2D or 3D systems for fixtureless handling of
components
- Various options such as measuring boxes, re-gripping stations,
cleaning, washing, coarse and fine grinding, screening, etc.
- Layout individually adapted to each project
- Various grippers: 2- or 3-jaws, vacuum, magnetic or electric
grippers
- Individually adjustable gripping pressure as standard
- Complete monitoring of the parts in the grippers – in case of
material loss or jammed grippers
- Automatic tool change
- Blow cleaning function and mechanical ejector as standard
- Very easy to set up new parts in about 10 minutes
- RoboFeeder software for easy setup of new parts
- Suitable for all machine types and brands
- CE marking as machine group 2A
Germany
