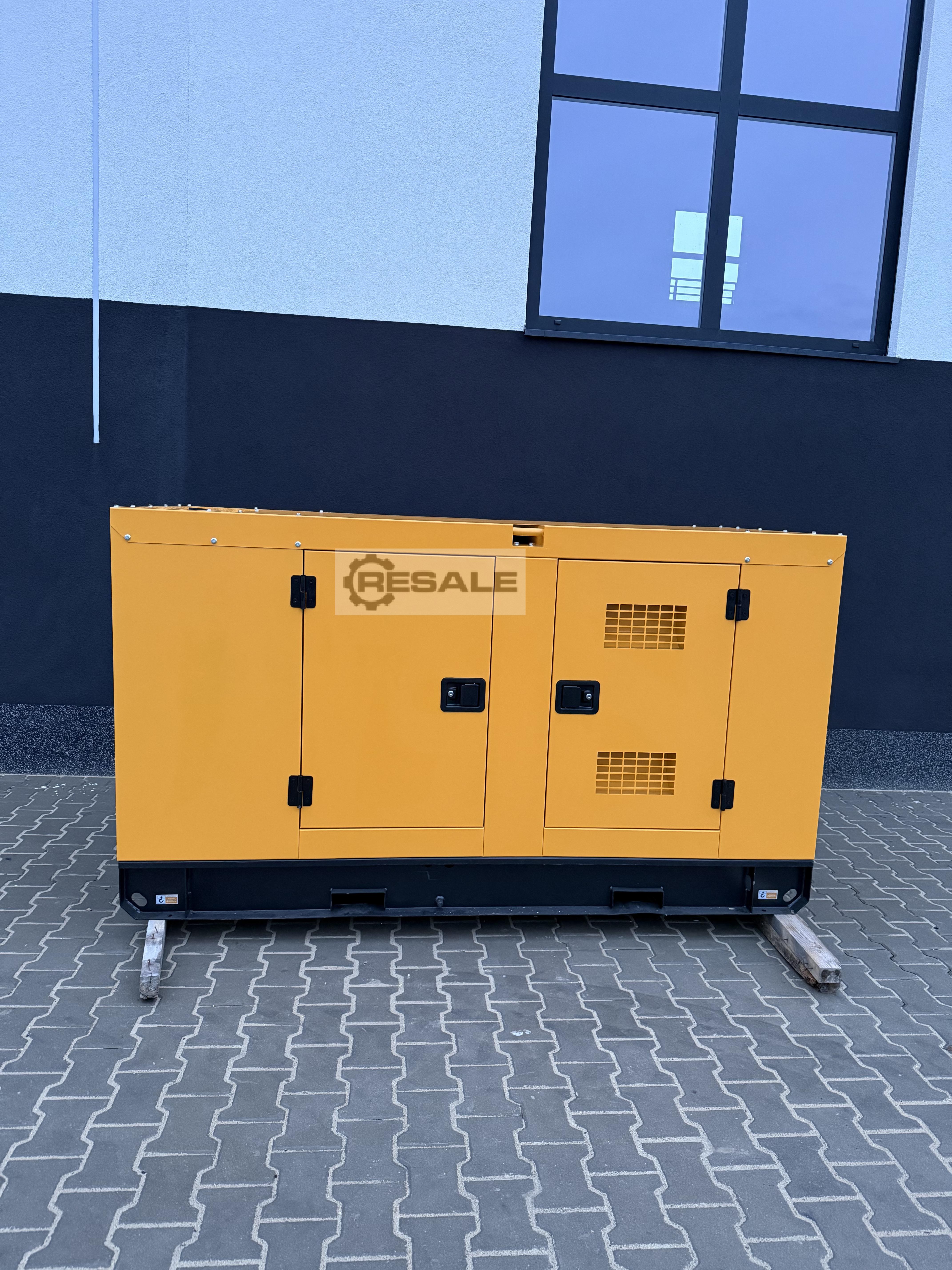

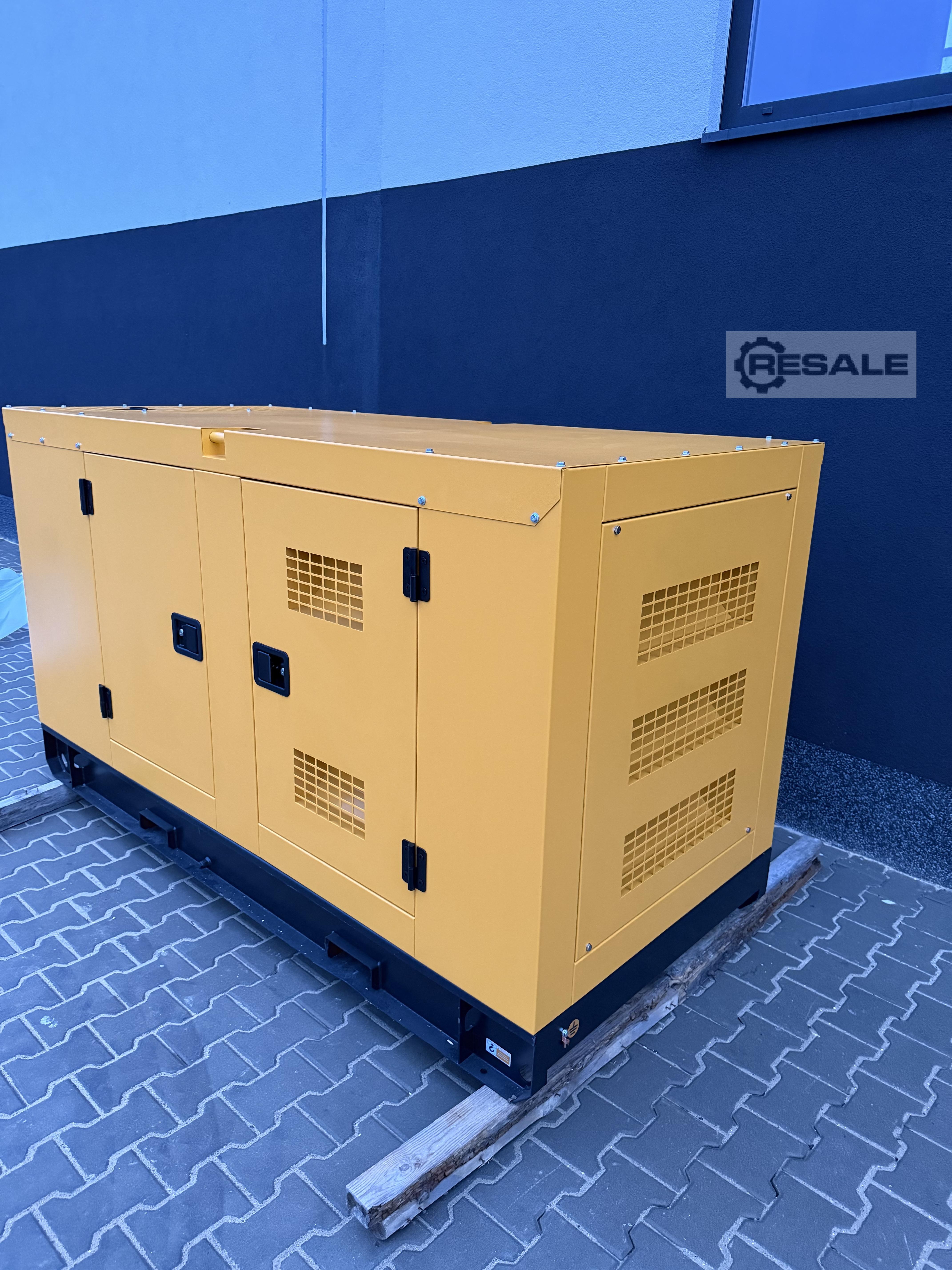

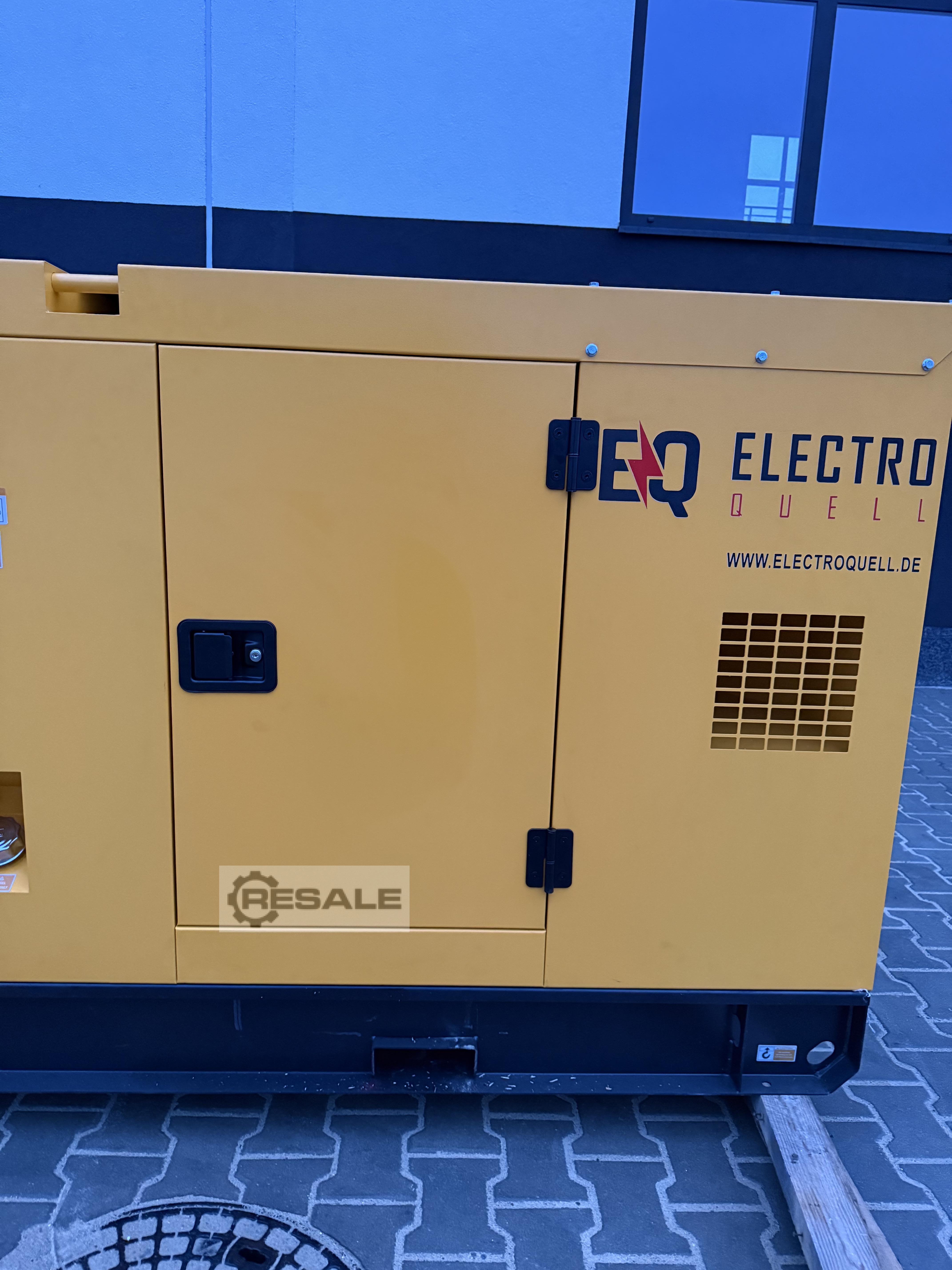

Diesel generators PERKINS 20kVA/16kW

Rated capacity: 16 KW Rated capacity in kVA: 20 kVA Output voltage: 230 V Made in the EU
30 months warranty
Stamford Alternator
ComAp Control Module

Power Generator Specifications:

Model No.: EQ-P2016
Prime Rating: 20 kVA / 16 kW
Standby Rating: 22 kVA / 17.6 kW
Voltage: 400/230V
Frequency: 50 Hz
Speed: 1500 rpm

Engine Specifications:

Engine Make: Perkins
Motor Model: 404A-22G1
Bore x Stroke (mm): 88 x 110
Displacement (L): 2,216
Compression Ratio: 23.3:1
Charging: Turbocharged & Intercooler
Fuel System: In-line Injection Pump
Regulator Type: Mechanical

Dimensions of the unit:

Length: 1600 mm
Width: 650 mm
Height: 1250 mm
Weight open: 560 kg

Standard:

4-stroke, 1500 rpm, water-cooled high-performance diesel engine
Stamford Alternator
ABB Circuit Breakers
Manual operation protection system
Flexible oil lines and oil drain valve
Heater
Lubricating oil and antifreeze
Batteries and cables
Electrostatically paint-coated, welded steel chassis
Fuel tank integrated into the chassis
Industrial silencers
Electronic Battery Charger
Electrical wiring diagram
User Manual and Instruction Manual
Automatic start-up time 10 seconds
Replaceable cylinder liner
Replaceable dry oil filter
Heat-resistant cooler for 50 °C

Optional equipment:

Engine:
External cooling system
Oil heating
Fuel Water Separator Filter

Alternator:
Main Circuit Breaker
Anti-condensation heater
Heater for alternator

Control system:
Remote communication with modem
Alarm Output Relay / Charge Current Meter
Automatic synchronization

Other accessories:
Automatic switching device
Remote control and monitoring
Fuel level alarm system
Pendant
1-phase / 3-phase switching plug
Maintenance kit for 1500/3000 operating hours
Tool kit for maintenance
Inlet and outlet soundproofing gates
Motorized inlet and outlet blinds
Main fuel tank
Supplied with oil and coolant down to -30 °C
