Numerically Controlled Machining Centres used for sale (123)

Code: 0348 Brand: VITAP - ITALY Model: POINT K2 TOP - CE CE Standard CNC working centre for the precise and flexible drilling and milling of panels, furniture, custom-made furniture, kitchens, bathroom furniture and various – CE Standard – Year 2017 Technical specifications: Compact machine Patented D.D.T. (double dynamic transport) system with continuous panel movement without any repositioning of the workpiece, using two clamps. Technical data: Panel dimensions: Min/max length 270/3000 mm Min/max width 180/1100 mm Max height 50 mm Horizontal panel feed on X-axis 25 mt/min Vertical feed on Z-axis 15 mt/min Horizontal feed on Y-axis 30 mt/min Drilling head: Motor 2 Hp 12 vertical spindles side 1 Z-axis 2 horizontal spindles side 4 Y-axis 2 horizontal spindles side 6 of the Y-axis 2 horizontal spindles side 3 X-axis 2 horizontal spindles side 5 X-a ...

- Total installed power approx. 20 KW. - Dimensions of the work table 5200 x 1200 mm. - Passage height on panel 320 mm. - X-axis travel: 5330 mm, y-axis travel: 1300 mm, z-axis travel: 300 mm. - Maximum travel speed in x-y-z directions: 45-45-25m/min. - Tool magazine with 10 positions. - Electrospindle: motor power 7.50 KW-max. 18000 rpm, automatic tool change, for ISO 30 tool holders. - Horizontal milling unit with 2 outputs to work in front of and behind the workpiece: motor power 5.50 KW-max. 18000 rpm. - Vertical holes in the x-axis direction: 6. - Vertical holes in the y-axis direction: 4. - Horizontal holes in the x-axis direction: 2+ 2. - Horizontal holes in the y-axis direction: 1 + 1. - NUM 1060 numerical control. - Remote control panel. - 25 suction cups. - BECKER VTLF 250 vacuum pump with a capacity of 250 m³/h. - Tools featured in photos are included. - Ope ...

- Total installed power 31.50 KW. - Usable working area approx. 2910 x 1310 mm. - Passage height on panel 200 mm. - X-axis travel: 3100 mm, y-axis travel: 1750 mm, z-axis travel: 300 mm. - Programmable maximum speed in x-y-z directions: 25-25-15 m/min. - Tool magazine with 8 positions. - HSD ES919 electrospindle: 8KW-max power. 24000 rpm, automatic tool change, for ISO 30 tool holders. - Grooving saw group. - ISAC SAB 2001 E numerical control. - Windows software. - 6 benches. - 4 lifting modules for heavy parts. - 1 x BECKER U 4.165 SA/K vacuum pump with a capacity of 160 m³/h. - 1 x BECKER KVT 3.140 vacuum pump with a capacity of 132 m³/h. - 1 x PUSKA air tank, capacity 150 litres. - Operating conditions of this machine: unchecked. - This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs. Auction-I ...

Key data: 3105 mm, 1560 mm, 325 mm

CNC nesting machine with a 2-stage milling unit with 11 KW power. Speed up to 24000 rpm. Tool holder HSK 63. Manual central lubrication unit, cooling unit "Cold Gun" for cooling the cutter with air. Spindle cooled by cooling water with an air conditioning unit. Clamping system with two Becker vacuum pumps â'250 m³ in a soundproofing cabinet. Automatic loading with a loading table and an extendable removal table. ( On request also possible without these tables for a reduced price ) Ride-on 8-fold magazine tool changer. Drilling unit with 14 spindles, four of which are horizontal spindles in the X and Y directions and a saw running in X direction. Integrated push-off unit with table cleaning. Control secured with a UPS. Software 1 x machine license, 1 x nesting program for free-form nesting.

Auction-ID: A1-41991-9

Technical data Workpiece length plates max 1390/2800 mm Workpiece width 85 - 740 mm (without narrow end clamp) Workpiece thickness 50 mm (for drill length 70 mm) Workpiece length frame min 220 mm Workpiece length frame max. 2,800 mm (up to Bmax 140 mm) or 1,550 mm (up to Bmax 190 mm) Axis speed (X/Y) max. 35 m/min Drill Holder D = 10 mm Drill speed 4400 rpm Grooving saw max. D = 100 mm Groove saw holder D = 20 mm Groove saw speed 4500 rpm Machine size LxWxH 2,350x1,750x1,830 mm (closed hood, otherwise H= 2,630 mm), working height 800 mm Suction nozzle Ø 2 x 100 mm, 1 x 140 mm Compressed air connection 3/8", 6 bar Connection: 380 V, 50 Hz, 5.5 kW Weight: 980 kg Technical data subject to actual equipment The sale is in the condition as it is, excl. Warranty, from the owner's location.

CNC Control: CNC 3-axisDowndraft table: 2000 × 3000 mmSuction zones: 8 zones divisible in two (8 valves)Vacuum network: new (pipes, fittings, manifold)Software: GALAAD (user manual supplied)Location of the batch: department 71 (Saône-et-Loire) Auction-ID: A1-45486-109

Code: 0288 Brand: SAC Model: F 12 Automatic working center for door and wooden window frames Technical data: Tenoning side : End cutting circular saw - Blade diameter mm 400 Motor power Hp 4 Horizontal positioning with indexing stops N° 2 tenoning spindles each lenght mm 320 Max tools diameter mm 320 Spindle diameter mm 50 Motors power each Hp 10 Max thickness of pieces mm 100 N° 2 suction inlets mm 130 Automatic table with guideline Profiling side: N° 4 profiling spindles each lenght mm 270 - Spindle diameter mm 50 Motors power each Hp 10 N° 4 suction inlets mm 130 Glass bead recovery device - Motor power Hp 3 - Blade diameter mm 200 Exhaust outlet diameter mm 60 Glass bead recovery device - Motor Hp 3 Exhaust outlet diameter mm 100 Adjustable feed speed Return roller conveyor Overall dimensions - tenoning mach ...

Sold with various tools and documentation. Technical Information Main training Maximum speed: 9,000 rpm Motor: AC Servo Motor 100% ED engine power: 4.96 kW Engine power at 40% ED: 6.94 kW Continuously programmable speed: 20 – 9,000 rpm Torque/power diagram Speed range: 20 – 9,000 rpm Axis drive AC servo motors for X, Y, Z axes Programmable feed rate: up to 10,000 mm/min Input Unit: 0.01 mm Fast (fast) speed: 12 m/min Measurement system X, Y, Z axis resolution: 0.001 mm Position Tolerance (Direct Measurement): 0.010 mm Work Area X-axis travel: 500 mm Y-axis travel: 400 mm Z-axis travel: 400 mm Work table Round table with swivel axis Clamping surface: Ø 700 x 500 mm T-slot spacing: 63 mm T-Slot Width: 14 H7 Centering bore: Ø 30 H7 Rotation range: 360° Table locking: mechanical Til ...

CNC machining center MAKA Type SC 20 T Tandem table version Year of construction 2000 3-axis machining Workpiece cube dimension Maximum length 1500 mm Maximum width 1500 mm (per table) Maximum height 240 mm Maximum travel distances approx. X 4300 mm x Y 2500 mm x Z 400 mm -Milling unit 2 ISO 40 milling motor Water-cooled power maximum 8/11 kW Tool holder SK40 -Tool magazine consisting of 2 chain tool changers Number of places 16 each Tool holder ISO 40 -Surface grid table in tandem version with extension stroke for safe loading Workpiece clamping via vacuum -CNC control type bwo 900C, 512 KB RAM, PC -Operating voltage 400V / 50 Hz Installed power approx. 34 kW, connection fuse 80A Operating pressure 6 bar Machine weight approx. 8000 kg

Machine: BIESSE ROVER A 1332 ATS 5-axis machining center Year: 2012 Field of work: X 3280 mm, Y 1320 mm, Z 170 mm (H48 modules) Running axes: X 3722 mm, Y 1993 mm, Z 324 mm Table: ATS (Advanced Table Setting), Auto Boom Lifts, Multiple Zones Stops: Front, Rear, Side Electrospindle: HSD 17.7 HP, HSK63F Cone Tool Changer: Rotary 12 POS. Boring Head: BH17L, Quick Change Units: 10 vertical pins (7X, 3Y), 3 horizontal (2X, 1Y), Ø120 mm blade Lubrication: Automatic Order: XP600, Windows XP PC, 19'' screen Vacuum Pump: Becker Software: B-Solid included Auction-ID: A1-45443-36

Key data: 6195 mm, 2935 mm, 565 mm

TECHNICAL DATA: Working Range: X: 4600 mm Y: 2200 Maximum travel: X: 6195 mm Y: 2935 mm Z: 565 mm 5 axes Nesting table 01 Turret tool magazine with 18 slots 01 self-propelled tool changer 10 stops: stroke 150 mm 01 Vacuum pump: 250 m³ 01 Vacuum pump: 500 m³ 01 Laser Pointer Pen Drilling unit (6 kW): 18 spindles for vertical drilling (11+2 X-axis - 6 Y-axis) 02 Double-Sided Spindles for Horizontal Drilling – X-Axis 01 Double-Sided Spindles for Horizontal Drilling – Y-Axis 01 Saw blade unit – X-axis Electrospindle unit (13 kW): Equipped with HSK mount - liquid-cooled Software: CAMPUS V7 PLUS

Machine: CNC machining center MASTERWOOD 4 WIN Year: 2010 Running axes: X 4960 mm, Y 1930 mm, Z 650 mm Digital axes: 4 + C-axis Electrospindle: 17 kW HSK63E with dimmer, dedicated cooling Tool Magazines: 10 pos. head, 16 pos. rear carriage, 18 pos. lateral Fixed heads: blade holder Ø220 + Ø350 mm HSK63F Table: 7 bar auto Belt: chip evacuation Order: Multilingual PC + Masterwindows software, mobile console, handheld remote control Security: EC Dimensions: 6800 x 2450 x 2450 mm Weight: 4300 kg Available from the beginning of November. Auction-ID: A1-45443-42

Key data: 5800 mm, 39000 mm, 1200 mm

Multiax L-Series CNC Gantry Milling Machine Large 5-axis gantry milling machine with moving-bridge and low-rail open design, ideal for machining long or oversized workpieces. Travels: X 5800 mm, Y 39000 mm, Z 1200 mm. Equipped with a high-speed spindle for machining composites, aluminum, plastics, wood and non-ferrous metals. The modular heavy-duty design offers high rigidity, precision and allows for easy loading and unloading by crane or forklift. Suitable for mold making, prototypes, marine and aerospace components, and large structural parts.

Usable working area:X: 3248 mmY: 1390 mmZ: 110 mmConfiguration:16-core drill head8 kW electro-chuck – ISO308 kW frequency inverterSaw for longitudinal incisionsHorizontal milling unit with 1 output – 2.2 kW10-position tool magazine – ISO30 carriage edgeAdapter support plate for index headsTable: Work table with bars and suction cups2 stops per bar6 × suction cups 114 × 140 mm – H 100 (to be confirmed)6 × suction cups 125 × 75 mm – H 100 longitudinal (to be confirmed)Equipment:Vacuum pump 100 m³/hCN on external PC (PC included)17\"PC TFT display and instructions in EnglishPower supply: 400 V – 50 HzCompliance: CE safety standards STANDARD versionDimensions (estimated):Length approx. 6,500 mm × Width approx. 4,100 mm × Height approx. 2,400 mm (to be confirmed)Weight (estimate): approx. 5,000 kg (to be confirmed) Auction-ID: A1-45443-70

punkt-zu-punkt-Bohrmaschine mit numerischer Steuerung MASTERWOOD SPEEDY 207 für die kundenspezifische Möbelherstellung, Küchenmöbel, Badezimmermöbel und verschiedene Prozesse bohrkopf mit 5 unabhängigen vertikalen Spannfuttern und 1 doppeltem horizontalem Spannfutter säge für Längsschnitte maschinentisch mit 1390 x 750 mm Bohrkapazität und zwei seitlichen Hochfahranschlägen, die von der Steuereinheit gesteuert werden, um mit nur einem Programm und einem Zwischenhalt platten bis zu einer Größe von 2800 x 750 mm auszuführen möglichkeit zum Bohren von 2800-mm-Platten pneumatische Werkzeugverschiebung mm 60 max. plattendicke mm 50 drehzahl der spindeln U/min 4500 sägerotation U/min 6000 vakuumpumpenmotor PS 1.5 Saugnapfdurchmesser mm 80 frontanschlag komplett mit 4 Schließzylindern zum Bohren schmaler Werkstücke und Leisten multitasking-steuerung komplett m ...

Performs all functions Auction-ID: A3-43506-9035

Code: 0190 Brand: MASTERWOOD Model: PROJECT TF 100 - CE Standard CNC point to point throughfeed boring machine for panels, furniture, custom-made furniture, kitchens, bathroom furniture, carpentries and various - CE Standard Features: Robust clamping device for panel translation running on linear guides with preloaded ball bearings and moving by means of ball screw with high precision and stiffness. Brushless motor Working table: table with idle rubber wheels for panels in and outfeed . Panel movement on air film to avoid any scratching of panels with delicate surfaces . Panel pusher for smooth and accurate movement. Longitudinal sinking reference stop. Automatic reading of panel length Operating unit: boring head with vertical and horizontal spindles plus grooving saw unit. Centralised chips suction outlet Numeric control with PC: Windows operating system - network conn ...

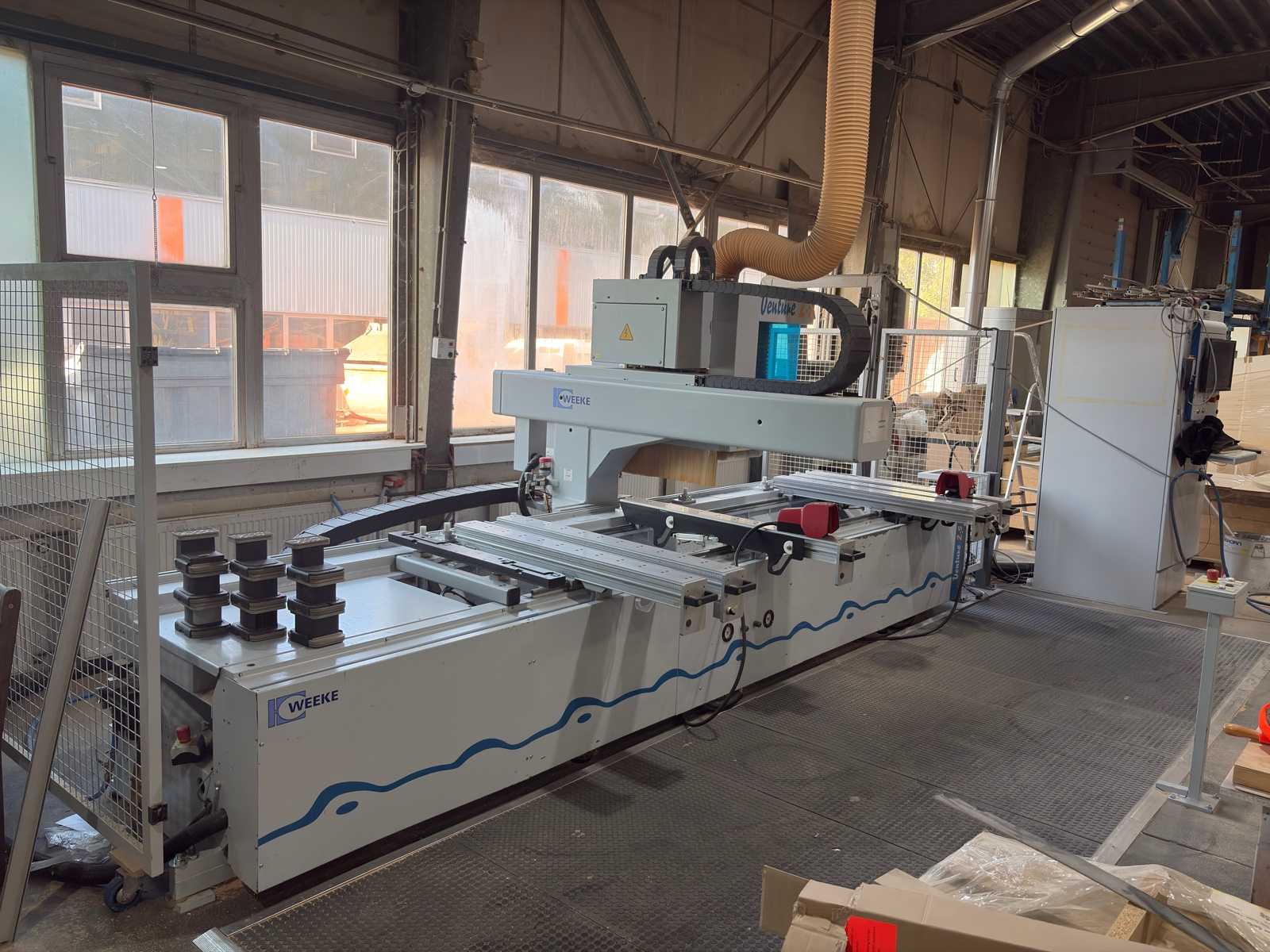

Machine: WEEKE OPTIMAT BHC 550 machining center Year: 2002 Running axes: X 3250 mm, Y 1350 mm, Z 370 mm Table: transom with 6 infinitely adjustable supports (X) Stops: 4 rear stops + 6 programmed front stops, 2 side stops (Y) on aluminium profile Vacuum pump: 100 m³/h Order: Programmable NC Auction-ID: A1-45443-43

Code: 0150 Brand: BREMA Model: GLR - CE Standard CNC vertical working centre with rollers for drilling, milling, shaping and automatic insertion of any hardware insert to obtain the workpiece ready for final assembly of the furniture - CE Standard Technical data: The high flexibility of this system allows to reduce big stocks and big stores and eliminate dead-times for setting up boring machines. Different units and toolings can be mounted allowing to obtain mass-produced or made to order pieces, which are divided according to their dimensions or colour only Composition: Vertical panel store with automatic panel drawing Roller connection device Roller loading device 8-position revolver head where 8 different heads can be mounted, complete with vacuum device - The electronic part can control from 5 to 11 axis depending on the equipment Hardware insertion units: each ...

Masterwood Project 523 XL CNC machining center• Year : 2006• Axes : X 6200 mm / Y 1660 mm / Z 175 mm• Drilling head: 40 chucks, inverter-driven• Saw unit: longitudinal incisions• Electrospindles : 2 x 8 kW ISO30 (including one with C-axis )• Tool magazines:  2 x 8 quick positions• 12 Schmalz bars with double vacuum zone• Digital display for bar positioning and suction cups• Predisposition for vices and clamps• Side and front stops• 2 panel lifting blades• Chip collection belt• Mobile remote control• Vacuum pump: 250 m³/h• Suction : 1 mouth Ø250 mm + 1 mouth Ø120 mm (flow rate 6500 m³/h)• Power supply: 400 V / 41.7 A / 50 Hz• Weight : 5500 kg   Auction-I ...

Code: 0147 Brand: BREMA Model: GLV/M 2800 X 1000 - CE Standard CNC working center for furniture, kitchens, cabinets, panels, and various - CE Standard Vacuum system for clamping the panel with manually adjustable suction cups. Such a system allows machining of the workpiece on all its sides. In addition, the 8 tools mounted in the revolver head, perform any type of machining required. Useful panel working dimension with all tools : Length mm 2800 - Height mm 1000 N° 3 controlled axis Numerical control CNC/90 Compressed air 6-7 bar Power Kw 15 Overall dimensions mm 4280 x 2200 x 2480 h Weight kg 4900

Atlas machining center tubeless version X-axis stroke = 6000 mm Power supply 400V 50Hz Europower supply Anuba Group in CA Anuba Diam.13 sheet Vertical support for milling unit 0/90pn Upright position n.2 Milling unit 15HP Index HSK F63 Fixed head with 2 outlets blade holder D=220 + cutter holder - HSK 63 F Tool Holder 14 pos.side trolley HSK63 Front upright position Drill head Saw for longitudinal incisions 11 kW frequency inverter 8 suction cups 114X140MM - H 100 (to be confirmed) 12 suction cups 125x75MM - H 100 longitudinal (to be confirmed) 2 suction cups 114x140mm - H 75 for blocking. Template (to be confirmed) 3 additional vacuum devices for workpiece blocking 2 pneumatic vertical pressers supp. - 1 MVT. - 100 hours (to be confirmed) 2 horizontal pneumatic vices (to be confirmed) Positioning 10 bars + suction cups on display CE safety standards for atlas bati xl Atlas  ...

Beam cutting center STROMAB CT800 Beam cutting center with large cross-sections, making it an optimal solution for carpentry and frame construction. Thanks to its electronically controlled 5-axis technology, it meets all requirements for straight, tilt and complex cutting. It guarantees maximum processing speed and finished product quality, reducing labor and maximizing production. The CT800 can process beams of any length and cross-sections from 120×45 mm to 290×280 mm. Beam movement system with driven rubber wheels and pneumatically tilted upper hold-downs Specification:. Motor Power: 18 kw TCT Disc: 800mm Number of electronically controlled axes: 4 Table saw rotation: 0° ÷ 340° Table rotation speed from 0° to 340°: 18" Dial angle: 90° ÷ 45° Positioning Speed: 0 ÷ 17 mt./min Cutting range: . At 90° with single stroke: mm. 280×290 / 250×390 / 200×450 At 90 ...

Machine: BIESSE CNC machining center Table: 3060 x 1260 x 150 mm Solenoid Spindle: 12 kW, ISO30 Cone Tool changer: 10 positions Vacuum pump: 100 m³/h Consoles: 6 with 3 ATS suction cups Drilling Head: 15 Vertical + 4 Horizontal Pins X Saw: Ø125 mm Accessories: 4-position flange, bevel gearbox, flange for aggregates Equipment: chip recovery belt, Biesse WORK software, B_NEST Auction-ID: A1-45443-23

Key data: 3000 mm, 920 mm, 50 mm

CNC Drilling Center C-Express Classic Drilling/sawing/milling from below Easy operation via graphical user interface 1 Machine Software License 19" LCD color display, mouse keyboard Machine weight 850kg Machine dimension: 2,100x1,500x1,950mm Milling spindle 3.3kW (S1), 24,000rpm Collet ER32 manual Drill Head DH 15 6H1S 9 vertical drilling spindles 6 hotizontal drilling spindles 1 grooving saw X direction More information on request! Safety FELDER KG KR-Felder-Straße 1 6060 HALL IN TIROL Phone: +43 (0)5223 58500 Infofelder-Group

Usable working area:X: 4970 mmY: 1390 mmZ: 110 mmConfiguration:16-core drill headElectro-chuck 8 kW – ISO30Frequency inverter 8 kWSaw for longitudinal incisionsHorizontal milling unit with 1 output – 2.2 kW8-position tool magazine – ISO30 carriage edgeAdapter support plate for index headsTable: Work table with bars and suction cupsPneumatic locking table2 stops per bar8 × suction cups 114 × 140 mm – H 100 (to be confirmed)8 × suction cups 125 × 75 mm – H 100 longitudinal (to be confirmed)8 × suction cups 120 × 50 mm – H 100 longitudinal (to be confirmed)8 front stops + 2 additional side stopsEquipment:Vacuum pump 250 m³/hCN on external PC (PC included)17\"PC TFT displayMastercabinet Level 1Power supply: 400 V – 50 HzCompliance: CE safety standards version LDimensions: Estimated height: approx. 2400 mm (to be confirmed) Auction-ID: A1-45443-69

Key data: 3060 mm, 1260 mm, 150 mm

SPECIFICATIONS: Workspace: X: 3060 mm Y: 1260 mm Z: 150 mm 03 Axles Automatic lubrication system 06 ATS tables (length: 1200 mm) 018 Track rollers 06 rear stops 06 stops at height 970 mm Side stops (2 right + 2 left) 04 Bar lifter Turret tool magazine with 10 places 01 Drill head BH 21 L (7x+7y vertical - 4x+2y horizontal - x-axis knife) 01 Air Cooled 12kw Electrospindle HSK F63 Coupling 01 Becker vacuum pump: 100 m³ SYSTEM: Biesse Works XP600 Controller EQUIPMENT: Carpets and barriers Various tools

Machine: MASTERWOOD PROJECT DOORS Machining Center Year: 2001 Machining Range: X 2500 mm, Y 1360 mm, Z 100 mm (120 mm pass-through) Front Position: 2.2 kW horizontal unit, 8 kW ISO30 solenoid spindle, 8 pos. ISO30 Rear Position: 2.2 kW horizontal group, 14 inch rotating magazine. ISO30, manual tilting X/Y index head Table: belt-driven, vacuum pump 100 m³/h Belt: chip evacuation Order: Windows PC + SINCRO software Standards: EC Auction-ID: A1-45443-40

Key data: 6200 mm, 1300 mm, 300 mm

SPECIFICATIONS: Workspace: X: 6200 mm Y: 1300 mm Z: 300 mm 08 Clamping Plates with Suction Cups 01 Side tool magazine Turret tool magazine with 18 compartments Side stops (3 right + 3 left) 01 Vacuum pump: 250 m³ Siemens control system 18 spindles for vertical drilling 02 Double-sided spindles for horizontal drilling - X-axis 01 Double-sided spindle for horizontal drilling - Y-axis 01 Electrospindle 12 kW HSK water-cooled coupling 4-axis cutting/milling unit

SALE ONLY OUTSIDE GERMANY. https://youtu.be/EPCrzSsUe2U Including coating and stacking Retrofit 2016 Ready for use Including stacking and unstacking gantry crane Auction-ID: A1-45406-1

CNC Machining Center Weeke Homag Optimat BHC 250 Masch. No. 0-250-08-1834 Year of manufacture 2004 Kleies machining center in good mechanical condition. Ideal for kitchen and cabinet production. No collisions. No repairs in the last 15 years. Rock solid machine that never caused any problems. Dimensions set-up: approx. 5.4 x 3.5 m Light barrier as safety No unevenness due to step mats Electric cabinet with fan Milling spindle air-cooled. Incl. 2 slide end mills. Z maximum 55mm Various drill bits: 3 mm, 5 mm, 8 mm, 15 mm, 35 mm. Grooving saw in X. Changer 5 places. Processing dimensions: approx. 2.19 x 0.92 m 100 m3 vacuum pump Inspection possible, but the machine is no longer connected. The computer "PC" must be replaced, as it no longer starts. Replacement costs estimated at approx. EUR 6,000.00. Otherwise, the machine is in very good condition. If yo ...

- Usable working area approx. 5000 x 1400 mm. - Axis C. - Tool magazine with 18 positions. - Electrospindle: power 7.50 KW, automatic tool change, for HSK F63 tool holder. - Vertical holes in the x-axis direction: 11. - Vertical holes in the y-axis direction: 11. - Horizontal holes in the x-axis direction: 1 + 1. - Horizontal holes in the y-axis direction: 1 + 1. - Edging unit with edge loader for 2 coils. - IMA numerical control. - 8 benches. - Lifting modules for heavy parts. - SIEMENS 2BL1100-2NC00-1S-Z vacuum pump, 2.35 KW motor. - Tools (10) and add-ons (3) that appear in the photographs are included. - Operating conditions of this machine: unchecked. - This item is delivered loaded by truck. The costs of dismantling and loading are those that are specified as additional costs. Auction-ID: A7-44536-18

Code: 0013 Brand: COSMEC - ITALY Model: SA/31-10 - CE Standard 3-axis CNC working centre with NESTING table for wood, furniture, panels, plastics, composites and various materials - CE Standard Table NESTING dimensions mm 3100 x 1000 X axis stroke mm 3250 - Y axis stroke mm 1400 - Z axis stroke mm 300 Feed speed X - Y mt/min 56 Feed speed Z mt/min 12 Maximum clearance above worktable mm 250 Milling unit Hp 10,7 (Kw 7,9) - ISO30 attachment at 18000 rpm Automatic tool changer with 6 positions - Inverter power Kw 11 - Rpm 500/18000 Vacuum pump 100 mc/h Numerical control OSAI series 10 Automatic lubrication Side guards Compressed air 8 bar Weight kg 3200

A deposit of €250.00 is required in order to bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Max tool diameter 100 mm Max tool length 300 mm Max tool weight 10 kg Cutting speed 5000 mm/min Fast feed speed 15000 mm/min Tables, utensils and accessories included Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-5

BUSELLATO machining center model JET MASTER 5WF XL with 5 axes: - useful axis stroke 5500 x 1900 mm - Useful working range 4650 x 1555 mm - workpiece passage 240 mm (data to be verified) - automatic tables with CNC positioning - 8 bars each with 4 suction cups, and 2 vacuum pumps - with 4 lifts - devices for load assistance - with front safety mats and integrated scrap unloading belt - GENESIS EVOLUTION electronic control with PC/PLC, based on Windows operating system and with 3D editor (CAD – DXF – XLS files) - total installed power KW 25, volt 380 - machine according to CE standards, year 2007 Operating units: - 5-axis milling unit, with: electrospindle with power KW 14, HSK63F connection 24-position rear tool magazine 2-position side magazine, for blade unit and for Large tool - TFR18 drilling unit, power KW 1.7, with: 7 X vertical mand ...

A deposit of €180.00 is required in order to submit a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Tables, utensils and accessories included Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-4

MORBIDELLI machining center model AUTHOR 600KXL: - useful working area in X = 4400mm - Useful working area in Y = 1385mm milling - Useful working area in Y = 1145mm drilling - panel passage 180mm - worktop with 8 Quick Set Up bars and digital displays, equipped with both suction cups and clamps for windows and doors, and with load aids - 250 mc/h vacuum pump (data to be verified upon arrival) - Automatic lubrication, optimized and centralized suction - electronic control with PC-PLC interface and XILOG PLUS software - Remote control device for machine management Operating units: - liquid-cooled vertical electrospindle (Power 2000), with inverter and with 4th VECTOR rotary axis, HSK 63 shank, served by tool changer automatic RAPID 10 with 10 positions - blade unit with automatic rotation 0/90° - Horizontal milling unit with 1 output - Drilling unit with:  ...

A deposit of €3500.00 is required in order to place a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. B-axis travel -120 +90 C-axis travel +/- 360 X-Y-Z axis speed 30 mm/min C-axis speed 10800 deg/min 30-position tool changer Max tool diameter 90-130 mm Max tool length 300 mm X-axis positioning accuracy 0.016 mm Positioning accuracy Y/Z axis 0.012 mm B/C axis positioning accuracy 14 s X-axis repeatability 0.009 mm Y/Z axis repeatability 0.007 mm Repeatability of B/C axes 8 s Tables, utensils and accessories included WARNING! FOR TRANSPORT, EXCEPTIONAL TRANSPORT WITHIN 3 METERS IN WIDTH IS REQUIRED Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-10

Code: 0409 Brand: THEOREMA Model: BR 3000 SPECIAL - CE Standard CNC boring and pantograph working centre with 3 controlled axis for furniture, kitchens, bathroom furniture, panels, doors and miscellaneous - CE standard Technical data: Minimum overall dimensions Useful length X axis mm 3000 Useful length Y axis mm 1300 X axis speed mt/min 24 Y axis speed mt/min 24 Z axis stroke mm 65 Max panel thickness mm 65 Boring unit with n° 18 spindles - Right-left drill chuck diameter mm 10 - Rpm 4000 Pantograph with pneumatic tool release - Motor Hp 7,5 - Rpm 0/18000 - Inverter for spindle Kw 5,5 Nesting worktable Suction cups mm 150 x 150 Rapid panel positioning Optimisation of the drilling path Specularity of drilling and milling cycles Interpolation on three X-Y-Z axis Vacuum pump cubic metres 100 Compressed air atm 6 Overall dimensions: mm 4400 x 1700 x 2400 h Weig ...

Machine is disassembled into dimensions of truck, mega trailer needed for transport. 13 Loading Meter Machine pick-up by appointment, loading not possible on pick-up days Auction-ID: A1-44905-108

Key data: 3000 mm, 900 mm, 200 mm

SPECIFICATIONS: Workspace: X: 3000 mm Y: 900 mm Z: 200 mm Main motor: 9.9 kW 18000 rpm CNC control No tool changer 1 vacuum pump 3 kW 120 m³ 6 positionable bars

In order to submit a bid on this lot, a deposit of €1300.00 is required. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-9

Flatbed panel and panel machining center equipped with three, four or five CNC axes. These CNC machines are suitable for the processing of solid wood panels – HPL – laminate boards such as FUNDERMAX® – chipboard – MDF boards – plastic boards (e.g. – PVC / PE) – synthetic resin boards and other boards and panels that can be tensioned by vacuum. The machines of the PLANUS series are offered with two different clamping options. - In version 1 - the material tension is done by vacuum on a synthetic resin plate - in version 2 - the material tension is also carried out by vacuum, but the suction blocks are located on tensioner bridges that can be moved lengthwise. Drilling – milling – sawing, all with one machine. The machines can be configured according to the customer's requirements. - Milling spindle drive power 11 kW to 18 kW - Tool holder in the SK30/SK40  ...

A deposit of €300.00 is required in order to submit a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Positioning accuracy +/- 10  Repeatability +/- 5 24-position tool changer Max tool diameter 75 mm Max tool length 250 mm Max tool weight 6 kg Work tables, utensils and accessories included WARNING! FOR TRANSPORT, EXCEPTIONAL TRANSPORT WITHIN 3 METERS IN WIDTH IS REQUIRED Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-7

ALBERTI 5-axis machining center model POLAR EVOLUTION 3.5 CN: – maximum working range 3500 x 1637 mm – Z-axis stroke 600 mm, thickness machinable on suction cups 160 mm – 2 phenolic resin worktops of 1700 x 1632 mm: for alternating or synchronous machining "vacuum free" type, with holes connected to the vacuum system, NC-controlled zero points and retractable stops, with 12 blocks of suction cups with double vacuum chamber (without hose) Becker vacuum pump + pneumatic clamps for small parts – Automatic lubrication, optimised and centralised suction – electronic control with TPA and ALBATROS software, visualization program in Windows environment, EDI32-TPA EDITOR (CAD-CAM 3D) – machine in compliance with CE standards, with double front concealed barrier (for loading/unloading of the 2 worktops) and perimeter protections – machine di ...

A deposit of €1500.00 is required in order to submit a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Rotary table diameter 700 mm 24-position tool changer Cutting speed 15000 mm/min Fast feed speed 30000 mm/min Tables, utensils and accessories included Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-8

SCM machining centre model RECORD 220 : - Useful axis stroke 3250 x 1300 x 300 mm - workpiece useful passage 320 mm - 3180 x 1250 mm multifunctional worktop - 3+3 reference stops for pendulum machining - Becker vacuum pump of 250 mc/h - Centralized automatic lubrication - NUM 1040 electronic control, with Alphacam software - machine according to CE standards, with bumpers and perimeter protections - year of production 1998 - Machine weight kg 8100 Operating units: - vertical electrospindle with inverter 900 – 18,000 rpm, ISO30 connection, with 4th VECTOR rotary axis, served by an on-board tool changer 10-position (RAPID 10) - drilling unit with vertical axis with independent control and encoder, and with 39 spindles as follows: 15 vertical spindles on X-axis 14 vertical spindles on Y-axis 2+2 horizontal spindles on X-axis 3+3 horizontal  ...

A deposit of €5500.00 is required in order to place a bid on this lot. To receive the bank details necessary for the transfer, please contact the auction representative at alessandro.icardi@surplex.com. Fast feed speed 42 m/min Cutting speed 1-8000 mm/min 30-position tool changer Max tool diameter 80-125 mm Max tool weight 8 kg X-axis positioning accuracy 0.015 mm Positioning accuracy Y/Z axes 0.010 mm X-axis repeatability 0.006 mm Y/Z axis repeatability 0.004 mm Tables, utensils and accessories included WARNING! FOR TRANSPORT, EXCEPTIONAL TRANSPORT WITHIN 3 METERS IN WIDTH IS REQUIRED Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-43861-11
