The NeoDen ND2 is an advanced SMT automatic screen printer designed
for easy operation, high precision, and high stability PCB solder
paste printing.With a repeat position accuracy of +/- 10.0 micron at 6
sigma and Cpk of 2.0 or greater, the ND2 delivers superior precision
over its predecessor the ND1.
Manufacturer: NeoDen
Model: ND2 Fully Automatic Visual Printer
Year of Manufacture: 2026
Type of Machine : Stencil Printer
Technical Specifications
- Maximum PCB size: 450x350 mm
- Minimum PCB size: 50x50 mm
- PCB thickness: 0.4 mm to 6 mm
- Maximum PCB weight: 3 kg
- Transmission speed: 1500 mm/s maximum
- Transfer height from ground: 900 +/- 40 mm
- Transfer direction: left-right, right-left, left-left,
right-right
- Template frame size: 470x370 mm to 737x737 mm
- Maximum print area: 450x350 mm

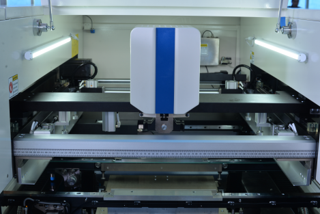

- Print head: floating intelligent printing head with two independent
direct connected motors
- Scraper type: steel or rubber, angles 45 / 50 / 60 degrees
- Scraper length: 300 mm standard (optional 200 mm to 500 mm)
- Scraper blade thickness: 0.25 mm diamond-like carbon coating
- Print mode: single or double squeegee
- Print speed: 0 to 200 mm/s
- Print pressure: 0.5 kg to 10 kg
- Demoulding length: 0.02 mm to 12 mm
- Printing stroke: +/- 200 mm from center
- Field of view (FOV): 8x6 mm
- Platform adjustment range: X +/- 5.0 mm, Y +/- 7.0 mm, theta +/- 2.0
degrees
- Repeat position accuracy: +/- 10.0 micron at 6 sigma, Cpk 2.0 or
greater
- Printing repeatability: +/- 20.0 micron at 6 sigma, Cpk 2.0 or
greater
- Cycle time: less than 7 seconds (excluding printing and cleaning)
- Product changeover time: less than 5 minutes
- Power: AC 220V +/- 10%, 50/60Hz, 15A
- Compressed air: 4 to 6 kg/cm2
- Operating system: Windows 7
- Machine dimensions: 1152x1415x1540 mm (L x W x H)
- Machine weight: approximately 1000 kg
Key Features and Highlights
- Floating intelligent printing head with two independent
direct-connected servo motors for higher
accuracy, stability and extended service life
- Scraper Y axis servo motor with screw drive for improved accuracy,
operational stability, and
longer lifespan
- Special PCB thickness adaptive system with automatic platform height
calibration based on
PCB thickness setting
- Programmable elastic side clamp with automatic plate thickness
adjustment and edge locking
- Board support via magnetic thimble and equal height blocks, with
optional vacuum suction
cavity and special workpiece fixture

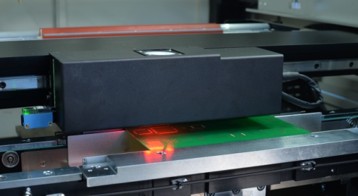

- Four-way adjustable light source with uniform illumination for
perfect mark point identification
on tinning, copper plating, gold plating, tin spraying, and FPC PCB
types including uneven mark
points

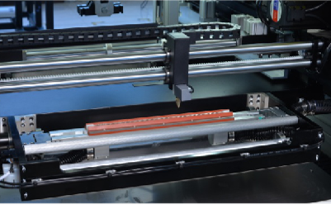

- Independent up and down CCD camera vision system with geometric
matching positioning
- High efficiency stencil cleaning system with dry, wet, and vacuum
modes in any combination,
with soft wear-resistant rubber wiping plate and universal length
wiping paper
- 2D solder paste printing quality inspection detecting offset,
insufficient tin, missing print, and
connecting tin defects with unlimited detection points
- SPC software for CPK index analysis ensuring consistent printing
quality
- PCB clamping with optional overall bottom suction vacuum and bottom
multi-point local vacuum
- Product changeover in under 5 minutes for fast line change
efficiency
