multi spindle lathe used for sale

pressure:400 t distance between columns:1100 mm stroke:250 mm no. of strokes:25 - 75 /min distance table/ram, max. stroke up, adjustment up:900 mm table surface area:1100 x 965 mm capacity of ejector in table:30 t ejector stroke of ejector in table:80 mm capacity of ejector in ram:3 t stroke of ejector in ram:60 / 70 mm ram surface:980 x 800 mm column travel -side:800 mm ram adjustment:20 mm power capacity:80,0 + 5,5 kW weight:47,0 t Dimensions (WxDxH):3,5 x 3,3 x 6,0 m weight of switch cabinet:1,4 t dimensions of electrical cabinet (WxDxH):4,9 x 0,5 x 2,6 m ejector in ram:hydraulic

pressure:400 t distance between columns:1060 mm stroke:450 mm no. of strokes:15 - 30 /min distance table/ram, max. stroke up, adjustment up:1160 mm table surface area:1000 x 700 mm capacity of ejector in table:2 x 16 t ejector stroke of ejector in table:125 mm Die cushion pressure in table:120 t Die cushion stroke in table:2 mm capacity of ejector in ram:2 x 4 t stroke of ejector in ram:100 mm ram surface:1000 x 700 mm column travel -side:630 mm power capacity:55,0 kW weight:50,0 t die cushion in table:2. station

Work spindle, drill spindle, Tool spindle, HSK 40, AD68mm, Mapal, mint condition Special price If you have a VAT number, we will gladly issue you an invoice without VAT. Mint condition! The part was purchased from a spare parts warehouse of a company, was there for a long time in stock but never in operation and is in a completely mint condition. Work spindle, drilling spindle, tool spindle from Mapal, - tool holder HSK 40, incl. flinger ring and cover ring, - Length bearing body 129 x D 68mm, 5 roller bearings AD 68 mm, - Incl. Rotex coupling with gear rim drive side for shaft D25 mm, - Overall dimensions: 270 mm x D 68 mm, 5kg, Functional guarantee! We cannot provide a conventional guarantee and warranty for second-hand parts. However, we give you a functional guarantee. If the unit does not function when it is put into operation, you can return the goods and we wi ...

Work spindle, drill spindle, Tool spindle, HSK 50, AD80mm, Mapal, mint condition Special price We still have several identical and other such devices, but the amount is ending. Buy more than 1 piece, there is still a great discount. If you have a VAT number, we will gladly issue you an invoice without VAT. Mint condition! The part was purchased from a spare parts warehouse of a company, was there for a long time in stock but never in operation and is in a completely mint condition. Work spindle, drilling spindle, tool spindle from Mapal, - tool holder HSK 50, incl. flinger ring and cover ring, - Length bearing body 149 x D 80mm, 5 roller bearings AD 80mm, - Incl. Rotex coupling with gear rim drive side for shaft D35mm, - Overall dimensions: 305mm x D 80mm, 8kg, Functional guarantee! We cannot provide a conventional guarantee and warranty for second-hand parts. Howev ...

Working spindle, drilling spindle, tool spindle, HSK 63, AD80mm, Mapal, as good as new Special price We still have several identical and other such devices, but the amount is ending. Buy more than 1 piece there is still a great discount. If you have a VAT number, we will be happy to issue you with an invoice without VAT. As good as new! The part was bought from a spare parts warehouse of a company, has been in stock there for some time but has never been in operation and is completely new Working spindle, drilling spindle, tool spindle from Mapal, - Tool holder HSK 63, incl. centrifugal ring and cover ring - Length of bearing body 149 x D 80mm, 5 rolling bearings AD 80mm, - Incl. Rotex coupling with gear rim drive side for shaft D35mm - Overall dimensions: 305mm x D 80mm, 8kg Functional guarantee! For second-hand parts, we cannot provide a conventional guarantee and w ...

Quick-opening milling spindle HENNINGER type 814 / 5131 / 1:5 / 15000speed max. 15000 rpm at 70% EDratio ratio 1:5Power transmission up to approx. 2.5 kWProduct dimension 110 mm (machine spindle to clamping nutTool holder MK4 with tightening thread M16Collets type OZ16 6 / 8 / 9 / 10 / 11 / 12 / 12.5 / 13 / 14 mmWeight 6.5 kgGood condition; used

Spare parts for Tischbohrwerk VO / Stankoimport / Gertner, Fuhrmeister & CO E.g. complete spindle SK50 Ball screw spindles from the three axes Electric motors, 3 x feed motor, spindle motor complete control Siemens or control cabinet Control Panel with digital device Glass scales Detachable faceplate diameter 360 mm Radial movement of the faceplate-support 100 mm Converter / transformer Angle drilling head Dividing head Spindle diameter ø 110 mm tool holder ISO 50 Technical data of the original machine Travel along approx. 1.000 mm cross travel approx. 1.600 mm of vertical stroke 1,000 mm Longitudinal movement of retractable spindle 710 mm Speed range 10-1,250 RPM Main engine 11kw Speeds 10-1,250 RPM in 22 gear stages Extensive documentation of machine including operating instructions, description, electrical documentation, etc. More photos on request

Spare parts for table drilling rig SVO / Stankoimport / Gertner, Fuhrmeister & CO Such as. complete drilling spindle SK50 (Please note the attached pdf-file with a drawing of the spindle) Ball roller spindles from the three axes Electric motors, feed motor 3x, main spindle motor complete control Siemens or control cabinet Control panel with digital device Glass mass Removable flat disc diameter 360mm Radial movement of the support of the flat disc 100mm Transformer / Transformer Angular drill head Sub-apparatus Spindle diameter 110 mm Tool holder ISO 50 Technical data of the original machine Travel laengs approx. 1,000 mm Cross-travel approx. 1,600 mm Vertical travel 1,000mm Laeng movement of the extendable spindle 710mm Speed range 10-1.250 rpm Main engine 11kw Speeds 10 - 1,250 rpm in 22 gear stages Extensive machine documentation including user manual ...

Machine spindle, precision spindle, double grinder spindle, precision spindle for belt drive, belt drive spindle, grinding spindle -Machine spindle: Grinding spindle Precision spindle -Type: unfortunately without type designation -Roll: Ø 80 x 160 mm -Total dimensions: Ø 80 x 270 mm -Weight: 3.5 kg

Machine spindle, precision spindle, double grinder spindle, precision spindle for belt drive, belt drive spindle, grinding spindle -Manufacturer: Fortuna, grinding spindle precision spindle -Type: 15.UJ60 64 110 -Dimensions: see photos -Total dimensions: Ø 60 x 455 mm -Weight: 6.7 kg

Machine spindle, precision spindle, double grinder spindle, precision spindle for belt drive, belt drive spindle -Manufacturer: Jung, machine spindle -Type: MP 5z -Speed: max rpm -Recording: Dimensions see photos -Dimensions total: 460/210/115 mm -Weight: 16.2 kg

Machine spindle, precision spindle, double grinder spindle, precision spindle for belt drive, belt drive spindle -Manufacturer: Jung, machine spindle -Type: MP 10z -Speed: max rpm -Recording: Dimensions see photos -Dimensions total: 545/210/120 mm -Weight: 23.5 kg

Machine Type: High-Speed Spindle Drive Unit with Motor Spindle Manufacturer: Nakanishi Series: iSpeed3 Controller Model: NE273 Spindle Type: High-Speed Electric Motor Spindle Input Voltage: AC 230 V, 50/60 Hz, 1 Phase Input Current: 0.55 A Output Voltage: AC 23.4 V Output Current: 2.0 A Output Frequency Range: 0 – 1.33 kHz Controller Features: Digital speed control, forward/reverse rotation, motor selection, external I/O interface Indicators: Run, Warning, Error, Load, Auto/Manual status LEDs Connections: Dual motor ports, external control I/O, power input Spindle Construction: Precision cylindrical motor spindle with connection cable Application: High-speed milling, grinding, engraving, deburring and precision machining operations Country of Manufacture: Japan Condition: Used Included Accessories: Nakanishi iSpeed3 controller, motor spindle, connecti ...

Machine Type: High-Speed Electric Spindle System Manufacturer: Nakanishi Controller Model: E3000C (Model NE141) Spindle Model: HES510 Country of Manufacture: Japan Controller Input: AC 100–240 V, 50/60 Hz, 1 Phase, 1.8 A Controller Output: AC 33 V, 3 Phase, 2.4 A Output Frequency: 0 – 1 kHz Spindle Speed: up to 50,000 min⁻¹ (rpm) Spindle Power: approx. 1.0 kW Spindle Type: Air-cooled high-speed machining spindle Tool Interface: Precision collet spindle Display: Digital speed display and load indication Control Functions: Start/Stop, Forward/Reverse, Manual/Auto, Speed Adjustment, Gear Selection Connections: Motor connection, external I/O interface, serial interface Accessories Included: Controller, HES510 spindle, interconnection cables, air filter/regulator unit Condition: Used Remarks: System powered on during inspection. Controller display ind ...

machine spindle, precision spindle, double grinder spindle, precision spindle for belt drive, belt drive spindle -Manufacturer: GMN, grinding spindle precision spindle for belt drive -Type: TSAV 140s x 270-6212 L 260980 Overbeck 01340 -Mounting: cone on both sides Ø48/56 mm / thread M40 x 1.5 -Grinding disc holder: Ø 127 mm -Dimensions: see photo sketch -Total dimensions: Ø140 x 450 mm -Weight: 30.3 kg

Machine spindle, precision spindle, double grinder spindle, precision spindle for belt drive, belt drive spindle -Manufacturer: DKF, grinding spindle precision spindle -Type: 6.251/23 -Speed: max 12500 rpm -Cylinder: Ø 80 x 250 mm -Mounting: cone on both sides Ø27/21 mm see photos -Number: 3x spindle available -Price: per piece -Total dimensions: Ø 80 x 350 mm -Weight: 8.8 kg/piece

Machine spindle, precision spindle, double grinder spindle, precision spindle for belt drive, belt drive spindle, grinding spindle -Manufacturer: Voumard, grinding spindle precision spindle -Type: C 40-9 D -Recording: M6 -Dimensions: Ø 90 x 335 mm -Transport dimensions box: 480/320/H225 mm -Weight: 17.8 kg

number of spindles:8

number of spindles:6 spindle passage:18 mm turning length:63/50 mm weight of the machine ca.:4,5 t spindle drive motor:11 kW

number of spindles:6 spindle passage:18 mm turning length:63/50 mm weight of the machine ca.:8,6 t spindle drive motor:11 kW

Number of spindles: 6, max. bar capacity: 42mm, max. machining diameter: 42mm, speed: 5000rpm, machining slides: 4, number of slides front/rear: 4/2. Machine dimensions X/Y/Z: approx. 7200mm/1700mm/2300mm, weight: approx. 10000kg. The machine has an electrical problem as a result of which the control does not start up. Documentation available. On site inspection is possible.

Two Schütte six-spindle turning machines including one Iemca bar feeder are available. 1) Schütte SF 42, year of manufacture: 1977, number of spindles: 6, max. bar capacity: 42mm, max. longitudinal slide stroke: 125mm, speed: 2240rpm, machine dimensions X/Y/Z: approx. 6500mm/1400mm/2200mm, weight: approx. 10000kg. Including pick-off spindle, cams, collets, chip conveyor, oil mist extraction system and Iemca PRA40/33/P bar feeder. 2) Schütte SF 51 DNT, year of manufacture: 1987, max. bar capacity: 51mm, number of spindles: 6, max. turning length: 102mm, max. drilling depth: 102mm, spindle circle diameter: 340mm. Including pick-off spindle, CNC cross slide in position 4, cams, collets, auxiliary coolant pump and chip conveyor. Documentation available. An on-site inspection is possible.

Ref. -No.: 10421 Manufacturer: SCHüTTE Year of construction: 2015 Type of control: Digital Control: Digital Storage location: Halberstadt Country of origin: Germany Serial no.: 3 Power consumption: 35 kW Weight Of The Machine Ca.: 6,6 t

Index 2x MS 40 + 1x A200Year of manuf. : 2012 Control : Siemens 840 D ____________Description:Pre-processingManufacturer:IndexType:A 200Year of construction:2012Control system:Siemens 840 DNumber of slides:5 piecesBar feeder:IEMCA Master 880Chip disposal:Chip conveyorProcessing 1 (OP10):Manufacturer:IndexType:MS 40 CYear of construction:2012Control system:Siemens 840 DNumber of spindles:6 piecesParts handling:Streuli robotChip disposal:Chip conveyorCoolant supply:IKZ systemProcessing 2 (OP20):Manufacturer:IndexType:MS 40 CYear of construction:2012Control system:Siemens 840 DNumber of spindles:6 piecesParts handling:Streuli robotChip disposal:Chip conveyorCoolant supply:IKZ systemLinkage:Robots:KukaParts transport:Conveyor belts

number of spindles:6 spindle passage:22 mm ?Bar feeder complete is 4.70 meters - for 3 meters of material ?The machine is still on ?Materail to be processed on the machine: Steel ?Production with OIL Machine has only Single-NCU without PCU. The complete energy supply of all 6 main spindles was replaced in April 25. No socket for powered tools!

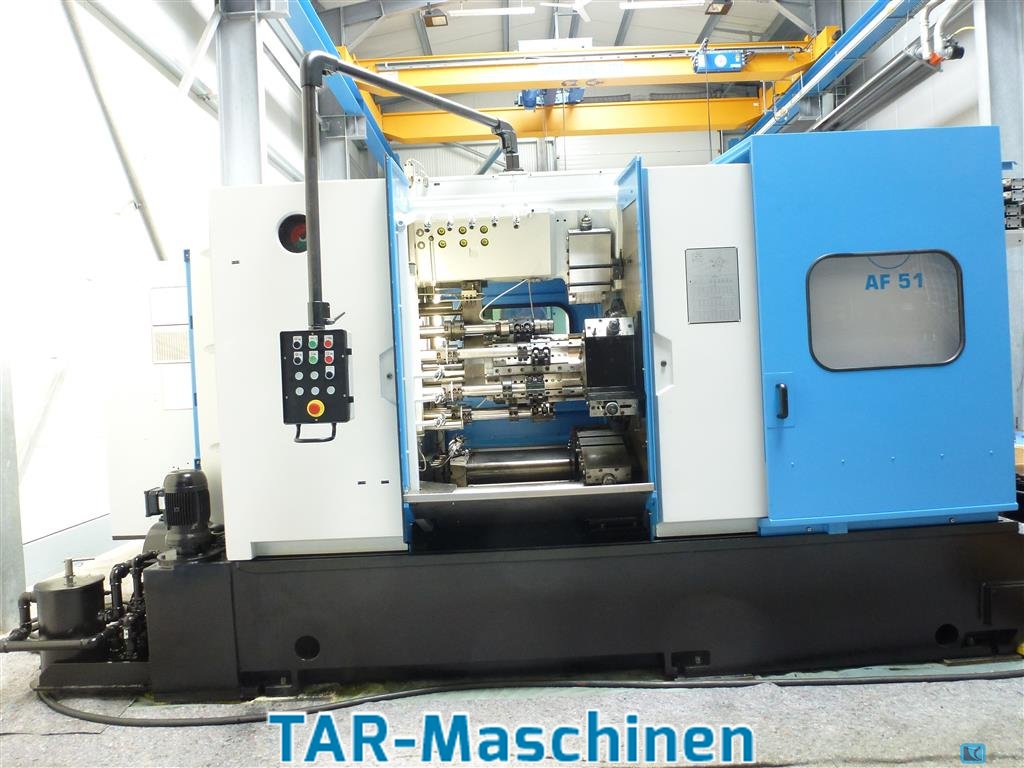

number of spindles:8 spindle passage:51 mm Article: multi spindle automatic lathe Manufacturer: Schütte Type: AF51 Yob: 1987 eight main spindles max. bar diameter D=51mm control SIEMENS SIMATIC S5 pick up in pos. 7, for rear machining thread cutting drive independent feed in positions 2/3 electronical trip dog control ?Balluff? clear text display Wöhrle coolant pump magnetic cartridge filter oil running incl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type) Painting in light blue and light grey The configuration of tooling will be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:51 mm Schutte SF51 DNT, yob. 1987, our ID #61868 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF51 DNT Yob: 1987 Six-spindle automatic lathe with 6 main spindles max. nominal diameter D=51mm electronic cam control Balluff gripper in position 6 for backworking, sorting chute independent longitudinal feed layer 5 screw chip conveyor Tapping couplings Interface for: Bar feeder IEMCA PRA Bar feeder IEMCA PRA40/33/F Scope of delivery without the blue chip conveyor The tooling will differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 Dnt Yob: 1993 eight-spindle automatic lathe eight main spindles for bars up to D=32mm Modernized control: Siemens Sinumerik Motors: renewed modern motors suitable for modernized control system Electronic trip dog control: Balluff CNC cross slide position 5 cross CNC cross slide position 6 cross Preparation for gripper in position 8 (gripper optional) Independent feeds Thread cutting couplings integrated bar loader: Pietro CUCCHI; type: rack type magazine The scope of delivery regarding the tooling equipment could be different like pictures.

number of spindles:9 spindle passage:46 mm Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SC9-46 Yob: 2016 Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindles Main spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 Nm Cross slide units, transverse: 6 units, in positions I to VI, Slide units, longitudinal: 5 units, in positions I to V, Slide units, longitudinal: 5 units, in positions I to V, Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpm Cross slide units, transverse: 2 units, in positions VIII and IX, Control: Siemens SINUMERIK 840SL with double NCU Software: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted, Spindle coupling package ?CP-Expert?, for up to 8 spindle couplings (maximum expansion) Synchronous action package ?Level? 2, incl. cross-mode actio ...

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SFH130 Yob: 1995 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC Dnt drive loading and disloading in position 6 additional cooling pump with magnetic spark plug filter Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

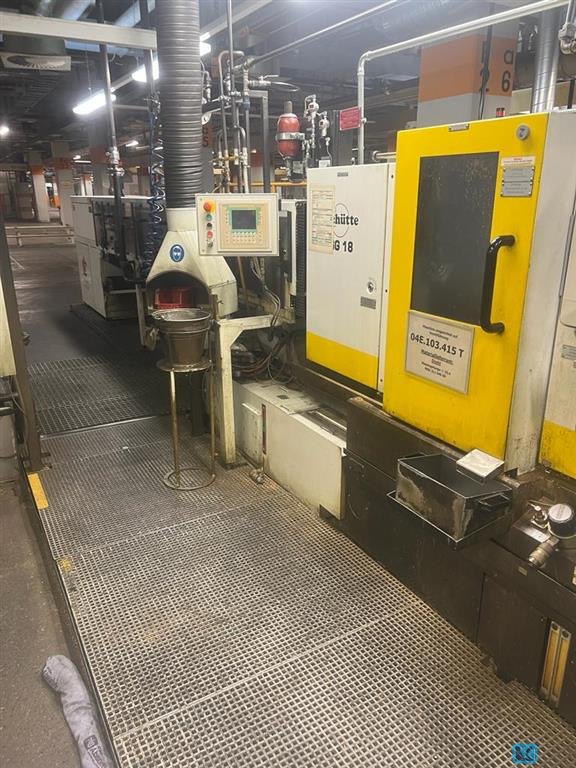

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SG18 Yob: 1999 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC loading and disloading in position 6 spindle brake Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF20 S Dnt Yob: 1999 Six-spindle automatic lathe with 6 main spindles max. nominal diameter: D=20mm Spindle drum hirth coupled, CNC cross slide in positions 4, CNC cross slide in positions 5, pick up in position 6, sorting chute, 1x independent feed, thread cutting couplings, workpiece belt, Coolant tank with hinged belt chip conveyor Ruez, Oil/steel operation, PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611, The scope of delivery regarding the tooling equipment could be different like pictures. Interface for: IEMCA PRA bar loading magazine (optional: IEMCA PRA40/31/ built in 1997 rear loader)

number of spindles:6 spindle passage:36 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=36mm! Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images; various collets are included in delivery up to D36mm Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2001 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

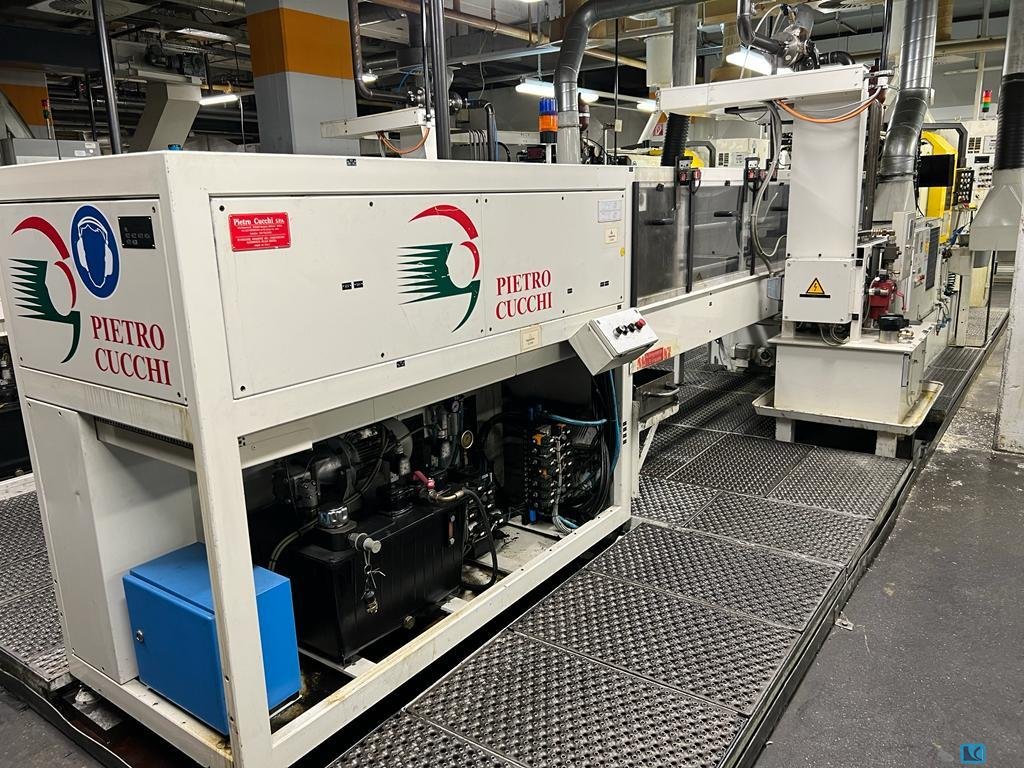

spindle passage:36 mm Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: A36PC Yob: 2005 Loading magazine by Pietro Cucchi Knoll unit 7 radial cross-type carriages 2 additional speed motors in 4th and 5th positions 2 additional speed motors for front spindles in position D (pick-up) and B (for front motorized spindle) 1 polygon cutter 1 motorized front spindle 1 radial motorized in position IV for cross-type carriage 1 radial motorized in position V to be mounted on X-type carriage only (no cross-type carriage) 1 straight head for motorized position IV 1 90-degree tilted head for motorized position IV 1 tilt-adjustable head for motorized position IV Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AFH130 with CNC Yob: 1990 eight-spindle automatic lathe 8 main spindles Chucker AFH130 for complete machining means front- and back side Control Siemens Sinumerik 840DI complete revising and new configuration of this machine in year 2010. loading arm, for loading and disloading Workpiece turn around station in pos. 4 position 4 with workpiece length control CNC compound slide in pos. 5 coolant pump with magnet candle filter delivered tooling: could be different like pictures option: Ergomat TBF42 for cutting off for half finnishing with FMB-Turbo Visiting under production condition is possible Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

multi spindle automatic lathe Schuette SF 13 built in 1991 - pick up with back side tooling -Thread cutting gear - chip conveyors - PLC control and much more.

Drilling and threaded spindles, with FIBRO round board approx. 800 mm, See pictures

Threaded drilling machine with up to 10 spindles, adjustable drilling pattern

Multi spindle automatic lathe Saeid 13-6 DNT SF Year of construction 1989 Adjustment of speed and cycle time by servo motor Facilities: -Pick-up device with rückw. Editing -Thread cutting gear -Waheed clear text display -pivoting control panels -PLC control etc.

Schuette multi spindle automatic lathe Pour SF 20-6 Curve controlled number of spindles: 6 with mechanical transmission Rod diameter: approx. 20 mm SW 17 mm AK 18 mm UK 14 mm Max bar feeder: 80 /(160) mm Independent longitudinal slide number: 6 Total / working ways (Standart): 63/40 mm "" (Special) to: 100/63 mm Number of independent cross slide: 6 Total / working ways middle and upper carriage up: 32/20 mm Lower carriage up: 40/25 mm Spindle diameter: 224 mm Main time min/max: 0.36/150 sec. Productive time min./max.: 0.45/0.80 sec. Spindle speed from / to: 900-5000 U/min 2. area: 355-2000 U/min Nominal power of the motor: 15 KW Power supply: 50 kVA The drive motor speed: 1500 rpm Length width (standard execution) 3705 1320 mm incl. Rod Guide (standard execution) 6335 mm Approximate weight without rod guide and accessories: 4.6 to. the rod gu ...

8-spindle rotary machine Built in 1989; serie 25 Refurbished in 2012 • New electrics • New bearings • Guided tours • CNC cross slide in position 7 • Spindle stop setup • Material rod guide • Chip conveyor • Pick-up spindle position 8 • Calibration device • Various tool holders • Various curves

Type: MZ73031A Number of spindles 3 Distance between first and last spindle 50 mm Adjustable drilling speed Height of the working table 820 mm Table dimensions 735×440 mm Number of clamps 2 Motor power 1,5 kW 400 V Motor r.p.m. 2800 r.p.m Working air pressure 6-8 bar Weight 75 kg Transporting dimensions 900x700x1500 mm

Schuette Multi-spindle rotary machine Name: Schuette SF 20-6 Curve controlled Number of spindles: 6 Built: 1980 max. rod diameter: around 20 mm SW 17 mm AK 18 mm VK 14 mm max. rod feed: 80 /(160) mm Number of independent Laengsschlitten: 6 Total / working distances (stand): 63/40 mm " " (special) up to: 100/63mm Number of independent cross slides: 6 Total/ work routes Medium and top slide up to: 32/20 mm Slide up to: 40/25 mm Spindle circle diameter: 224 mm Main times min/max.: 0.36/150 sec. Gv29e0 Off times min./max.: 0.45/0.80 sec. Spindle speed from / to: 900-5000 rpm in the 2nd area: 355-2000 rpm Rated power of the drive motor: 15 KW Connected power: 50 kVA Drive engine speed: 1500 rpm Length Width (in standard performance) 3705 1320 mm incl. rod guide (in standard output) 6335 mm Weight without ro ...

Schuette multi-spindle rotary machine SF 26-6 1980 built -with thread cutting device - prepared for centrage suction system - standard Schuetz control D8gdo29 - mechanical gearbox - Balluff cam switch - standard rod guide

Thread cutting gear Pick-up device partially revised

Gildemeister 6-spindle rotary machine, curve controlled max. rod passage: 32.0 mm for rods up to 3.30 m - incl. rod guide, - Steel processing, run with cutting oel - easily equipped with tools Cmvlgfoyc - 1 set of clamping and feed pliers - Alternating wheels (on machine) - 1 set of curves for cross slides - 1 set of curves for main slide

Schuette multi-spindle rotary machine SF 50/51-6 Rod turning machine run on schneidoel standart Schuetz control mechanical gearbox Hydraulics integrated into the machine with snail-spaenefoerer

Schuette multi-spindle rotary machine SF 26-6 1984 built - mechanical gearbox - independent feed from the Laengsschlitten Position 4 - Thread cutting gear with thread cutting spindle

Gildemeister 6 Spindle Lathe AS 32-6 - Spindle stop set-up - Pneum pick-up device. - Zubehoer at an extra cost - Cross hole drilling - Thread cutting gears - Thread cutting device - wahlw. Fraeseinrichtung Querschl. - Spaenefoerderer
