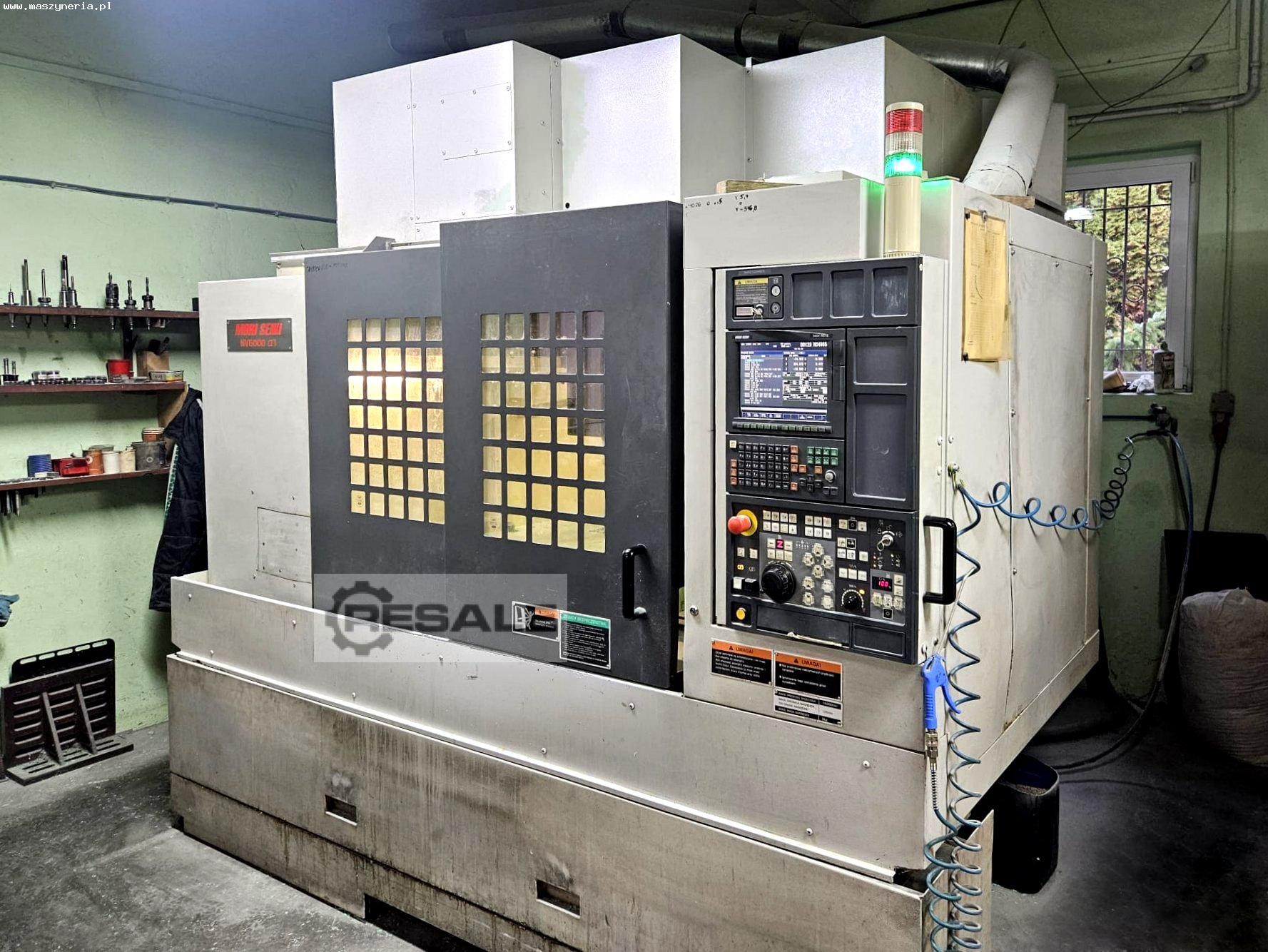

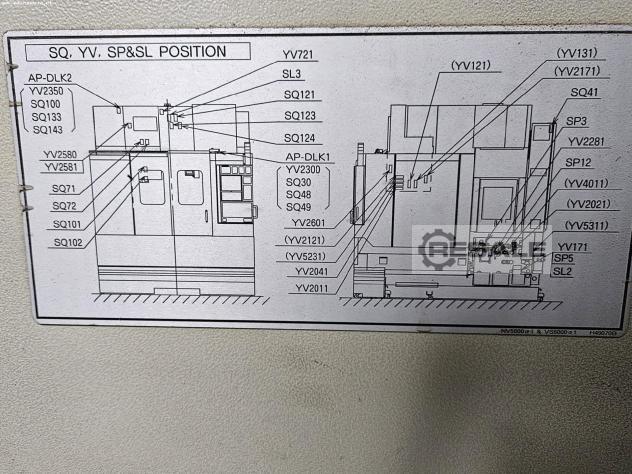

MORI SEIKI NV5000 alpha 1B/40 CNC machining center was built in 2007
in Japan by Mori Seiki Co., LTD. The machine is designed for precision
machining of heavy workpieces weighing up to 1200 kg. The machining
process is performed fully automatically by means of a reliable
spindle and tools taken from a 30-position magazine. High power and
rotational speed of the spindle enable performing efficient roughing
as well as finishing operations. The workspace, on the other hand, has
been fully maximised to ensure the freedom of the performed
operations. All this is complemented by an advanced FANUC CNC control
with MAPPS interactive programming. The NV5000 alpha 1B/40 CNC
vertical machining center is offered with an extensive range of
equipment, consisting of, among others, cooling through the spindle,
chip conveyor and high-pressure pump. The total weight of the machine
is 7300 kg.

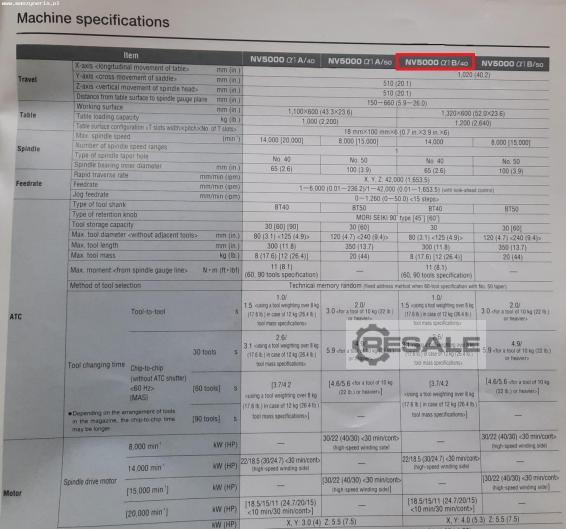

Technical specifications of the MORI SEIKI NV5000 alpha 1B/40 CNC
milling machine
- feed in the X/Y/Z axis: 1020/510/510 mm
- rapid traverse in the X,Y,Z axis: 42 m/min
- work table dimensions (L x W): 1320 x 660 mm
- maximum workpiece weight: 1200 kg

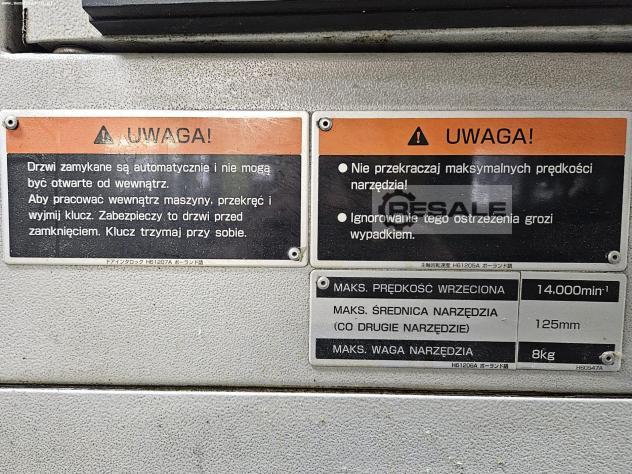

- maximum spindle rotational speed: 14000 rpm
- spindle taper: No 40
- spindle drive power: 22 kW
- spindle bearing diameter: 65 mm
- maximum distance from spindle face to work table surface: 660 mm
- minimum distance from spindle face to work table surface: 150 mm
- tool holder: BT 40
- maximum tool diameter (adjacent positions empty): 125 mm
- maximum tool diameter (adjacent positions occupied): 80 mm
- maximum tool length: 300 mm
- maximum tool weight: 8 kg
- tool change time (tool-to-tool): 1 s (1.5 s for an 8 kg tool)
- tool change time (chip-to-chip): 2.6 s (3.1 s for an 8 kg tool)
- power supply: 3x 200 VAC; 50 Hz
- dimensions (L x W x H): 2788 x 3040 x 2603 mm
- weight of the NV 5000 1B/40 machine: 7300 kg
Equipment of the MORI SEIKI milling center
- CNC controller: FANUC Series 18i MB5
- MAPPS interactive programming
- 30-position tool magazine
- cooling through the spindle
- spindle cooling unit
- chip conveyor
- coolant tank with 15 bar high-pressure pump and paper filter
- electronic knob
- lamp indicating machine status
