used Horizontal Numerically Controlled Machining Centres for sale

travel: 0 mmlength: 0 mmwidth: 0 mmspindle head according to: spindle turning speed range: U/minswitching steps: feeding velocity x-Axis min./max.: mmy-Axis min./max.: mmControl: Sinumerik 840 D X- + Z-axis: kWy-travel: 560 mmz-travel: 510 mmx-travel: 560 mmtool taper: SK 40 weight of the machine ca.: 80 tThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description: Control: SIEMENS 840D Shopmill Machine hours: approx. 45000 hours Spindle hours: approx. 28000 hours New spindle approx. 4000 hours / changed at 24000 hours X-axis : 700 mm Y-axis : 800 mm Z-axis : 800 mm Max. table load : 800 kg max. spindle power : 30 kW max. spindle speed : 18000 rpm tool holder : SK40 Number of controlled axes : 4 tool changer : 80 positions NC rotary table, B-axis 0.001°. Clamping surface 500 x 500 mm Torque 5,000 Nm Holding torque 5,000 Nm Workpiece diameter max. 800 mm Workpiece height max. 900 mm Rapid traverse/feed rate 60 m/min Feed force in X/Y/Z 10 kN Chip conveyor Pallet changer Automatic tool measurement: 3 D wireless probe Heidenhain Coolant system with paper belt filter Inner coolant supply system with belt filter Full documentationweight approx.: 12,000 kg, dimensions (l x w x h) approx.: 5,000 x 2,920 x 2,850 mm

Horizontal Machining Center DECKEL MAHO type DMC 80 H duoBLOCK Travel X: 800 mm Travel Y: 800 mm Travel Z: 800 mm Year of construction: 2012 CN: 3D SIEMENS 840 D Tools store: 240 tools Spindle speed: 10 000 RPM Spindle motor: 44 kW/32 kW Linear palets store FASTEMS 1500 2 palets: 630 x 630 mm

x-travel: 1000 mmy-travel: 1000 mmz-travel: 1050 mmControl: Siemens 840 D Solutionlin total power requirement: 99 kWweight of the machine ca.: 23 tdimensions of the machine ca.: 3 x 3 x 5 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mmy-travel: 800 mmz-travel: 800 mmControl: Siemens 840 D total power requirement: 99 kWweight of the machine ca.: 10 tdimensions of the machine ca.: 3 x 3 x 3 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mmy-travel: 800 mmz-travel: 800 mmControl: Siemens 840 D total power requirement: 99 kWweight of the machine ca.: 12 tdimensions of the machine ca.: 3 x 3 x 3 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mmy-travel: 800 mmz-travel: 800 mmControl: Siemens 840 D total power requirement: 99 kWweight of the machine ca.: 10 tdimensions of the machine ca.: 3 x 3 x 3 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mmy-travel: 800 mmz-travel: 800 mmControl: Siemens 840 D total power requirement: 99 kWweight of the machine ca.: 10 tdimensions of the machine ca.: 3 x 3 x 3 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 800 mmy-travel: 800 mmz-travel: 800 mmControl: Siemens 840 D total power requirement: 99 kWweight of the machine ca.: 12 tdimensions of the machine ca.: 3 x 3 x 3 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

DIXI CNC Horizontal MC Year: 2008 Model: DHP50-4X Pallet: Pallet Size (2 Pallets): 500x500mm Pallet Indexing: Full 4th Axis Maximum Load On Pallet: 500kg Travels: X-Axis Travel: 700mm Y-Axis Travel: 700mm Z-Axis Travel: 700mm Spindle: Spindle Speeds (RPM): 12,000 RPM Spindle Taper: HSK A 63 Main Motor (HP): 25 kW Tool Changer: Tool Changer Positions: 220 ATC Machine: Power: 1880 kVA Voltage: 460 / 3 Ph Equipped With: Fanuc 16iMB Control Comes with a lot of new spare parts including a spindle and ball screws. Comments: Great condition. Machine was replaced by a new machine and was making good parts the day it was taken out of service. Reported to be holding two tenths. Low hours on this beautiful machine. Only 11500 cutting hours Pallet rotation is full contouring

x-travel: 560 mmy-travel: 560 mmz-travel: 510 mmturning speeds: 18000 U/min: tool taper: ISO 40 Control: total power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Description: feed rate X/Y/Z/axis 1 - 60,000 mm/min rapid traverse X/Y/Z 60.00 m/min feed force X/Z 9.600 N feed force Y 8.000 N B - axis 360 x 0,001 ° spindle speed - stepless 8.000 rpm drive power 40 % ED 20,00 KW drive power 100% ED 13,00 kW tool holder SK40 torque at 40% / 100% ED 191 / 124 Nm pallet size 2x 400 x 500 mm workpiece weight max. 600 kg feed B-axis 9.250 ° / min tool magazine with 180 tool diameter 90 mm tool diameter with 2 free places 160 mm tool length - max. 350 mm tool weight max. 3,50 / 12,00 kg total power requirement 65,00 kW space requirement approx. 9,00 x 4,50 x 3,50 m Horizontal machining center with control SIEMENS SINUMERIK840D, Coolant system with IKZ, double chain magazine with 180 places, chip conveyor, tool laser measurement BLUM, electron. Handwheel.z-motion: 560 mm, max. workpiece weight between centers: 600 kg, x-motion: 600 mm, y-motion: 560 mm, ...

Control MORI SEIKI ... Celos M730UM Clamping table surface ... 500x500mm Axis X ... 730mm Axis Y ... 730mm Axis Z ... 880mm Spindle speed ... 1-15000 rpm controlled axes ... 3 cooling ... 20bar BT40 workpiece weight... 700kg Total power requirement ... 49kVA Machine weight ... 11350kg Magazine slots ... 40 The machine is in good condition, possible to test under electricity.

CNC controller: M730UM (CELOS) Axes X-axis travel mm: 730 Y-axis travel mm: 730 Z-axis travel mm: 880 B-axis degrees: 360º (1º index) Distance spindle nose - table surface mm: 70 - 950 Feed rates m/min: 60 Rapid traverse m/min: 60 Worktable Number of pallets: 2 Table dimensions mm: 500x500 Maximum workpiece size (D x H) mm: ø800x1.000 Max. workpiece weight kg: 500 Spindle Spindle speed rpm: 15.000 Spindle drive power kW: 37/22 (10/100 %ED) Spindle torque Nm: 250/104 (10/100 %ED) Cooling Cooling through the Spindle Center bar: 15 Tool system Tool holder: MAS BT-40 Tool magazine slots: 40 Max. Tool Diameter With free neighboring places mm: ø170 With occupied neighboring places mm: ø70 Max. Tool Length mm: 550 Max tool weight kg: 12 Chip-to-chip time s: 2,5 Equipment Chip conveyor Infrared probe Signal lamp High pressure pump Tool breakage probe Wor ...

Description: Pallet: 1250x1250mm/1 degree index max. part size: Diameter 2000x1725 mm max. load 5000 kg 60 tool ATC max. tool diameter: 130/300 mm max. tool length: 650 mm Chip conveyor Includes shipping to any major seaport in the world. z-motion: 1,500 mm, max. workpiece weight between centers: 5,000 kg, x-motion: 2,100 mm, y-motion: 1,500 mm, control: Fanuc 31iA, pallet table size: 1250x1250 mm, numbers of pallets: 2, taper: CAT50, power capacity - spindle: 22/26 kW, spindle torque: 3,439 Nm, toolchanger positions: 60, turning speed range: 6,000 rpm, rapid motion: 24 m/min, total power requirement: 45 kW, weight approx.: 31,500 kg, dimensions (l x w x h) approx.: 10,530 x 5,850 x 4,000 mm

Ref. -No.: 10024Brand: FOREST LINEType of control: CNCControl: Siemens Sinumerik 840 CStorage location: Mülheim an der RuhrCountry of origin: FrankreichX-Travel: 2500 mmY-Travel: 2000 mmZ-Travel: 1800 mmMachine length: 13250 mmMachine width: 9503 mmMachine Height: 5229 mmSpindle Diameter: Ø 150 mmTable Dimensions (Lengthxwidth): 1250 x 1600 mmNumbers Of Tools In Magazin: 130 Rapid Traverse X-Axis: 15 m / minRapid Travel Y-Axis: 15 m / minRapid Traverse (W-Axis): 10 m / minRapid Traverse Z-Axis: 10 m / minMax pallet load: 8000 kgDrive Capacity - Spindle Motor: 40 kWFurther information:Tool cooling Minimum coolingCE conformity CE 96

Horizontal CNC machining center, make: GROB, type: G300, YOC 2007 with CNC control, Fabr. SIEMENS, type: SINUMERIK 840D, machine weight: ca. 11.200 kg

Horizontal CNC machining center, make: GROB, type: G520, YOC 2008, serial number: GM4230/03-02 with CNC control, Fabr. SIEMENS, type: SINUMERIK 840D, travel: X-axis: 750 mm, Y-axis: 800 mm, Z-axis: 865 mm, with additional B-axis: 360 x 0.001, 2 spindles with max. 12,000 rpm each, tool holder: HSK-A63, with 2 tool magazines with 40 tool positions each, machine weight: approx. 23.000 kg, dimensions of space: approx. 4930x3500x3280 mm

Horizontal CNC machining center, make: GROB, type: G520, YOC 2008, serial number: GM4230/03-05 with CNC control, Fabr. SIEMENS, type: SINUMERIK 840D, travel: X-axis: 750 mm, Y-axis: 800 mm, Z-axis: 865 mm, with additional B-axis: 360 x 0.001, 2 spindles with max. 12,000 rpm each, tool holder: HSK-A63, with 2 tool magazines with 40 tool positions each, machine weight: approx. 23.000 kg, dimensions of space: approx. 4930x3500x3280 mm

x-travel: 650 mmy-travel: 500 mmz-travel: 650 mmControl: Siemens 840 D total power requirement: kWweight of the machine ca.: 12,5 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1000 mmy-travel: 1000 mmz-travel: 1000 mmControl: Fanuc total power requirement: 99 kWweight of the machine ca.: 22 tdimensions of the machine ca.: 3 x 5 x 8 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 1000 mmy-travel: 1000 mmz-travel: 1000 mmControl: Fanuc total power requirement: 99 kWweight of the machine ca.: 22 tdimensions of the machine ca.: 3 x 5 x 8 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 630 mmy-travel: 630 mmz-travel: 600 mmControl: Siemens 840 D total power requirement: kWweight of the machine ca.: tdimensions of the machine ca.: 6,2 x 2,5 x 3,2 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

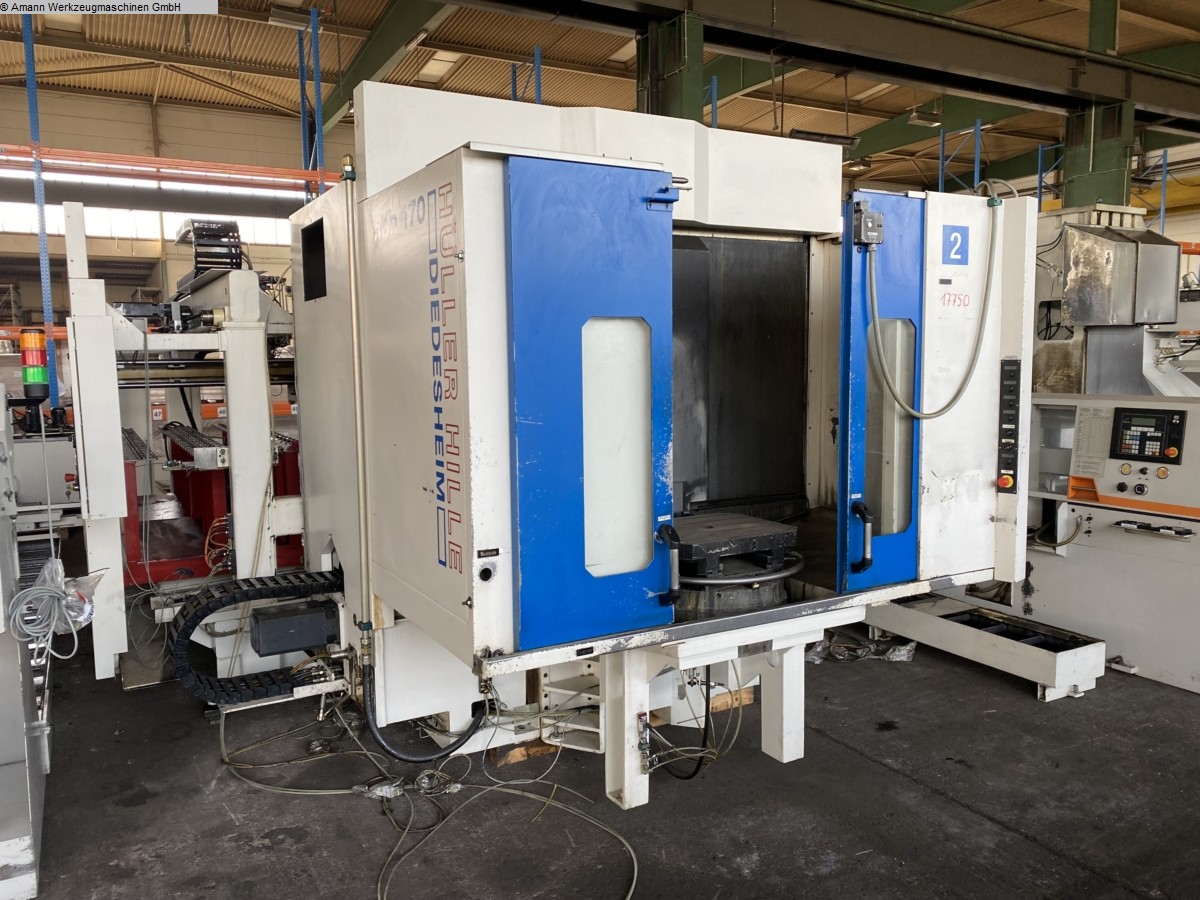

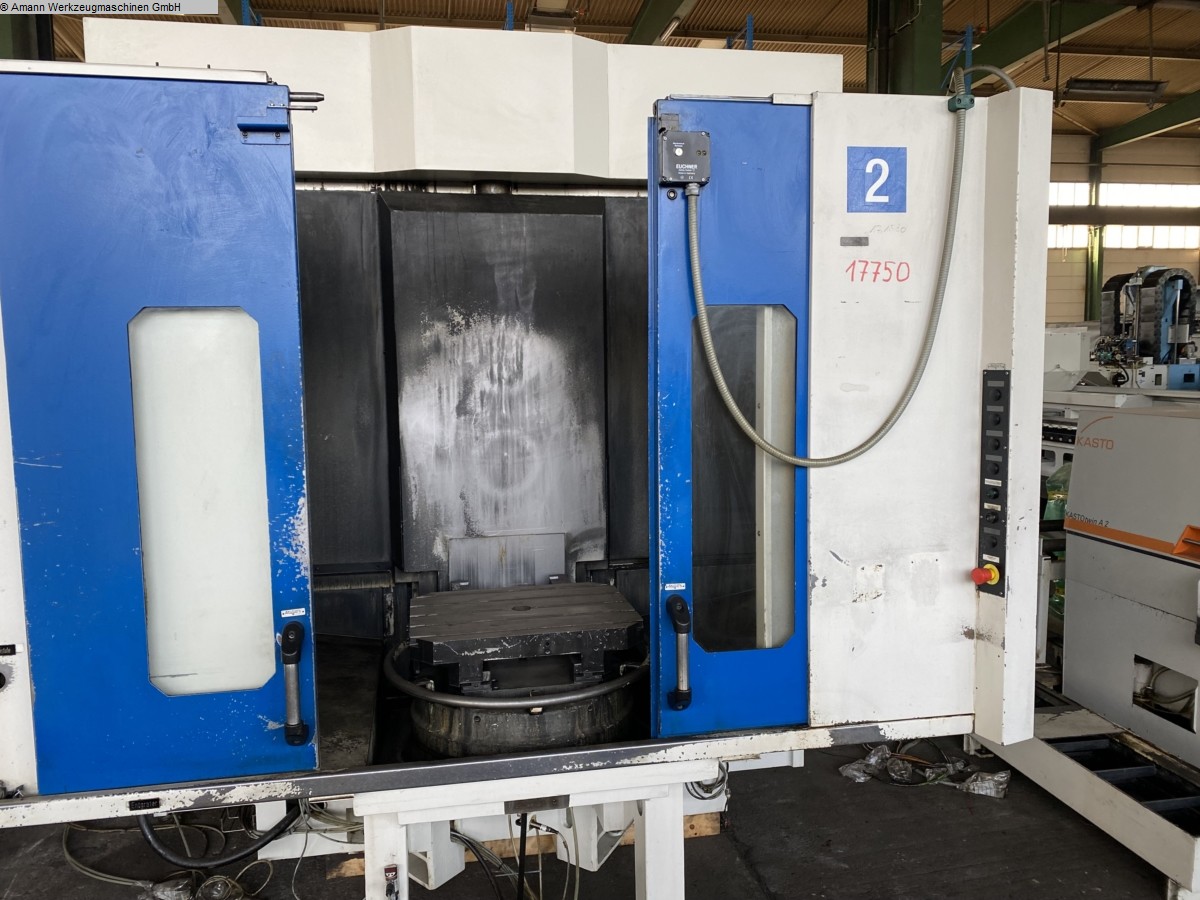

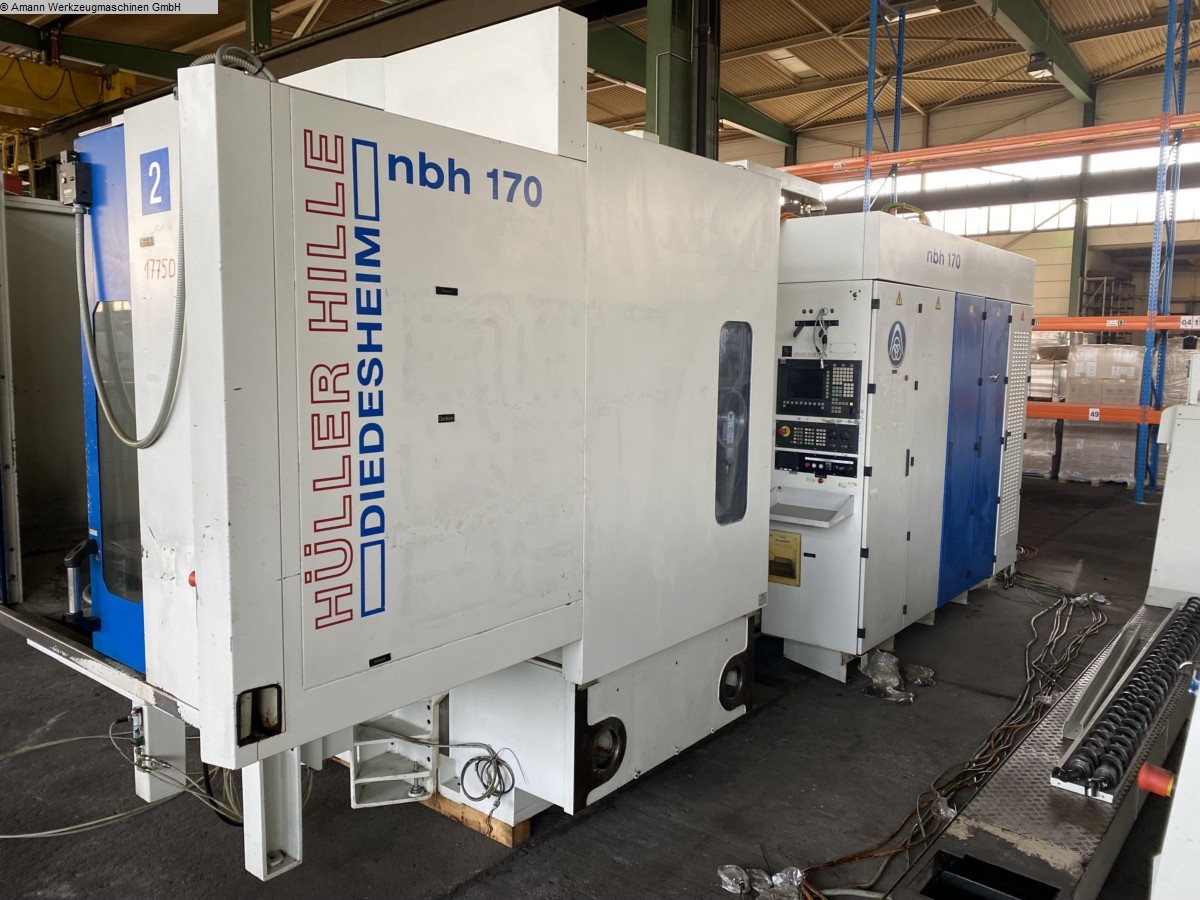

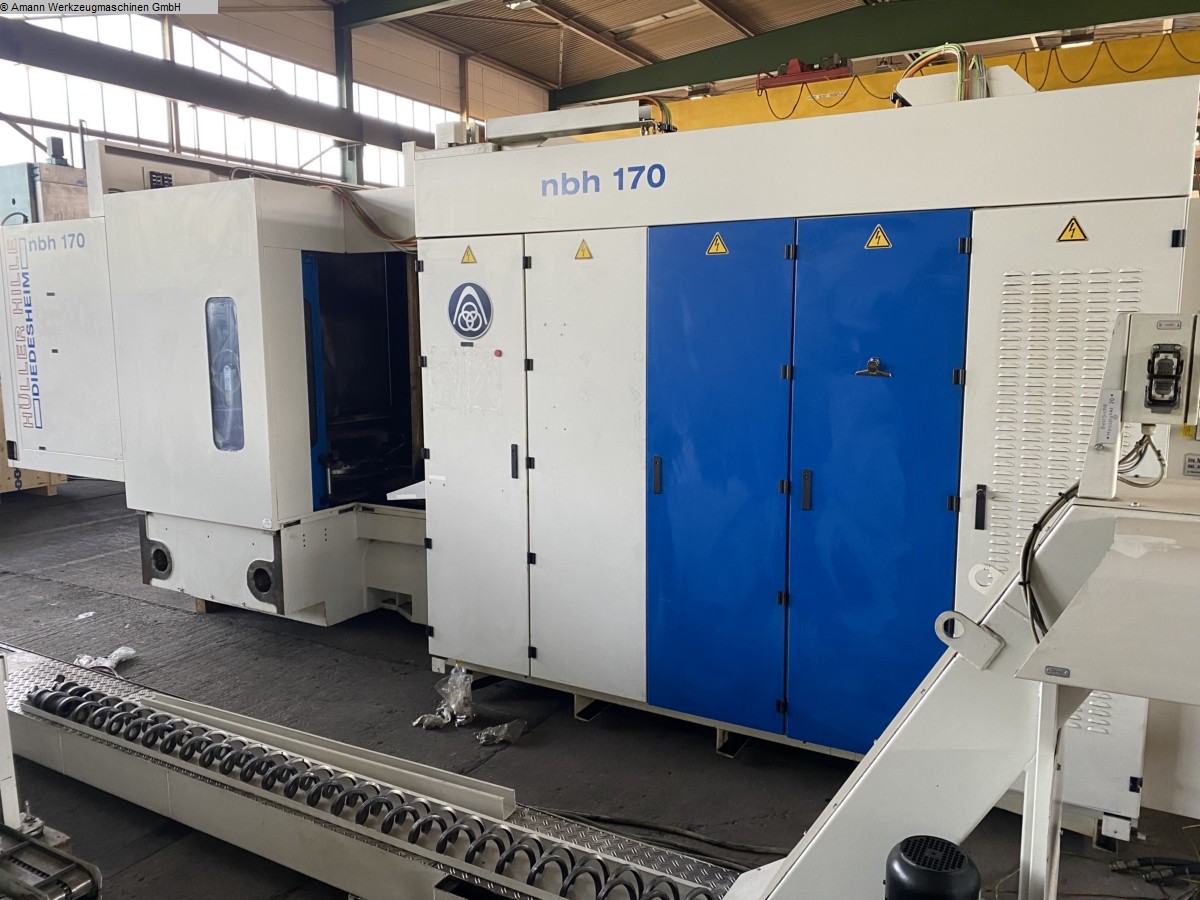

Horizontal CNC machining centre, make: HÜLLER-HILLE, type: NBH 170 SPEED, YOC 2002 with CNC control, Fabr. SIEMENS, type: SINUMERIK 840D, travel: X-axis: 1000 mm, Y-axis: 800 mm, Z-axis: 800 mm, machine weight: ca. 24.000 kg, dimensions of the machine: ca. 7800x6100x3400 mm

Make: HÜLLER-HILLE, type: NBH 170 SPEED, YOC 2002 with CNC control, Fabr. SIEMENS, type: SINUMERIK 840D, travel: X-axis: 1000 mm, Y-axis: 800 mm, Z-axis: 800 mm, machine weight: ca. 24.000 kg, dimensions of the machine: ca. 7800x6100x3400 mm

Description: 2 pallets Pallet size : 1000x1000 mm Max. table load: 3000 kg Max. working size: diameter 1900 x (H)1500 mm Indexing: 1 degree 60 tool ATC Max. tool diameter (W.T/W.O): 110/245 mm Max. tool length: 600 mm Max. tool weight: 35 kg Tool selection method: Fixed Address Tool change time: T-T 9 sec. / C-C 13 sec. Spindle thru coolant Chip conveyor Includes shipping to any major seaport in the world.z-motion: 1,400 mm, change time of pallets: 110 sec, x-motion: 2,100 mm, y-motion: 1,350 mm, control: Fanuc 31iA, pallet table size: 1000x1000 mm, numbers of pallets: 2, taper: BT50, power capacity - spindle: 26/22 kW, spindle torque: 807 Nm, toolchanger positions: 60, turning speed range: 8,000 rpm, feed range: 1,134 mm/min, rapid motion: 20 m/min, weight approx.: 30,000 kg, dimensions (l x w x h) approx.: 5095×8775 x 3989 mm

"KAFO" Brand 5-AXIS Simultaneous Machining Center Model: KFO-620-5AX with Heidenhain iTNC 640 HSCI Controller + 19 TFT Standard Accessories: 1. Travel X,Y,Z axes: 620x520x460mm 2. Direct Driven 15,000rpm, Taper BBT-40 3. Spindle Motor QAN 200UH (10KW) 4. Table Dimension: Ø650 mm- Taiwan 5. Rotary: 155C / 4.5 KW, Tilt: 190D / 8.6 KW 6. Table Maximum Load: Horizontal 300 kg; Tilt (0-90 degree) 200 kg 7. Rapid travel (X,Y,Z): 36,36,36m/min 8. Rapid Feedrate (B,C): 25,25m/min 9. Spindle Nose to Table: 140 - 600 mm 21. Spindle Oil Cooler 22. Portable Hand Wheel 23. Full Enclosure 24. M07 Air Blast Function for Workpiece 25. M30 Auto Power Off 26. Rigid Tapping Function 27. Tool Box and Tools 28. Leveling Bolts and Pads 29. Machine Bed Flushing System 30. LED Work Light & Tri-color Status Light 31. Telescopic Covers for X,Y,Z Axes 32. USB Interface 33. Manuals in Engl ...

Description: 4-Axis Horizontal Machining Center Max. workpiece size: diameter 350 x 400 mm Max. load capacity: 100 kg B-Axis: 0-360 degrees Distance from table surface to spindle center: 60-365 mm Distance from table center to spindle nose: 60-390 mm Cutting feed X, Y, Z: 0-15000 mm/min Tool selection method: random Max. tool size: diameter 50 x 200 mm Max. tool weight: 2 kg Tool change time: 1,2 sec Filtermist system: S400 Available from end of February / beginning of March  ,z-motion: 330 mm, x-motion: 305 mm, y-motion: 305 mm, control: Fanuc Series 18i-MB, pallet table size: 254x254 mm, numbers of pallets: 2, taper: BT30, power capacity - spindle: 7.5 kW, toolchanger positions: 40, turning speed range: 150-15000 rpm, feed range: 48,000 mm/min, total power requirement: 20 kW, weight approx.: 4,200 kg, dimensions (l x w x h) approx.: 3,355 x 1,650 x 2,300 mm

A horizontal machining center from the manufacturer Makino is offered here. Manufacturer: Makino Model: A55-40 Year of construction: 1999 Control: Fanuc Tool magazine: 30 items Tool holder: HSK 63 Pallet changer Conveyor Coolant system

Machining center horizontal MAKINO MAG 1 Manufacturer: Makino YEAR: 2015 Control Fanuc Clamping table surface ... 800x800mm Axis X ... 1520mm Axis Y ... 1100mm Axis Z ... 1350mm Spindle speed... 500-33000 rpm. controlled axes ... 5 cooling HSK - F80 workpiece height ... 1500mm workpiece weight ... 1300kg workpiece diameter ... 1500mm Axis A ... 110° Axis B ... 360° The machine is in good condition, possible to test under power.

5-Axis HSC Horizontal Machining Center Makino MAG1 Year of construction 2015 – AS GOOD AS NEW CONDITION with only 300 spindle running hours ! Fanuc 31i + Makino PRO5 controller 2-fold pallets 800 x 1,000 mm Pallet load max. 1,300 kg NC rotary table – 4e axis B-axis 360° / 0.0001° NC swivel milling head 5e axis A-axis +100°/-110° / 0.0001° X 1,520 mm Y 1,100 mm Z 1,350 mm Feeds and rapid traverses up to 50,000 mm/min. Spindle drive power 80 kW Spindle speeds up to 33,000 rpm. Tool holder HSK-80F 120-fold automatic tool changer ATC Linear scales 0.1 μm for highest accuracy Renishaw Touch Probe Conveyor Beautiful machine – as good as new condition Spindle running hours 300 To be visited under power HUGE SAVINGS ! Offer number MH-6178

5-axis horizontal machining center Makino MCD 2016 Year of construction 2005 Fanuc 16MC + Pro 3 Controller 2-fold pallets 1,300 x 1,300 mm Pallet load per pallet max. 12,000 kg ! 4e axis B-axis 360° / 0.001° 5e axis 25° spindle holder, C-axis + /- 185° X 2,000 mm Y 1,600 mm Z 1,500 mm Spindle drive power 50 kW Spindle speeds up to 15,000 rpm. Tool holder BT50 Big Plus 99-fold automatic tool changer ATC Renishaw Touch Probe Scales on X, Y, Z, B axes Conveyor IKZ 28 bar Great condition To be visited under power Offer number MH-6265

5-Axis Horizontal Machining Center with Pallet changer Mandelli Spark 3500X New in 2018 Siemens Sinumerik 840D control Number of pallets 2 Pallet size 1250 x 1600 mm Pallet load capacity max. 5100 kg 4th axis 0.001° NC rotary table 5th Axis NC-Tilting milling head A-Axis +80° ~ -120° X 3500mm Y 1850mm Z 1800 mm Feeds X,Y,Z up to 20000 mm/min. Rapids X,Y,Z up to 35000 mm/min. Tool taper HSK-A100 Spindle drive motor rating 46/67.7 kW Spindle speeds up to 6000 rpm. Spindle torque max. 1851 Nm 200 station tool magazines. Tool diameter max. 120 mm/425 mm Tool length max. 600 mm Tool weight max. 35 kg Coolant through the spindle 25/40/60 bar Proposal Number MH-6234

Matsuura MAM 600 HG, 12-fold pallet changer with 1° indexing, 400 x 400mm, YOC 98, control Fanuc, 240 tool positions, Spindle with 15000 rpm ISO 40 BT, high-pressure internal cooling by the spindle, KNOLL coolant system with 1500 liters, Fully operational.

Matsuura MAM 700 HG, 2-fold pallet changer 500 x 500mm, 1 ° indexing, tool magazine with 120 slots. High pressure internal cooling by the spindle, tuber coolant system as new, 800 liters, spindle speed 12,000 rpm Year 99 Good condition, fully operational.

Description: Diameter of the supporting surface of the rotary table approx. 400 mm, Attention the two clamping towers as well as the tool holders located on the tool changer are not included in the scope of deliverytoolchanger positions: 60, weight approx.: 4,000 kg, dimensions (l x w x h) approx.: 5,000 x 2,900 x 2,900 mm

Description: Support surface of turntable 300 mm diameter, Attention the clamping tower located on the clamping table is not included in the delivery, Mains voltage 200 V, frequency 50 Hz, rated power 8 KVA, serial number S56440-1-8control: Matsuura System MX2, toolchanger positions: 60, weight approx.: 7,000 kg, dimensions (l x w x h) approx.: 5,000 x 3,700 x 2,900 mm

Horizontal CNC machining center Manufacturer Mazak Type FH 6800 Bauajhr 1999 Control Mazatrol 640M Travel X/Y/Z 1050/800/880 80 fold tool changers SK50 2 compartment pallet changers Pallet size 630 x 630mm 1° Division Conveyor IKZ internal coolant supply Machine is geometrically in very good condition. It was regularly maintained.

Horizontal CNC machining center Manufacturer Mazak Type FH 880 Year of construction 1997 Control Mazatrol Mplus Travel X/Y/Z 1300/1100/1000 80 fold tool changers Tool holder SK50 2 compartment pallet changers Pallet size 800 x 800 controlled rotary table ( 4th axis ) Conveyor IKZ internal coolant supply 3D Radio Accelerator Machine is in a used good condition. Geometrically, the machine is very good.

CNC Control: MAZATROL 640m Axes X axis travel mm: 800 Y axis travel mm: 800 Z axis travel mm: 800 B-axis degrees: 360º (0.001º) Workbench Number of pallets: 2 Table dimensions mm: 500x500 Maximum part size (D x H) mm: ø900x1.000 Maximum weight of the piece kg: 1.000 Spindle Spindle speed rpm: 10,000 Spindle power kW: 37 Tool system Tool holder: ISO-50 Positions in tool warehouse: 120 Max. diameter of the mm tool: With adjacent positions free mm: 260 With adjacent positions occupied mm: 135 Max. tool length mm: 400 Maximum tool weight kg: 30 Equipment Chip extractor Rotating inspection windows High pressure pump Fog collector Light work area 4th axis Rated power kVA: 90 Basic machine dimensions / weight Length mm: 6.800 Width mm: 3.400 Height mm: 3.300 Weight kg: 16.200

CNC controller: MAZATROL 640m Axes X-axis travel mm: 800 Y-axis travel mm: 800 Z-axis travel mm: 800 B-axis degrees: 360º (0,001º) Worktable Number of pallets: 2 Table dimensions mm: 500x500 Maximum workpiece size (D x H) mm: ø900x1.000 Max. workpiece weight kg: 1.000 Spindle Spindle speed rpm: 10.000 Spindle drive power kW: 37 Tool system Tool holder: ISO-50 Tool magazine slots: 120 Max. Tool Diameter With free neighboring places mm: 260 With occupied neighboring places mm: 135 Max. Tool Length mm: 400 Max tool weight kg: 30 Equipment Chip conveyor Rotating inspection windows High pressure pump Mist collector Workarea light 4th axis Rated power kVA: 90 Basic machine dimensions / weight Length mm: 6.800 Width mm: 3.400 Height mm: 3.300 Weight kg: 16.200

CNC Control: MAZATROL MATRIX Axes X axis travel mm: 800 Y axis travel mm: 800 Z axis travel mm: 800 B-axis degrees: 360º (0.001º) Workbench Number of pallets: 2 Table dimensions mm: 500x500 Maximum part size (D x H) mm: ø900x1.000 Maximum weight of the piece kg: 1.000 Spindle Spindle speed rpm: 10,000 Spindle power kW: 37 Tool system Tool holder: ISO-50 Positions in tool warehouse: 120 Max. diameter of the mm tool: With adjacent positions free mm: 260 With adjacent positions occupied mm: 135 Max. tool length mm: 400 Maximum tool weight kg: 30 Equipment Chip extractor Rotating inspection windows High pressure pump Fog collector Light work area 4th axis Rated power kVA: 90 Basic machine dimensions / weight Length mm: 6.800 Width mm: 3.400 Height mm: 3.300 Weight kg: 16.200

Description: Model: HTC 400 Serial number: 135720 CNC: Mazatrol M-plus Table load: 300 kg Maximum workpiece dimensions: ø 560 x 630 mm Table index: 1 degree Rapid traverse: 30 m/min Number of tools in magazine: 30 Spindle taper: MAS BT 40 Spindle speed: 10.000 Rpm Spindle motor: 11/7,5 kW Machine dimensions: Required floor space: 2260 x 3355 mm Height: 2290 mm Weight: 6700 kg Including: Chip conveyor Two Mazak HTC 400 pallets Note! Tools, clamps etc. are not included unless indicated otherwise.z-motion: 510 mm, x-motion: 560 mm, y-motion: 510 mm, control: Mazatrol M-plus, pallet table size: 400x400 mm, numbers of pallets: 2, taper: MAS BT 40, power capacity - spindle: 11/7.5 kW, toolchanger positions: 30, turning speed range: 10.000 rpm, weight approx.: 6,700 kg, dimensions (l x w x h) approx.: 2,260 x 2,290 x 3,355 mm

MCM Clock 600 14 pallet 500x500 CNC FANUC 16iM 15000 RPM Jfmx Supervisor centro di lavoro multipallet FMS multipallet horizontal machining center in FMS under power in our warehouse Mimu machine tools (Italy)

x-travel: 700 mmy-travel: 715 mmz-travel: 850 mmtable-size: 500 x 500 mmtool taper: ISO 40 Control: Fanuc 16i-MB total power requirement: kWweight of the machine ca.: 21 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

5-Axis Horizontal Machining Centre MCM Tank 1300 5-AXIS New in 2017 Siemens 840D solution line Twin pallets 630 x 800 mm Work weight max. 1500 kg NC rotary table - 4th axis B-Axis 360° / 0.001° NC-Tilting head 5th axis A-Axis +80°/-95° / 0.001° X 1300 mm Y 1400 mm Z 1400 mm Feeds and rapids to 50000 mm/min. Spindle drive 40/52 KW Spindle speeds to 10000 rpm Tool taper ISO 50 199 tool ATC Linear scales for higher accuracies Renishaw sample Chip conveyor CTS 65 bar Beautiful machine – excellent condition Operating hours 11544 - 05/2020) Spindle Working hours 6784 (05/2021) Inspect under power Proposal Number MH-6155

CNC controller: MSX-501 Axes X-axis travel mm: 560 Y-axis travel mm: 560 Z-axis travel mm: 620 B-axis degrees: 360º (0,001º index) Feed rates m/min: 50 Rapid traverse m/min: 50 Worktable Number of pallets: 2 Table dimensions mm: 400x400 Maximum workpiece size (D x H) mm: ø630x900 Max. workpiece weight kg: 400 Spindle Spindle speed rpm: 14.000 Spindle drive power kW: 18/11 Cooling Cooling through the Spindle Center bar: 50 Tool system Tool holder: CAT-40 Tool magazine slots: 60 Max. Tool Diameter With free neighboring places mm: ø140 With occupied neighboring places mm: ø70 Max. Tool Length mm: 400 Max tool weight kg: 8 Tool-to-tool time s: 0,9 Chip-to-chip time s: 2,8 Equipment Chip conveyor Basic machine dimensions / weight Length mm: 4.004 Width mm: 2.397 Height mm: 2.711 Weight kg: 9.600

CNC controller: MSX-501 Axes X-axis travel mm: 630 Y-axis travel mm: 600 Z-axis travel mm: 670 B-axis degrees: 360º (0,001º index) Feed rates m/min: 50 Rapid traverse m/min: 50 Worktable Number of pallets: 2 Table dimensions mm: 500x500 Maximum workpiece size (D x H) mm: ø800x1.000 Max. workpiece weight kg: 500 Spindle Spindle speed rpm: 14.000 Spindle drive power kW: 18,5/22 Tool system Tool holder: ISO-40 Tool magazine slots: 60 Equipment Chip conveyor Signal lamp High pressure pump Internal coolant supply

CNC controller: MSX-501 Axes X-axis travel mm: 630 Y-axis travel mm: 600 Z-axis travel mm: 670 B-axis degrees: 360º (0,001º index) Feed rates m/min: 50 Rapid traverse m/min: 50 Worktable Number of pallets: 2 Table dimensions mm: 500x500 Maximum workpiece size (D x H) mm: ø800x1.000 Max. workpiece weight kg: 500 Spindle Spindle speed rpm: 14.000 Spindle drive power kW: 18,5/22 Tool system Tool holder: ISO-40 Tool magazine slots: 60 Equipment Chip conveyor Signal lamp High pressure pump Internal coolant supply

CNC controller: MSG-501 Axes X-axis travel mm: 560 Y-axis travel mm: 510 Z-axis travel mm: 510 B-axis degrees: 360º (1º) Distance spindle nose - table surface mm: 50 - 560 Feed rates m/min: 30 Rapid traverse m/min: 42 Worktable Number of pallets: 2 Table dimensions mm: 400x400 Maximum workpiece size (D x H) mm: ø610x650 Max. workpiece weight kg: 500 APC time s: 7 Spindle Spindle speed rpm: 12.000 Spindle drive power kW: 22/18,5 (30 min/cont) Spindle torque Nm: max. 167 Tool system Tool holder: BT-40 Tool magazine slots: 40 Max. Tool Diameter With free neighboring places mm: ø125 With occupied neighboring places mm: ø80 Max. Tool Length mm: 300 Max tool weight kg: 8 Equipment Chip conveyor Rated power kVA: 56 Basic machine dimensions / weight Length mm: 2.861 Width mm: 4.070 Height mm: 2.517 Weight kg: 8.700
