horizontal boring milling used for sale

Precision face and boring chuck WMW A 100 - 4 ( A100-4 ) TGL 32680 ( TGL32680 ) Dimensions: 210 x 100 x 85 mm

Boring tool, optional accessories WMW TGL 30-1201 ( TGL30-1201 ) Dimensions: 185 x 120 x 55 mm

Boring tool, optional accessories WMW TGL 32680 ( TGL32680 ) shank: Ø 20 mm Adapter: Ø 8, 10, 12 mm Dimensions: 185 x 120 x 55 mm

Face and boring head NAREX Vhu 80 ( Vhu80 ) holder: SK50 in wooden case used, tested ! Dimensions: 420 x 410 x 155 mm

Boring tool, plan and boring head PAGUS MK4 Diameter boring rod holder: 25 mm in wooden box used, tested ! Dimensions: 390 x 210 x 230 mm

Boring tool, special accessory WMW TGL 32680 ( TGL32680 ) TGL 30-1201 shank: Ø 20 mm adapter: Ø 8, 10, 12 mm in wooden box used, tested ! Dimensions: 185 x 120 x 60 mm

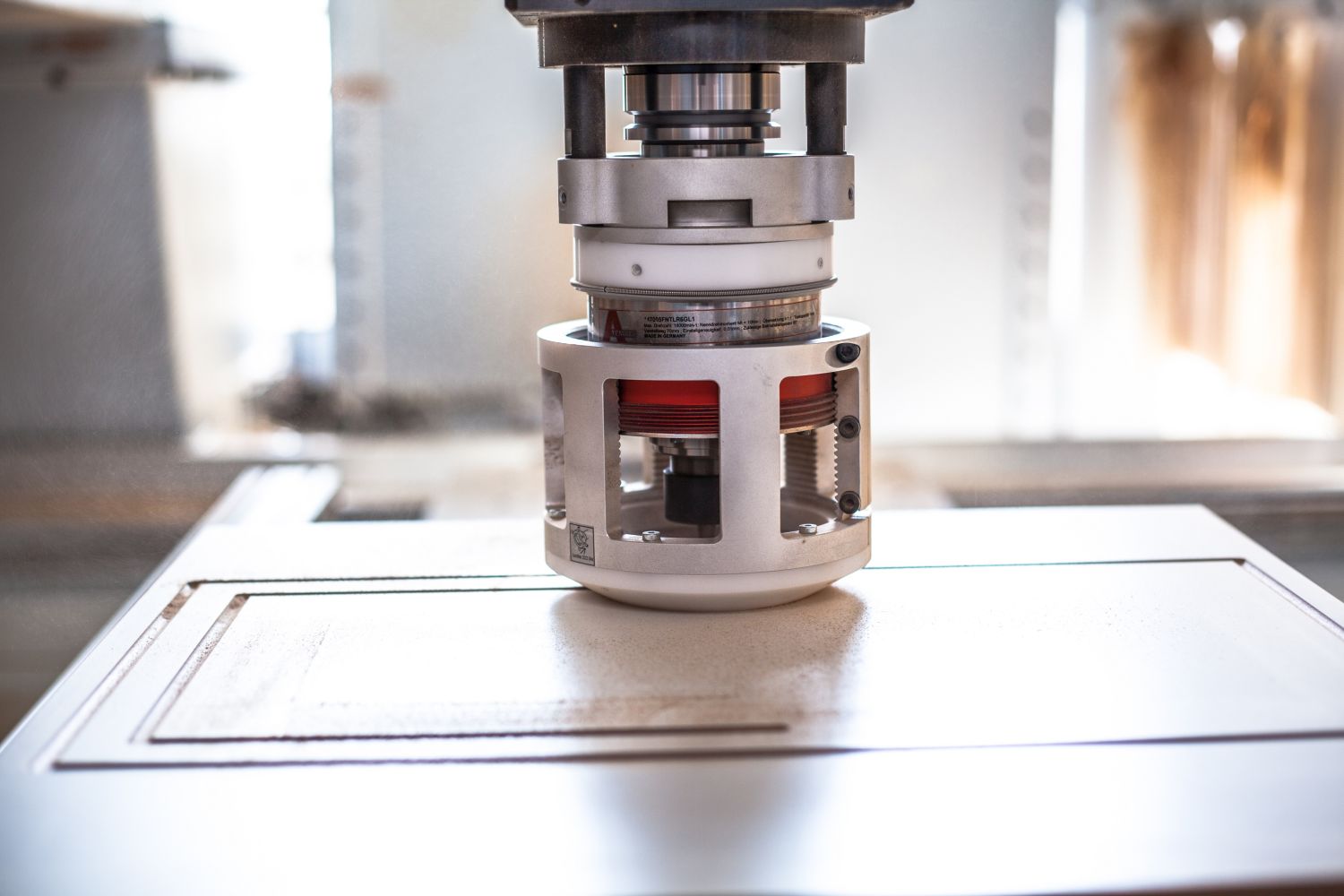

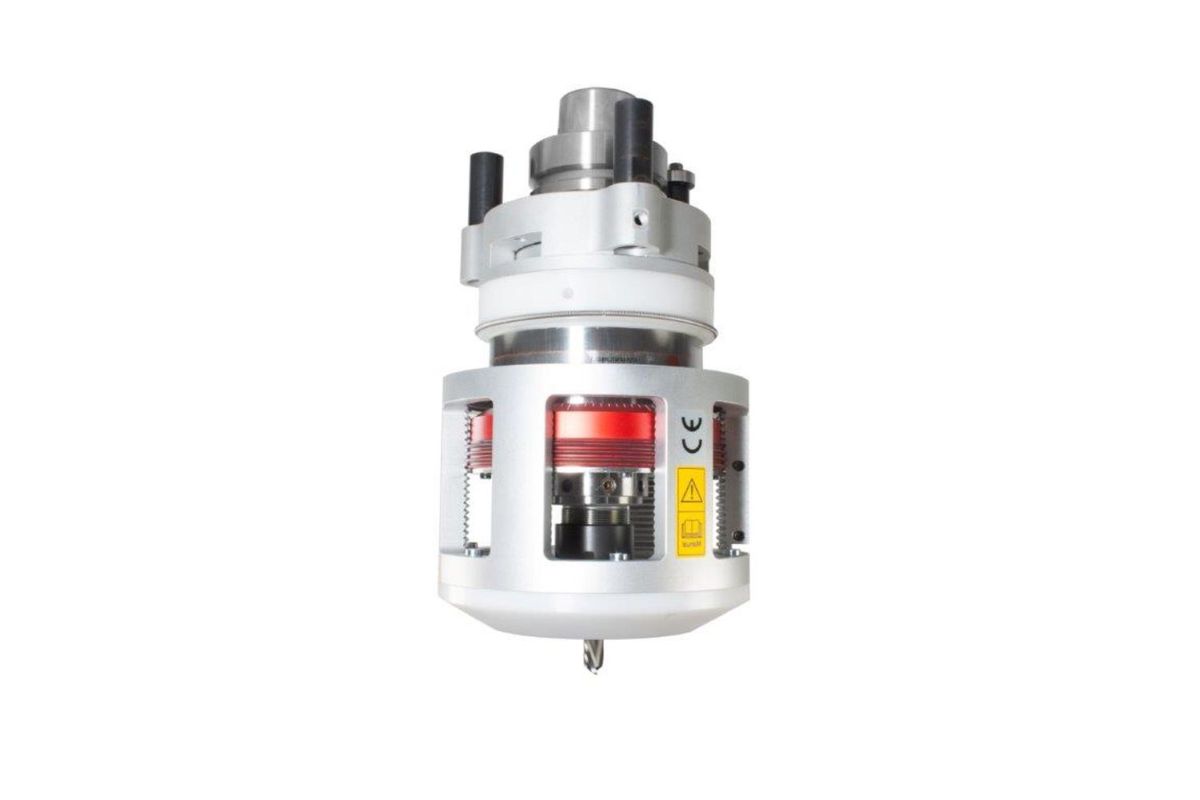

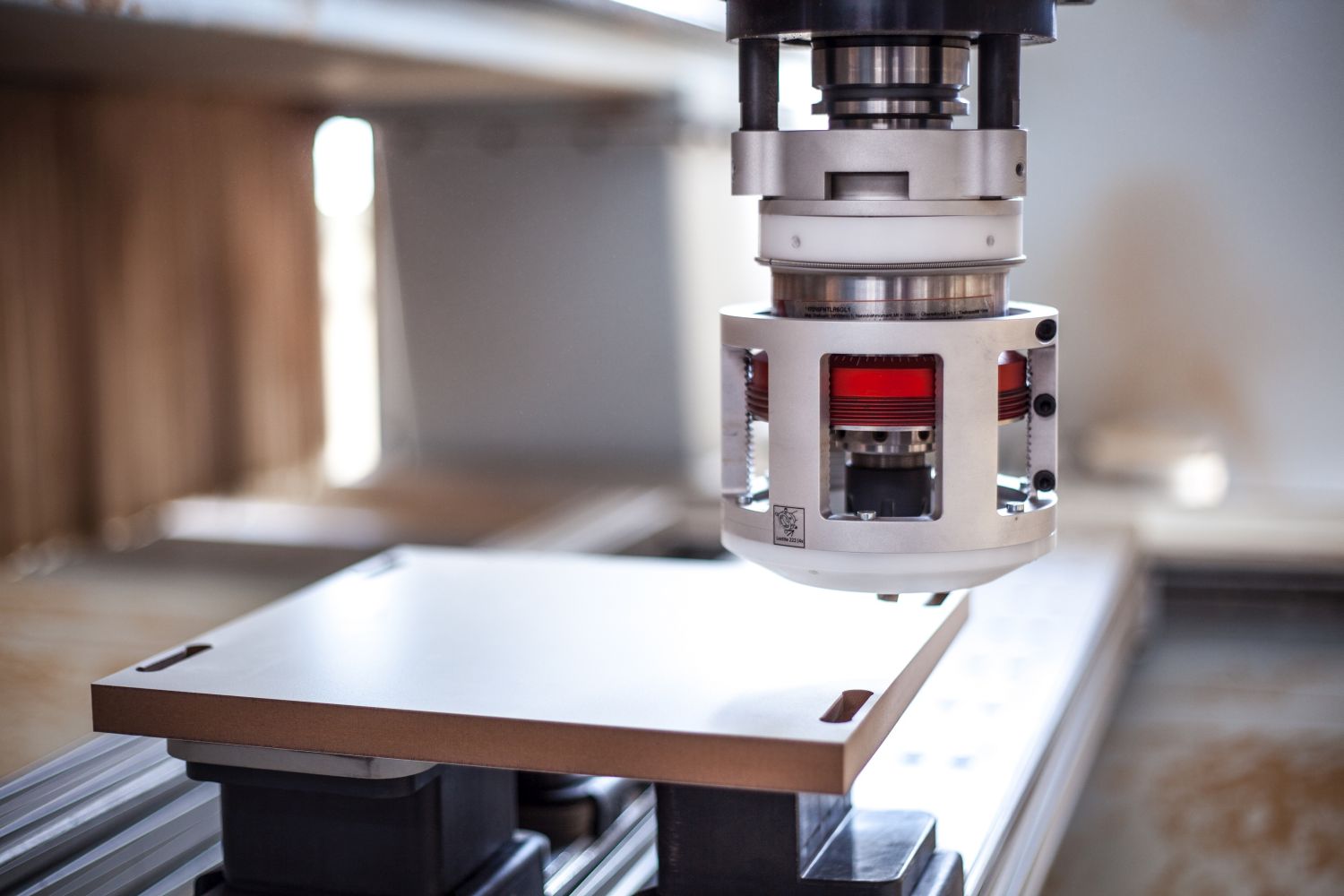

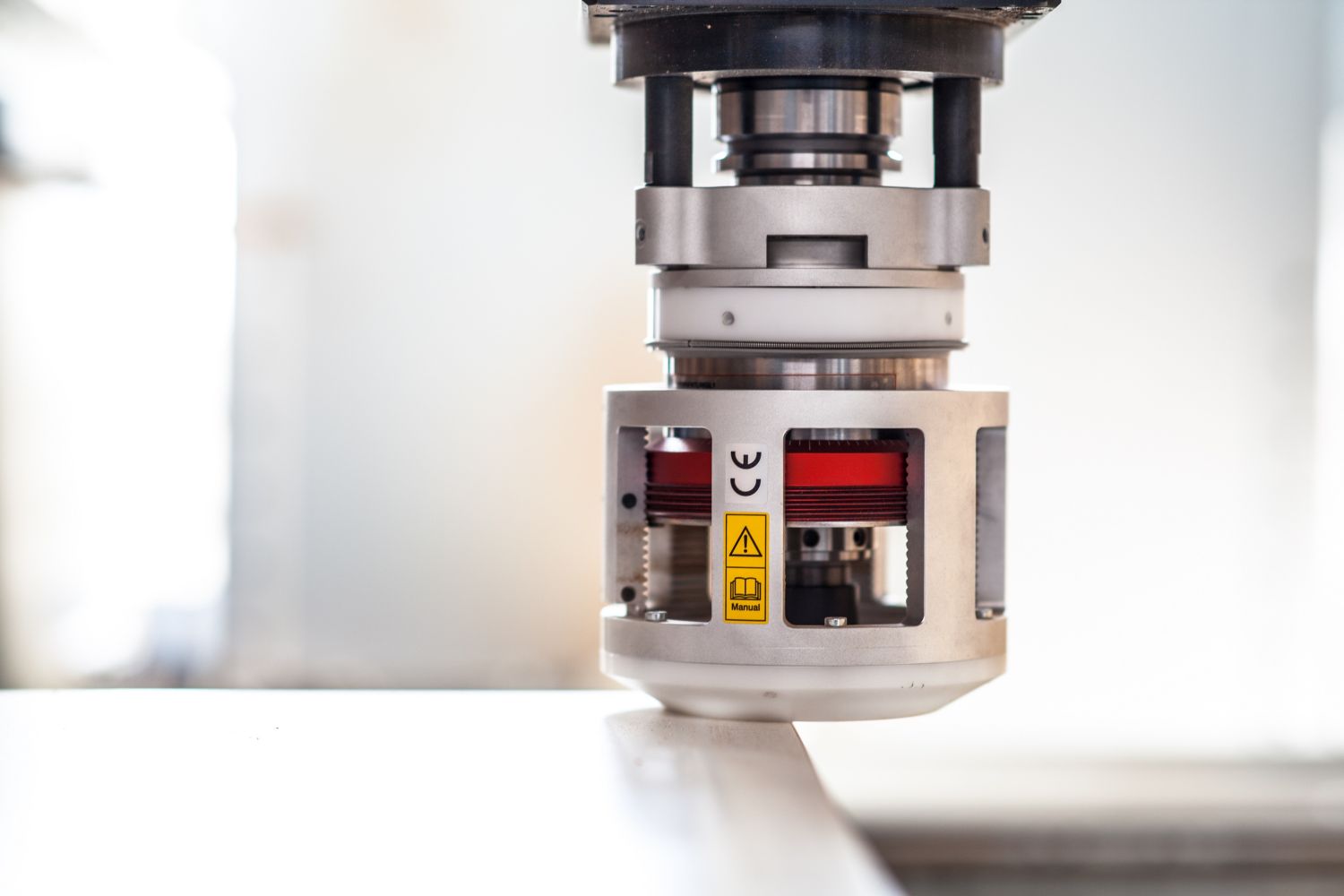

CNC unit for routing and boring Brand: Atemag Type: Function Line Soft Touch One With surface copying function with fix spindle ER25 and fix bell Max. drive speed 18,000 R.P.M. Max. tool spindle speed 18,000 R.P.M. Gear ratio i = 1:1 Turning direction left/right Torque max. 10Nm Tool interface: fix ER25 Adjustment distance: 70mm

HBM WHN 13.8 B, new 1986, CNC control system Heidenhain

Manufacturer: Scharmann Model: FB 140 Condition: Used Type of Machine: Horizontal Table Boring Machine Plate Size: 1630 × 1300 Table Size: - Control System: Digital Display Spindle Hub: 140 Tool Holder Spaces: - Travel (X, Y, Z): 2000 × 1400 × 1400 Max Weight: 10000 kg Additional Notes: Equipped with Plan Disc Ø700. Find more here - / Contact us at -

Inv. Num. : 8153 Type: OP3 Producer: Hauser Generated: Parameters: Work table length: 595 mm Work table width: 320 mm Maximum spindle speed: 3000 1/min X-axis travel: 400 mm Y-axis travel: 250 mm Travel Z axis: 400 mm Spindle diameter: 130 mm Machine height: 1800 mm Machine length: 1350 mm Machine width: 1300 mm Machine weight: 1500 kg Equipment: DRO

D'Andrea TA120 Plan Boring Head SK40 S20x2 Cover Fp1 Fp2 Boring Tool Total weight 16.6 kg Lots of accessories, see pictures. Very good used condition. In original wooden crate

spindle diameter: 102 mm x-travel: 1600 mm y-travel: 1250 mm z-travel: 1600 mm spindle taper ISO: 50 bore spindle stroke: 710 mm main drive motor: 11 kW turning speeds: 1600 U/min Feed: 4000 mm/min Control: Heidenhain type: TNC 135 T-slot - width: 22 mm T-slot - distance: 140 mm table surface area: 1250x1400 mm Table load: 2500 kg total power requirement: 23 kW weight of the machine ca.: 9,3 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 2750 mm y-travel: 2000 mm z-travel: 2330 mm spindle taper ISO: 50 bore spindle stroke: 1000 mm turning speeds: 900 U/min Feed: 2500 mm/min Control: Heidenhain type: TNC 131 T-slot - width: 28 mm table surface area: mm Table load: 8000 kg total power requirement: kW weight of the machine ca.: 37,8 t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 3000 mm y-travel: 1600 mm z-travel: 1250 mm Control: Heidenhain type: TNC 426 table surface area: 2000x1600 mm Table load: 12500 kg Rotary table: 360 ° spindle turning speed range: 12-3000 U/min Feed: 1-9999 mm/min Rapid movement: 10000 mm/min total power requirement: 80 KVA weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

SKODA WD160B floor type boring mill X Axis 3150 mm Y Axis 2500 mm Z Axis 1600 mm Table 2000x2000 mm Piece weight 20000 kg Spindle diameter 160 mm Max. spindle speed 800 rpm Spindle motor power 75 kW Length x width x height 10000.0 × 5250.0 × 6365.0 Weight 50000 kg New control.

Inv. Num. : 8262 Type: PR 99-20 Producer: Cobalm Created: 2011 Parameters: Axis X: 3400 mm Axis Y: 1900 mm Axis Z: 280 mm Cutting thickness: 200 mm

Manufacturer: Pankoke und Kochsiek, Type: BFA 03, Year: 1988, Drilling supprt from bottom: 3, Groove saw: 1x Horizontal<CRLF>1x Vertikal, Year :1988

Manufacturer: Protool, Type: Bohrm. DRP 8 E, Drilling engine kW: 0,460, FREE TEXT: mit Ständer,

Manufacturer: Pankoke und Kochsiek, Type: BFA-03, Control: hand, Program-controlled: no, Min.-max. workpiece length in mm: 22,5, Min.-max. workpiece height in mm: 0,75, Program: 40, Drilling beam swivel-mounted: no, Lochraster: yes, Drilling engine kW: yes, Working range max mm: yes, Drilling support horizontal: 2, Dovel insertion: inkl. Magazinaufstapel Magazin und Hauptsäge und Nutsäge,

HBM Wotan WMO B105, CNC control system Siemens 820M

Manufacturer: Weeke, Type: BST 50, Year: 1992, Program-controlled: yes, Work piece width min-max mm: 100-1050, Min.-max. workpiece length in mm: 350-2600, Min.-max. workpiece height in mm: 10-60, Lochraster: 32, Drilling engine kW: 1,2, Working range max mm: 60, Drilling support horizontal: 2, Drilling supprt from bottom: 6, Drill support from top: keine, FREE TEXT: inkl Bohrhetriebe, Year :1992

Manufacturer: Rapid, Type: Astglochbohrmaschine, Number of drilling spindles: 3 Spindeln Schnellkwechsel, Aperture/throat mm: 600, Units - total: 1, Main engine kW: 0,75, Drill feed - pneumatically: hand, Milling spindles vertical: 80 mm,

Manufacturer: Koch , Type: BLG, Year: 1992, Control: hand, Program-controlled: yes, Software: 300, Work piece width min-max mm: 200-2500, Min.-max. workpiece length in mm: 10-60, Program: yes, Lochraster: alle 2, Drilling engine kW: 60/80, Working range max mm: 2 von hinten, Drilling supprt from bottom: 2, Drill supports from behind: 7, Work piece refeeding: yes, Taktleitung min: 1, Dovel insertion: yes, Overhauled on: alle Bohrgetriebe drehbar 360 Grad, Year :1992

Manufacturer: Scheer , Type: DB 3000, Control: Fusspedal, Drilling beam swivel-mounted: yes, Number of drill spindles: 4, Lochraster: 32, Drilling engine kW: 1,2, Working range max mm: 80, Beleimwerkzeuge: no, Dovel insertion: no, Work piece clamping: Pneumatisch, Pneumatic clamping: yes, Work piece support: yes, Work stations: 2, Foot switch: yes, Axis control for: no, Drilling hight: 60, Wight approx. kg: 1000, Abeitsbreite 3000 mm,

1 x CNC bench boring machine in cross-bed design Manufacturer: TOS Type WH13 CNC Year of manufacture 1997 Control: TNC 426 Heidenhain 5-axis X-3500 mm Y-2000 mm Z-1250 mm B-800 mm B-360 Degree Table clamping surface: 1600 x 1800 mm Table load: 12 t Spindle diameter: 130 mm Spindle mount: ISO 50 Spindle speed: max. 1500 rpm Condition: Very good. The machine was only used for repair purposes; no contract manufacturing. Spindle hours: 22,054 Program runtime: 15.661

Drilling / Jig Boring Machine CONSTANT SUPEMEC type P65 Travel X: 500 mm Travel Y: 300 mm Travel Z: 550 mm Cone: SA40 Spindle speed: from 77 to 1520 RPM Table size: Length 1200 mm x Width 420 mm Maxi distance spindle nose/table: 670 mm Mini distance spindle nose/table: 120 mm Throat depth: 300 mm Variable speed drive for X - Y Voltage: 380 V Width: 1600 mm Depth: 1800 mm Height: 2400 mm Total width with control panel: 2700 mm Weight: 3 T

Year of manufacture: 1992 / G: 2025 Spindle diameter ... 100mm Axis X ... 1500mm Axis Y ... 1250mm Spindle speed ... 7-1120 rpm Axis W Axis Z ... 1800mm ISO 50 Turntable diameter ... 1200x1200mm The machine is in good condition, possible to test under power.

CONTROLS   CNC controls SIEMENS 840 D WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 5   X-axis travel: 800 mm   Y-axis travel: 600 mm   Z-axis travel: 800 mm   W-axis travel: 1250 mm   rotating range B-axis from: 0 °   rotating range B-axis up to: 360 ° WORKING RANGE -BORING-   drilling depth (max): 800 mm   drilling capacity full bore (steel): 25 mm SPINDLE / HEAD   tool fixture: HSK A50   drive power: 15 kW AXIS DRIVES   feed velocity (max): 15000 mm/min TOOL MAGAZINE   number of positions: 20 ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 5600 mm   space requirements -front/back-: 4910 mm ...

Key data: 4 , 14 mm

Multiple drill head from Romai, Sigloch & Schrieder up to diameter 14 mm in steel 4 stations, automatic and manual switching 2 speed ratios choiceable (direct and reduced) incl. adapter MK 4 and flange

x-travel: 1600 mm : ja weight of the machine ca.: 13,7 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 110 mm x-travel: 900 mm y-travel: 600 mm z-axis: 200 mm table length: 1020 mm table width: 860 mm taper MK: 40 Table size, approx. 1,020 x 860 mm Max. weight of workpiece 800 kg Table travel, longitudinal, max. (X) 900 mm Boring head travel, cross, max. (Y) 600 mm Boring spindle stroke (Z) 200 mm Vertical travel of cross beam (W) 635 mm Vertical distance between table and boring spindle 15 - 850 mm Distance between columns 950 mm Spindle Ø 110 mm Spindle taper internal/external ISO 40 18 spindle speeds 10 - 2,500 rpm Milling feeds of table, infinitely variable 1 - 6,000 mm/min 4 milling feeds of boring head 30 - 180 mm/min 6 boring feeds 0.01 - 0.39 rpm Accuracy of all 3 axes when the machine was new 0.003 mm Quick feeds for table, boring head slide, and boring spindle, max. 6,000 mm/min Spindle drive 6.2 kW Weight, approx. 9,000 kg Total electrical load  ...

spindle diameter: 0 mm x-travel: 700 mm y-travel: 600 mm table length: 800 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Double Column Design Jig Borer Tablesize: 800 x 600mm The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

cycle time: 0 sec total power requirement: 2,5 kW weight of the machine ca.: 1 t dimensions of the machine ca.: m P O S A L U X (Switzerland) Horizontal 3-Spindle Fine Boring Machines Model MICROFOR PNC 3 Year 1984 Serial Nos. 6.8230/9 Boring Æ 0.15 - 2 mm Spindle stroke 0 - 18 mm Working stroke, max. 0 - 12 mm Quick feed 60 mm/sec Boring feed 0 - 5 mm/sec Spindle speeds 3,500 - 11,500 rpm Distance between spindles, vertical, approx. 80 mm Table speeds (for deburring) approx. 100 rpm Table Æ, approx. 100 mm Table bore, approx. 70 mm Table slide swivelling device, approx. 60 °/sec Swivelling range 0 - 100 ° Total drive, approx. 2.5 kW Weight 1,000 kg Accessories / Special Features Serial No. 6.8230/9 Machine is equipped with a modern POSALUX SELECTRON Control with keyboard and LED for direct programming on the machine (in principle the same as with a punchboard control). With s ...

cycle time: 0 sec total power requirement: 2,5 kW weight of the machine ca.: 1 t dimensions of the machine ca.: m : : : : : : : Horizontal 3-Spindle Fine Boring Machines Boring Æ 0.15 - 2 mm Spindle stroke 0 - 18 mm Working stroke, max. 0 - 12 mm Quick feed 60 mm/sec Boring feed 0 - 5 mm/sec Spindle speeds 3,500 - 11,500 rpm Distance between spindles, vertical, approx. 80 mm Table speeds (for deburring) approx. 100 rpm Table Æ, approx. 100 mm Table bore, approx. 70 mm Table slide swivelling device, approx. 60 °/sec Swivelling range 0 - 100 ° Total drive, approx. 2.5 kW Weight 1,000 kg Accessories / Special Features Serial No. 6.8230/9 Machine is equipped with a modern POSALUX SELECTRON Control with keyboard and LED for direct programming on the machine (in principle the same as with a punchboard control). With setting microscope and machine lamp. The data for this ad was  ...

spindle diameter: 105 mm x-travel: 1250 mm y-travel: 1000 mm z-travel: 600 mm table length: 1100 mm table width: 900 mm tool adaptor: 50 ISO / MK total power requirement: kW weight of the machine ca.: t CNC Table Borer, Reconditioned 2002, BOSCH CC 300 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 2000 mm table width: 1800 mm table load: 12,5 t total power requirement: 10 kW weight of the machine ca.: 7,5 t dimensions of the machine ca.: m Table size approx. 2,000 x 1,800 mm Max. weight of workpiece, approx. 12,500 kg Table travel, longitudinal 1,250 mm Table height above floor 920 mm Longitudinal feed 0.63 - 2,000 mm/min Turning feed, with Ø 1,000 mm 1 - 3,150 mm/min Longitudinal quick feed 2,000 mm/min Turning quick feed, with Ø 1,000 mm 3,150 mm/min Weight of machine 7,500 kg External dimensions of machine 3,700 x 2,100 x 920 mm Total electrical load 10 KW - 180 V - 50 Hz Accessories / Special Features Telescopic covers for the guides. Infinitely variable table feed. Optical display for setting and reading the longitudinal adjustment. Optical display for setting and reading the angle. Condition : Satisfactory to good. Machine can be inspected under power ...

x-travel: 520 mm y-travel: 400 mm z-travel: 450 mm spindle taper ISO: 40 control: TNC 360 coolant tank: l total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: 2450x2300x3300 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: SK50 - 130 mm x-travel: 800 mm y-travel: 710 mm z-travel: 1000 mm table surface area: 750x750 mm digital readout: Fagor spindle stroke: 450 mm turning speeds: 15-895 U/min Radial face slide: 500 mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

spindle diameter: 130 mm x-travel: 3500 mm y-travel: 2050 mm z-travel: 1050 mm spindle taper ISO: 50 turning speeds: 4-1120 U/min Feed: 5-2000 mm/min bore spindle stroke: 850 mm main drive motor: 45 kW table surface area: 1600x2000 mm Control: Heidenhain type: TNC 426 workpiece weight: 12500 kg : 720 mm radial face slide travel: 240 mm : total power requirement: 90 kW weight of the machine ca.: 31,1 t dimensions of the machine ca.: 6,5x5x5x4 m Turntable with digital display The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, pleas ...

spindle diameter: 100 mm x-travel: 1250 mm y-travel: 1100 mm z-travel: 950 mm Table load: 3000 kg table surface area: 1000x1120 mm turning speeds: 16-1250 U/min spindle taper ISO: 50 Control: Heidenhain total power requirement: kW weight of the machine ca.: 13,4 t dimensions of the machine ca.: m No. 2022 The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad w ...

spindle diameter: 130 mm x-travel: 2000 mm y-travel: 1600 mm z-travel: 1000 mm spindle taper ISO: 50 turning speeds: 4-1120 U/min Feed: 5-2000 mm/min bore spindle stroke: 850 mm main drive motor: 45 kW table surface area: 1250x1600 mm Control: Heidenhain type: TNC 426 workpiece weight: 12500 kg : 720 radial face slide travel: 240 mm total power requirement: 90 kW weight of the machine ca.: 26,3 t dimensions of the machine ca.: 6,5x5x5x4 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further of ...

turning diameter: 400 mm slide adjustment: 62 mm tool adaptor: MK 4 tool taper: Ø 18 mm weight: 8,0 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

T-Type Boring Machine SAN ROCCO - FMC 110 CNC - Spindle Ø 110 mm, capacity 2100x1600x1600+600 mm - CNC HEIDENHAIN TNC 426, ï»¿ï»¿ï»¿ï»¿ï»¿ï»¿ï»¿ï»¿ï»¿ï»¿ï»¿ï» ¿ï»¿ï»¿ï»¿, Information about technical data are not binding., Machine available subject to prior sale., Rotary table dimension: 1300x1100 mm, Maximum table load: 3.000 Kg, Cross travel x axis: 2100 mm, Vertical travel y axis: 1600 mm, Longitudinal travel z axis: 1600 mm, Longitudinal spindle travel w axis: 550 mm, Working feed x-y-w axes: 2 - 10.000 mm/1, Rapid feed x-y-w axes: 10.000 mm/1, Spindle taper: 50-DIN2080 ISO, Spindle speed: 5 - 3000 rpm, Number of spindle speeds: 2, Spindle motor power: 25 Kw, Cnc: HEIDENHAIN TNC 426 CA, Weight: 17.000 Kg, Accessories: Coolant thrugh spindle, external perimeter guard, CE Mark

Radial drilling machine WEBO type R4bRFabr. No. 15 / E195 Year of construction approx. 1965Drilling capacity 40 mmThroat: approx. 1250 mmSpindle holder: MK 4Spindle speed: 30 - 1325 rpm. 9 stepsFeed from 0.12 - 2 mm/rev. 9 steps; used

Universal face and boring head LENZ type LPA 1SSpindle tool, spindle head similar to WOHLHAUPTER UPA3Tool holder: SK 40 - M16Adjustment accuracy: 0.01 mm- Accessories as shown- Storage boxWeight: approx. 5 kggood condition; used

Mitsubishi MAF 210/150A Year: 1977 Table Size: 3000 × 3000 mm | Load Capacity: 60,000 kg Axis Travel: X: 14,000 mm | Y: 4500 mm | Z: 900 mm Spindle: Ø164 mm | 4–3460 rpm | 37/45 kW DC motor Control: ISO/EIA compatible | 5-axis interpolation | M-NUX115 DRO Accuracy: ±0.015 mm/m (X/Y), Repeatability ±0.01 mm Included Accessories: • Tool locking (5 pull studs) • Digital readout system • NC controller with startup components • Setup/leveling blocks • Maintenance toolkit • Protective covers Optional Add-ons (upon request): • Chip conveyor and coolant system • Rotary/angled fixturing • Pendant control • Bellows or floor plate systems • Special tooling packages Utilities & Installation: • Power: AC 220V (standard) • Air: 2–7 kg/cm² at 100 L/min • Installation space & foundation info on request
