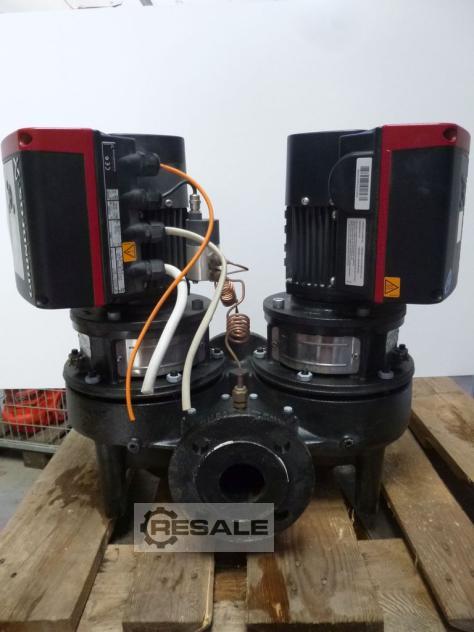

Pumps GRUNDFOS TPED 50-160 / 2-S AFA-BAQE

Grundfos TPED 50-160 / 2-S AFA-BAQE

Original price 6500 €

APPLICATIONS
-Heating
- Local hot water supply systems
- Refrigeration and air conditioning systems

FEATURES AND BENEFITS
- Low power consumption
- Correction according to existing working conditions
- Easy to install

Specifications:

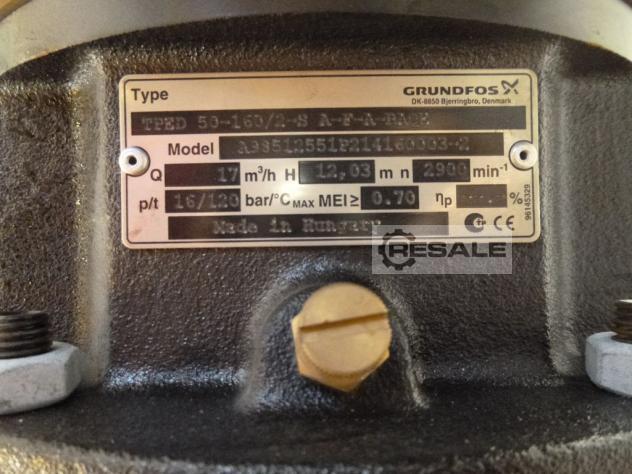

Frequency of rotation2900 rpm
Nominal infeed17 m3 / h
Nominal Head12 m
Max hydrostatic head160 dm
Shaft sealBAQE

Fluids:
Working fluidWater
Fluid Temperature Range0.. 120 ° C
Temperament. Liquids20 ° C
Density998.2 kg/m3

Materials:
Pump housingcast iron
EN-JL1040
ASTM A48-40 B
ImpellerCast iron
EN-JL1030
ASTM A48-30 B

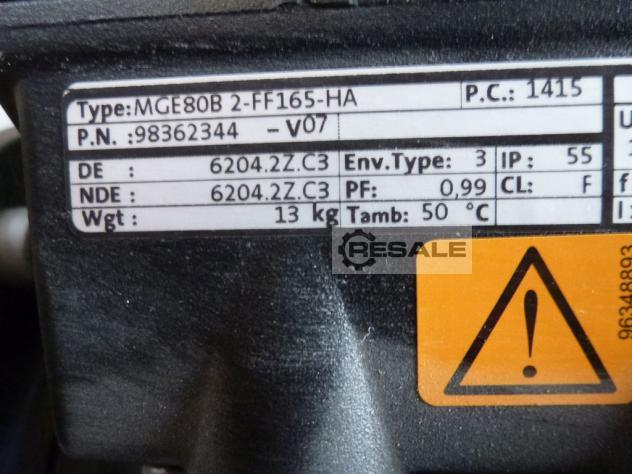

Electrical data:
Engine Type80B
Number of poles2

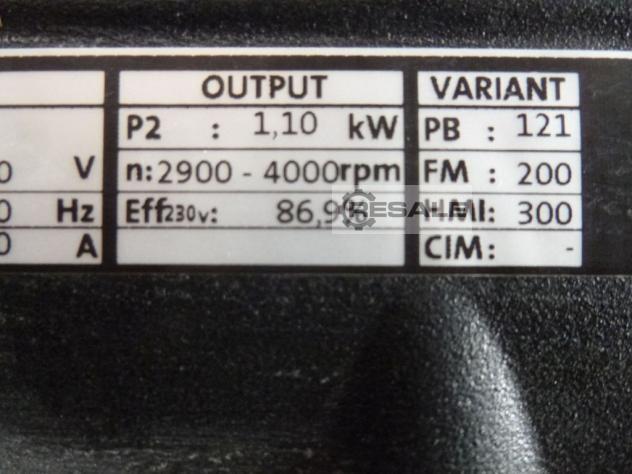

Rated power - P22 x 1.1 kW
Industrial Frequency50 Hz
Nominal voltage3 x 380-500 V
Rated Current2.15-1.80A
Cos is a force characteristic0.91-0.82
Rated Speed360-4000rpm
Energy K51227004 efficiency88.5%
Protection class (IEC K51227004 34-5)IP55
Insulation class (IEC 85)F
Engine protectionYes.
Engine number98362352

Assembly:
Maximum Ambient Temperature50°C
Max. working pressure16 bar
Max. pressure at a given temperature16 bar / 120 ° C
Standard FlangeDIN
Connection codeF
Pipe connectionDN 50
Permissible pressurePN 16

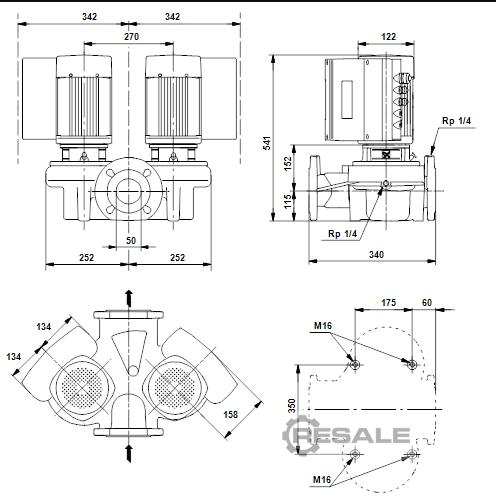

Mounting length340 mm mm
FF165 motor flange size
Net weight95 kg

Datasheet
seller offer No. resale 18615
