We are pleased to present our complete commercial and technical offer
for an unused 2 × 750 MW Combined Cycle Gas Turbine (CCGT) Power
Plant, based on GE Frame 9FA technology, supplied, installed, but not
commissioned.
The plant equipment is available as a complete package, including
major equipment, auxiliaries, and Balance of Plant (BOP).
1. Plant Configuration Overview
Total Configuration:
• 2 × GE Frame 9FA Gas Turbines
• 2 × CMI Triple Pressure HRSG
• 1 × GE Steam Turbine
• Combined Cycle Output: ~750 MW per block
Status:

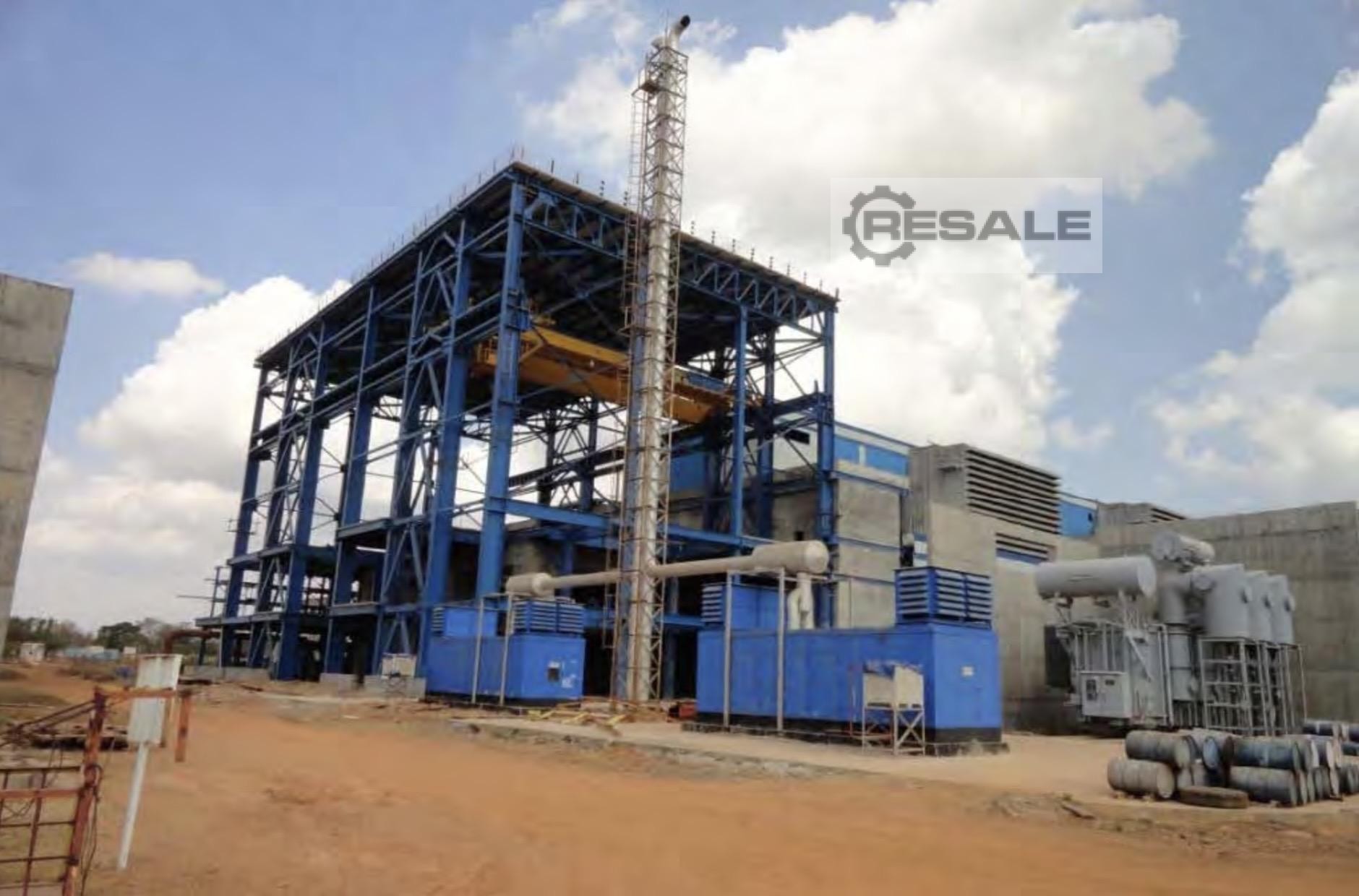

• Installed / partially installed
• Not commissioned
• Units have never been fired or operated
2. Gas Turbine Island
Gas Turbines
• Quantity: 2 Units
• Manufacturer: GE
• Model: Frame 9FA +e DLN2+
• Fuel: Dual Fuel
• Frequency: 50 Hz
• Site Rated Output: 241,000 kW per unit
• Year of Manufacture / Delivery: 2012
• Status: Installed, unused
Gas Turbine Generators
• Manufacturer: GE
• Rated Capacity: 310,725 kVA
Gas Turbine Transformers
• Manufacturer: Hyundai
• Type: Oil-filled
• Rating: 335 MVA
• Voltage: 15.75 kV
3. Steam Turbine Island
Steam Turbine
• Quantity: 1 Unit
• Manufacturer: GE
• Model: GE-D11
• Type: Condensing
• Rated Output: 276,040 kW
• Configuration:
– HP: 10 Stages
– IP: 8 Stages
– LP: 2 × 5 Stages

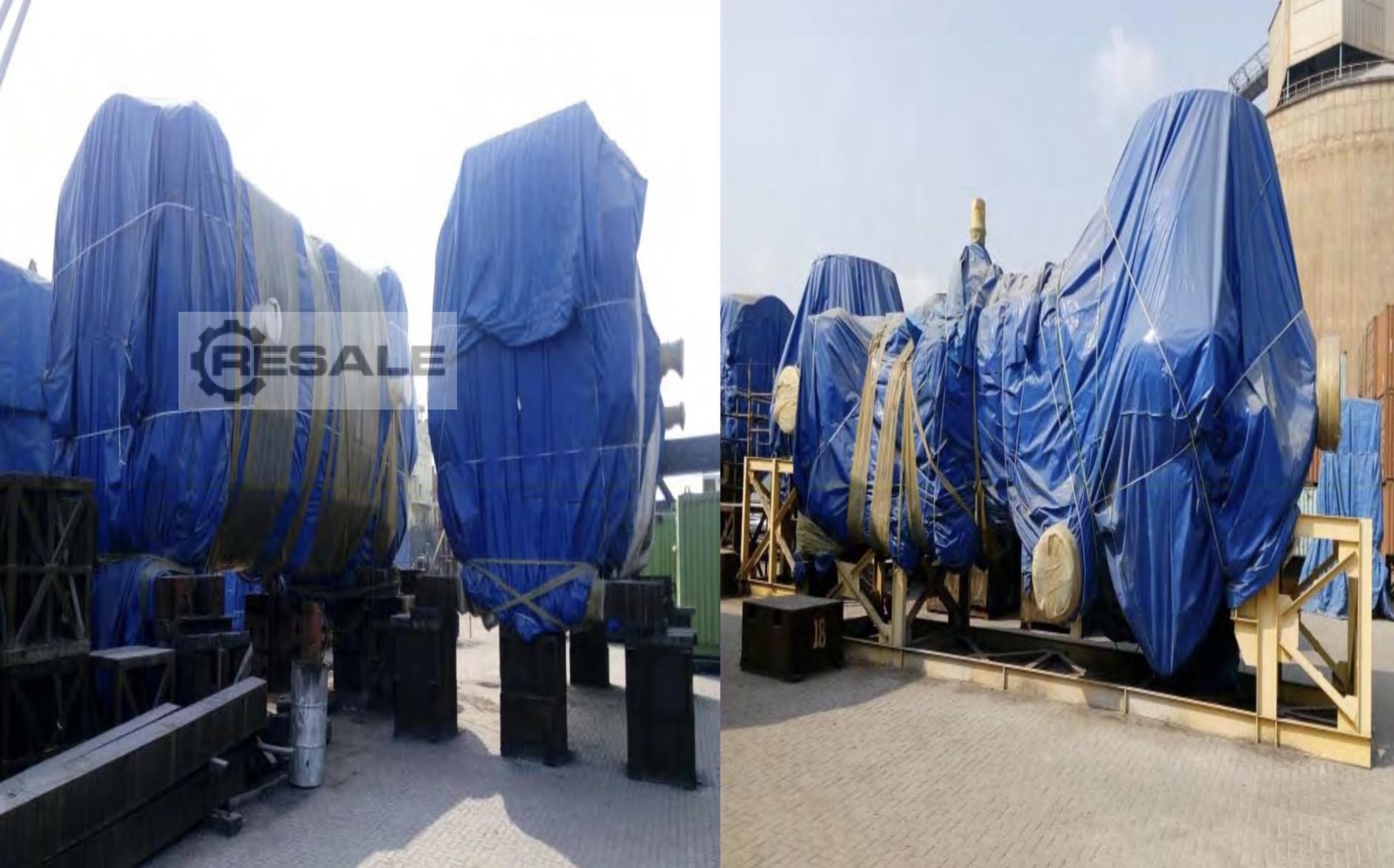

• Status: Unused, packaged and stored at port
Steam Turbine Generator
• Manufacturer: GE
• Rated Capacity: 324,760 kVA
Steam Turbine Transformer
• Manufacturer: Hyundai
• Type: Oil-filled
• Rating: 335 MVA
• Voltage: 15.75 kV
4. Heat Recovery Steam Generators (HRSG)
• Quantity: 2 Units
• Manufacturer: CMI – Belgium
• Type: Triple Pressure, Horizontal, Natural Circulation
• Status: Approx. 90% mechanically constructed
5. Auxiliaries & Balance of Plant (BOP)
A complete auxiliary and BOP scope supplied primarily by Aker
Solutions, including:
• Black Start System – Sterling Wilson
• Distributed Control System (DCS)
• GE Mark VIe Control System for GT & ST
• Cooling Towers – Hamon

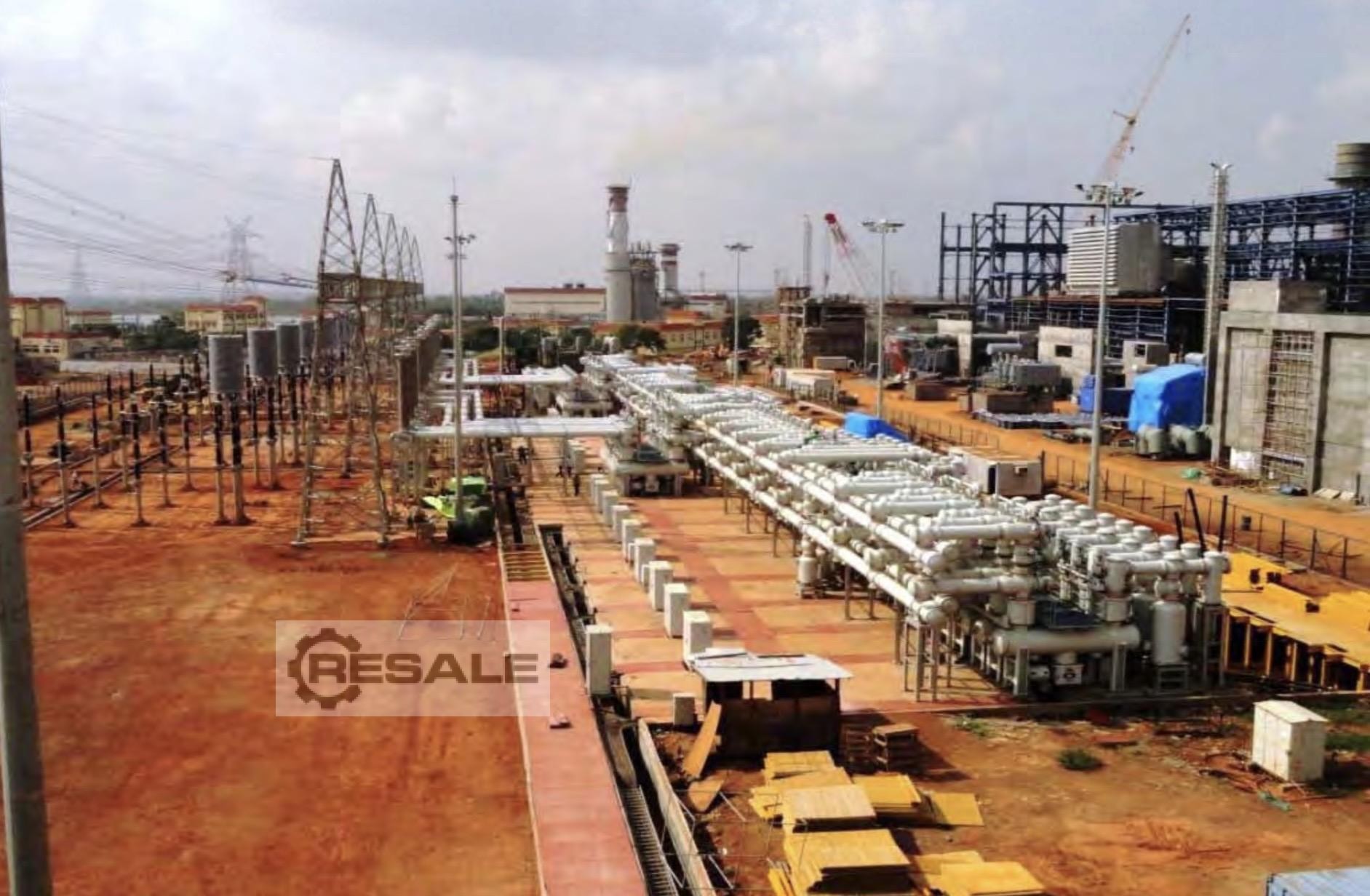

• Electrical BOP & Switchyard Equipment
• Hyundai Power Transformers
• Fuel Gas Conditioning System
• Pumps (CW, Vertical, Horizontal, ACW Booster)
• Piping, valves, heaters, instrumentation
• Isolated Phase Bus Duct
• HT Switchgear, Control & Relay Panels
• Unit Auxiliary Transformers
• Cabling, cable trays, grounding systems
6. Installation & Storage Status
• Major equipment installed but not commissioned
• HRSG: partially erected (~90%)
• Steam turbine: stored, unused

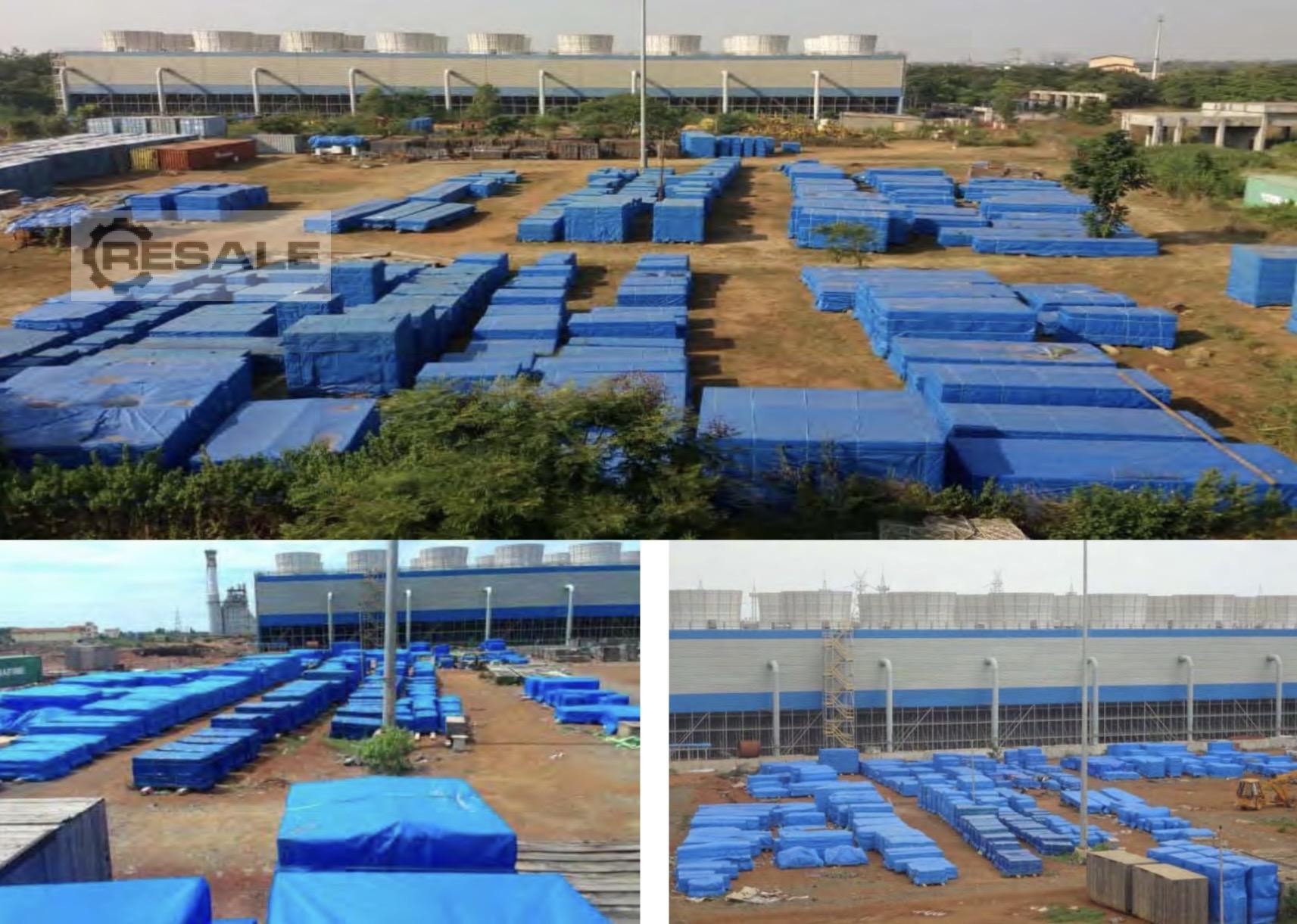

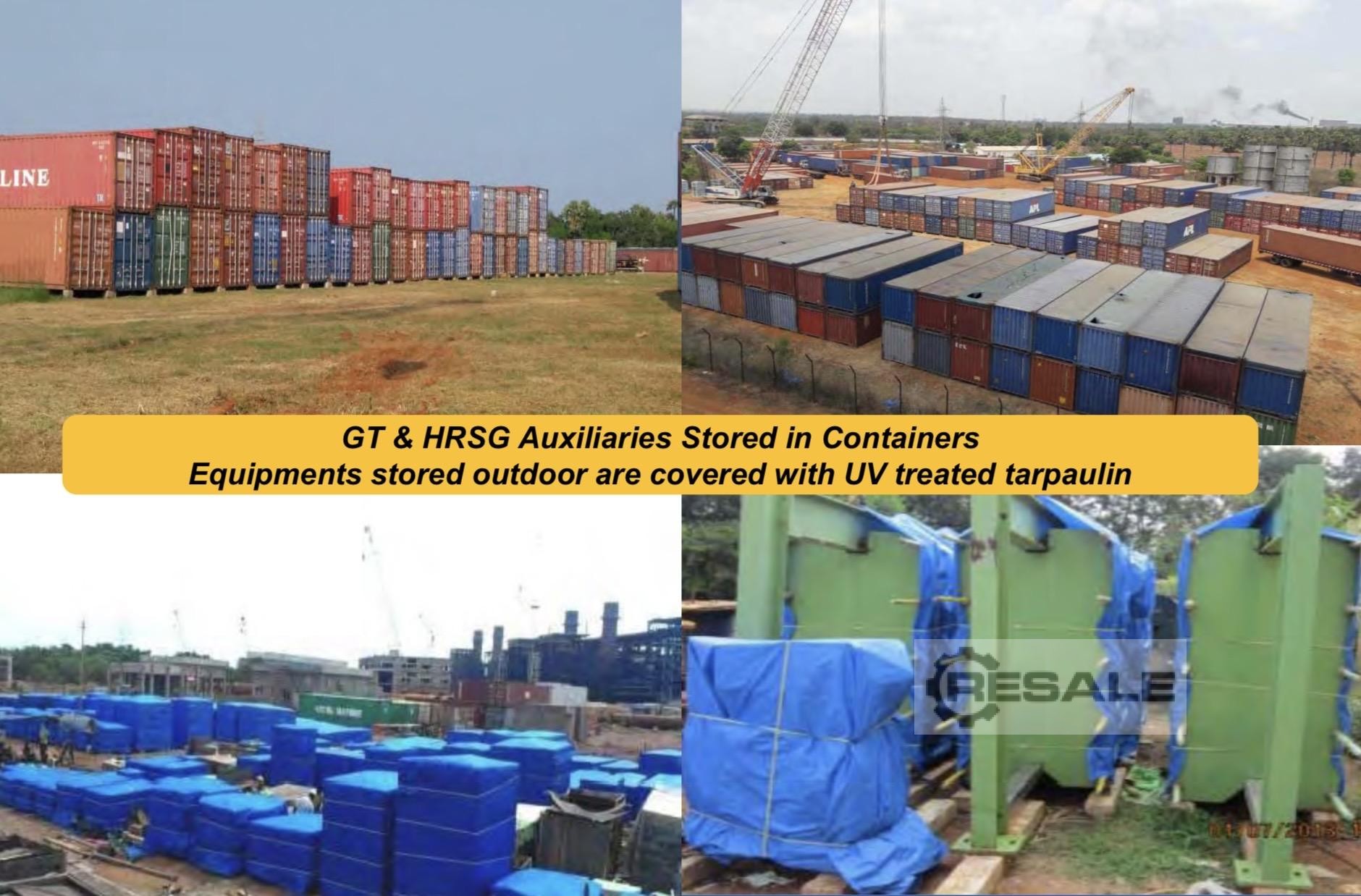

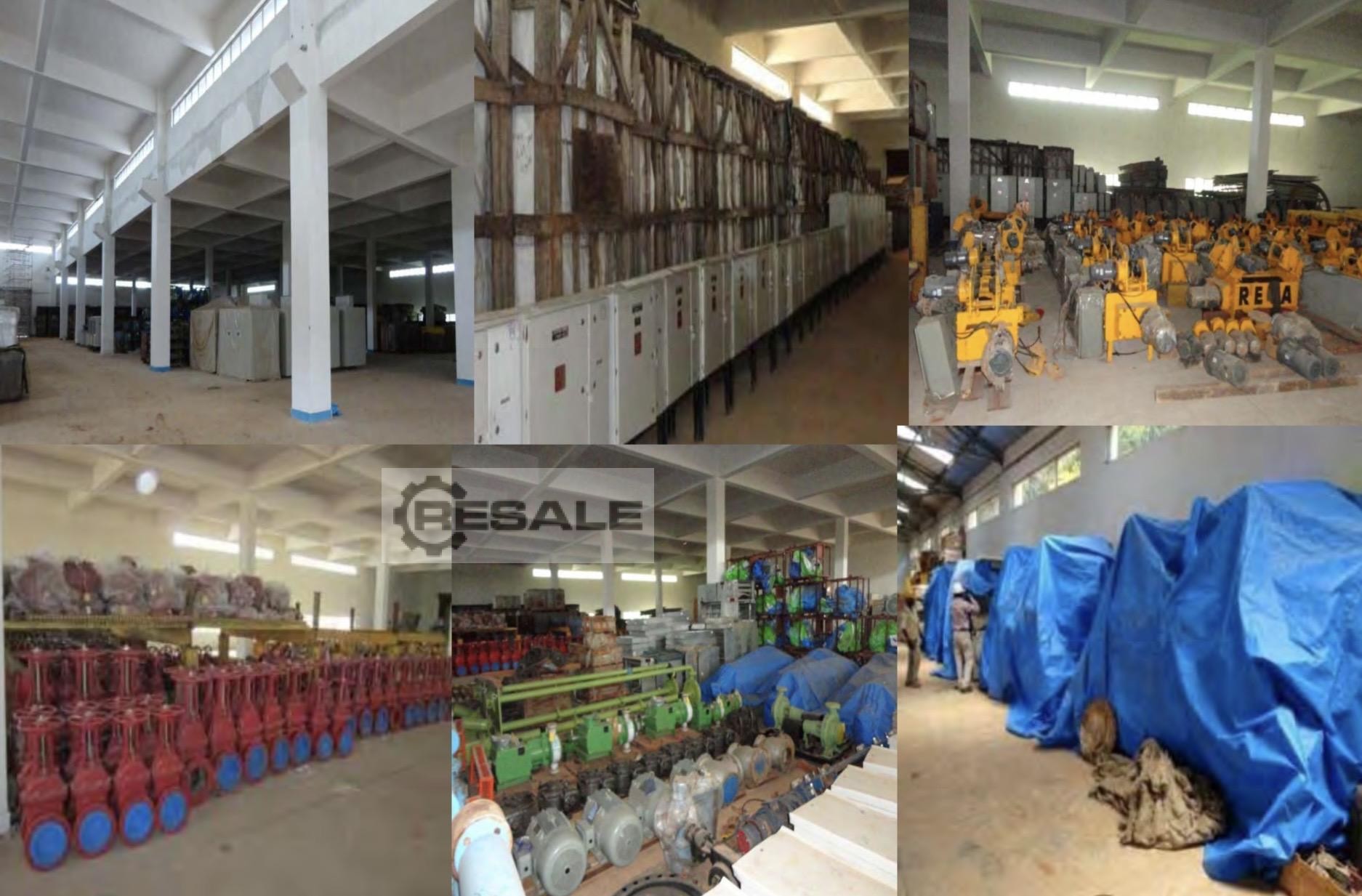

• Approximately 400 containers of equipment remain stored and not
yet installed, including:
– Electrical systems
– Mechanical auxiliaries
– Piping & hardware
– Instruments & control components
– Shelf-life items (batteries, filters, paints, etc.)
7. Warranty Status
• The plant has not been commissioned, therefore:
– Original GE warranty has not been consumed
– GE warranty reactivation is possible
• Subject to payment of an applicable fee, GE can reinstate and
warrant the units
8. Commercial Notes
• Available as complete package or by negotiated scope
• Ideal for fast-track deployment
• Significant savings compared to new-build lead times
• Immediate availability subject to agreement
India
