Stock # U2471-1

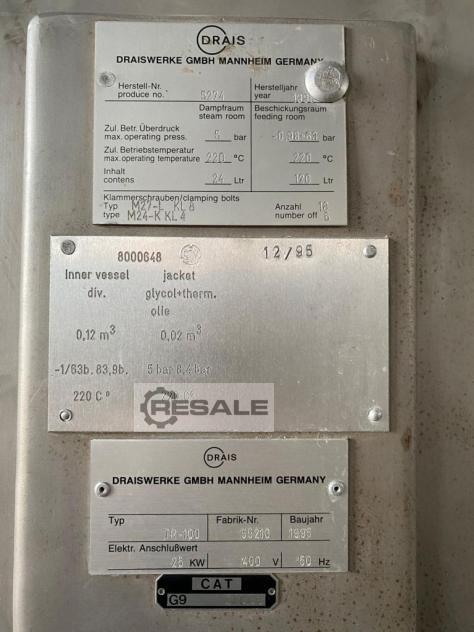

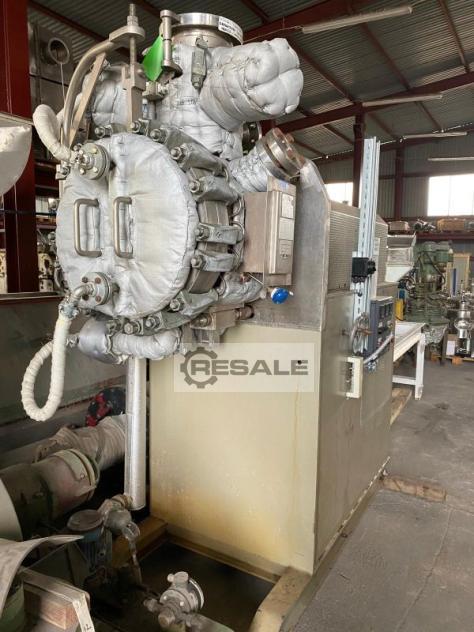

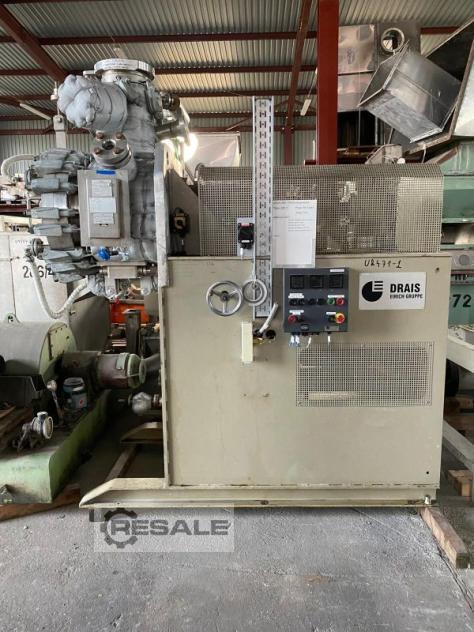

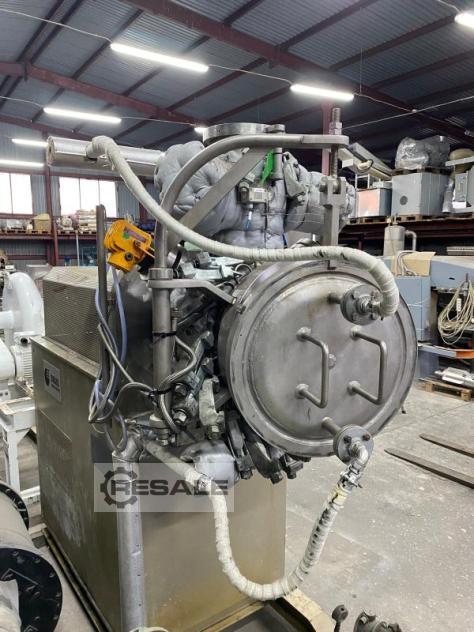

Used horizontal vacuum paddle dryer by Drais (DE) model TR100. Contact
parts designed in duplex stainless steel (AISI 1.4462). Drying chamber
has internal dimensions: diameter 500 mm x length 595 mm. Total volume
of chamber about 117 l. Drying chamber is designed for work on
pressure range from -0,98 bar / 63 bar. Test pressure - 83,9 bar.
Working temperature up to 220 C. Side walls and front door are
jacketed. Total volume of jacket 24 l, working pressure 5 bar,

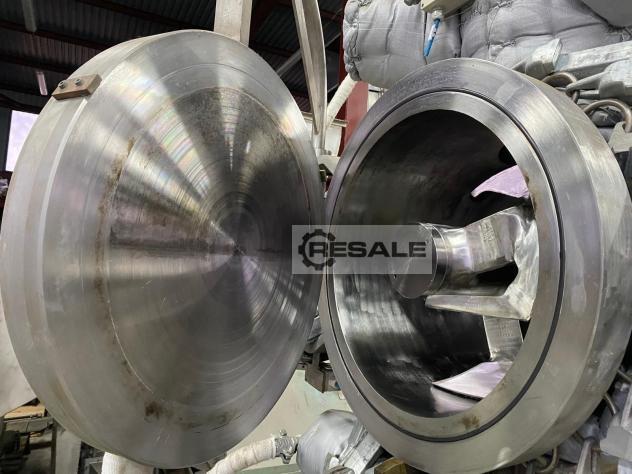

temperature up to 220 C. Chamber doors are mounted on moveable arm and

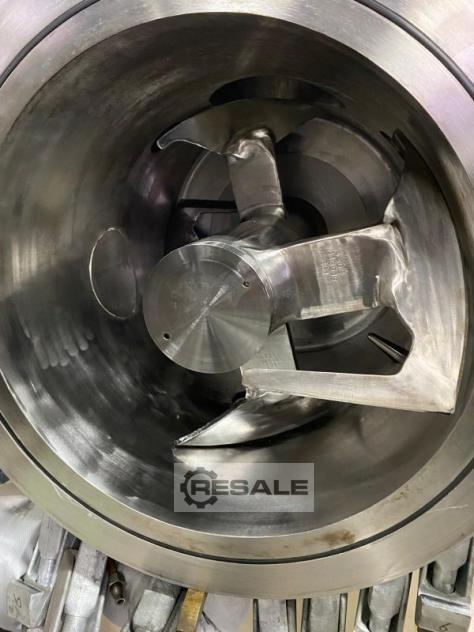

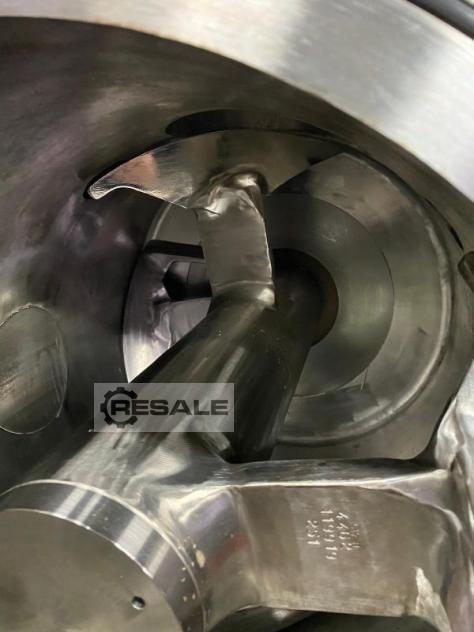

are bolted on 18 clamps. Inside drying chamber there is single shaft
with 4 welded ploughs. Shaft is belt driven by gearbox and el motor
18,5 kW, 1470 rpm, 400 V, 50 Hz in Ex design (EExdeIICT4). Top feeding
inlet with diameter 200 mm, central bottom discharge with manually
operated valve with diameter 100 mm. Machine is mounted on carbon
steel supporting construction.
