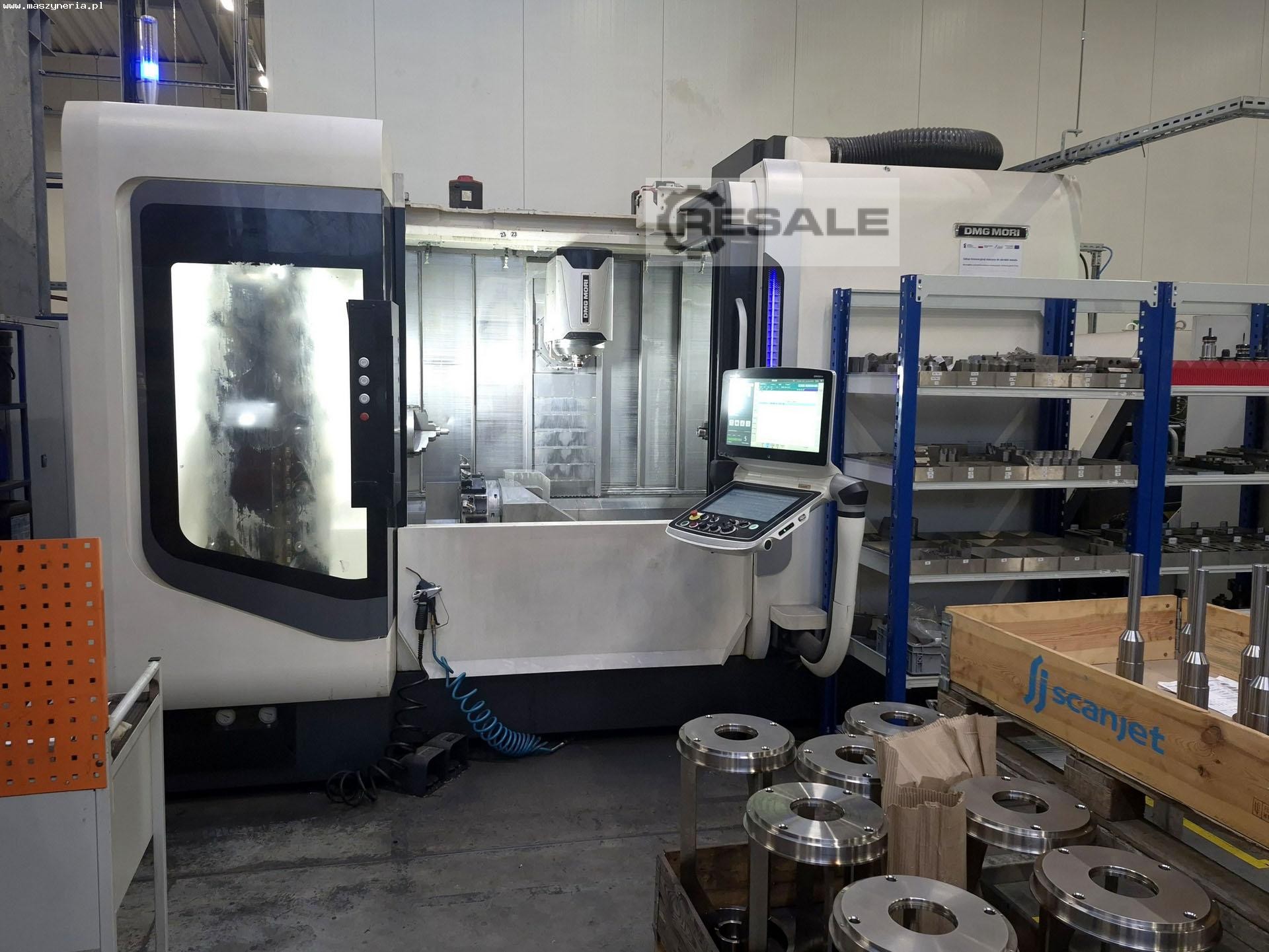

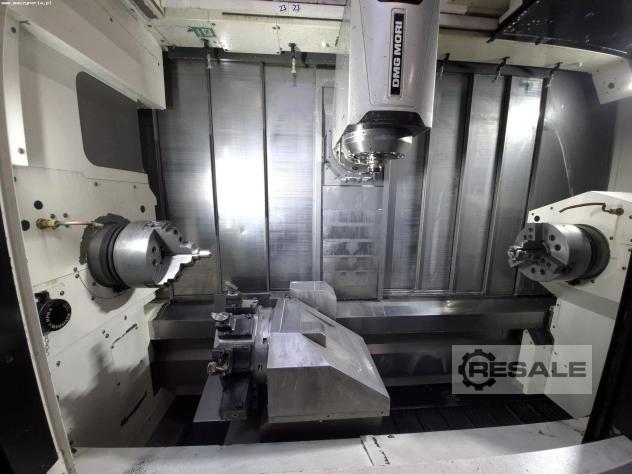

DMG MORI NTX 2000/1500 SZM CNC turn-mill center was built in 2018 in
Japan by DMG MORI CO., LTD. The machine on offer is an excellent
choice for the mass production of precision parts, which are used in
such industries as automotive or aerospace. This is because the NTX
2000/1500 SZM enables simultaneous turning and milling of workpieces
with even the most complex geometries, in a single working cycle. The
combination of these two processes significantly reduces production
costs, as well as overall working time.
The machining process is performed by using the state-of-the-art
technology available on the market. It includes, among others, two
spindles with a labyrinth cooling system. This system was designed for
frequent use of high-pressure coolant. It ensures a constant
zero-point height throughout the working cycle, regardless of the
amount of generated heat. To limit the effect of thermal expansion,
the temperature rise is dampened by an spiral oil jacket, which
surrounds the spindle during machining. The spindle cone is in turn
continuously purged with compressed air.
The rotary B axis uses a DDM (Direct Drive Motor). The motor directly
transfers power to the rotary axis without the use of gears,
eliminating backlash. This solution, compared to conventional worm
gear systems, significantly improves productivity and guarantees fast
feeds. In addition, to achieve a smooth tool feed, the SVC function
reads software commands in advance to control the tool tip and
automatically applies compensation. All this ensures better surface
quality and shorter cycle times during simultaneous, 5-axis machining
of workpieces with even the most complex geometry.

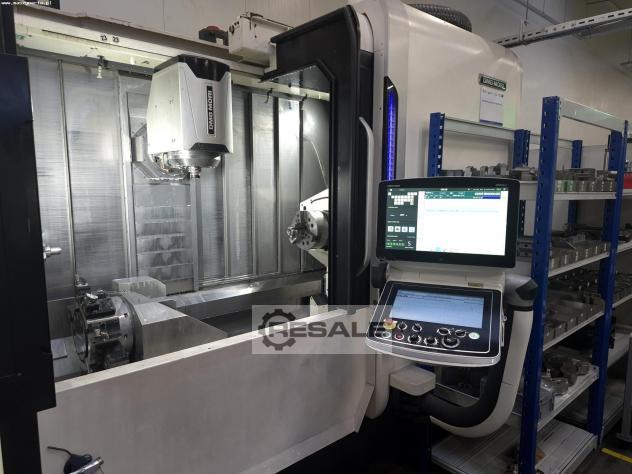

The NTX 2000SZM/1500 CNC machining center is also very easy to
operate. It is controlled from a touchscreen control panel with a
unified CELOS user interface, which enables consistent machine
management, process visualisation and the creation of documentation.
The operating system also offers the ability to extend functionality
through its compatibility with various applications. The DMG MORI NTX
2000/1500 SZM turning and milling center weighs 16000 kg.
Technical specifications of the DMG MORI NTX 2000/1500 SZM turn-mill
machine
General data
- feed in the X1/Y/Z1 axis: 495/± 125/1560 mm
- feed in the X2/Z2 axis: 160/1402 mm
- B axis rotation range: ± 120°
- rapid traverse in the X1,Y,Z1 axis: 40 m/min
- rapid traverse in the X2/Z2/A axis: 30/38/30 m/min
- rapid traverse in the B/C axis: 100/250 rpm
- swing over cross slide: 660 mm
- swing over cross slide (turret): 300 mm
- maximum turning diameter (tool spindle): 660 mm
- maximum turning diameter (turret): 274 mm
- maximum bar diameter: 65 mm
- maximum turning length: 1540 mm
- maximum distance between spindle end and tailstock or between
spindle ends: 1760 mm
- compressed air requirement: 650 l/min
- coolant pump motor power: 1.1 kW
- coolant tank capacity: 675 l
- spindle oil cooler tank capacity: 20 l
- hydraulic oil tank capacity: 20 l
- coolant cooler tank capacity: 192 l
- space requirements (L x W): 4110 x 2992 mm
- weight of the DMG MORI NTX 2000/1500 SZM machine: 16000 kg
Main spindle
- maximum rotational speed: 5000 rpm
- bore diameter: 73 mm
- spindle end: JIS A2-6
- internal bearing diameter: 120 mm
- minimum indexing angle: 0.0001°
- drive power (30 min/continuous power): 22/18.5 kW
- torque (15% ED/ 30 min/continuous power): 230/178/159 M6151405
Nm

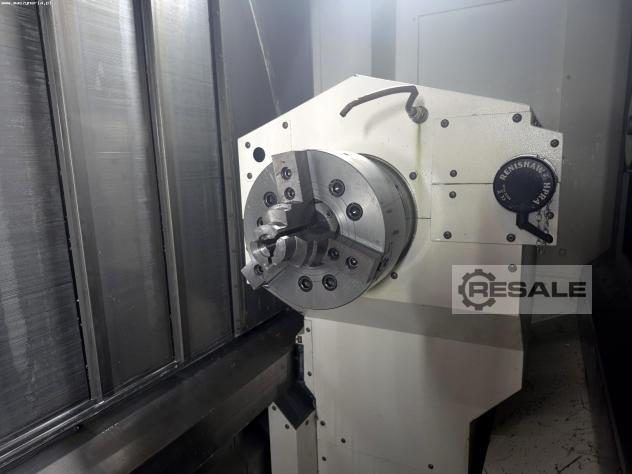

Sub-spindle
- maximum rotational speed: 5000 rpm
- bore diameter: 73 mm
- spindle end: JIS A2-6
- internal bearing diameter: 120 mm
- minimum indexing angle: 0.0001°
- drive power (30 min/continuous power): 22/18.5 kW
- torque (15% ED/ 30 min/continuous power): 230/178/159 Nm
Chain tool magazine
- number of positions: 38
- maximum tool diameter (adjacent positions occupied/ adjacent
positions empty): 70/125 mm
- maximum tool length: 300 mm
- maximum tool weight: 8 kg
- tool holder: Capto C6
- B axis indexing accuracy: 0,0001°
- maximum tool spindle rotational speed: 12000 rpm
- tool spindle internal bearing diameter: 70 mm
- tool spindle drive power (10 min/continuous power): 18.5/11 kW
- tool spindle torque (10% ED/continuous power): 120/44 Nm
- tool spindle clutch indexing angle: 7,5°

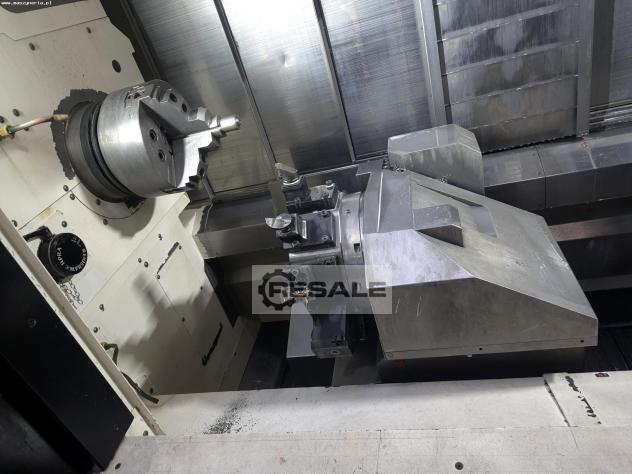

Turret
- number of positions: 10
- maximum rotary tool speed: 6000 rpm
- height of tool square shank: 20 mm
- maximum diameter of boring bar shank: 32 mm
- rotary tool drive power (15% ED/ continuous power): 1.5/1.2 kW
- rotary tool torque (15% ED/ continuous power): 4.8/2.3 Nm

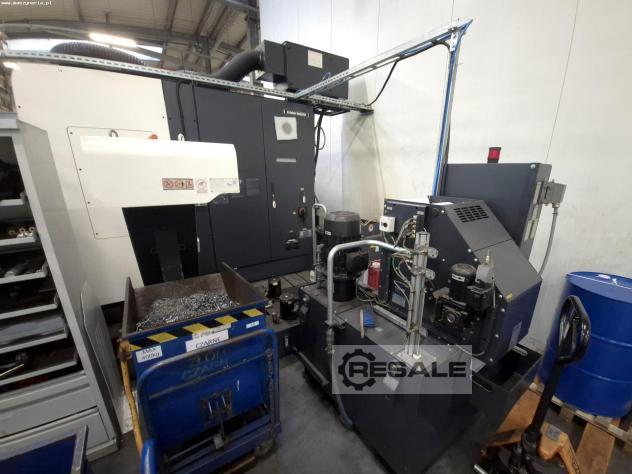

Equipment of the DMG MORI machining center
- CNC controller: FANUC F31iB5
- ERGOline Touch control panel with CELOS unified user interface
- spindle cooling (tool spindle)
- spindle purge system with compressed air
- oil mist separator 200 mm
- chip conveyor
- filter system: KNOLL/ INTERLIT
- automatic shutdown system
- workspace illumination
- foot switch control
- USB port
Poland
