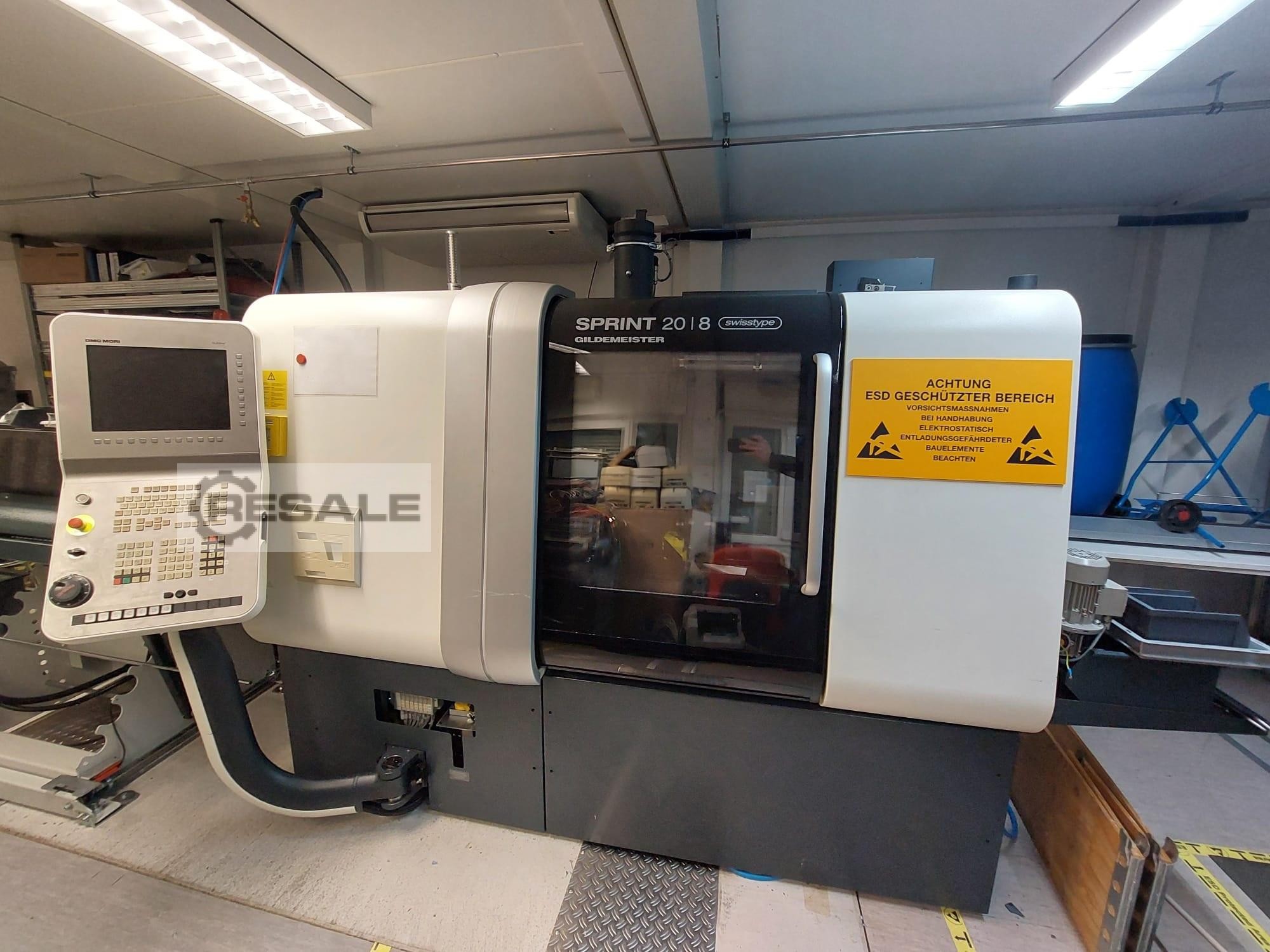

CNC Long Turning Automatics DMG MORI Gildemeister Sprint 20/8 Linea

Highlights
− Linear actuator for maximum precision, dynamics and cost-effectiveness
− 6 + 2 axes, 2 Y-axes as standard
− 2 tools in use at the same time
− Thanks to the conversion kit, the machine can be used as an adjustable spindle stick

Technical description
I-J10010
GILDEMEISTER SPRINT 20|8 linear
CNC Swiss Automatic Lathe

TECHNICAL DATA:

MAIN SPINDLE
Turning diameter max.: 20 (25 option) mm
Stroke Z 1: 80 mm
Max. speed: 10,000 rpm
Nominal drive power: S1 3.7 kW

SUB-SPINDLE
Turning diameter max.: 20 (25 option) mm
Stroke Z 2: 300 mm
Max. speed: 10,000 rpm
Nominal drive power S1: 3.7 kW

CNC-CONTROLLED AXES
Rapid traverse speed: 40 (30) m/min
(Y1 only)
Acceleration max. X1: 10 m/s2
Feed force (S1) axis Z1,Z2,X2,Y2: 250 daN
Feed force (S1) axis Y1: 500 daN
Linear axis feed force X1: 60 daN

SLIDE 1
Stroke X 1: 50 mm
Stroke Y 1: 350 mm
6 Pos. Tool Holder 12x12
5 rotating tools including spindles with clamp holder ESX16

SLIDE 2
Stroke X 2: 240 mm
4 position tool holder for external machining with connection 12x12
4 position tool holder for internal machining diameter 20 mm
5 rotating tools including spindles with clamp holder ESX/16 (option)

COOLANT SUPPLY
Cooling lubricant: emulsion
Coolant tray, capacity: 250 l
Coolant pump, max. capacity: 120 l/min
Pressure: 1.5 bar

NOISE LEVEL
Noise level according to ISO 230-5, ISO 3746, ISO 11202: < 70 dBA

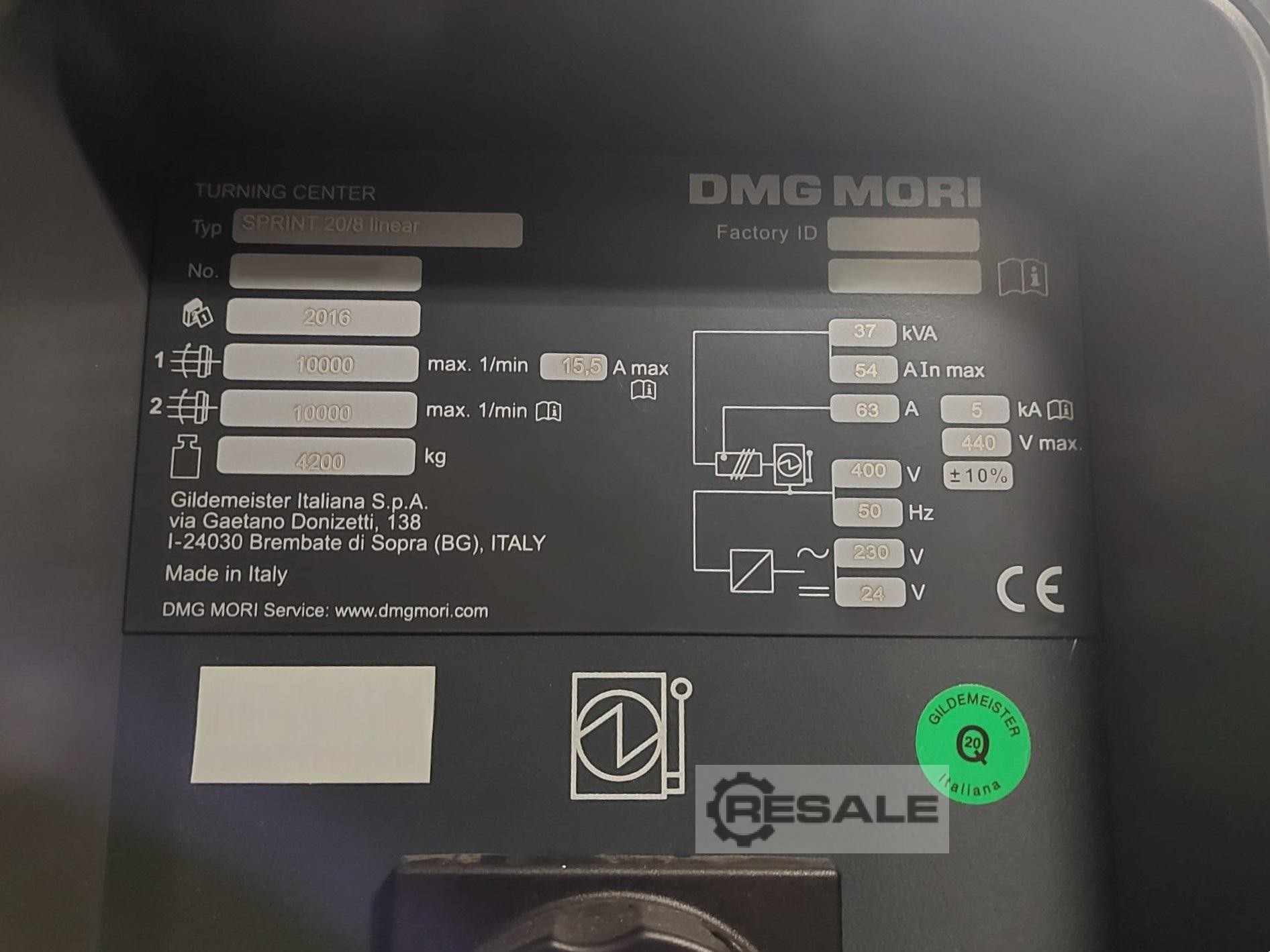

ELECTRICAL DATA
Electrical cabinet according to EN 60204-1
Power: 56 kVA
Cross-section of the supply line: 5x35 mm2
Operating voltage: 400 (+/-10%) V
Frequency: 50 (+/-1%) Hz
Fuse: 100 A
Control voltage: 24 V/DC
Light voltage: 24 V/DC
Rated current: 86 A
Protection Grade Machine Lighting: IP 67
Degree of protection of electrical control cabinet: IP 54

ENVIRONMENTAL CONDITIONS
Ambient temperature: +10/+35 °C
Max. humidity: 75 %
Max. installation height: 1000 m above sea level

SAFETY STANDARDS:
2006/42/EC; 2006/95/EC; 2004/108/EC

CNC control FANUC 31i (15" TFT color monitor)

L x W x H of the machine without peripherals: 2,200x1,050x1,770 mm
Net weight without chip conveyor: 4,200 kg
Switch-on Time: 12276h
Operating hours / program runtime: 4426h
Item condition: well maintained, fully functional
Availability: immediately
Location: Thuringia, Germany
seller offer No. resale 10067
