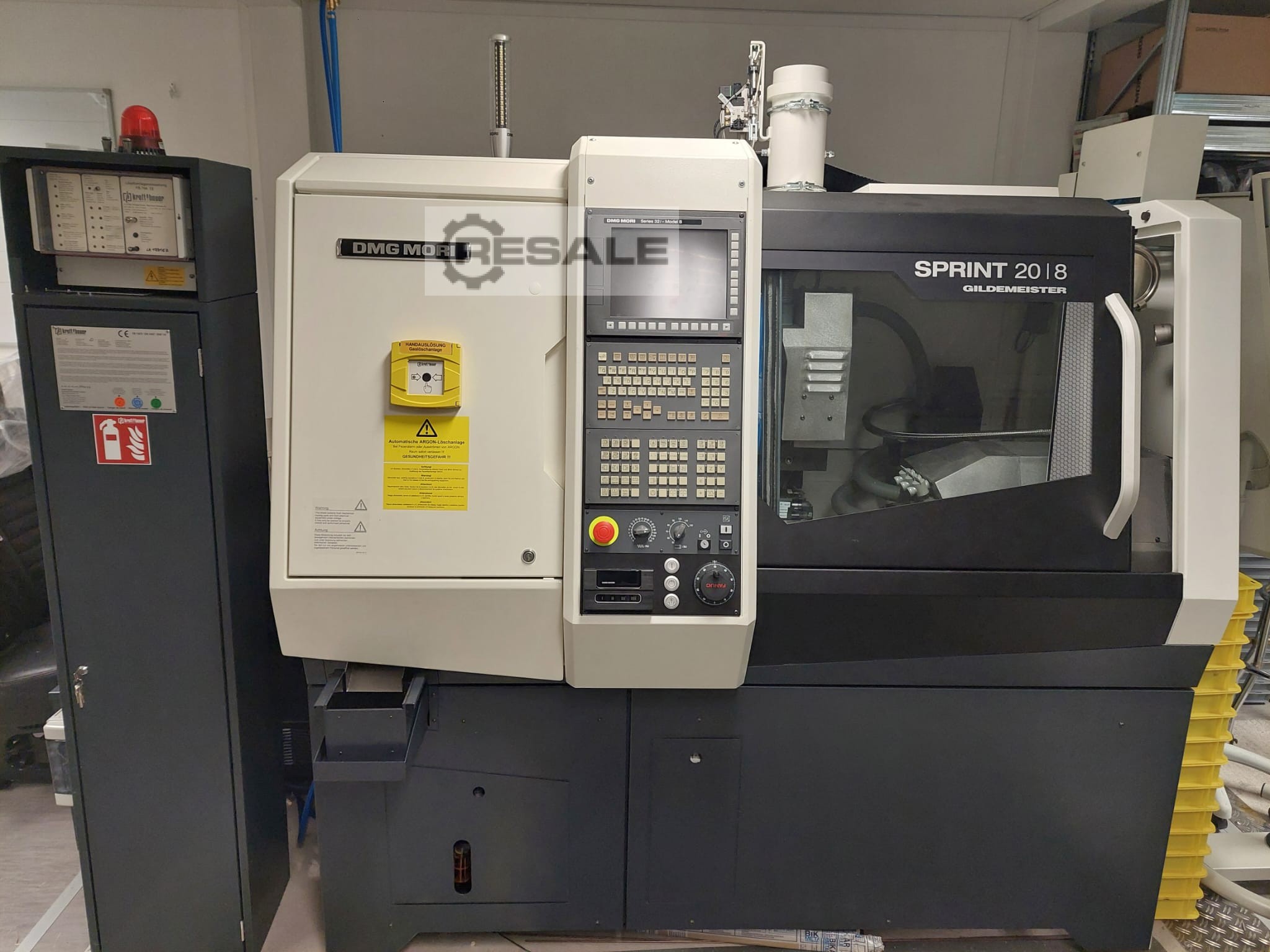

CNC Long Turning Automatics DMG MORI Gildemeister Sprint 20/8

Highlights
- CNC FANUC 32i
- 6 linear axes
- 2 programming channels
- 2 electrospindles
- C-axis standard for main spindle and sub-spindle
- 25 Vehicle positions
- 4 radial driven tools for slides 1
- 4 radial driven tools for slides 2
- Machining on the main spindle possible with 2 tools at the same time

Technical description

I-A1023
GILDEMEISTER SPRINT 20|8
CNC Swiss Automatic Lathe CNC CNC FANUC 32i

TECHNICAL DATA

MAIN SPINDLE
Turning diameter max.: 20 mm
Stroke Z1: 60 mm 180 (with option I-C1002)
Max. speed: 10,000 rpm
Nominal drive power S1: 2.2 kW

SUB-SPINDLE
Turning diameter max.: 20 mm
Stroke X2: 220 mm
Stroke Z2: 170 mm
Max. speed: 10,000 rpm
Nominal drive power S1: 1.5 kW

CNC-CONTROLLED AXES
Rapid traverse speed: 32 m/min
Max. acceleration: 5 m/s2
Feed force (S1) axes Z1, Z2, X1, X2: 150 daN
Feed force (S1) axis Y1: 370 daN
Feed force (S1) axis Y2: 220 daN

SLIDE 1
Stroke X1: 50 mm
Stroke Y1: 325 mm

CARRIAGE Y2
Stroke Y2: 85 mm

COOLANT SUPPLY
Cooling lubricant: mineral oil, max 32cSt at 40°C
Maximum viscosity at operating temperature: 75 cSt
Optional coolant (I-B1255): Emulsion
Coolant tray, capacity: 165 l
Coolant pump, capacity max: 90 l/min
Coolant pump, pressure max: 0.7 bar
at 50 Hz and coolant with viscosity 15 cSt

NOISE LEVEL
Noise level according to ISO 230-5, ISO 3746, ISO 11202: < 75 dBA

PNEUMATIC SYSTEM
Consumption basic machine: 175 NL/min
Consumption of basic machine with kit for emulsion and conversion from short to long lathe: 360 NL/min

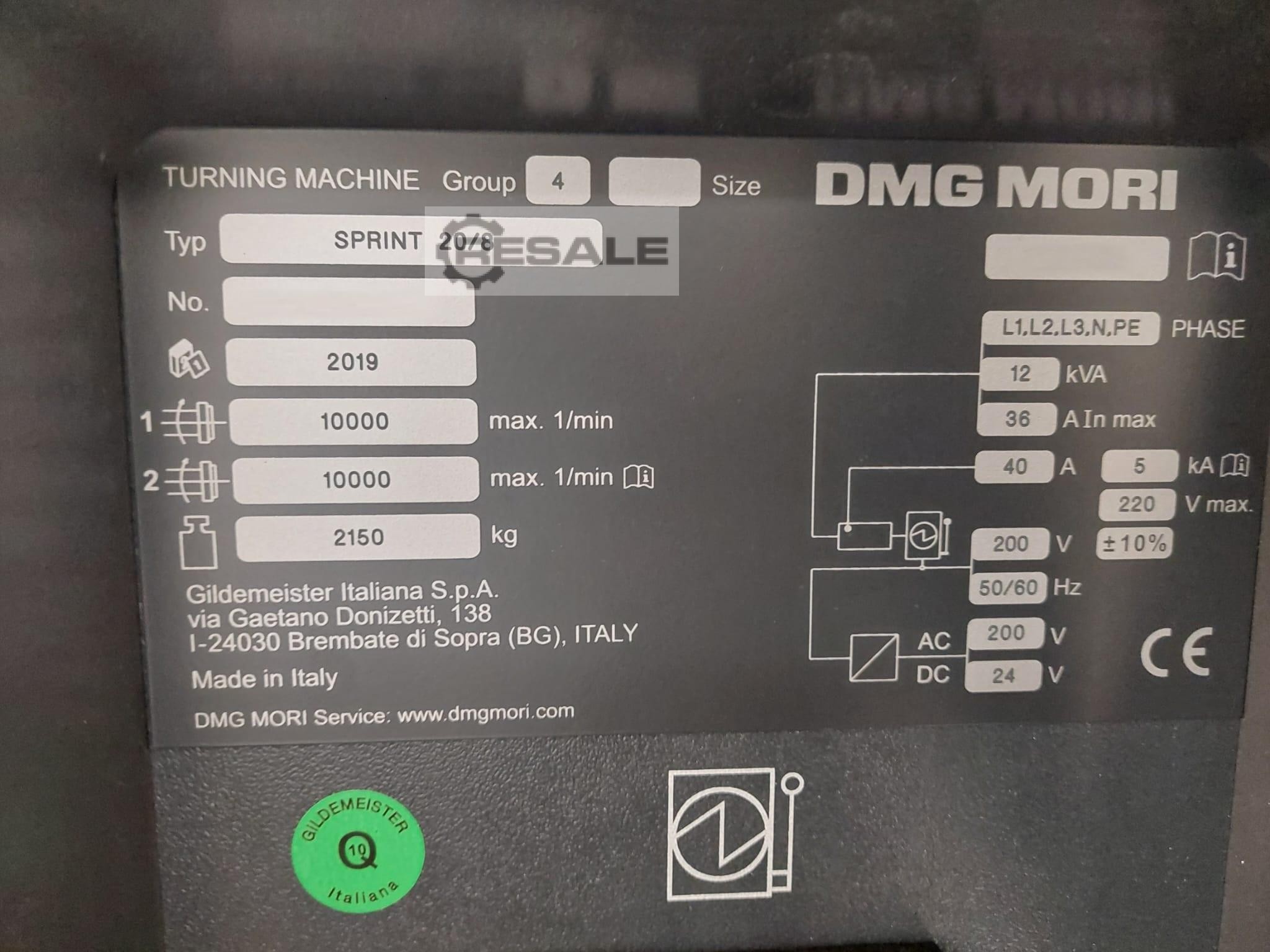

ELECTRICAL DATA
Electrical cabinet according to EN 60204-1
Power: 12 kVA
Cross section of the supply line: 5xAWG6 / 5x16 AWG / mm2
Operating voltage: 200 (+/-10%) V
Frequency: 50 (+/-1%) Hz
Pre-fuse: 63 A
Control voltage: 24 V/DC
Full current: 42 A
Protection Grade Machine Lighting: IP 67
Degree of protection of electrical control cabinet: IP 54

ENVIRONMENTAL CONDITIONS
Ambient temperature: +15/+35 °C
Max. humidity: 75 %
Max. installation height: 1,000 m above sea level

SAFETY STANDARDS
2006/42/EC; 2006/95/EC; 2004/108/EC

CNC control FANUC 32i (monitor 10.4" TFT color monitor)

Space requirement: 1,900x1,000 mm
Net weight: 2,400 kg

Switch-on time: 414h
Operating hours / program runtime: 110h
Condition: well-maintained, fully functional
Availability: immediately
Location: Thuringia, Germany
seller offer No. resale 10066
