Vertical stainless steel tank with a total capacity of 2300 litres,

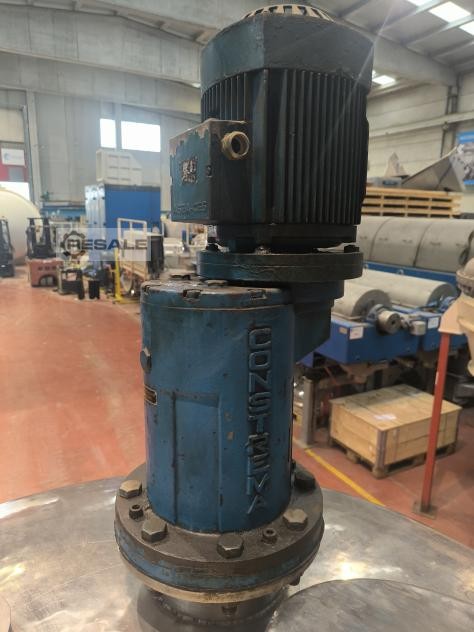

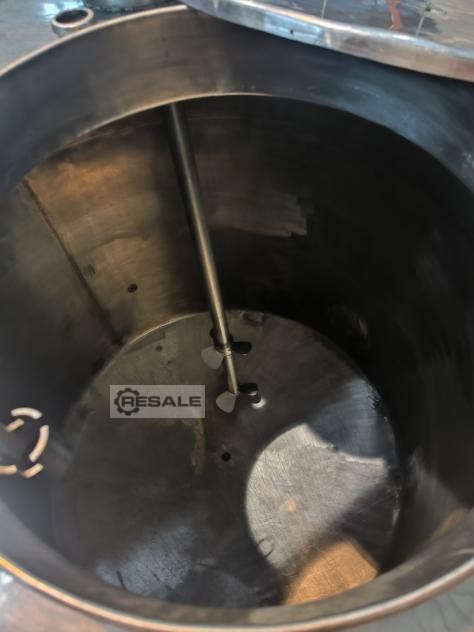

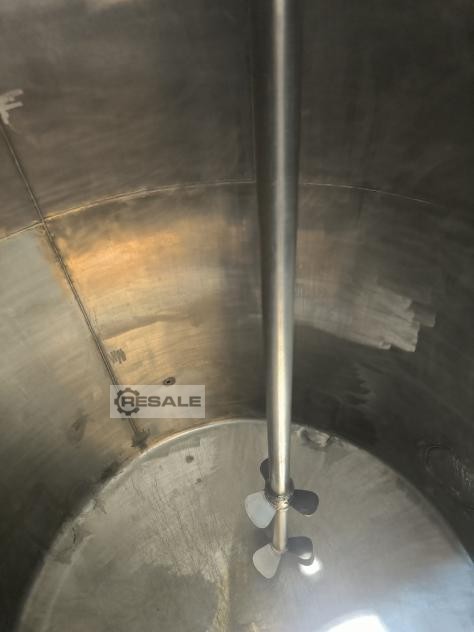

equipped with a stirring system by means of three-blade propellers
arranged at two heights and off-centre configuration. The equipment is
built on legs and has a Klopper-type upper bottom and conical lower
bottom.

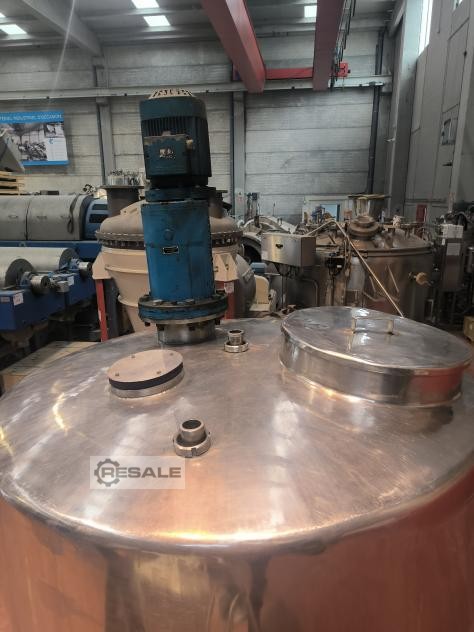

The tank has a manhole located at the top bottom, with an inner
diameter of 500 mm, two 1 1/2" upper clamp connections and a side
connection in the body for sampling. The discharge has a diameter of
50 mm and is located at a height of 220 mm.
The body has an inner diameter of 1400 mm, a height of 1450 mm and a
thickness of 2 mm. The upper and lower depths are also 2 mm thick. The
lower clearance height is 380 mm and the body width is 1410 mm.
Approximate dimensions for transport: 1420 x 1420 x 2900 mm.
Approximate weight: 400 kg. The equipment is supplied without
documentation and is in its current condition.
Total capacity 2300 L
Material: Stainless Steel
Vertical Orientation and Installation
Off-center two-height three-blade helix-type agitation
On legs
Klopper-type upper bottom
Tapered bottom
Manhole on top bottom
Equipment dimensions
Body height 1450 mm
Lower clearance height 380 mm
Body inner diameter 1400 mm
Body thickness 2 mm
Thickness of the bottom 2 mm
Thickness of the upper depth 2 mm
Inner diameter of manhole 500 mm
Discharge height 220 mm
Discharge diameter 50 mm
Body width 1410 mm
Transportation Information
Length 1420 mm
Width 1420 mm
Height 2900 mm
Weight 400 Kg
No documentation
In your state
