CAPACITIES AND CHARACTERISTICS
CNC Fagor 8055
Retrofitted in 2018
TABLE – CROSS SLIDE
• D – Table diameter: 2050 mm
• A – Maximum turning diameter: 2300 mm
• DB – Normal table height from the floor: 731 mm
• H – Maximum machinable height (tool overhang 15 mm): 2000 mm
• T – Vertical stroke of the cross slide: 1700 mm
• Continuous range of table speeds: 1.6 to 200 rpm
• Table motor power: 37 kW
• Maximum allowable load on table: 20 tons
• Cross slide travel speed: 400 mm/min

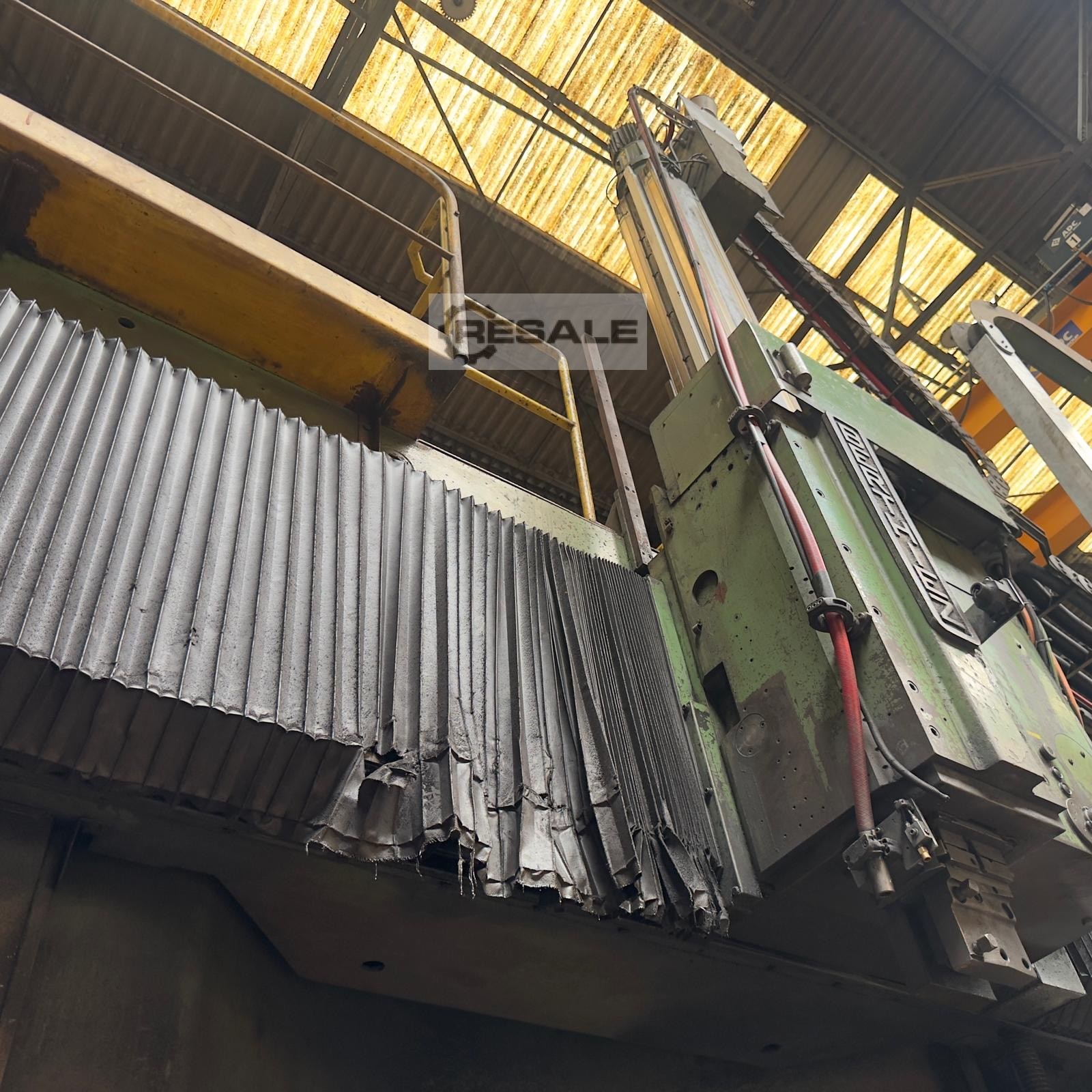

TOOL CARRIAGE
• Section of the tool carriage slide: 224 x 224 mm
• C – Travel of the tool carriage slide: 1600 mm
• CD – Travel to the right of the table axis: 1305 mm
• CG – Travel to the left of the table axis: 400 mm
• Continuous feed range: 0.05 to 24 mm/rev
• Tool positioning speed: 1 to 3600 mm/min
Verniers:
• 1 division = 0.01 mm
• 1 turn = 3 mm
Note:
In manual mode, for feed rates under 3 mm/min, the actual value may
vary by ±0.15 mm/min from the displayed value.
Electrical cabinet is almost new
Slideways are in good shape
USA
06514 Hamden
