Two Artinox inclined clarifier/lamella clarifier systems made of
stainless steel are offered for the continuous mechanical separation
of dirt particles, sludge, or sediments from water or process liquids.
1) Artinox inclined clarifier/lamella clarifier, pipe connection: Ø
108mm, additional connection: Ø 168mm, main module dimensions:
approx. 2400mm/1350mm/2360mm, hopper width bottom/top/center: approx.
1323mm/1896mm/1546mm, inclination: approx. 1.1°, function:
solid-liquid separation by sedimentation, application: process water,
wastewater, wash water, liquids containing settleable solids,
separation principle: sedimentation with lamella packs/inclined
plates, flow direction: horizontal, lamella packs: available,
sedimentation hopper: available, equipped with multiple basin modules,
lamella clarifier sections, sludge hopper, upper pipe distributor,
connection nozzles and flanges, lifting lugs, frame, maintenance

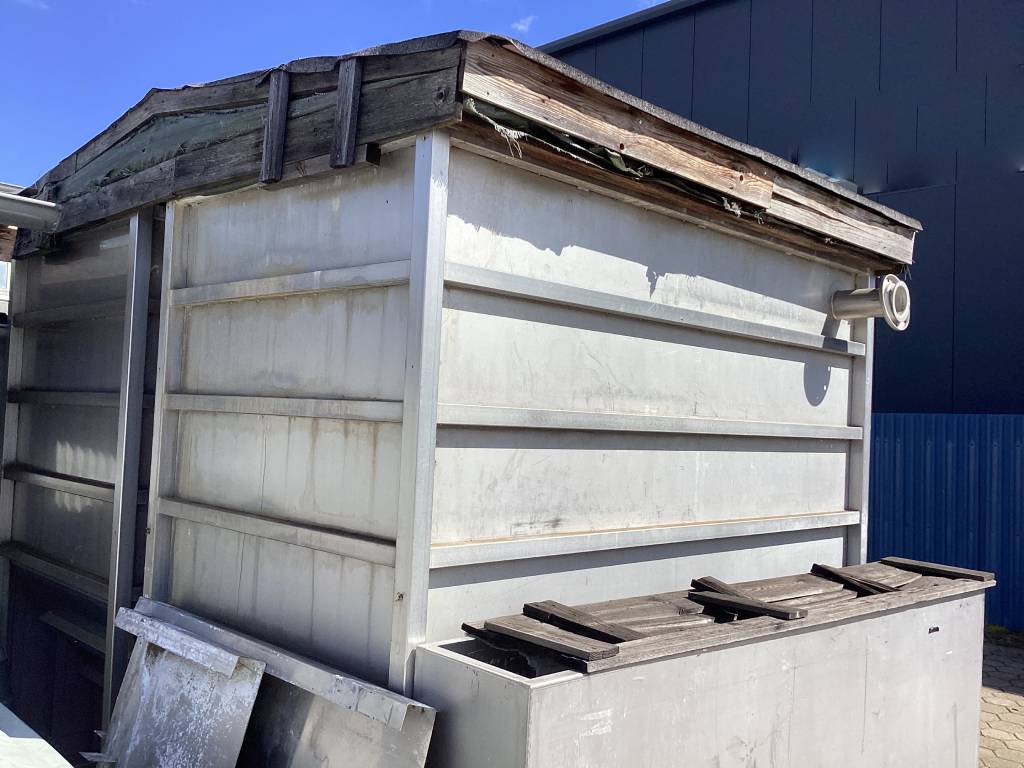

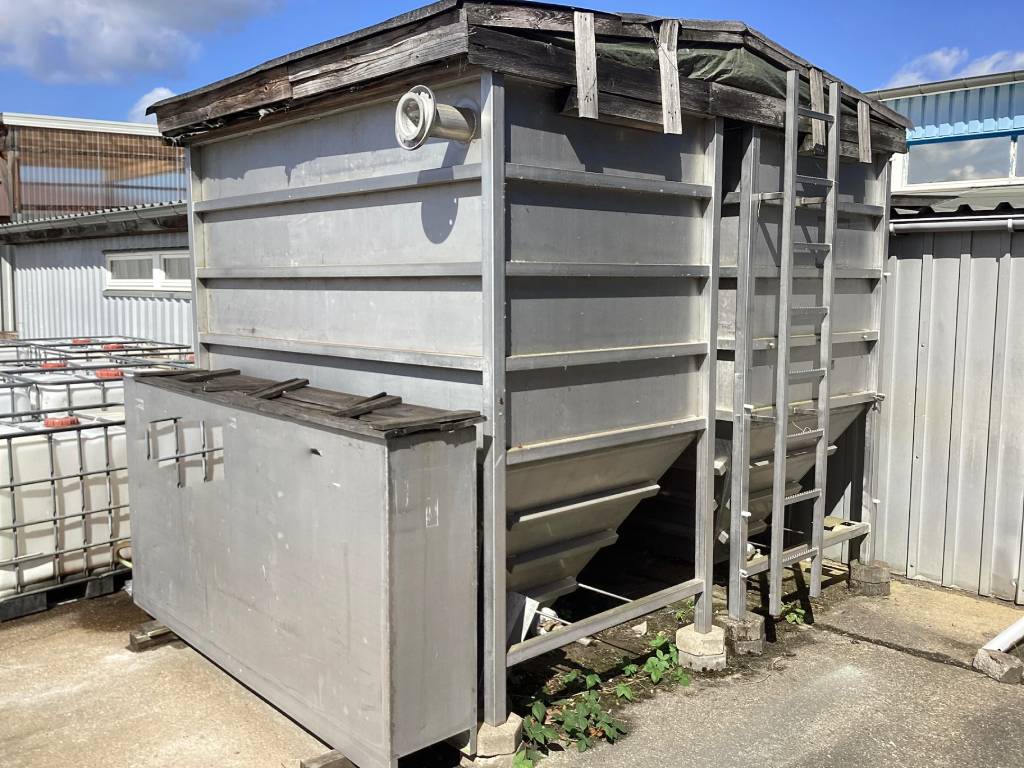

access. 2) Artinox inclined clarifier/lamella clarifier, smaller
module dimensions: approx. 2300mm/1250mm/1371mm, hopper
height/inclined bottom section: approx. 1050mm, inner/lower hopper
dimension: approx. 775mm, lamella/sheet spacing: approx. 293mm,
function: separation of settleable solids from liquids, design:
rectangular clarification tank with hopper bottom, flow path: via
inlet, clarification zone, overflow edge, sludge hopper: available,
separate pre-collection tank: available on the side, discharge
pipe/flange connection: available, maintenance ladder: available,
wooden cover: available, equipped with main clarification tank, hopper
bottom, side-mounted attachment tank, pipe connection, flange,
maintenance ladder, upper cover. Inspection possible by appointment.
