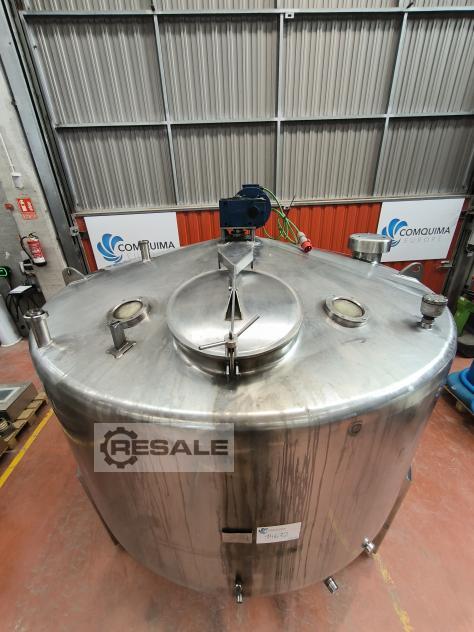

Vertical stainless steel tank of the APV BAKER IBERICA brand, 4,800
liters., manufactured in 1989, the equipment has a configuration on

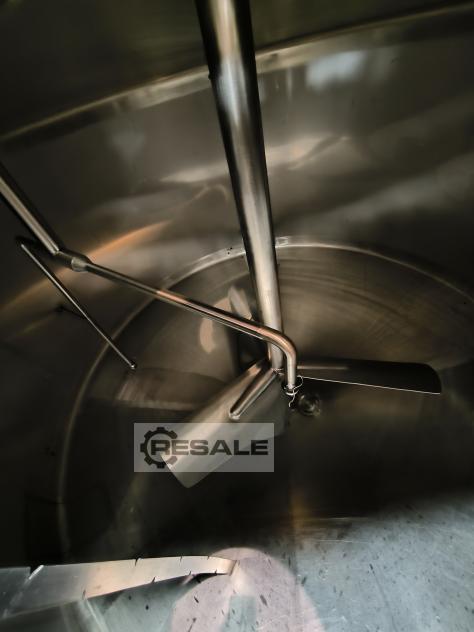

legs, with upper and lower bottoms of conical geometry and agitation
system by means of a three-blade propeller.
The tank is equipped with a Ø450 mm upper manhole, two Ø180 mm sight
glasses and different connections for process integration. It has a
side socket for sampling, DIN20 and 3/4" side connections and DIN32
and DIN50 top connections.
The body and both bottoms are 3 mm thick. The discharge is 240 mm high
with a 2" junction
Volume
Total capacity 4800 L
Material: Stainless Steel
Technical characteristics
Year of manufacture 1989
Vertical Orientation and Installation

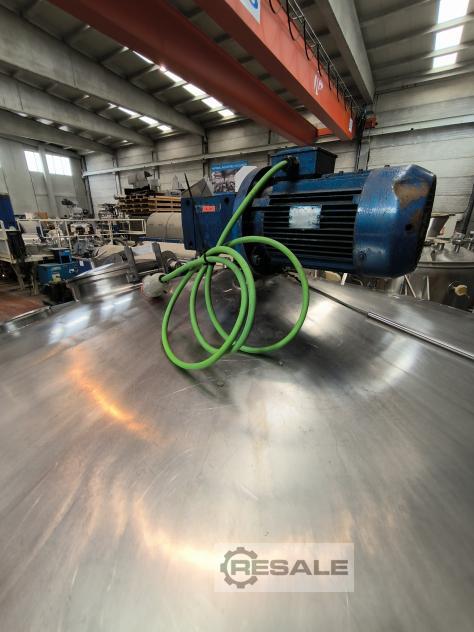

Tripala helix agitation
On legs
Tapered bottom
Tapered top bottom
Manhole on top bottom
Equipment dimensions
Body height 1000 mm
Body thickness 3 mm
Bottom Thickness 3 mm
Thickness of the upper depth 3 mm
Manhole inner diameter 450 mm
Discharge flange 2"
Discharge height 240 mm
Transportation Information
Length 2400 mm
Width 2400 mm
Height 2600 mm
Weight 550 Kg
No documentation
In your state
Spain
