Shelves for pallets ALSER NS 4.9000x1.050mm/11,72 lfm.

Technical data for the pallet racking system:
Shelving system: Alser
Type: NS

Technical data for the installation:
Number of rows of shelves: 01 pcs.
Length per row of shelves: approx. 11,720 mm
Number of fields per row of shelves: 06 pcs á 1,860 mm
Number of levels plus ground level: 03 pcs.

Technical data on the volume:
Pallet spaces per field: 06 pcs.
Number of pallet spaces per row: 48 pcs.
Total number of pallet spaces: 48 pcs.

Based on:
Loading aid: Euro pallet EN 13698-1
Dimensions: 1,200 x 800 x 150 mm
Total height incl. pallet: n.d.
Weight per pallet (max.): approx. 1,000 kg

The scope of delivery includes:

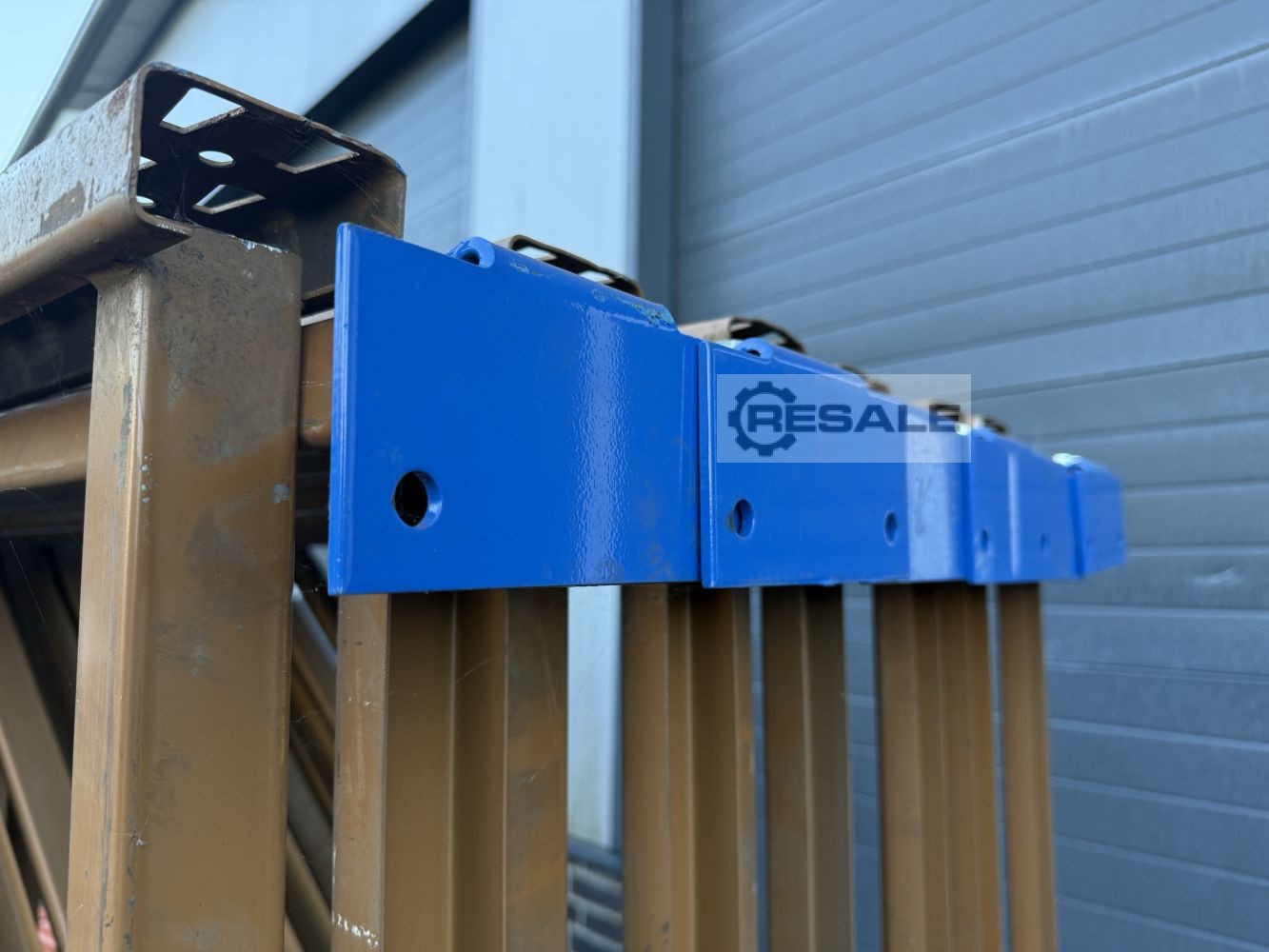

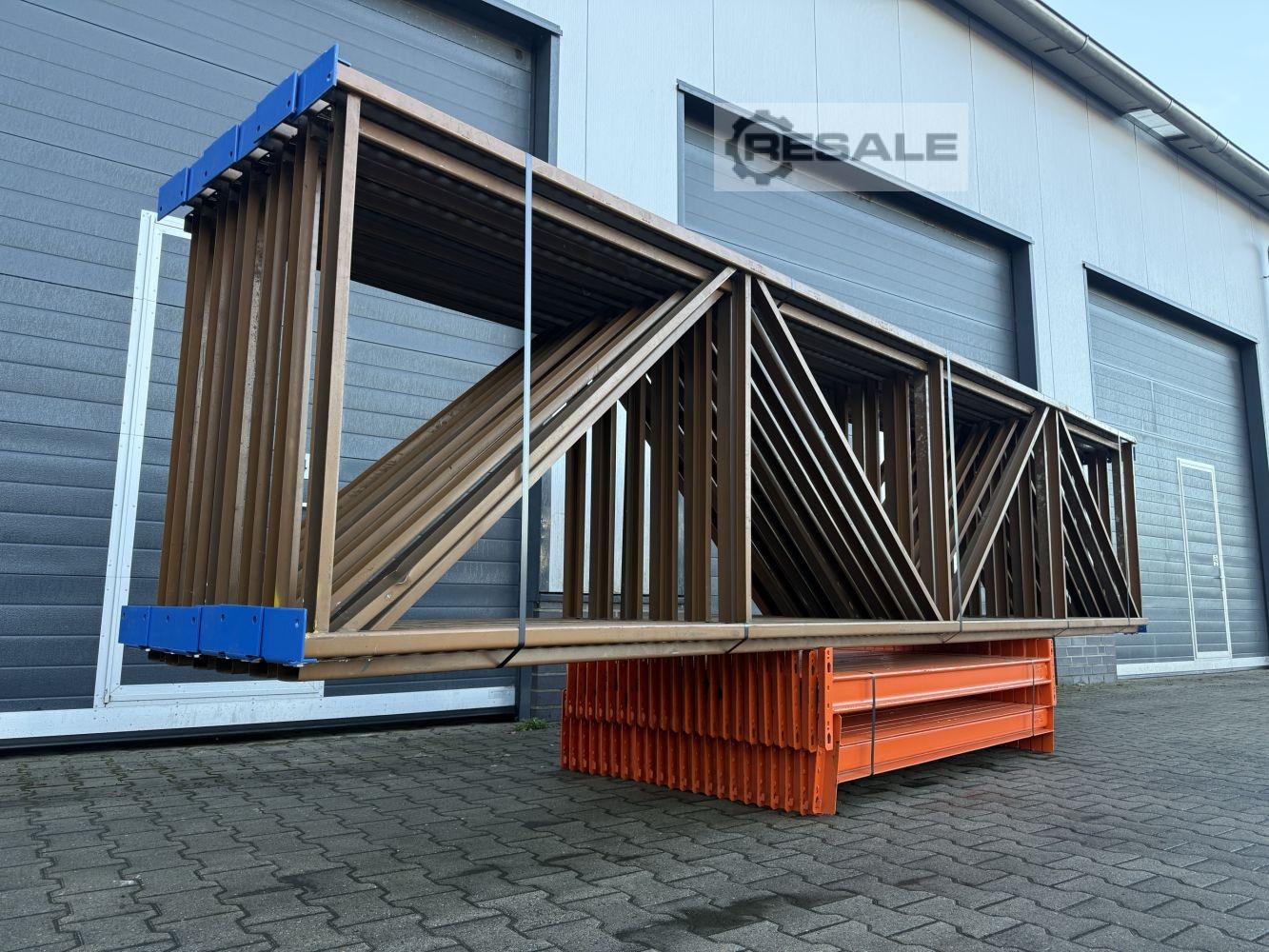

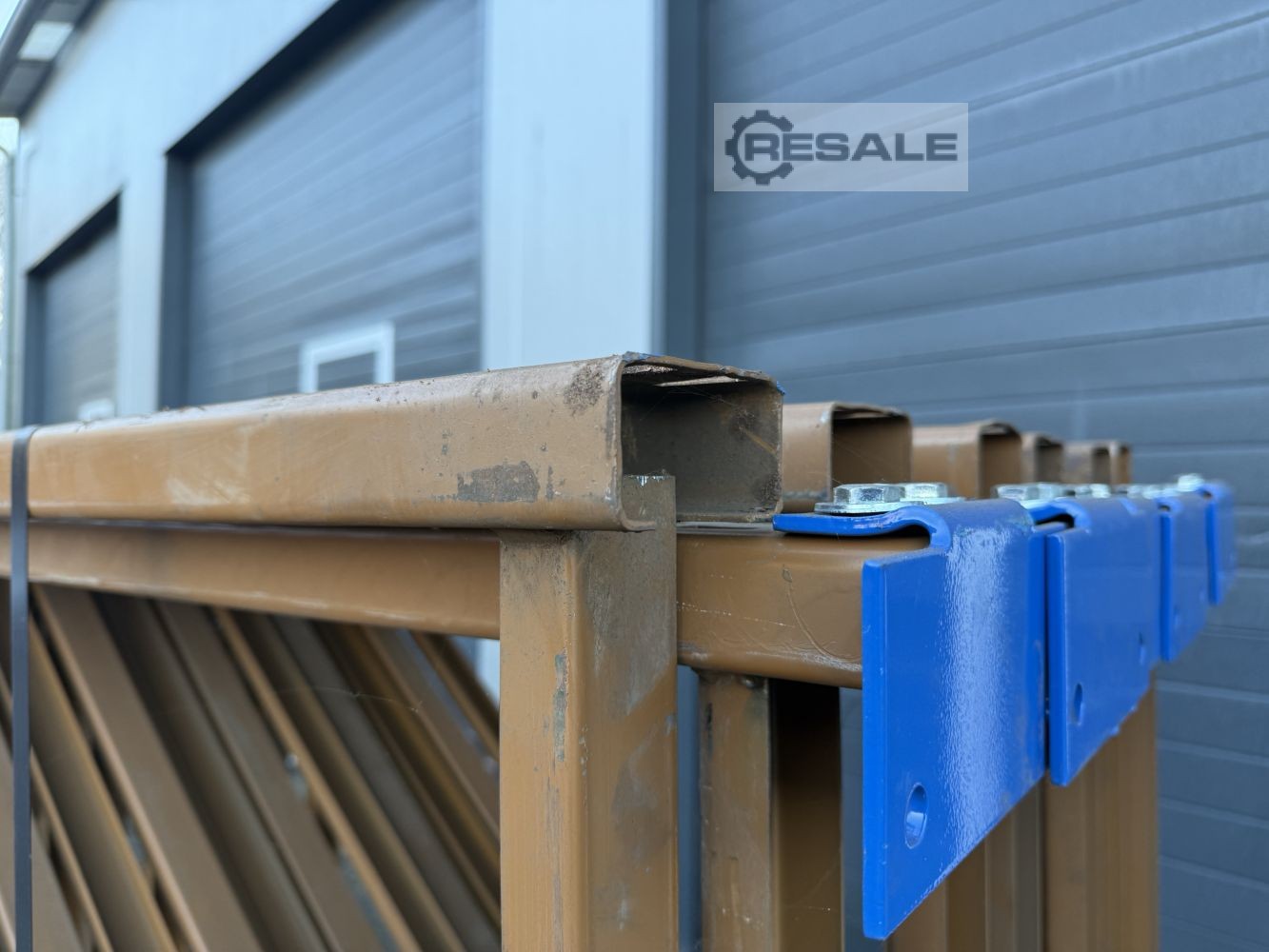

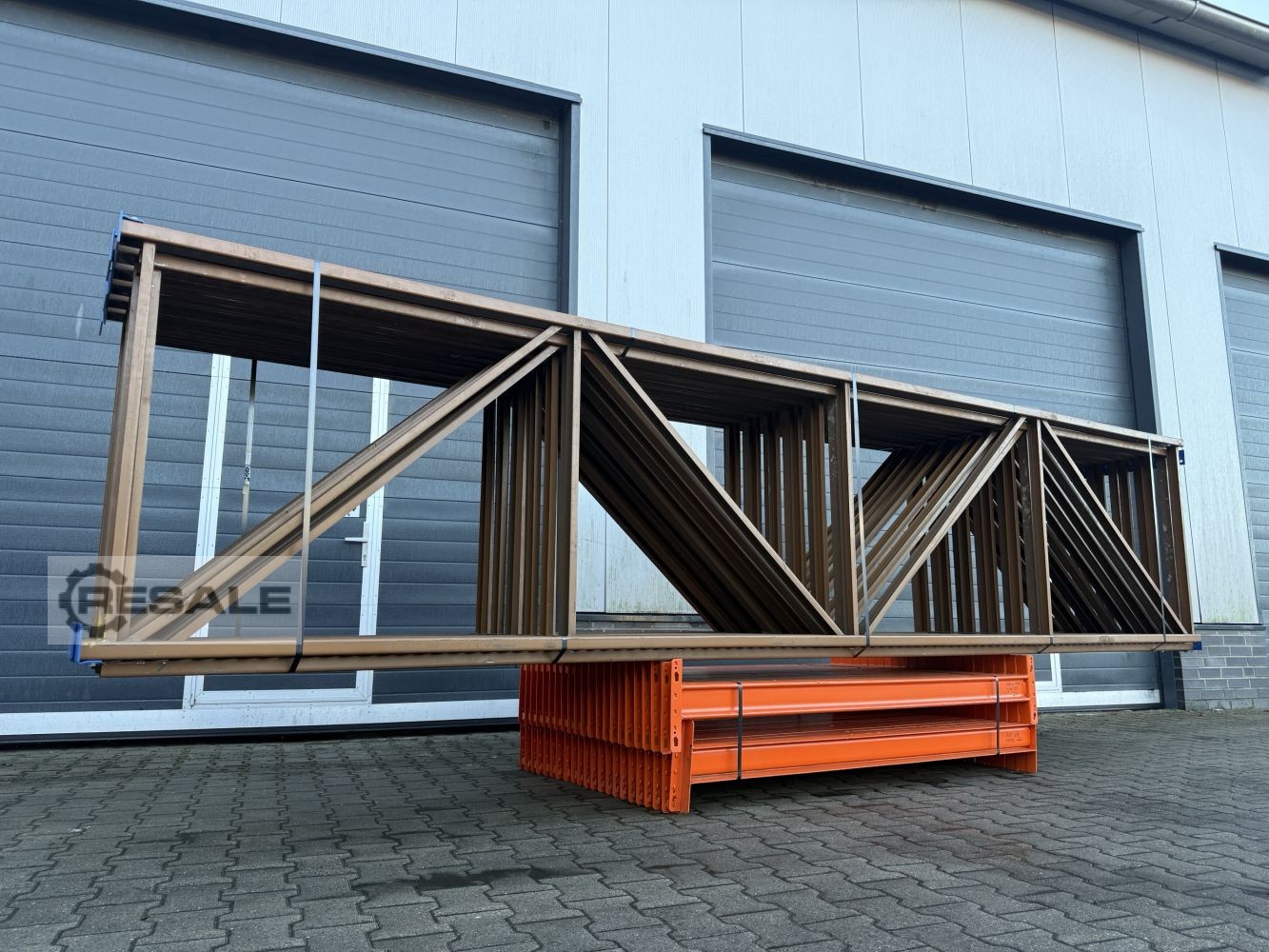

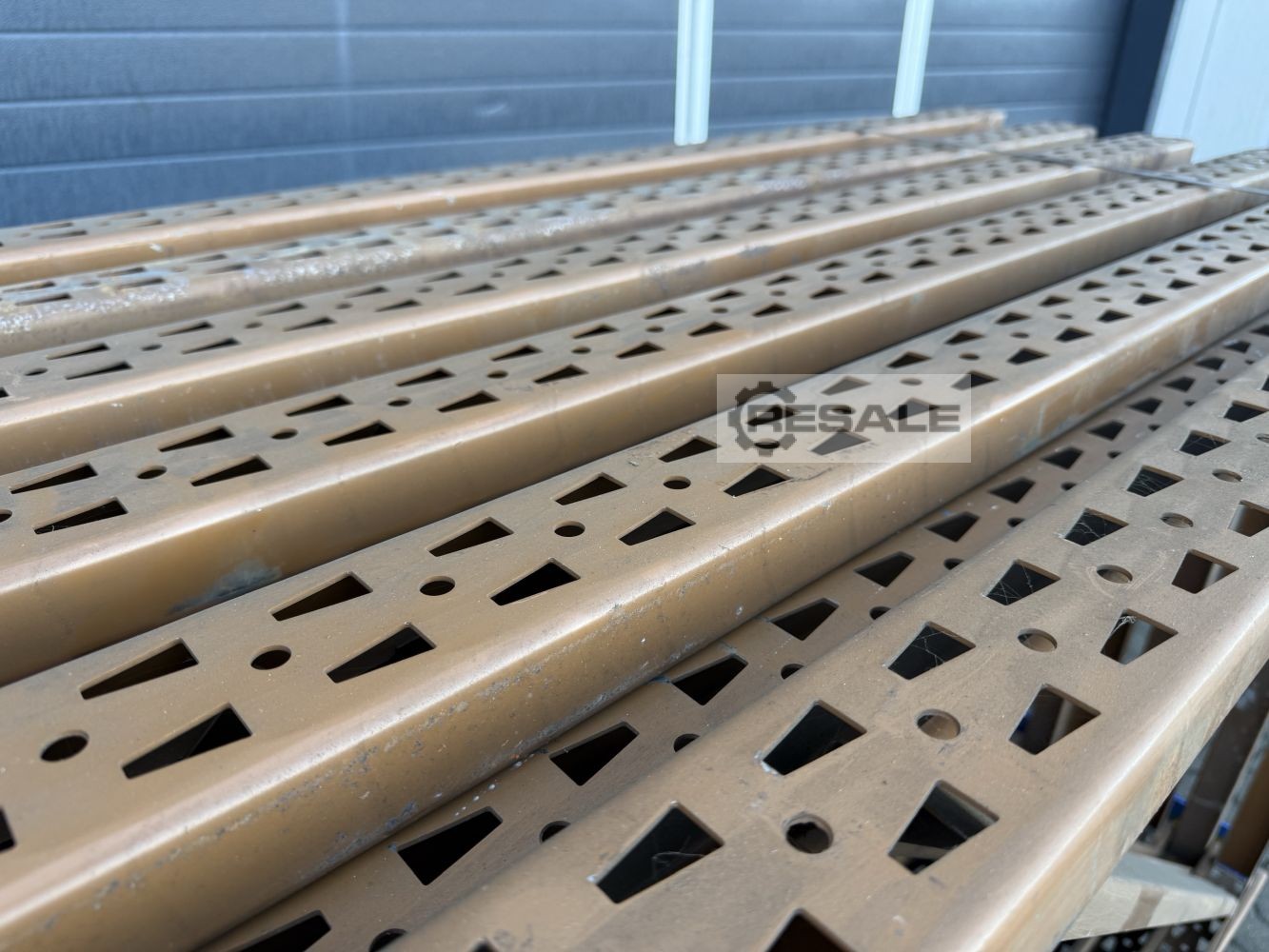

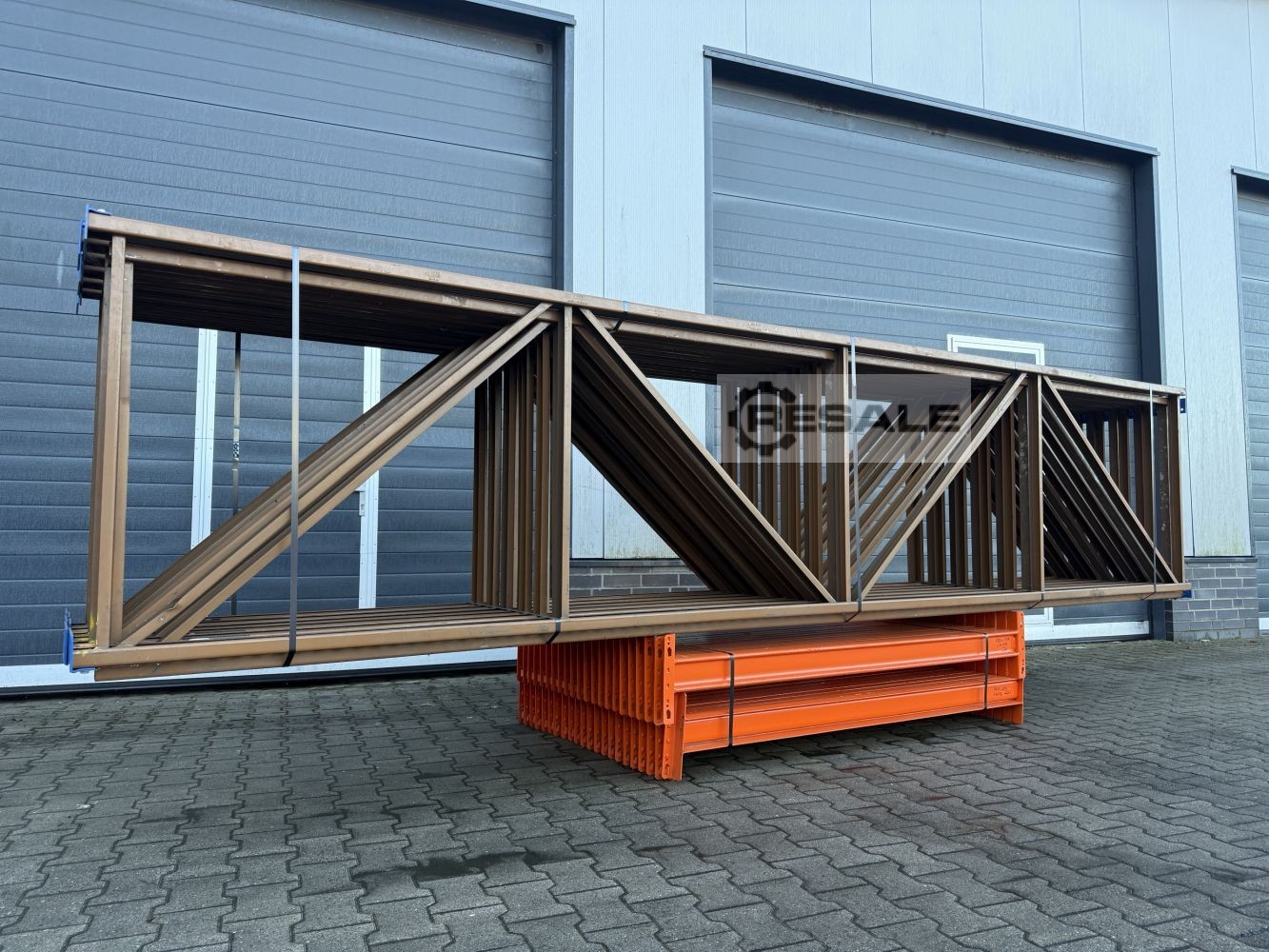

07x Pallet rack stand, used
Material colour: brown
Profile dimensions: C80 x 40 x 15 x 2.00 mm

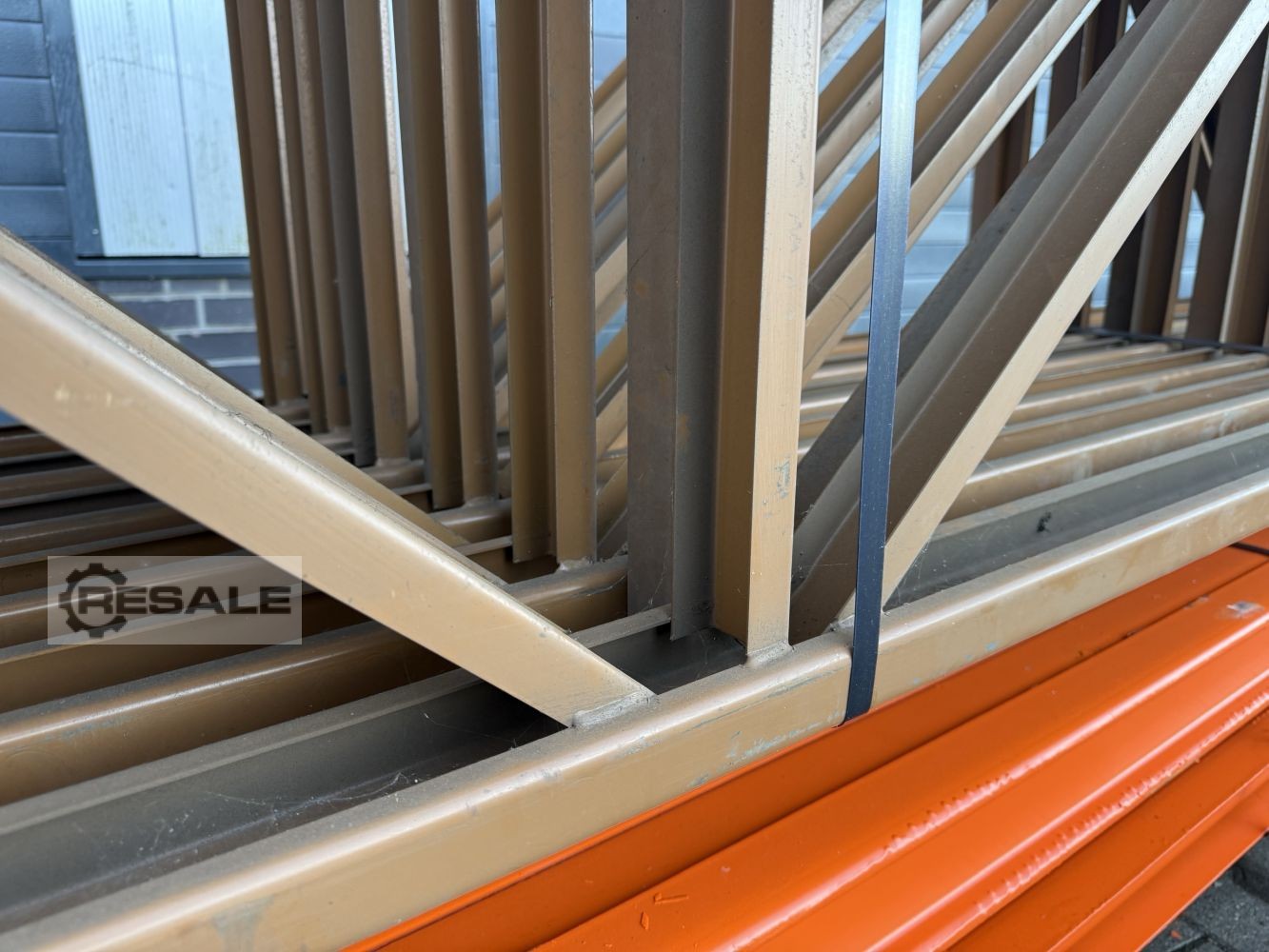

Incl. cross and diagonal struts,
Footplates
The stands are pre-assembled
Max. bay load: 4,000 kg
At articulation height: 1,250 mm
(at least 5 squares / row)
(welded truss)
4,900 mm high
1,050 mm deep

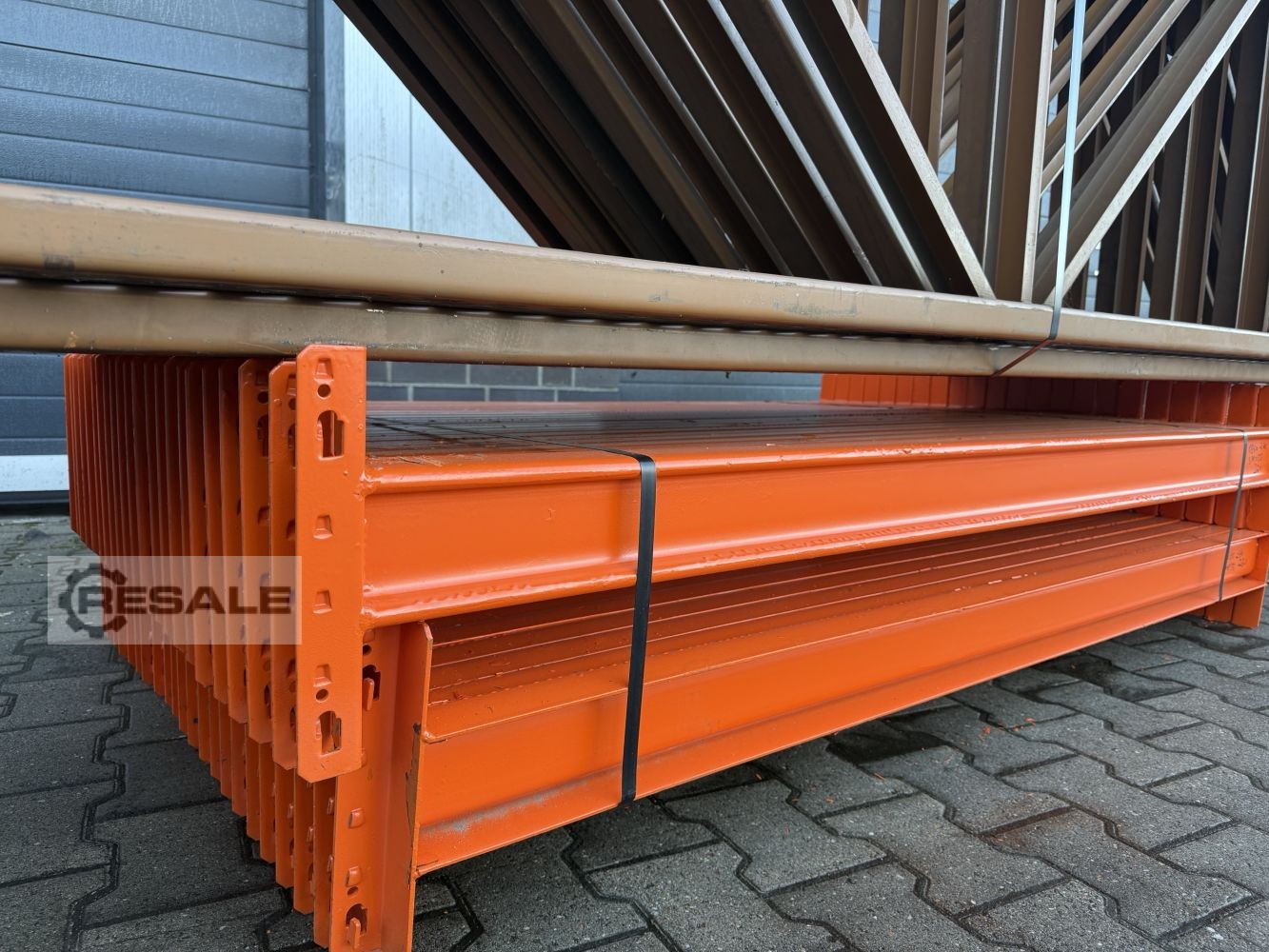

36x Pallet rack crossbar, used
Material colour: orange
Profile dimensions: S 110 x 55 mm
Truss Type: B113
Agraffe: 2 HK
Clear width: 1,860 mm
Max. load per pair of trusses
1,500 kg, with the same weight. Distributed load
72x Safety pin, used
Material colour: sendzimir galvanised
For securing the longitudinal members
against unintentional lifting

28x bolt anchors, new
Manufacturer: Hilti
Type designation: HST2 V3 M12x105 5-25
Finish: Carbon steel, galvanized
Approved for: cracked L6318237 concrete

14x Compensation plate, L6318237 used
Material: sendzimir galvanized
for leveling the shelf uprights, the
be placed on uneven ground

01x Load Shield
with information on field and compartment loads,
Manufacturer and commission number
Dimensions: 420 x 297 x 3 mm

Your contact persons in our company:
Mr.: Andre Evering
Sir: Mario Klöver
Mr.: Falk German

General information about the article:
This item is only available for pickup. An additional desired transport
or a shipment of this item is associated with additional costs, which will be charged separately
depending on the delivery location or scope of delivery.
seller offer No. resale RA-AlserNS-4.900x1.050mm-1.860
