Marking Plates used for sale (18)

Offer 26037 Technical data approx.: - Plate length approx. 6000 mm - Plate width approx. 1800 mm - Top height without base approx. 360 mm - Top height with base approx. 870 mm - Thickness of the top plate approx. 75 mm - 6 T-slots in table surface length 6000 mm - Center distance of the T-slots in the table surface 250 mm each - Center distance of the T-slots from outer edge 125 mm - T - groove width approx. mm - T - groove depth approx. mm - Space required: L 6000 x D 1850 x H 870 mm - Weight approx. 11000 kg

ATORN Measuring & Control Plate + Drawer Base Cabinet A ATORN measuring and control plate with drawer cabinet is sold. Dimensions (L x W x H): 1,000 x 630 x 100 mm Auction-ID: A1-46872-9

Casting plate / marking plate Location: Bremen Material: Cast Iron Dimensions: 300 x 150 cm Application: Precision and measuring work in machine and tool construction Features: high dimensional stability, flat surface, suitable for scribing, testing and aligning workpieces

Friedrich Deckel, Model GK12, 3D Pantograph. Used by many of the top knifemakers for inlay and integral knives. Spindle adjustments, 1.5 to 1, all the way to 10 to 1 ratio. Adjustable spindle speeds. It's equipped with the 3D arm for more detailed and accurate 3D copying. It has a 3 phase motor, but runs easily off the Phase-A-Matic phase converter. Deckel is considered to be the Top of the Line Pantograph for knife and jewelry. Auction-ID: A7-46756-22

Key data: 300 mm, 200 mm, 70 mm

Scribing plate With grooves Condition: Good

Granite countertop size: 1080x630x150 mm Auction-ID: A7-46538-56

Key data: 500 mm, 500 mm, 90 mm

Scribing plate tap and piston Used Condition: Good

\"Mitutoyo Digital Dial Gauge ID-U1025 with Measuring Stand and Granite Measuring PlateDigital dial gauge from Mitutoyo with measuring stand and granite measuring plate.The structure is mounted as a complete measuring station and is delivered together. • Used, functional • Optical signs of wear availableScope of delivery • Digital dial gauge Mitutoyo ID-U1025 • Measuring stand with bracket • Granite measuring plateDigital dial gauge • Manufacturer: Mitutoyo • Model: ID-U1025 • Code no.: 575-121 • Measuring range: 25.4 mm • Resolution: 0.01 mm • Display: Digital (ABSOLUTE) • Serial number: 21954 • Origin: Made in JapanMeasuring stand • Mechanical measuring standMeasuring plate • Material: granite • Dimensions: 400 × 400 × 35 mm • Surface flat, with usual signs of use\" Auction-ID: A7-46417-66

Key data: 800 mm, 500 mm, 110 mm

Scribing plate C.Stiefelmayer Good condition

\"Item: Height measuring and scribing device / precision measuring standManufacturer: unknownType / model: unknownCondition: used, good mechanical condition • Solid cast iron base with round support/reference plate (Ø approx. 57 mm) • Vertical column with adjustable measuring arm • Fine adjustment via lateral levers / clamps • Front mount for dial gauge, probe or scribing tip\" Auction-ID: A7-46417-228

Item (3×) Measuring Tables / Measuring Stands – Clamping and Testing FixturesLots consisting of three measuring tables or measuring stands for measuring, testing and adjustment work in toolmaking, fixture construction or quality assurance.Stock:    •    2× heavy measuring stands    •    solid cast base plates    •    vertical column guide    •    height-adjusta ble holding arms with fine adjustment    •    suitable for holding dial gauges, Buttons or fixtures • 1× measuring table / clamping plate    •    solid cast design    •    engraved grid for positioning    •  ...

Marking plate / measuring plate with tripod and holderUsed marking or measuring plate with attached tripod and adjustable holder, suitable for marking, testing and measuring work in tool and machine construction.    •    Design : marking plate / measuring plate    •    Surface: finely machined, grid structure    •    Dimensions plate: approx. 250 × 360 mm    •    Plate thickness: approx. 34 mm    •    Material: Steel / cast    iron •    With column stand and adjustable holder Auction-ID: A7-46417-109

\"Mechanical measuring/testing table (round measuring table) for comparative, internal or functional measurements. • Precise round plate (Ø approx. 185 mm) • Finely adjustable infeed via handwheel • Clamping/stopping options\" Auction-ID: A7-46417-230

\"Mitutoyo Digital Dial Gauge ID-C150B with Measuring Stand and Granite Measuring PlateDigital dial gauge from Mitutoyo with associated measuring stand and granite measuring plate.The unit is set up as a complete measuring station and is delivered together. • Used • Dial gauge can be switched on, display available • No calibration or measurement test carried out • Mechanical parts movable • Optical traces of wear presentScope of delivery • Digital dial gauge Mitutoyo ID-C150B • Measuring stand with bracket • Granite measuring plateDigital dial gauge • Manufacturer: Mitutoyo • Model: ID-C150B • Code no.: 543-460B • Measuring range: 50.8 mm • Resolution: 0.001 mm • Display: Digital • Functions: Zero/ABS, Preset, mm • Origin: Made in JapanMeasuring stand • Mechanical measuring stand with round column • Height adjustment via clamping • Side boom for hol ...

table length: 3200 mmtable width: 2000 mmtable height: 160 mmtotal power requirement: . kWweight of the machine ca.: . tdimensions of the machine ca.: . mThe tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively.About us Morethan 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit.Your Markus Hirsch TeamThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

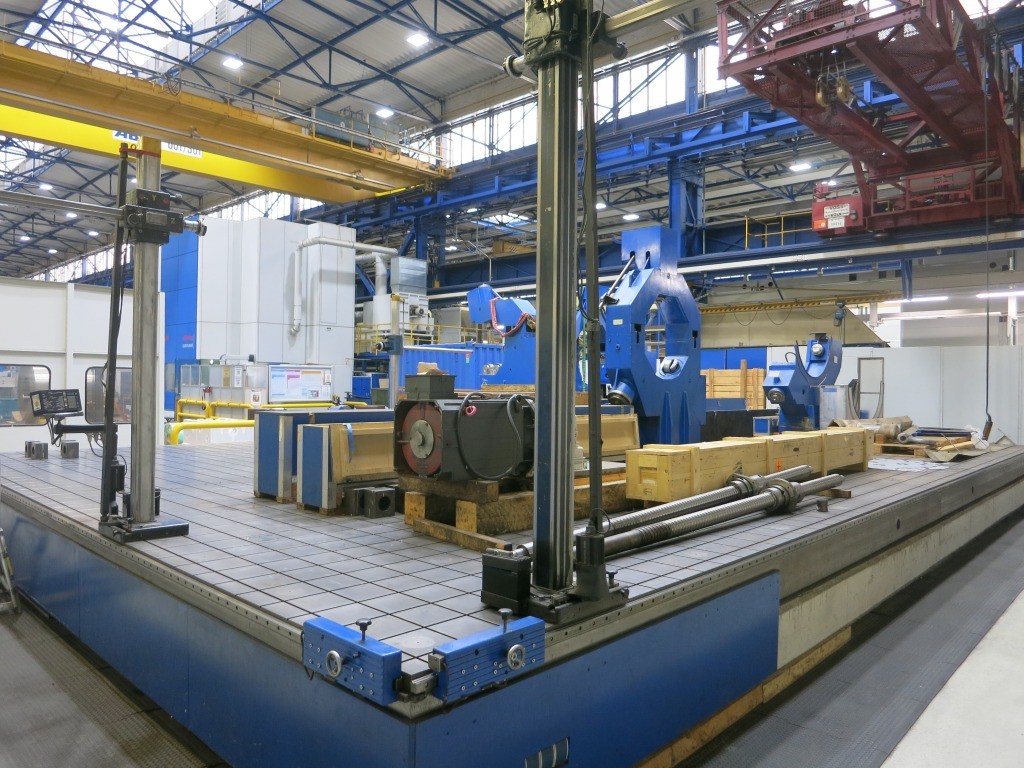

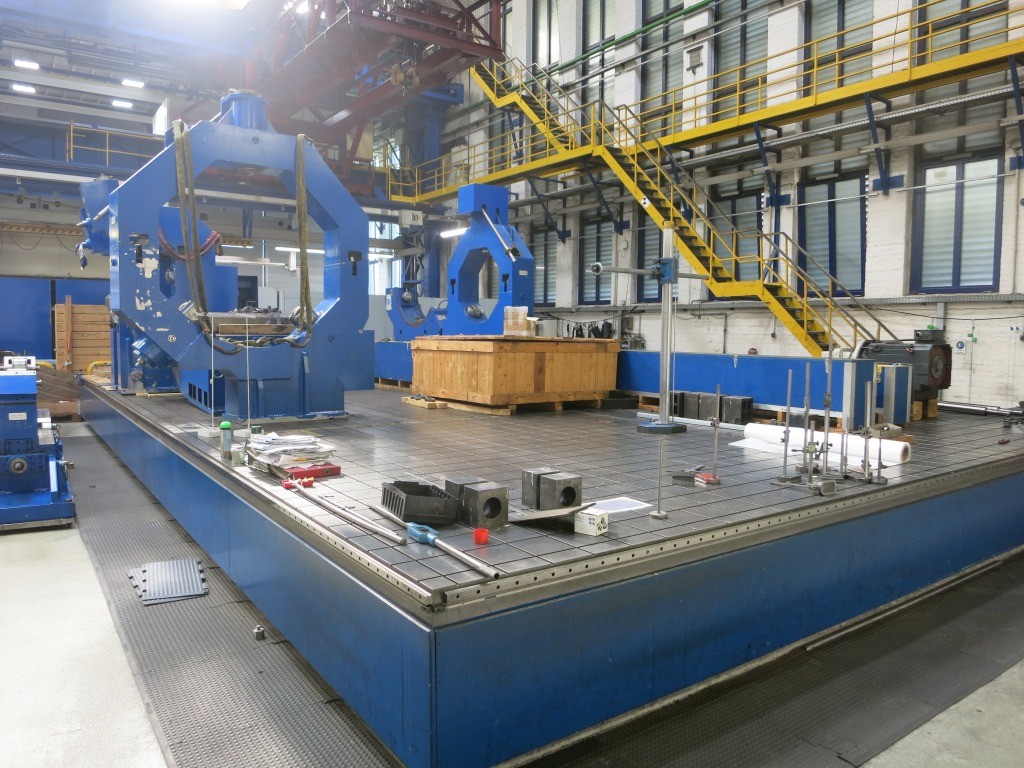

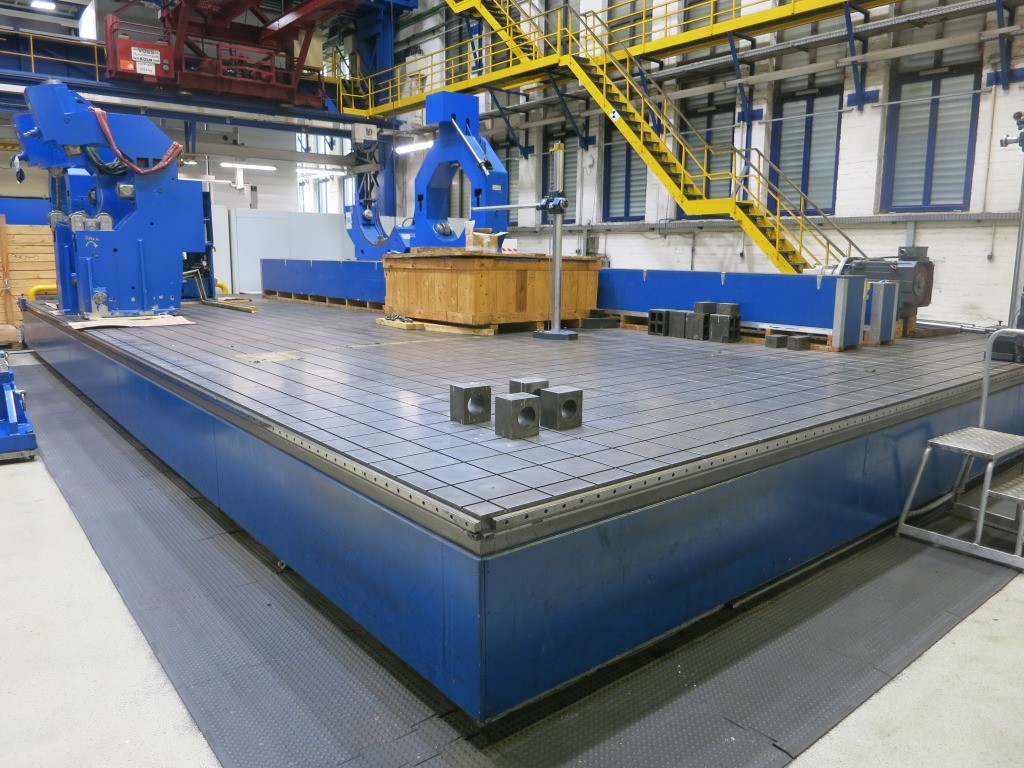

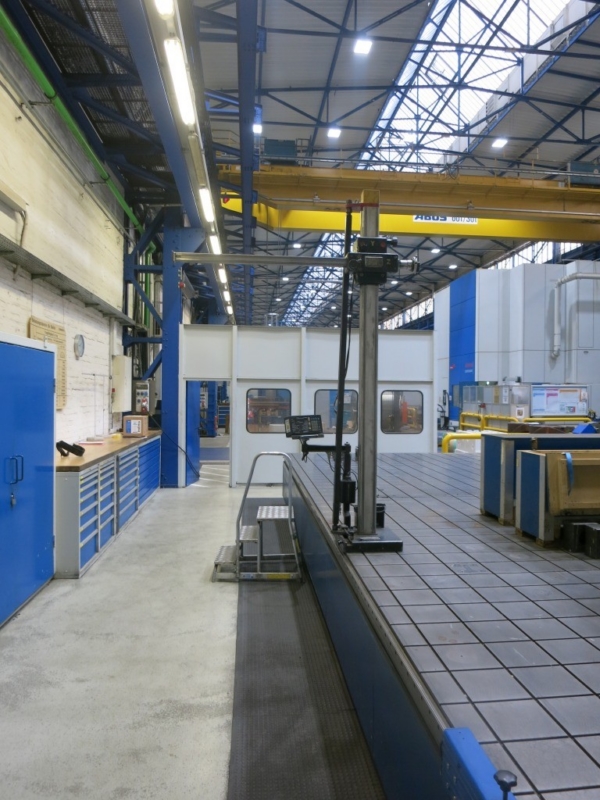

table length: 12000 mmtable width: 8000 mmtable height: 800 mmThickness of the plate: 300 total power requirement: kWweight of the machine ca.: 82,5 tdimensions of the machine ca.: 12x8 m8 availableAll 8 panels measure 8000 x 12000 mm.The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of saleapply exclusively.About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit.Your Markus Hirsch TeamThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 2000 mmtable width: 1000 mmPlate thickness: 55 mmtable height: 1000 mmplate height: ca. 200 mmweight of the machine ca.: 0,85 tdimensions of the machine ca.: 2x1x1 mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

table length: 1000 mmtable width: 1008 mmtable height: 130 mmtotal power requirement: . kWweight of the machine ca.: . tdimensions of the machine ca.: . mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
