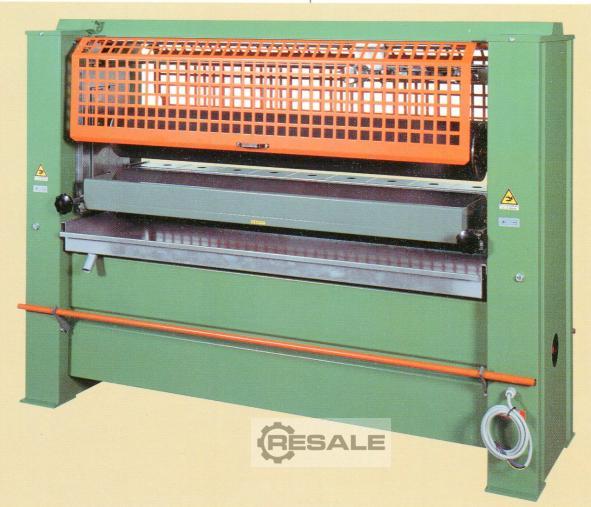

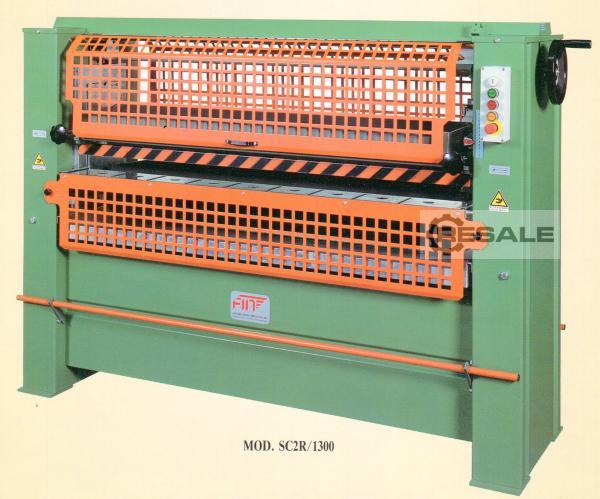

Code: 0392 Brand: FIN - ITALY Model: SC 2 R - CE Standard Automatic glue spreader with 2 rollers for panels, furniture, fittings, veneers, composite materials and various – CE Standard Features: Spreading rollers covered in special antiacid rubber, ground furrowed, hardwearing Spreading, precise and uniform on both tops of the panel, or on one only Dosing uniform of the glue by a rectified distribution tank, in sheet iron, with very quick extraction to allow cleaning Collecting tank of the glue and roller washing water, in galvanized sheet iron, extractable, to facilitate cleaning Safety guards Roller washing with a bored washing tube, for the water intake during this operation Technical data: Working width 1300 mm Max passage between rollers 120 mm Rollers diameter 185 mm Feed speed 19 mt/min Motor 1,5 Hp Overall dimensions mm 1900 x 640 x 1400 h Weight ...
Code: 0383 Brand: DUE B.ERRE STEMA - ITALY Model: SPINAMATIC GLF HP - CE Standard Machine for applying thick glue and dowels with pneumatic gun for panels, for doors, windows and various - CE Standard Technical data Max insertion capacity 60 dowels per minute Dowel diameter mm 10/12 mm Dowel length mm 25 to 50 mm Max insertion depth 30 mm Machine works with one diameter of dowels at a time Electronic dosing of glue quantity Washing system Flexible arm provided with counterweight that makes the gun lighter during the work cycle (gun weight approx 3 kg) Recommended adhesive type: Water-based emulsion adhesive - Viscosity Brookfield 580 mPa.s - Solids content 30% - Min film formation temperature 3–5 °C - Cleaning with water Wheels on base Voltage 220 V single-phase Max pressure 6 atm Overall dimensions mm 600 x 1000 x 2100 h Weight kg 130
Kuper FW 1150 veneer splicer Working width 1150mm Veneer thickness 0.4-3mm Feed speed 10-30m/min Zigzag stitching Year of manufacture 1997 CE mark Weight 520kg Net price
Code: 0317 Brand: OSAMA Model: S4R-P - CE Standard Automatic 4 rollers gluing machine with 2 motors for vinyl glue (PVAC), urea glue (UF) and polyurethane glue, for various types of materials like MDF, chipboard, plywood, parquet, composite materials, plasterboards, furniture, panels, doors and various, building sector, sponges, mattresses, papermaking - CE Standard Technical data: Working width mm 1400 Working height mm 0-100 Work surface height mm 890 Spreading roller diameter mm 250 Overall dimensions mm 2450 x 1300 x 1600 h Weight kg 830
