0 WMW universal milling machines used machines

Key data: 850 mm, 270 mm, 355 mm

Table width 315 mm, table length 1250 mm Tool holder SK 50 Speed range 28 - 1400 rpm Feed range 16 - 800 mm/min Travel x=850 mm, y= 270 mm, z=355 mm Connected load 8 kW Incl. Electric clamp horizontal Vertical head in X swivel with manual tightening Dispensing as present, no longer energized

WMW HECKERT FU450R-51 universal milling machine was built in 2009 in Belarus by Gomel Machine Tool Plant S.M. Kirov.. This extremely versatile, functional and reliable machine is designed for precision machining of workpieces with a maximum weight of 1500 kg. The machining process is performed by a powerful spindle on a large work table. T-slots in the table allow for quick installation of additional tooling such as a vice. The precision and repeatability of the manufactured parts, in turn, is maximised by the design made of the highest quality cast iron, which maintains excellent stability during even the most intensive challenges. All this makes the offered FU450R conventional milling machine an excellent choice for both unit and series production. The WMW HECKERT vertical milling machine weighs 4300 kg. Technical specifications of the WMW HECKERT FU450R-51 milling machine - number ...

Feed rate: 250mm/min, speed: 2800rpm, tool diameter: 200mm, weight: approx. 850kg. An on-site inspection is possible.

Universal milling head, milling holder, milling extension, angle milling head -Manufacturer: WMW HECKERT, milling head from milling machine FSS 315-V -Recording output: SK50 -Recording: Input gear -Milling head: fully pivotable -Stroke: 72 mm -Transport dimensions: 850/650/H520 mm -Weight: 277 kg

Universal milling head, milling adapter, milling extension, angle milling head -Spare part of a: WMW HECKERT milling machine -Number: 1 piece angle milling head -Recording output: SK50 -Recording: input gear -Milling head: completely swiveling -Rezes recording: mm -Pitch circle: mm -Transport dimensions: 750/600/H530 mm -Weight: 296 kg

Parallel Lathe WMW NILES type DLZ 500 IV L 1000 Between points: 1000 mm Maxi Ø on bench: 500 mm Maxi Ø over saddle: 300 mm Spindle diameter: Ø 50 mm Spindle speed: from 28 to 1400 RPM 3-jaws chuck Ø 200 mm Threadings: Metric + Whitworth Tailstock CM4 Auto Feeds transverse + longitudinal + rapid Lubricant pump Voltage: 380 V Dimensions (L x W x H): 3000 x 1400 x 1500 mm Weight: approx 2,5 T

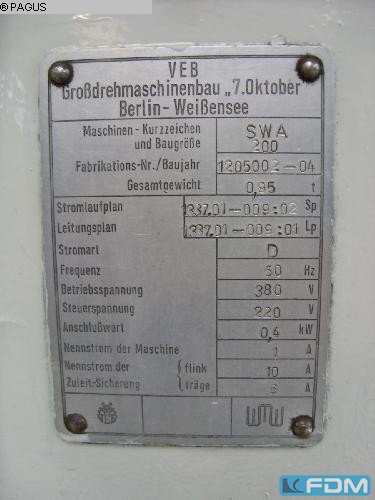

sanding belt length:max. 470 mm workpiece dia.:600 mm table - swivable:0 - 6 Grad taper:Reitstock Morse 2 turning speed range::1260 - 3100 U/min table movement:längs 470 mm tool taper:schwenkbar 0-6 °, 90° dre total power requirement:0,4 kW weight of the machine ca.:950 kg dimensions of the machine ca.:1100 x 1100 x 1500 mm Documents:vorhanden

Universal tool milling machine, used universal milling machine, used Type FU 315 - V/2 Fabr. WMW Heckert Built: 1979 Table size/ table: 1250 x 315 mm Laengsmotion/ longit. move: X: 850 mm Horizontal movement/ horiz. Move: Y: 270 mm Vertical movement/ Vert. move : Z 355 mm Tool holder/taper: ISO 50 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 28 - 1400 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t

Universal tool-feeding machine, used universal milling machine, used Type FU 250 x 1000/2 Fabr. WMW Auerbach Built: 1988 Table size/ table: 1130 x 255 mm Laengsmotion/ longit. move: X 690 mm Horizontal movement/ horiz. Move: Y 190 mm Vertical movement/ Vert. move : Z 360 mm Tool holder/taper: ISO 40 Spindle speeds R+L infinitely/ speeds of spindle ( left/right) 56 - 2800 rpm. Pre-shot stepless all axes X, Y and Z/ feeds all axis 10 - 630 mm/min / 250 mm/min Drive power/ load 3.8 kW Weight: 2 t Specification: Vertical head,shock head

Vertical -consol milling machine, used    Vertical -milling machine, used Make/make: WMW HECKERT Type/ model: FQS 400 Year built: 1978 Control type / control: conventional   x-way: 1190 mm   y-way: 530 mm z-way: 540 mm Table size/ table: 1600 x 400 mm Spindle power/ spindle power: 11kW Tool holder/tool taper: ISO 50 Speeds/ speeds: 28 - 1400 rpm Feeds: 16- 800 mm/min Total power requirement: 21 kW Machine weight: 4.8 t

Max diam 250 , max lenght 2000, 3 x heads , change gears

Key data: 1120 mm, 345 mm, 400 mm

Table width 400 mm, table length 1600 mm Tool holder SK 50 Speed range 28-1400 1/min Travel X/Y/Z 1120/345/400 mm Feed range X/Y 16 - 800 mm/min, Z 5 - 250 mm/min Rapid traverse Milling head swivel range +/- 45°, quill stroke 90 mm Connected load approx. 14 kW Incl. coolant device Electric tensioner, bracket cover

MAX DIAM 250 MAX LENGHT 800

MAX DIAM 250 X 2000

Tool holder, milling holder, milling tool -Quantity: 4x recording SK40 -1x Ø: 16 x 19 mm -1x Ø: 16 x 25 mm -1x Ø: 27 x 25 mm -1x: drill chuck - is only sold complete -Weight: 6kg

Milling cutter mandrel , tool holder, with tightening thread WMW 4 x 25 x 160 ( 4x25x160 ) TGL 30-4113 MK4 shaft diameter: Ø 20 mm Tool holder: Ø 25 mm New ! Dimensions: 490 x 45 x 45 mm

Cutter mandrel , tool holder, with tightening thread WMW 4 x 25 x 80 ( 4x25x80 ) TGL 30-4113 MK4 shaft diameter: Ø 16 mm Tool holder: Ø 25 mm New ! Dimensions: 300 x 45 x 45 mm

Milling cutter mandrel, tool holder, with tightening thread WMW 3 x 25 x 160 ( 3x25x160 ) TGL 30-4113 MK3 shaft diameter: Ø 20 mm Tool holder: Ø 25 mm New ! Dimensions: 425 x 45 x 45 mm

Travel X/Y/Z: 820mm/300mm/485mm, table dimensions X/Y: 250mm/1000mm, spindle mount: SK40, speed: 2800rpm, spindle head swivel: +/-45°, quill stroke: 100mm, feed: 630mm/min, connected load: 9.5kW, machine weight: approx. 1600kg. Documentation available. On-site inspection is possible.

Travel X/Y/Z: 850mm/280mm/355mm, table dimensions X/Y: 1250mm/315mm, feed X/Y: 800mm/min, feed Z: 250mm/min, spindle mount: ISO 50, spindle speed: 1400rpm. Machine dimensions X/Y/Z: approx. 2000mm/2000mm/2400mm, weight: approx. 3300kg. On-site inspection is possible.

Heckert CWK 400 Built in 1995 Control Siemens 840 Travel X/Y/Z 650/650/680 mm Spindle speed up to 10,000 rpm HSK 40 Tool Changer Rotary table 400 x 500 mm, Conveyor Weight 12.5 t.

Gear milling cutter, modular milling cutter, hob cutter, tooth form milling cutter, modular milling head, shell end mill, roller milling cutter, milling cutter, hob cutter, spline shaft hob cutter -Manufacturer: WMW PWS, 17 hob cutters -Hole: Ø 27 mm 4 pieces, Ø 32 mm 7 pieces, Ø 40 mm 6 pieces -Different types: see photos, more pictures can be sent -Price: complete -Dimensions: 400/400/H150 mm -Total weight: 52.5 kg

Spline hobs, gear cutters, modular milling cutters, gear hobbing cutters, gear form cutters, modular milling heads, shell end mills, cylindrical milling cutters, milling cutters, hobs, spline hobs -Manufacturer: WMW PWS, 29 hob cutters -Hole: Ø 27 mm 25 pieces, Ø 32 mm 4 pieces -Different types: see photos, more pictures can be sent -Price: complete -Dimensions: 490/300/H70 mm -Total weight: 30.7 kg

Tool holder, milling holder, milling tool -Number: 7x SK40 mounts with tool carrier -Executions: different -Bore chucks, flat chucks, reducing sleeves, cutter heads, shell end mills -Sale: only complete -Dimensions: 590/120/H210 mm -Weight: 12 kg

Tool holder, milling tool holder -Number: 9x SK30 recording -various versions -Drill chucks: Surface clamping chucks, reducing sleeves, cutter heads, end mills, spindle tools -with transport box -Price/Sale: complete -Weight: 10 kg
