STRAUSAK used machine for sale

In 2001 we acquired the license and production rights of Strausak. These rights include the entire 57 U / W conventional series as well as the CNC machines of the type U / W CNC in the tool grinding range 3 G / 4 G / 5 G as well as in the universal cylindrical grinding area, the 2 axes / 3 axes and 4 axes CNC machine and special machines 81 CNC. We have an extensive stock of spare parts. Our specialization is the general overhaul of these machines, as well as the new production of the above-mentioned machine types and the production of special machines.

Complete wheel sets for the production and subsequent sharpening of HSS and carbide tools. Single diamond and CBN discs. for the manufacturing and Resharpening. Grinding wheel shots short and long run. Spacer discs for grinding wheel flanges.

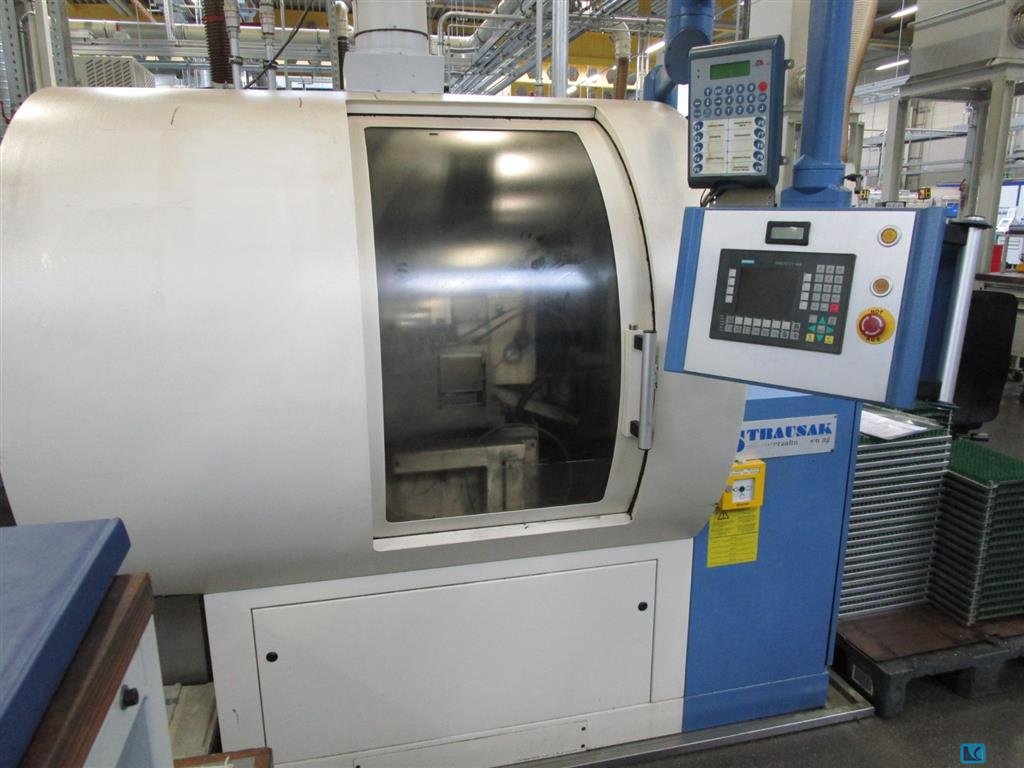

Manufacturer Strausak Model U-Grind Year 2018 Machine is in very good condition

Center distance: 0 mm Grinding head Z-axis: 0 mm Center height: 0 mm CNC Brand: 0 CNC Model: 0 Control: GE FANUC Series 16-MB Technical data Number of axis total: 6 Grinding-wheel diameter: max 125 mm Axial motion: Crosswise: 200 mm Longitudinal: 190 mm Vertical: 150 mm Smallest travel: 0.0001 mm Rotary and swivel axes: Smallest travel: 0.0001 ° U axis Workpiece holder head: 360 ° V-axis Swivel movement of the workpiece spindle: 184 ° W axis Inclination of the grinding spindle carrier: -20 / +15 ° Turret slide: Number of positions: 4 Workpiece chuck speeds: 0 - 1500 rpm Grinding spindle speeds: stepless from: 0 rpm up to: 13000 rpm Hydraulic system: 10 / 40 bar Voltage 50 Hz 3x: 400 Volt Grinding spindle motor: 3.7 kW Total power required: 10 kVA Machine´s weight about: 3500 kg Overall dimensions machine: Length: 2200 mm Width: 1810 mm Height: 2600 mm Various accessories: 3D m ...

Diameter: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Work capacity:max. diameter: 35 mm max. module: 1.00 Workpiece length max.: 22 mm Gear hob: max. diameter: 24 mm Milling cutter speeds: stepless from: 850 rpm up to: 5200 rpm Voltage 50 Hz 3x: 380 Volt Machine´s weight about: 600 kg Overall dimensions machine: Length: 800 mm Width: 800 mm Height: 1450 mm Various accessories: Automatic loader Lamp

Center distance: 0 mm Grinding head Z-axis: 0 mm Center height: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Grinding-wheel diameter: 100 mm Longitudinal way of table: 100 mm Transversal way of the table: 120 mm Vertical: 50 mm Tête de rectifiage vertical: Collet attachment: 20 W horizontal: +/-45 ° axe rotatif table tournante: 360 ° Workpiece chuck speeds: 60-800 rpm Grinding spindle speeds: stepless from: 2000 rpm up to: 8000 rpm Voltage 50 Hz 3x: 400 Volt Grinding spindle motor: 0.37 kW Machine´s weight about: 460 kg Overall dimensions machine: Length: 950 mm Width: 750 mm Height: 1350 mm Various accessories: Drive to dividing attachment Dust extraction Lamp Optical microscope Digital readout number of axis:: 2 Microscopeholder Microscopeholder from top Work piece spindle head Digital readout number of axis:: 2 Projector:

Diameter: 0 mm CNC Brand: 0 CNC Model: 0 Technical data Work capacity:max. diameter: 35 mm max. module: 1.00 Workpiece length max.: 22 mm Gear hob: max. diameter: 24 mm Milling cutter speeds: stepless from: 850 rpm up to: 5200 rpm Voltage 50 Hz 3x: 380 Volt Machine´s weight about: 600 kg Overall dimensions machine: Length: 800 mm Width: 800 mm Height: 1450 mm
