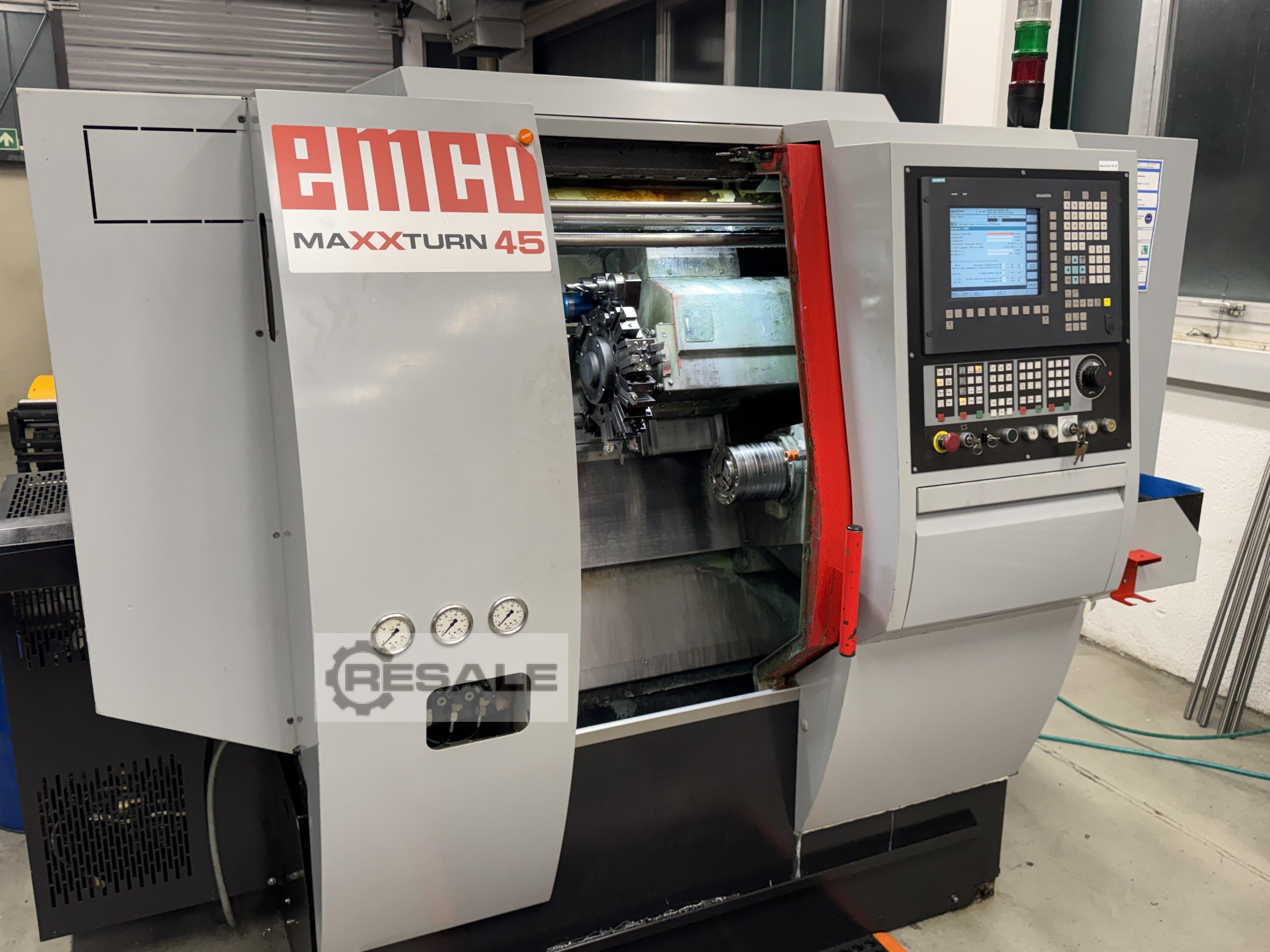

The Emco Maxxturn45 SYM, is in good condition,
it is still produced every day on the Emco Maxxturn 45.
Mainly plastic parts were manufactured.

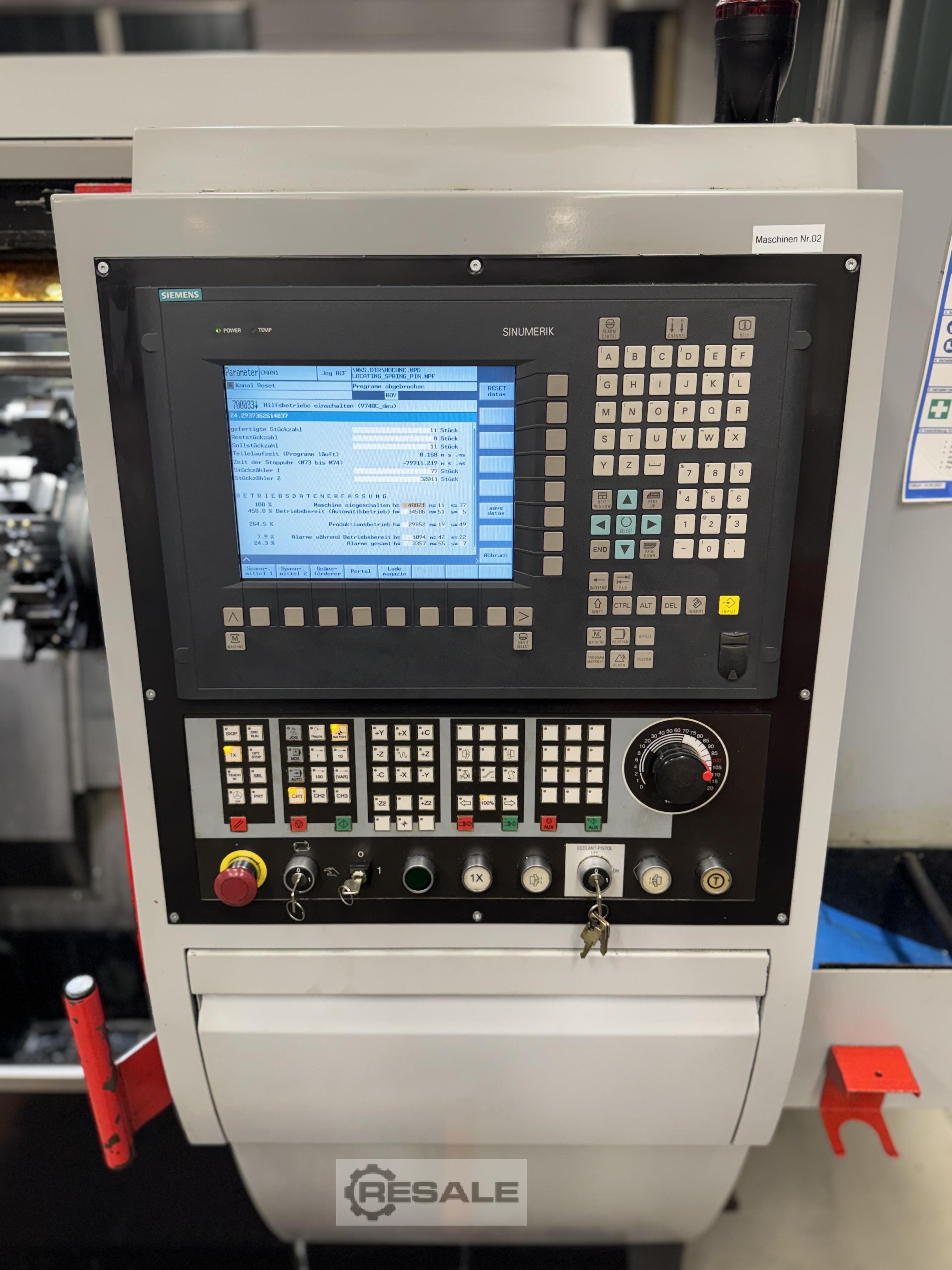

6 months ago, the machine control panel with display
and renewed the air conditioning unit.
Last maintenance 09/2025, geometry has been measured.
Can be viewed in production until week 4 /2026.
Technical data:
Control: Siemens 840 D.
Machine has a Y-axis.
Main spindle:
Speed 6,300 rpm.
Sub-spindle 6,300 rpm
Spindle passage max.45 mm
2 x C-axis, 0.001°
High-pressure coolant device on the tool turner.
Chip flushing for sub-spindle.
Sauter tool turner with 12 stations, VDI25.
All stations for powered tools
Speed range: 6,000 rpm
Travel in X/Z/Y axis 160/510/ +40 / -30mm
Accessories:
2 x Hainbuch chuck for SK52 clamping F6147773 heads
High pressure coolant pump.
Prefabricated part catcher.
Interface for bar feeders.

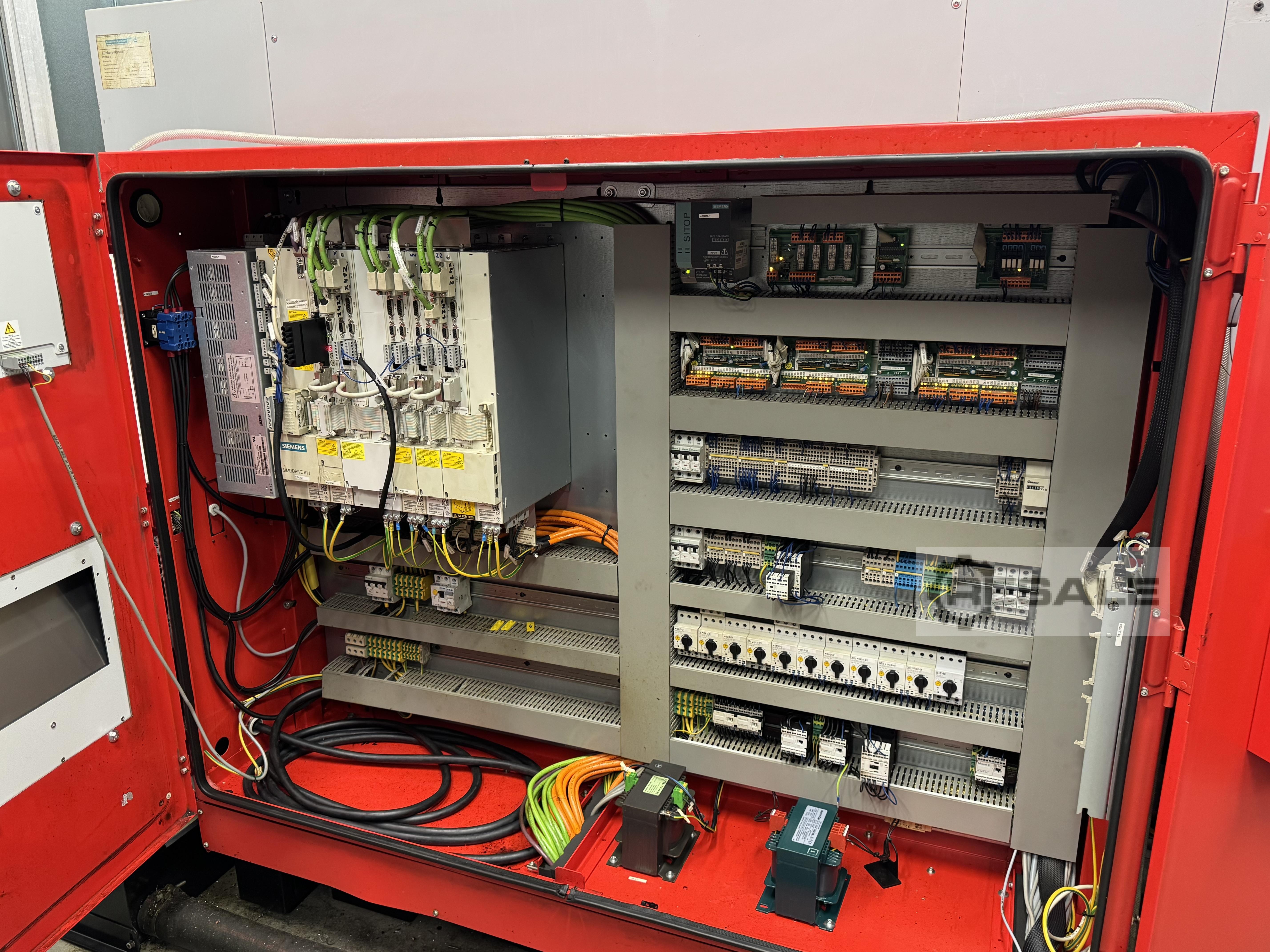

New control cabinet air conditioner
LED signal lamp, 4 wedge shoes, machine documentation.
Machine keyboard with flap.
8 rigid tool holders VDI 25,
2 x axial driven tools
1 x Radial Driven Tool
The tools shown in the picture are not for sale.
Germany
85640 Putzbrunn
