Control Heidenhain ... TNC7 Clamping table surface ... 6000x2900mm Axis X ... 7200mm Stand passage ... 3200mm Axis Y ... 4100mm Axis Z ... 1250mm Axis W ... 1600 mm Spindle speed... 0-3000 rpm. Max. table load ... 20 000kg The machine has undergone a complete overhaul. More info on request, new Fermat headstock new UHAmi 30 milling head CE new electrics and hydraulics new HH TNC 7 controller new digital display HH New linear guide new ball screws cooling New tool changer device

Control Heidenhain ... TNC 640 Clamping pond area ... 4000x2000mm Axis X ... 4000mm Stand passage ... 2500mm Passage between the table and the crossbeam... 1890mm Axis Y ... 2700mm Axis Z ... 1250mm Spindle speed... 0-5500 rpm. Max. table load... 15 000kg The machine is after the general overhaul. More info on request. new Fermat headstock new electrics and hydraulics new digital display HH New linear guide new ball screws cooling CE Options: Tool changer setup Swivel Heads

Control Siemens ... Sinumerik 840 D Clamping table surface ... 1600x4000mm Axis X ... 4200mm Stand passage... 2100mm Max. table load ... 10 000kg Axis Y ... 2300mm Axis Z ... 1250mm Spindle mount... ISO 50 Spindle speed ... 40-6000 rpm Max. spindle torque ... 1050/1435Nm Rapid traverse ... 10m/min Main engine power ... 30/41kW Total power requirement ... 79kVA Machine weight ... 51000kg L x W x H ... 10480 x 5200 x 6120mm Incl. milling heads - C50 and N75 The machine is in good condition, possible to test under power.

Control Heidenhain ... TNC 640 Spindle diameter ... 110mm Axis X ... 3000mm Axis Y ... 2000mm Spindle speed ... 10-4000 rpm IKZ ... 70bar Axis W... 730mm Axis Z ... 1250mm Number of positions in the tool changer ... 40 Spindle holder ... ISO 50. Table size... 1400x1800mm Max. table load ... 8000kg Main engine power ... 31kW Machine weight ... 20800kg L x W x H ... 6250 x 5600 x 4450mm The machine is in very good condition, like new. Machine hours: 3,158 Spindle hours: 1,095 Hexagon workpiece probe

Gantry milling machine GMB 2560 CNC Manufacturer: Fermat GC: 2023 Control Heidenhain ... TNC 640 Table dimensions ... 6000 x 2500mm Axis X ... 6000mm Distance between stand... 3200mm Passage between .dem table and crossbar... 1900mm ISO 50 Spindle speed ... 40-5500 rpm. Max. table load ... 22000kg Axis Y ... 3200mm Axis Z ... 1250mm Machine weight... 88000kg Main engine power ... 41kW Rapid traverse... 10m/min Total Power Requirement ... 83kVA Average of the grinding piece ... 500x450mm The machine is in good condition, possible to test under electricity.

Control Fanuc Spindle diameter ... 100mm Axis X ... 1270mm Axis Y ... 910mm Spindle speed ... 0-2000 rpm. Axis W ... 730mm Axis Z ... 900mm ISO 50 Max. table load ... 3000kg Clamping table surface ... 1000x1120mm Machine weight ... 11500kg L x W x H ... 5000 x 3000 x 2800mm Main engine power... 18.5kW Total power requirement ... 31kVA More info on request. The machine is ready for the viewings.

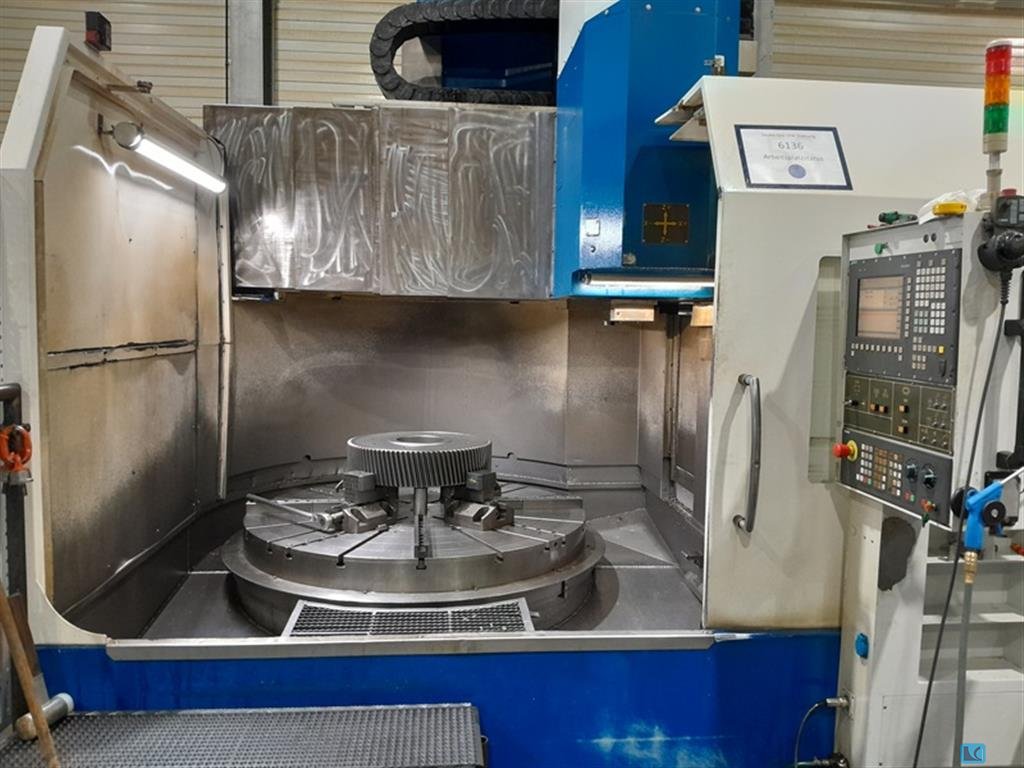

faceplate diameter:1600 mm power requirement:80 kW weight of the machine ca.:25 t dimensions of the machine ca.:4,4 x 4,62 m max. workpiece diameter:2000 mm max. diameter of face turning:1800 mm tool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis ...

• more information

grinding diameter: 850 mm grinding length: 4000 mm centre height: 425 mm control: Siemens 8 max. workpiece weight between centres: 3000 kg workpiece weight in steadies max.: 4000 kg max. workpiece weight -without tailstock: 300 kg vertical Stroke: 0 - 90 °/deg. work piece spindle speed: 23 - 230 U/min workpiece-spindlehead motor: 5,3 kW grinding spindle head - swivable: +30 / -10 °/deg. dimensions of grinding wheel: 750 x 125 x 305 mm table feed: 0,01 - 4000 mm/min rapid traverse of table: 10 m/min table swivelabel +/-: +3 / -3 °/deg. grinding wheel speed: 25 - 50 m/sec grinding motor: 19 kW dimensions: 14,0 x 3,13 x 2,6 m total power requirement: kW weight of the machine ca.: 19,4 t dime ...

This 3-axis FERMAT VMF 1000 vertical machining centre was manufactured in 2008. It features a table size of 1300 x 600 mm and a maximum table load capacity of 800 kg. The machine offers impressive X, Y, and Z-axis travels of 1000 mm, 600 mm, and 570 mm, respectively. If you are looking to get high-quality machining capabilities, consider the FERMAT VMF 1000 machine we have for sale. Contact us for further details.

Manufacturer: METSO LINDEMANN Type of Machine : Press Shear Year of Manufacture: 2010 Technical Condition: Good After major renovation in 2023 Meter reading: 18,500 Mt/h Technical Data - Power Supply: Electric 3 x 90KV - Cutting Force: 630 tons - Scrap Compression Force: 630 tons - Number of Pumps: 3 pcs - Capacity: Approx. 8-22 tons/h - Loading Scrap: Left or Right Side - Loading Box: 12m³ - Total Weight (Machine + Container): 75 tons - Control: Remote Control - Hydraulic Oil Capacity: 6,500 liters Find more here - / Contact us at -
