Manufacturer: Trumpf Type of Machine: Trubend Bending Cell Condition: used A rough list of the components. 1303 - 3 columns/ tool holder 1304 - Rail system with robot arm 1305 - Conveyor belt 1306 - Two operator terminals L1030823 - Enclosure Find more here - / Contact us at -  ...

• more information

Specifications: - Max. working length 4060 mm - Column passage 3680 mm - Max. pressing force 1700 kN - Max. distance table / plunger 385 mm - Stand projection 410 mm - Plunger stroke 215 mm - Lifting speeds - Downward speed idle max. 200 mm/sec - Upward speed 135 mm/sec - Downward pressing speed 1 to. 11 mm/sec - Total drive power 30 kW - Space requirement approx. W 5600 x H 3000 x D 2400 mm - Weight approx. 18000 kg - with: - with 6 axis CNC control DELEM - Two-hand control panel with foot switch - crowning device - Controlled backgauge with height adjustment 5 - 860 mm - hydr. Upper + Lower Tool Clamping - Die table displacement pne ...

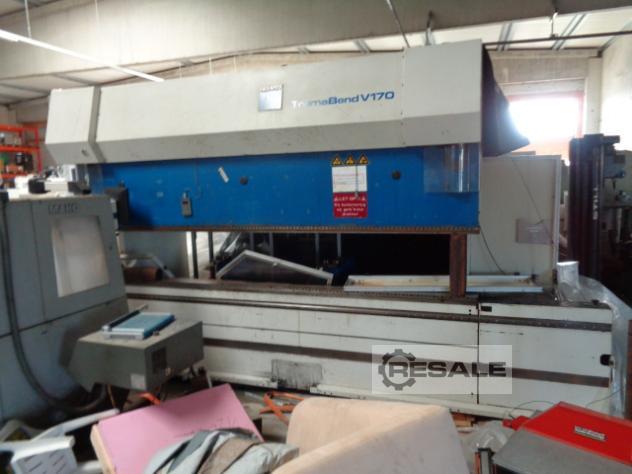

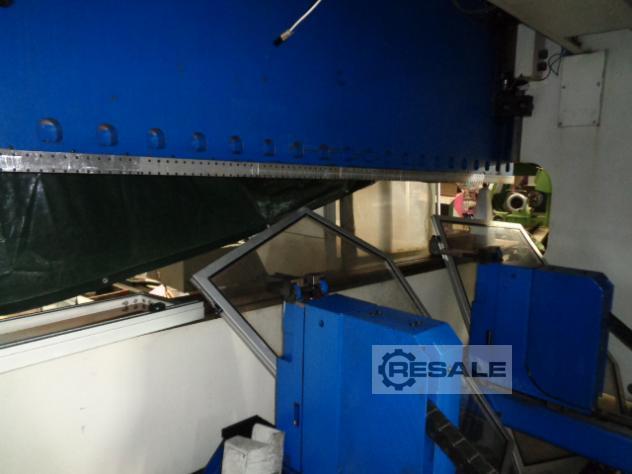

Inv. Num. : 8707 Type: TrumaBend V170 Producer: Trumpf Created: 2003 Parameters: Compressive force: 170 t Maximum bending length: 4080 mm Distance between frame walls: 3680 mm Stroke: 365 mm Machine weight: 18000 kg  ...

• more information

Trumpf Press Brake Trumabend V170, 1700KN, Stroke: 365,. L-530cm, W- 240cm, H-300cm, Weight: 18to,  ...

• more information

Trumpf Press Brake Trumabend V170, 1700KN, Stroke: 365,. L-530cm, W- 240cm, H-300cm, Weight: 18to,  ...

• more information

Standard configuration ? Stable machine frame as a welded, all-steel construction ? Ram (press beam), highly resistant to torsional forces ? Electrohydraulic downstroke drive via proportional valves ? Modern block hydraulics ? CNC backgauge with rack-and-pinion drive, for X and R axis, safe adjustment of stop fingers from the front ? Modufix upper tool clamping system, manual ? Lower tool holder for single-V dies, manual clamping, programmable shifting ? Control system: 2D/3D graphic control, Delem DA 69 with 12 color screen (LCD) ? Safety equipment Additional equipment Crowning options ? CNC crowning Backgauge system options ? 4-axis backgauge system ? 2 additional clip-on stop finger ...

This 8-axis TRUMPF TrumaBend V170 press brake was manufactured in 2003. It features a pressing force of 1700 kN, a stroke of 365 mm, and a maximum bending length of 4080 mm. The distance between columns is 3680 mm. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V170 machine we have for sale. Contact us for further details regarding this machine.

Trumpf TrumaBend V230 8 assen: Y1 / Y2 / X / R / Z1 / Z2 / V / W bovenste en onderste Willa hydraulische gereedschappen met Trumpf ACB-optie; hoekmeetsysteem 3 beweegbare plaatsteunen aan de voorzijde veel gereedschappen inbegrepen Capacity: 230 ton x 3100 mm Backgauge: CNC Control: Delem Passage between uprights: 2690 mm Max stroke: 365 mm Max distance between table -- ram: 535 mm Depth of throat: 410 mm Table width: 200 mm Locking speed: 200 mm/sec Working speed: 1 > 10 mm/sec Returning speed: 135 mm/sec Electric motor (power): 30 kW Length: 3660 mm Depth: 2120 mm Height: 3095 mm Weight: 17,7 ton

Machine fully revised with basic maintenance realised: Including: folding crowning - Operating hours: 38.498h - Table width L -R: 120 mm - Inclination of beam: +-10 mm - Pressure force: 130 t - Bending length: 3.060 mm - Axes: 4 (X+R, Y1/Y2) - Distance between uprights: 2.690 mm - Working speed: 1-10 (Y) mm/seg - Working speed: 500 (X) mm/seg - Working speed: 300 (R) mm/seg - Throat: 410 mm - Control: TRUMPF - Stroke max: 215 mm - Oil tank capacity: 250 l - Power: installed max: 18,5 kW - Weight: 11.250 kg - Dimensions (long x wide x high): 3.640 x 2.210 x 2.375 mm

Large Format 3000x1500 Sort Master / ToolMaster SheetMaster No Grip or shearMaster - Max. workpiece weight: 220 kg - Punch diameter max: 76,2 mm - Axis speed [Y axis] max: 60 m/min - Control type: Siemens SINUMERIK 840 D - Simultaneous positioning speed (X / Y): 116 m/min - Operating hours: n/a - Axis speed [X axis] max: 100 m/min - Punching force: 220 kN - Working area max: 3.050 x 1.550 mm - Material thickness (punching) max: 8 mm - Power: installed max: 9,5 kW - Weight: 19.300 kg - Dimensions (long x wide x high): 7.600 x 8.171 x 2.072 mm
