rettificatrici usati in vendita

Rettificatrice per superfici G&H molto ben conservata Area di rettifica 600 x 400 x 375 mm Extra: Incapsulamento parziale dello spazio, set di pulizia, comò nel tavolo, filtro universale a nastro in carta Pronto per la dimostrazione sotto tensione presso il nostro magazzino

1 SMERIGLIATRICE DI SUPERFICIE ELB usata Modello: SWBE 010 ND Area di rettifica: 1000 X 550 X 400 mm Anno di costruzione: 12-1988 Mola: 400 X100 X 127 mm ACCESSORI Ravvivatore rettilineo elettrico con compensazione Display digitale verticale Piastra di Bloccaggio Magnetica 1000 X 550 mm Sistema di raffreddamento con filtro universale a nastro in carta Mola con supporto Cunei

Diametro della spazzola: circa 250 mm Larghezza spazzola: circa 60 mm Velocità: circa 2800/1400 giri/min L x P x A: circa 500x560x1250mm Peso: circa 85 kg Accessoristica  Documentazione completa

Macchina di macinazione piatta di precisione Produttore: COSMOS Modello: Terra 1050 NC Anno costruito: nuovo di zecca Lunghezza di macinazione: 1000 mm Larghezza di rettifica: 500 mm Altezza di macinazione: 400 mm Piastra di bloccaggio magnetica elettrica 1000 x 500 mm Tramoggia singola al tavolo fissata per straight-straight-straightening con compensazione Visualizzazione programmabile 4.7inch azionamento mandrino di macinazione senza passaggi Filtro nastro carta universale

1 pezzo di macinazione piatta macchina COSMOS E 7040 NC gamma di macinazione 700x400x350mmmagnetica magnetica placcada 700x400mm singolo set-up, fisso per straight-straightering con compensazionedisplay programmabile 4.7 . . . . macinazione di macinazione a livello filtro di carta universale; buono come nuovo, pronto per l'uso

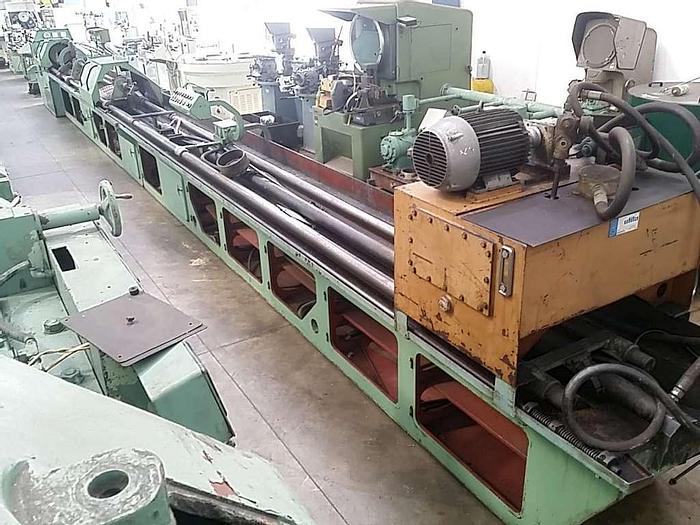

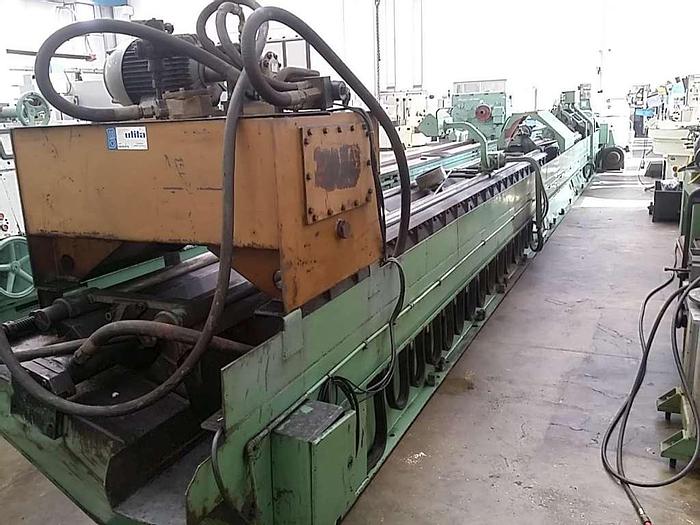

Macchina per brocce Lapointe Mk II S.H.R.E. 32/9000 Anno: 1982 Controllo: Sinumeric 840D (asse singolo) (settembre 2010) Corsa orizzontale: 9 000 mm Velocità della corsa: 1-45 m/min Diametro massimo del disco: 1100 mm Angolo massimo della scanalatura +/- 45 gradi Angolo massimo del cono: 20 gradi Accessoristica: Tavola circolare ⌀500 ⌀700 ⌀850 mm Supporto per broccia per attacchi di fissaggio larghi 25 e 34,92 mm

An old universal tool grinding machine based on the modular principle is available. Stations: 2, spindle power station 1/station 2: 0.55kW/0.92kW, speed station 1/station 2: 1400rpm/2800rpm, machine dimensions X/Y/Z: approx. 1400mm/1000mm/1400mm, weight: approx. 250kg. Documentation available. On-site inspection is possible.

Working width: 250mm, belt speed: 7.5m/min, brush diameter: 150mm, machine dimensions X/Y/Z: approx. 4000mm/2500mm/2500mm, weight: approx. 4000kg, control: Siemens. The control of the machine shows problems. An on-site inspection is possible.

Working width: 900mm, max. workpiece height: 100mm, sanding units: 1, sanding belt dimensions X/Y: 2620mm/1150mm, feed speed: 2m/min-14m/min, compressed air requirement: 1800m³/h, operating pressure: 5bar-7bar, weight: approx. 1800kg. The feed belt is no longer grippy. Documentation available. On-site inspection is possible.

Table dimensions X/Y: 760mm/200mm, max. sanding length: 500mm, max. sanding width: 230mm, table spindle center distance: 520mm, table longitudinal movement: 30m/min, table transverse movement: 16mm/stroke. Grinding wheel diameter: 225mm, grinding wheel width: 25mm, bore: 51mm, power: 5kW. Machine dimensions X/Y/Z: approx. 2500mm/2000mm/1950mm, weight: approx. 2100kg. On-site inspection is possible.

A Karstens cylindrical grinding machine with display is available. Center height: 180mm, grinding diameter: 360mm, center width: 650mm, max. workpiece weight flying/between centers: 70kg/250kg. Grinding wheel outer diameter: 400mm, face diameter: 250mm, peripheral speed: 35m/s, speed: 450rpm, mounting cone: MK4, quill diameter: 50mm, fine adjustment: 0.08mm. Machine dimensions X/Y: approx. 3250mm/2150mm, weight: approx. 3600kg. On-site inspection is possible.

Workpiece diameter (radial curve): 600mm, workpiece length (radial curve): 200mm, travel X/Y/Z: 650mm/250mm/300mm, work feed: 30m/min, rapid traverse: 30m/min, max. tool diameter: 300mm, max. tool width: 63mm, control: Siemens 840D. Documentation available. On-site inspection is possible.

Table dimensions: 1400x4000mm, feed rate: 2-16m/min, length: 4500mm, width: 10,500mm, with documentation.

Machine bed length: 16,000mm, roller table diameter: 200mm, load: 150kg/m, band width/ length: 150/ 3500mm, with documentation, the machine needs overhauling.

Max. workpiece diameter: 10-350mm, max. grinding length/ width: 690/ 60mm, clamping length: 950-1330mm, swing angle: -60 to 60°, length: 6200mm, width: 4000mm, height: 2500mm, weight: 9t, with oil filtration system, oil mist extraction and additional accessories.

Year of construction: 1968/ 69, sheets are processed by means of sanding belts, the entire electrical system and extraction system have been renewed, another machine of identical construction is available.

A CNC 5-axis grinding machine SMP is available. Grinding wheel diameter: 200mm, max. tool diameter: 150mm, max. tool length manual/automatic: 300mm/140mm, max. workpiece weight: 25kg, spindle speed: 20000rpm, spindle power: 7kW, interchangeable magazine: 4 places. Documentation available. On-site inspection is possible.

Capacity: 200l, rotational speed: 1000-2700/min, connected load: 5.5kW, weight: 1.9t.

Sanding length: 700mm, sanding width: 330mm, max. workpiece height: 450mm, table dimensions X/Y: 280mm/600mm, table speed: 25m/min, sanding wheel dimensions: 305mm/25mm/76.2mm, spindle power: 3PS, machine dimensions X/Y/Z: approx. 2100mm/1600mm/2000mm, weight: approx. 2000kg. Documentation available. On-site inspection is possible.

CONTROLS  CNC controls SIEMENS 810 T WORKING RANGE (DOUBLE DISC GRINDER)  Grinding wheel diameter: 750 mm  grinding width max. - throughfeed grinding: 180 mm  material thickness max. - throughfeed grindin: 30 mm  grinding width max. - plunge cut grinding: 180 mm  material thickness - plunge cut grinding: 30 mmCOMPONENT-FEEDER  Feeder Design: rotary Feeder ELECTRICAL SPECIFICATIONS  total power consumption: 95 kWScope of delivery:- Machine- div. flanges and used grinding wheels- Measuring control IONIC 17AOptional:- 270 pcs. grinding segments 22A 100 S 6 B20- 289 pieces grinding segments 14C 80 L 10 B30Machine is dismantled and stored

A CNC cylindrical grinding machine GP Basis Karstens with rotating grinding headstock is available. Grinding length: 650mm, center height: 250mm, workhead: MK4, tailstock: MK4, wheel diameter: 400mm, spindle diameter: 80mm, sleeve length: 250mm, speed: 3000rpm, spindle power: 1.5kW, control: Siemens and Balance System VM25. Documentation available. On-site inspection is possible.

WORKING RANGE SURFACE GRINDING  grinding length: 400 mm  grinding width: 163 mm  vertical travel: 200 mmTABLE (SURFACE GRINDING)  magnetic table: optional MAGNETIC TABLE  length: 350 mm  width: 150 mm  height: 50 mmSPINDLESTOCK GRINDING SPINDLE  X-axis travel: 483 mm  Y-axis travel: 171 mm  Z-axis travel: 179 mm  spindle revolutions (max): 2800 /minGRINDING TOOL  type of grinding tool: wheel   diameter (max): 178 mm  borehole: diameter: 32 mm  width: 13 mmELECTRICAL SPECIFICATIONS  total power consumption: 1.5 kW  mains voltage: 380 V  mains frequency: 50 HzDIMENSIONS / WEIGHTS  space requirements -left/right-: 1650 mm  space requirements -front/back-: 825 mm  height above floor le ...

Working diameter: 95-150mm, rotational speed: 2250-6000/min.

CONTROLS  conventional WORKING RANGE (DOUBLE DISC GRINDER)  Grinding wheel diameter: 750 mm  grinding width max. - throughfeed grinding: 150 mm  material thickness max. - throughfeed grindin: 70 mmGRINDING SPINDLE 1  spindle revolutions (max): 610 /minGRINDING SPINDLE 2  spindle revolutions (max): 610 /minCOMPONENT-FEEDER  Feeder Design: rotary Feeder DIMENSIONS / WEIGHTS  space requirements -left/right-: 5230 mm  space requirements -front/back-: 4460 mm  total height: 3600 mm  total weight approx.: 11000 kgMachine is dismantled and stored

There are two Nomoco M100 available, operational hours counter: 55,998h, with instruction manual, machine 1 is functional, but on machine 2 the control system has lost machine-specific programms/data that must be reloaded.

CONTROLS  conventional TECHNISCHE DATEN  Max. Grinding length: 1000 mm  Max. Grinding breadth: 250 mm  Table-size       &nbs p; : 1050 mm  Table-size       &nbs p; : 250 mm  Segmentkopf Durchmesser: 400 mm  Table speed: 0 m/min  .. to: 35 m/min  Grinding spindle required power: 18.5 kWHeavy duty Grinder with motorized tilting table.Grinding spindle is equipped with CBN- grinding wheel.No cooling equipment.

A sanding block with two sanding wheels is available. Grinding wheel diameter: 450mm/60mm, machine dimensions X/Y/Z: approx. 1150mm/800mm/1200mm. On-site inspection is possible.

CONTROLS   SIEMENS S5 95U WORKING RANGE SURFACE GRINDING  grinding length: 600 mm  grinding width: 350 mm  distance of axis of horizontal spindle - clamping surface (max.): 525 mm  workpiece height (max) with largest wheel: 375 mmTABLE (SURFACE GRINDING)  workpiece load (max): 400 kgMAGNETIC TABLE  length: 600 mm  width: 350 mmSPINDLESTOCK GRINDING SPINDLE  X-axis travel: 660 mm  Y-axis travel: 350 mm  Z-axis travel: 385 mm  drive power: 4.5 kWGRINDING TOOL  type of grinding tool: wheel   diameter (max): 300 mm  borehole: diameter: 76.2 mm  width: 50 mmAXIS DRIVES  traverse velocity X (min): 2000 mm/min  traverse velocity X (max): 28000 mm/minELECTRICAL SPECIFICATIONS  total power consumption: 8 kW&nb ...

X-travel: 600mm, y-travel: 475mm, z-travel: 400mm, max. table load: 600kg, connected load: 14kW, controls: UNICON-F, length: 2750mm, width: 2710mm, height: 2720mm, weight: 3.3t, with documentation, machine bed made of micro-granite, drive of the y- and z-axis via ball screw and controllable AC motors.
