fresatrici usati in vendita

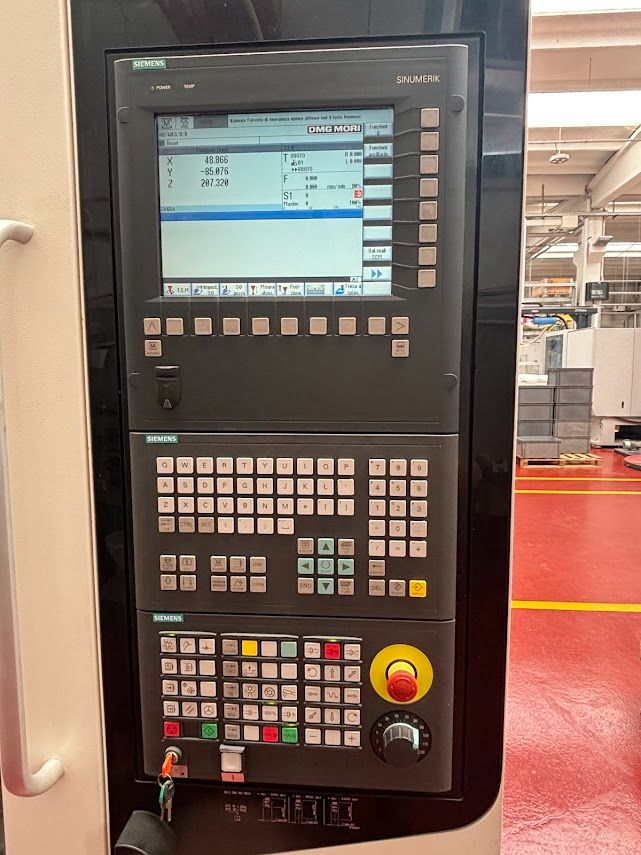

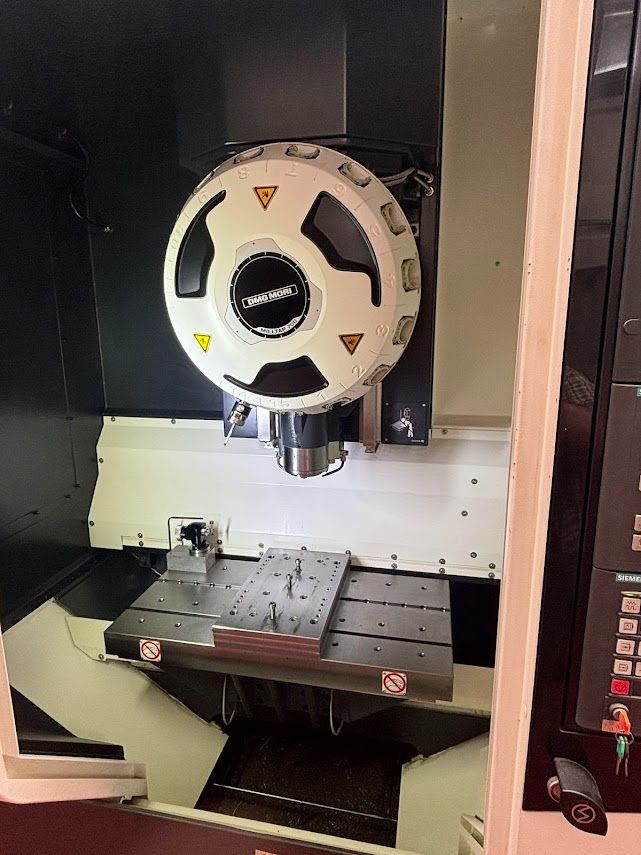

GeneralUniversal Machining Centre in monoBLOCK construction - MPC Machine Protection Control - Chip trough with integrated coolant tank 500 l / 132 gallon; Control: CELOS with Siemens 840D sl Operate Working area 1Longitudinal750 mmCross650 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmTechnical DataDrive power (100% DC)25 kWDrive power (40% DC)35 kWTorque (100% DC)86 NmTorque (40% DC)130 NmSpeed range- 20000 rpmSpindle taperHSK-A 63 Feed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minMiscellaneousClamping SystemHSK-A 63 Floor space/WeightWeight approx.12300 KgNC swivel rotary tableTable surface 800 x 650 (Ø 650) mmCentre bore 50 ...

GeneralUniversal turning-/milling center; Control: SLIMline® Control SIEMENS 840D sl, w/o CELOS Working areaSwing diameter over guide ways500 mmBar diameter max.65 mmTurning diameter400 mmMax. Turning Length1100 mmWork spindle (left)Spindle bore87 mmSpindle diametre on front bearing130 mmMain drive 1Drive power (40% DC)17 kWDrive power (100% DC)14 kWSpeed range- 5000 rpmTorque (100% DC)275 NmBench speed485 rpmMax. torque (40% DC)345 NmTool magazineType of magazineChain Number of tools30 Max. tool diameter78 mmMax. tool-Ø with free adjacent pockets125 mmTurning-milling spindleSpindle taperHSK-A 63 DIN 69893 Spindle speed-12000 rpmDrive power (100% DC)8,8 kWDrive power (40% DC)10,5 kWTorque (100% DC)73 NmTorque (40% DC)90 Nmlocking moment850 NmSwivelling range+/- 120 degreeFloor space/WeightDimensions (L x W x H)5,19 x 2,11 x 2,47 mWeight approx.11200 KgExcentric turning and milling oper ...

Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minGeneralUniversal milling and turning machining centre with duoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Tool changerApplicationUniversal Type of magazineWheel Tool changer planehorizontal Type of gripperDouble gripper Number of tools123 Working area 1Longitudinal800 mmCross1050 mmVertical850 mmUni milling head with controlled B axis HSK-A 63Universal milling head with controlled B axis HSK-A 63 Continuously positioning universal milling head (B axis) with integrated motor spindle for 5 axes positioning and simultaneous machiningNC mill-turn table with palletNC mill-turn table with pallet number of T-slots: - 1x cross slot 14 H7 / 0.55 H7 - 12x star slots 14 H11 / 0.55 H11 / 22.5° max. table speed milling operation: 30 rpm tu ...

GeneralIntegrated Mill Turn Center; Control: Control F31iB5 with CELOS CharacteristicsSwing- Ø, max.700 mmDrive power tool spindle5,5/3,7 kWDrive power milling spindle28/23 kWDrive power main spindle18,5/15 kWMovements X / Z200/1542 mmLower Turret10 PositionsNumber of Toolmagazine positions38 Speed max.12000 rpmSlewability of B-Axis±120 degreeMovements X / Z / Y675/1562/300 (±150) mmMilling spindle upper side1 Bar diametre80 mmSpeed max.4000 rpmMax. Turning Length1530 mmMax machining diameter670 mmWeight approx.18500 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and p(Left Spindle) through-spindle hole dia. 91 mm, 4,000min-1 (STD)(Left Spindle) Through-spindle H ...

CNC Universal – Fresatrice e foratrice DECKEL MAHO DMU 80 P duoBlock NEW DMG Design Con controllo cingoli Heidenhain iTNC 530 Anno di fabbricazione: 2008 Tipo di corsa: X 800 Y 800 Z 800 Gamma di velocità: 0 – 12.000 giri/min regolabile in continuo ( SK 40 ) Con i seguenti accessori: Tavola rotante NC 900 mm x 700 mm superficie di serraggio (carico tavola max. 1,4 t) Testa di fresatura universale con asse B controllato Cambio utensile universale con 60 posizioni di magazzino a doppia pinza ( SK 40 ) Cabina di protezione completa con porte scorrevoli e illuminazione interna IKZ – 40 bar Trasportatore Rotoclear Sonda 3 D Heidenhain TS 641 Modalità di funzionamento 3 + 4 Luce di segnalazione a 4 colori Scarpe per macchine regolabili in altezza in 3 pezzi Istruzioni

Key data: 500 mm, 420 mm, 400 mm

Fresatrice universale per utensili NC HERMLE UWF 801 Con punto – controllo del percorso Heidenhain TNC 135 Anno di fabbricazione: 1983 Tipo di corsa: X 500 Y 420 Z 400 Gamma di velocità: 40 – 2000 giri/min Con i seguenti accessori: Tavola angolare rigida 800 mm x 400 mm superficie di serraggio Bloccaggio idraulico dell'utensile Cannotto estensibile Vassoio per trucioli Luce della macchina Pompa di lubrificazione centralizzata automatica 15 portautensili SK 40 1 portapinze con 15 pinze 4 pezzi scarpe per macchine Configurazione del refrigerante Istruzioni

Key data: 500 mm, 400 mm, 400 mm

Fresatrice e foratrice universale DECKEL MAHO DMU 50 M Con controllo Heidenhain TNC 320 Anno di fabbricazione: 2001 Tipo di corsa: X 500 Y 400 Z 400 Gamma di velocità: 20 – 4.500 giri/min regolabile in continuo Con i seguenti accessori: Tavola rotante manuale con display digitale per asse C + B Superficie di serraggio 700 mm x 500 mm Volantino elettronico per assi X, Y, Z Cabina paraspruzzi Luce della macchina 4 pattini per macchine regolabili in altezza Configurazione del refrigerante Istruzioni

Centro di lavoro Huron VX8 Numero dell'articolo: 07-07-182 Produttore: Huron Ottime condizioni generali / programma eseguito : 6100 ore Tempi di consegna: immediatamente disponibile Officina meccanica testata, sotto tensione Anno di produzione: 2015 L x P x A: circa 2460x3960x2900mm Peso: circa 5500 kg Controllo: Heidenhain TNC 620 Max. distanza percorsa X: circa 820 mm Max. distanza percorsa Y: circa 510 mm Max. distanza percorsa Z: circa 510 mm Traversata rapida: circa 24 m/min Superficie utile: circa 1000x530mm Carico ammissibile della tavola: circa 500 kg Cambio utensile: 24 posti Velocità di rotazione: 12.000 rpm Portautensili: ISO 40 Accessoristica: Pacchetto di sonde Blum TC 54+52 Vari portautensili incl. Taglierine Configurazione del refrigerante Trasportatore di trucioli + Carrello di trucioli Messa in sicurezza del trasporto Vizio Document ...

Numero dell'articolo: 07-07-181 Produttore: Coperchio Ottime condizioni generali Macchina parzialmente revisionata Tempi di consegna: su richiesta Anno di costruzione: ca.1978 L x P x A: circa 2000x1600x1900mm Peso: circa 1500 kg Display digitale: display digitale a 3 assi SINO Nuovo Viaggio: Asse X: circa 500 mm Asse Y: circa 300 mm Asse Z: circa 380 mm Fuso: Gamma di velocità: circa 40-2000 giri/min Portautensili: ISO 40 Potenza di azionamento: circa 3,8 kW Avanzamenti e corse rapide: in tutti e 3 gli assi Campo di avanzamento: circa 10 - 500 mm/min Corse rapide: circa 1,5 m/min Accessoristica  Display digitale a 3 assi SINO Nuovo  Dispositivo di fresatura verticale e orizzontale  Luce da lavoro  Impianto di raffreddamento  Documentazione completa della macchina  Vari tensori  Cappuccio di protezione del mandrino  Tappo coperchio m ...

Produttore: WMW Ruhla Designazione: FUW 250 / IV Numero di stock: 1028 Corsa X: 400 mm Corsa Y: 250 mm Corsa Z: 300 mm Portautensili: ISO 40 Velocità del mandrino: infinitamente variabile: vert. 45...2240 giri/min Velocità del mandrino - infinitamente variabile: orizz. 45...2240 giri/min Testa di fresatura - girevole +/-: 360 Superficie di serraggio: 630x345 mm Carico tavola: 120 kg Avanzamento: 6,3...1250 mm/min Distanza tra il supporto e il bordo del tavolo: min/max:155/500 mm Distanza mandrino/tavola: orizz. 38...438 millimetri Movimento verticale del mandrino di fresatura: corsa 80 mm Distanza mandrino/tavola: vert. ... 400 millimetri Potenza totale richiesta: circa 7,0 kW Peso della macchina circa: circa 1,45 t Ingombro approssimativo: L:1,45xP:1,4xH:1,75 m

Copying range U/V: 1400mm/1060mm, table longitudinal movement U: 1500mm, column transverse movement V: 1060mm, headstock vertical movement W: 900mm, max. spindle-table distance: 1025mm, probe adjustment range X/Y/Z: 300mm/150mm/250mm, probe mounting swivel range: +/- 15°, speed: 4000rpm. Including documentation, headstock and spindle.

X-travel: 800mm, y-travel: 450mm, z-travel: 500mm, quill stroke: 80mm, rotational speed: 63-3150/min, length: 4500mm, width: 3800mm, height: 2030mm, weight: 3.8t, operational hours counter: 2538h, including accessories and documentation, was maintained regularly.

Rotation axis: 360°, max. rotational speed: 60.000/min, including accessories and documentation.

Number of tool slots: 25, max. rotational speed: 6300/min, tool cone: SK40 with DIN 7388 tightening pin, connected load: 35kVA, controls: Deckel Maho MillPlus, operational/ spindle hours: 56,344/ 14,965h, with chip conveyor and 600l coolant tank, without tools and clamping devices.

Max. rotational speed: 2000/min, with instruction manual.

A Reckermann CNC double-spindle bed milling machine is available. Travel X/Y/Z: 1500mm/600mm/450mm, max. workpiece weight: 3000kg, machine weight: 5500kg. Z-axis spindle: SK40, quill stroke: 130mm, speed: 3000rpm, swivel range: +/-90°. Y-axis spindle: SK40, quill stroke: 125mm, speed: 1500rpm, control: Heidenhain TNC 360. The machines hydraulic valve block leaks oil. Documentation available. An on-site inspection is possible.

X-travel: 2000mm, y-travel: 1450mm, z-travel: 1400mm, quill stroke: 600mm, max. load: 12t, table dimensions: 1250x6000mm, length: 6150mm, width: 5050mm, height: 4430mm, weight: 24.35t, with documentation.

Pneumatic pressure: 6bar, connected load: 26.92kW, weight: 400kg, with documentation.

With milling disks, tools and accessories, without documentation, on-site inspection is possible, year of manufacture unknown.

Traverse path X/Y/Z: 1200mm/620mm/520mm, clamping surface X/Y: 1550mm/600mm, tool holder: SK40, tool positions: 30, spindle speed: 10000rpm, spindle power: 18.5kW, rapid traverse: 45m/min, max. table load: 2000kg, machine dimensions X/Y/Z: approx. 6300mm/2600mm/3400mm, weight: approx. 10500kg, control: Heidenhain iTNC 530, control hours: 2000kg. Table load: 2000kg, machine dimensions X/Y/Z: approx. 6300mm/2600mm/3400mm, weight: approx. 10500kg, control: Heidenhain iTNC 530, control hours: 84857h, machine hours: 52336h, program hours: 19520h, spindle hours: 15928h. Documentation available. On-site inspection is possible. Expected to be available from Q1 2025.

Controls: TNCi-120.

Controls: Deckel Dialog 11.

X-travel: 500mm, y-travel: 400mm, z-travel: 350mm, quill stroke: 50mm, rotational speed: 20-5000/min, connected load: 10kVA, controls: Maho CNC 432, length: 2022mm, width: 3030mm, height: 1915mm, weight: 2.1t, operational hours counter: 29,578h, with documentation, without spare parts, mechanically and electrically the machine runs flawlessly, the control elements were recently overhauled.

A Mako double-spindle tandem table milling machine with separate clamping circuits is available. Travel X/Y/Z: 1500mm/1500mm/650mm, speed: 24000rpm, table dimensions X/Y: 1500mm/1500mm, max. workpiece dimensions X/Y/Z: 1500mm/5000mm/650mm. Tool holder: ISO30, tool length: 130mm, tool diameter: 60mm, tool positions: 20/10 (30), angle head positions: 4, weight: approx. 6500kg. On-site inspection is possible.

Travel X/Y/Z: 500mm/400mm/400mm, table dimensions X/Y: 800mm/460mm, spindle mount: SK40, speed: 2500rpm, feed: 630mm/min, rapid traverse: 1.3m/min, machine dimensions X/Y/Z: approx. 2300mm/1800mm/1800mm, weight: approx. 1750kg. Including numerous accessories such as new Allmatic HD 100 vice, 16x clamping tools, 3-jaw chuck, edge finder etc. Documentation available. On-site inspection is possible.

A Geiss CNC 5-axis lathe is available. Connected load: 22.62kW, travel X/Y/Z: 2400mm/1400mm/760mm, B-axis: 210°, C-axis: 520°, rapid traverse X/Y/Z: 75m/min, 75m/min, 70m/min, rapid traverse B-/C-axis: 20880°/min. Speed: 40000rpm, tool holder: HSK-32 E, spindle power: 9kW, tool positions: 12, weight: approx. 35000kg, control: Siemens 840DI. Including center partition for two-station operation, Busch 110m³/h vacuum pump, Rittal SK 3320 cooling unit, measuring probe and knee switch for the vacuum. Documentation available. On-site inspection is possible.

X-travel: 630mm, y-travel: 500mm, z-travel: 500mm, table diameter: 900x528mm, NC rotary table diameter: 500mm, connected load: 14kVA, length: 3600mm, width: 3900mm, height: 2100mm, weight: 6t, with documentation.

X-travel: 560mm, y-travel: 500mm, z-travel: 390mm, table dimensions: 900x530mm, rotational speed: 4000/min, tool changer: SK 40, controls: DECKEL DIALOG 11, with documentation, the tool changer is defective and needs overhauling.

Travel X/Y/Z: 450mm/325mm/450mm, speed: 2320rpm, power: 3.8kW, table dimensions X/Y: 950mm/300mm, spindle mount: ISO40, weight: approx. 1800kg.

Anzahl Achsen: 3, rotational speed: 450-2800/min, connected load: 6kW, weight: 2t, including accessories and documentation.
