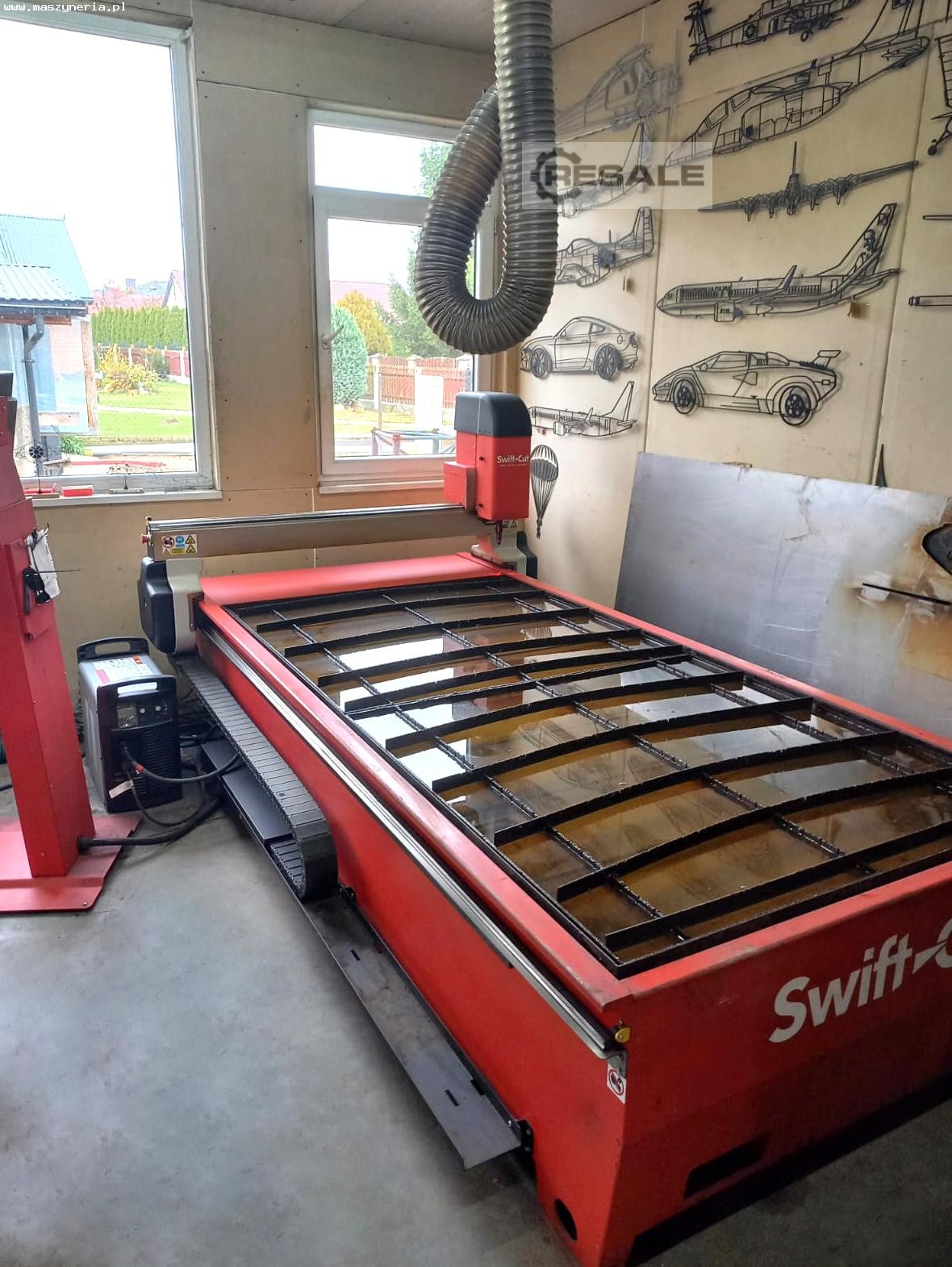

Swift-Cut PRO 2500 plasma cutting machine was built in the United
Kingdom in 2022 by Swift-Cut Automation Ltd. The machine was in use
for one month and only worked for 238 hours.
Swift-Cut PRO 2500 is distinguished by the use of a number of
state-of-the-art technical solutions that guarantee excellent
repeatability of the produced parts over many years of intensive use.
The machining process is performed on a water- or other coolant-filled
table with a large cutting area. The cutting head with anti-collision
system is placed in a magnetic holder to completely eliminate the
possibility of torch damage. The plasma torch is powered by a powerful
HYPERTHERM plasma source of the highest energy efficiency. The machine
operator, in turn, has easy-to-use 2D design and Nesting software at
his disposal. All of this makes the offered Swift-Cut PRO plasma
cutting machine an excellent choice for precise workpiece
machining.
Technical specifications of the Swift-Cut PRO 2500 plasma cutting
machine
- cutting area (L x W): 2500 x 1250 mm
- operating hours: 238 h
- power supply of the Swift-Cut PRO 2500 MK5 machine: 110-230 VAC;
50/60 Hz
Equipment of the Swift-Cut plasma cutting machine

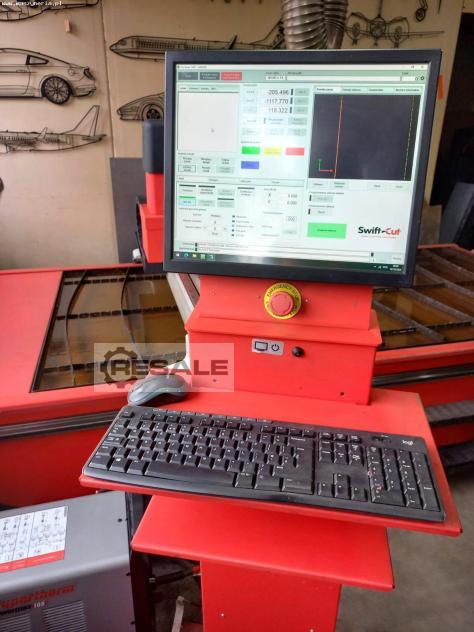

- CNC controller
- 2D design software: Solid Edge 2D
- Nesting software: SigmaNEST Companion

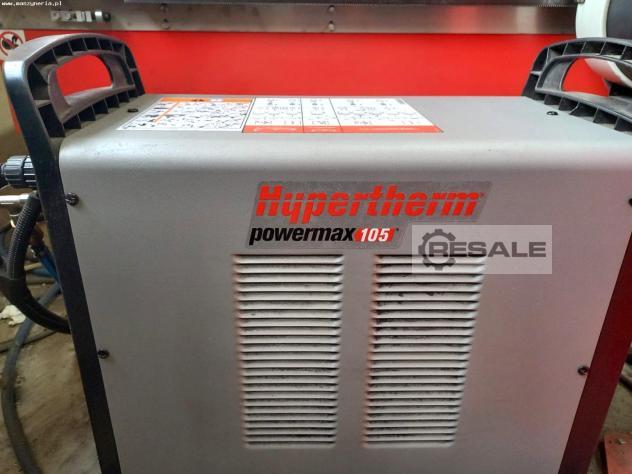

- plasma source: HYPERTHERM Powermax 105
- Swift-Cut Soft Sense (IHS) system – accurate pierce and cut height
for optimal consumable life and hole quality
- XYZ Torch Protection system – anti-collision system in all 3
axes
- Digital Torch Height Control (DTHC) system – digital torch height
adjustment
- Dynamic Cut Control (DCC) system – dynamic control of cutting
parameters
- function of automatic tension correction during cutting, which
maximises the life of consumables
- increased gantry clearance (Z axis) up to 120 mm to allow cutting
thicker materials

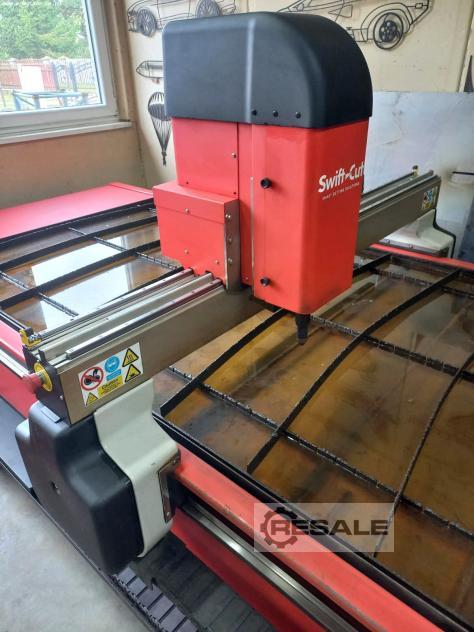

- magnetic cutting head
- pneumatic material detection sensor
- laser pointer

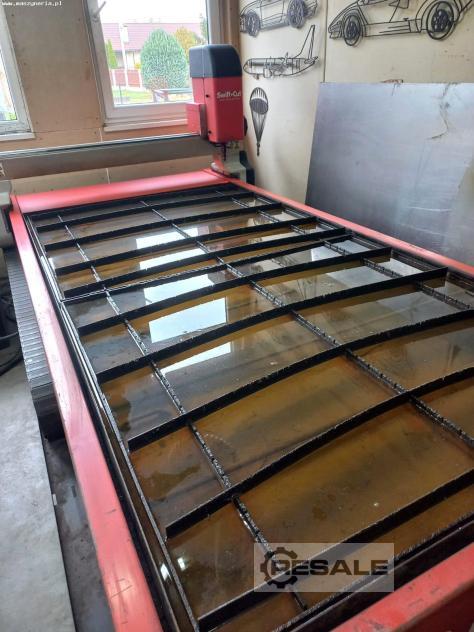

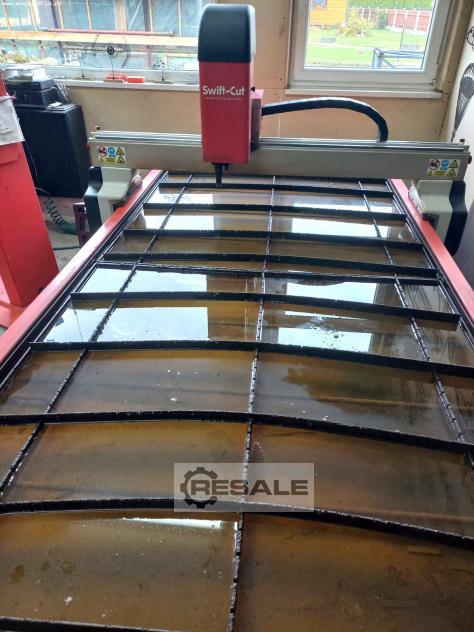

- water table

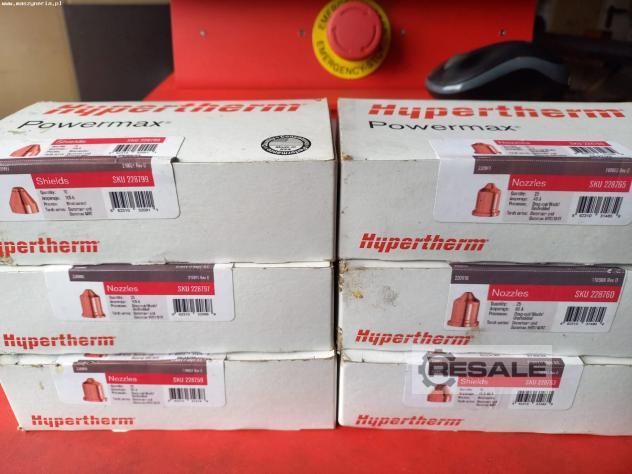

- nozzles
- electrodes
- dual Y axis drive
- axes drives with feedback compression
- precision linear rails on all axes
- planetary gears
- ball screw in the Z axis
- remote diagnostics and technical support via Team Viewer
- Dell Precision T3620 workstation (2 pcs)
CPU: Intel Xeon E3-1220 V5
GPU: Quadro P400
16 GB RAM
SSD 1 TB
operating system: Windows 10 PRO
- multi-function printer: OKI MFP MC853dn A3
- monitor: Dell P2418D QHD (2 pcs)
- AIRPRESS refrigeration dryer (broken)
