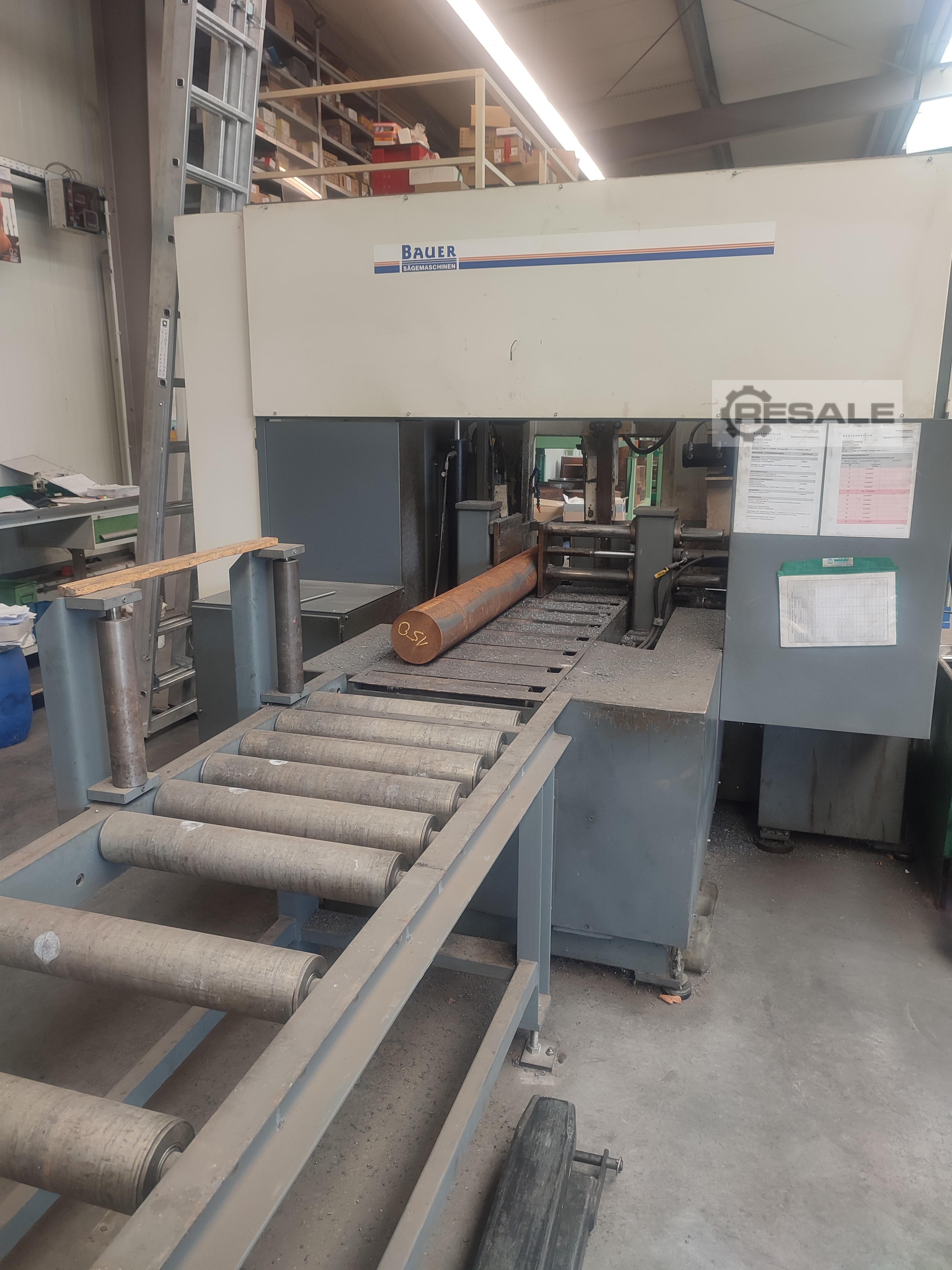

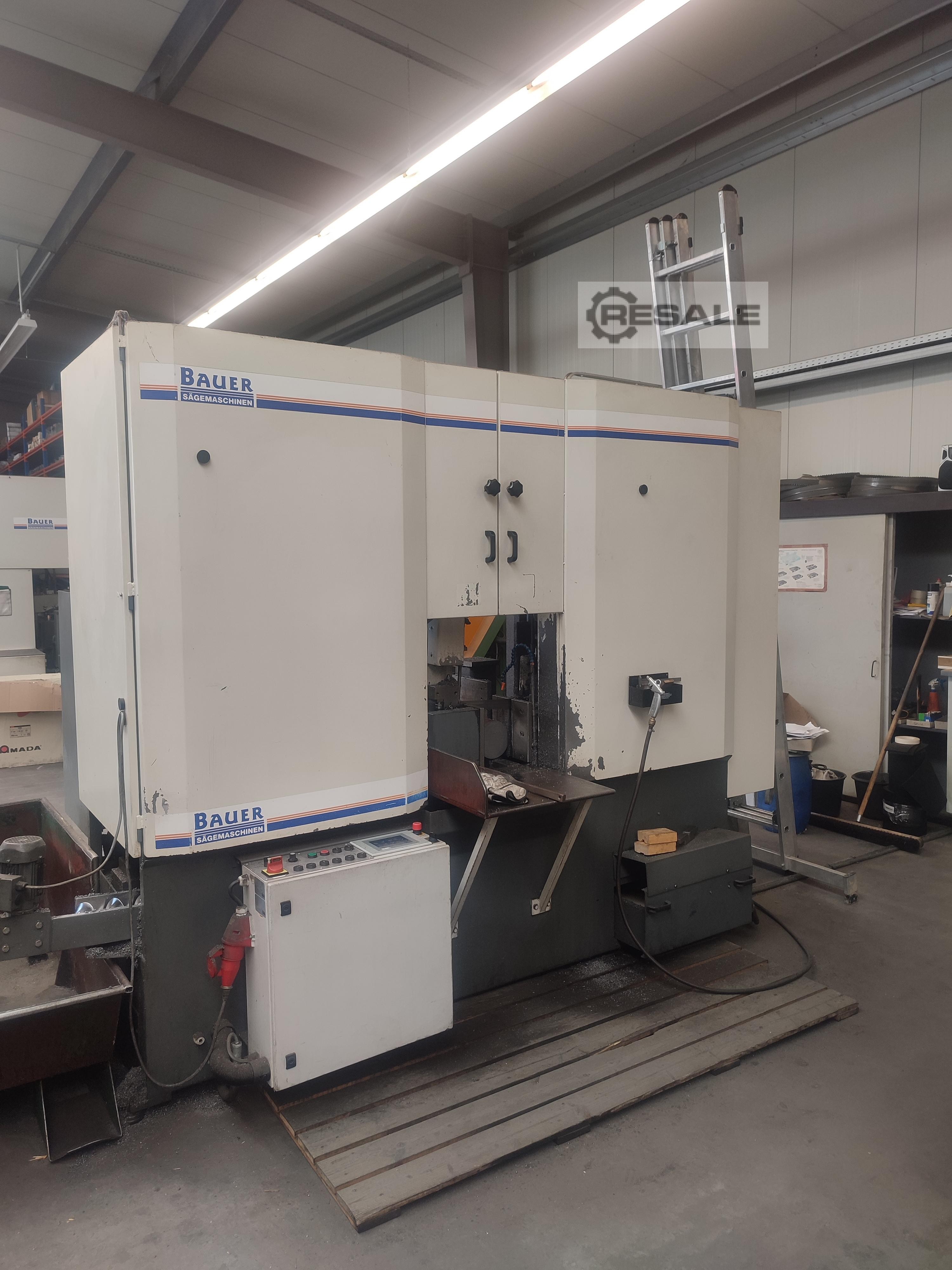

Metal Band Saw manufactured in 2009. This BAUER SA 430 ZA features a cutting capacity of 430 mm and includes a hydraulic material clamping system for efficient operation. It is equipped with a touchscreen control for preselection of cutting pressure and force, ensuring precision in cutting tasks. If you are looking to get high-quality cutting capabilities, consider the BAUER SA 430 ZA machine we have for sale. Contact us for further details.

Technical data: - Cutting range at 90° around 260 mm - flat 450 x 240 mm - Cutting range at 45° around 230 mm - flat 240 x 200 mm - Machine is mounted on original turnstile - Saw band dimension 3660 x 25 x 0.9 mm - Cutting speeds 20 / 35 / 50 / 70 m/min - Hydr. lifting + lowering the saw frame - Cutting pressure infinitely adjustable 0 - 10 m/min - Total drive power 400 V / 0.8 kW - Coolant device - Space requirement approx. W 2100 x H 1200 x D 1000 mm - Weight approx. 500 kg

Bauer 300 mm  ...

• more information

Ref.nr 00898 Name of the system: Used band saw Manufacturer: Bauer HS 280 GZA: For automatic sawing of small diameter ranges, universal application by the miter device, hydraulic material feed. Model HS 280 GZA Year of construction 2012 Technical data: (according to data sheet) Automatic saw design Cutting range 90° Round Diameter 280mm 90° Flat 300 x 230mm 45° Flat 220x230mm 30° Flat 130x170mm Cutting angle 0-30° Saw motor 1,100/1,400 Saw Blade 3000x27x0.9mm Belt speed 1: min 30m/min 2: max. 60m/min Coolant Pump 90W Hydraulic Pump 370W Mains connection 400V / 50-60 Hz Clamping force adjustment infinitely variable 10-40 bar Stroke length 500mm Working he ...

cutting width: 250 mm weight of the machine ca.: 1,3 t dimensions of the machine ca.: . m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.  ...

• more information

Polishing machine Brand: BAUERRICHTER Type: SL1 1350X3500 table size: 1400x4000mm work area: 1350x3500mm Note: The specifications and descriptions are a copy of the order confirmation at that time. Data are for information and are not binding. ...

• more information

cutting diameter: - mm saw band length: - mm table height: - mm total power requirement: - kW weight of the machine ca.: - t dimensions of the machine ca.: - m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.  ...

• more information

Offer 23426 Specifications: - Cutting range at 90° around 420 mm - flat 635 x 290 mm - Cutting range 45° round 360 mm - flat 420 x 300 mm - Saw blade dimensions 5200 x 32 x 1.1 mm - Stepless cutting speeds 18 to 108 m/min - Hydr. Raising + lowering the saw frame - Hydr. Material vise - Cutting pressure infinitely adjustable 0 - 10 m/min - Total drive power 400 V / 2.2 kW - Coolant device - Machine is mounted on bogie - Feed roller conveyor mot. driven 4000 mm - Discharge roller conveyor with dimension stop 6000 mm - Space requirement approx. W 2500 x H 1400 x D 1100 mm - Weight machine approx. 950 kg - Weight roller conveyors 2000 kg

Offer 25114 Technical data approx.: - Roll diameter 500 mm - Projection 500 mm - Max. passage height 400 mm - Table size 630 x 530 mm - Table swivel 10 / 30 ° - Table height from the floor 950 mm - Saw blade length approx. 3900 mm - Saw bandwidth approx. 3 - 25 mm - Cutting speeds ( presumably ) 81 – 145 – 208 - 267 m/min - Drive 400 V / 1.1 kW - Weight approx. 400 kg - Space requirement approx. W 750 x H 2000 x D 1000 mm

gebr. V. Bandsäge Fabr. Bauer (with only about 50 operating hours) incl. welding device for the saw blades Saw blade rollers diameter 400 mm Saw blade length 3000 mm Table size 520 x 470 mm Dimensions: 600 x 700 x 1800 mm Weight approx. 280 kg  ...
