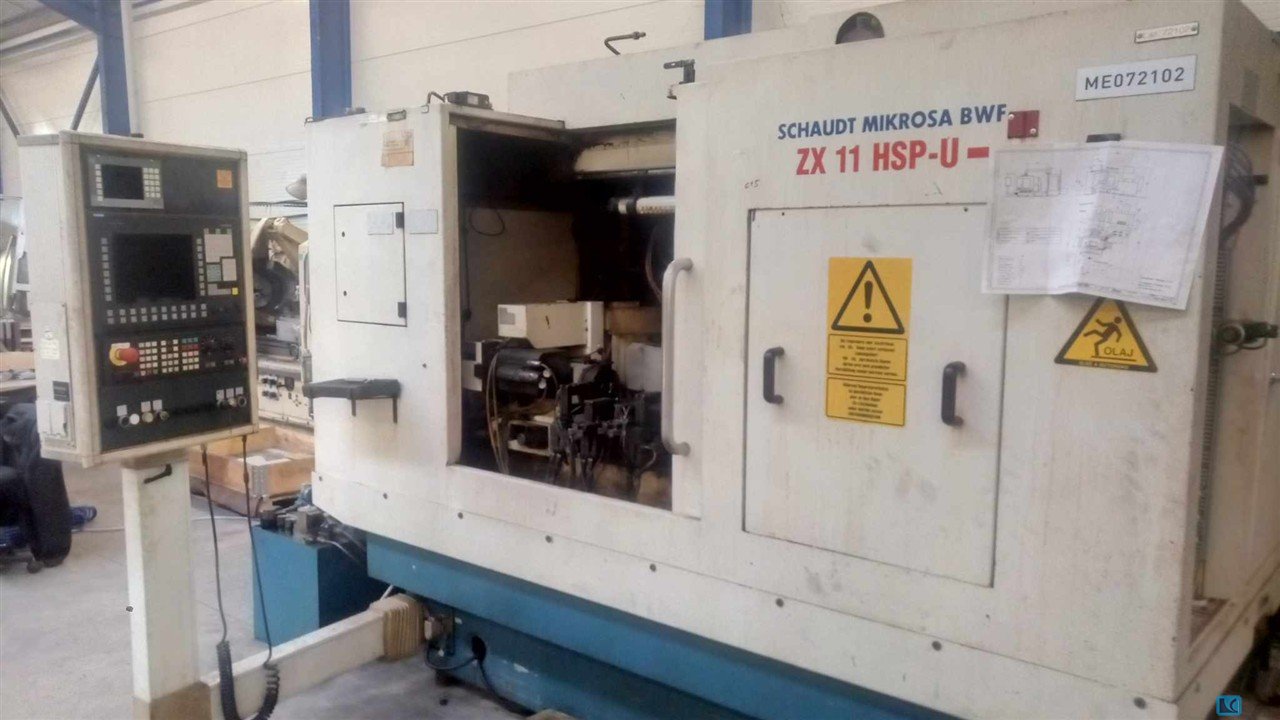

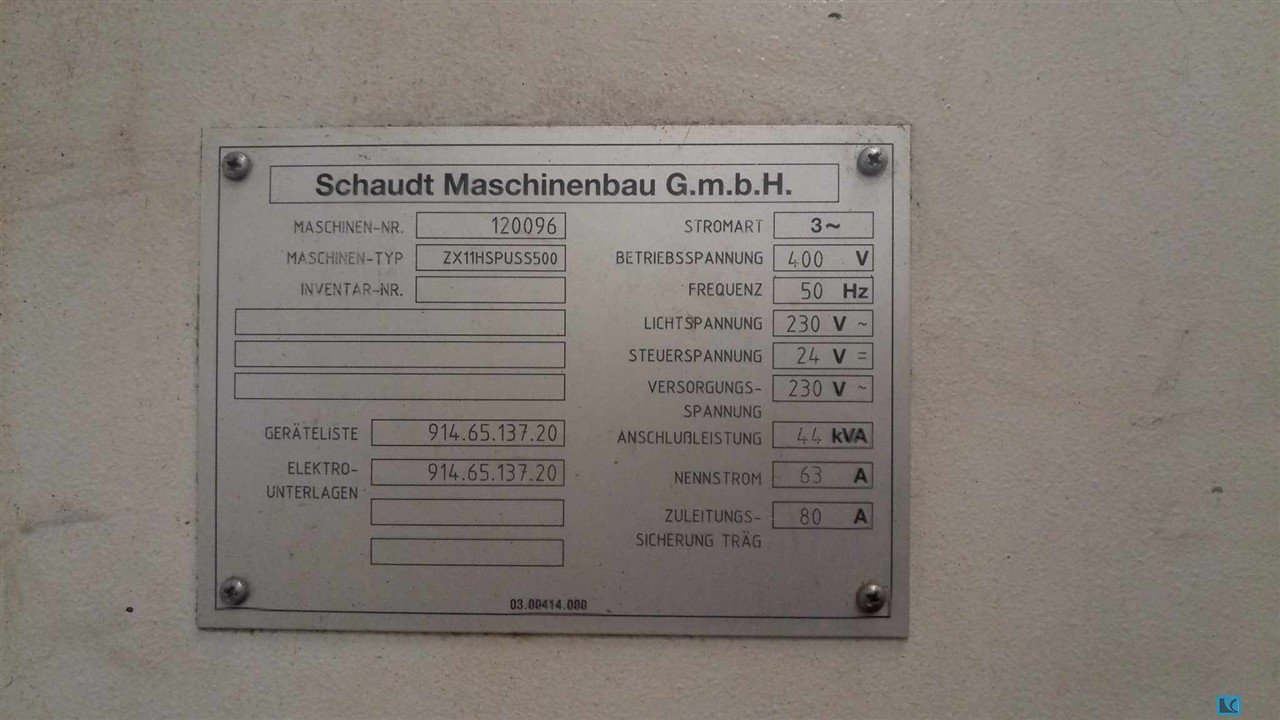

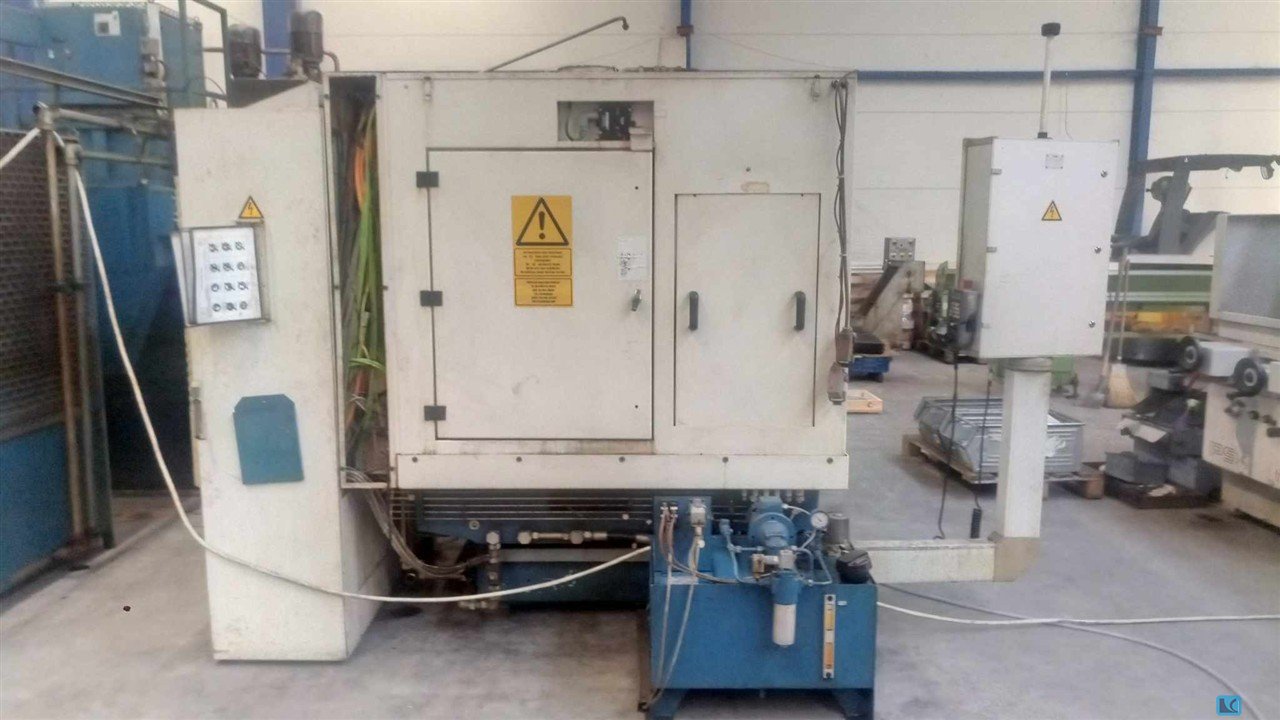

grinding diameter:5-55 mmgrinding length:500 mmtotal power requirement:44 kW-- Intended use and general information --Fully automated external and surface grinding of synchronous ringsCentre height: 200 mmGrinding length: 500 mmGrinding wheel arrangement: right, 30° angled Grinding wheel dimensions: 600 x 30 x 203.2 mmDrive power: 7 kW X/Z axis drive: ball screw Travel speed: 0.01 - 10,000 mm/min. Resolution: 1 µm Concentricity of workpiece spindle: < 1 µmWorkpiece changing system: Fanuc robot Control: Siemens Sinumerik 840-DMachine weight: 7,000 kgCentre height: 200 mmGrinding length: 500 mm
grinding diameter:200 mmgrinding length:320 mmtotal power requirement:3,5 kWweight of the machine ca.:9 tspace required L x W X H:5,28 x 4,5 x 2,4 mmax. wheel dia.:200 mmSpindle drives Arena SiemensFor Worm grinding we have not module, but pitch. Pitch is freely programmable from 0.001 to big value i.e. 500mm
max. grinding diameter:160 mmstations:2 sanding width:30 mmtotal power requirement:0,37 kWweight of the machine ca.:100 kgdimensions of the machine ca.:520 x 520 x 1160 mm
no. of working stations:1 Stücktool adaptor:1650 W revolutions per minute:2990 U/mintotal power requirement:380V, 2,7 Aweight of the machine ca.:33 kg
no. of working stations:1 Stücktool adaptor:1650 W revolutions per minute:2990 U/mintotal power requirement:380V, 2,7 Aweight of the machine ca.:33 kg
working width:1400 mmWorkpiece thickness max.: 80 mmwork height max.:1000 mmFeed speed:4m/min I Stufe, 8 II Stuf m/min.Required air-pressure:max. 5 barvoltage:50 Hz, 380 Vworkpiece length:320 mmworkpiece thickness min.:1 mmweight of the machine ca.:3500 kgDocuments:vorhanden
workpiece length:350 mmwork piece width:150 mmdiameter:Tellerradius 200 mmtool taper:M32 x 1,5 spindle diameter:32 mmgrinding width:max.450 mmturning speeds:3385 U/minwork table::Höhe 1000 mmworkpiece height max.:100 mmtotal power requirement:1,1 kWweight of the machine ca.:300 kgdimensions of the machine ca.:700 x 800 x 1170 mm
table diameter:520 x 22 mmtable - swivable:45 Gradtotal power requirement:1,6 kWweight of the machine ca.:130 kgdimensions of the machine ca.:520 x 520 x 1200 mmmit SchleifzylinderZubehör: 4 ( Aluzylinder) Werkzeuge zur Aufnahme von SchleifmittelnØ 50, 70 , 90, 120 mm x 223 mmneuer Motor
sanding belt length:max. 470 mmworkpiece dia.:600 mmtable - swivable:0 - 6 Gradtaper:Reitstock Morse 2 turning speed range::1260 - 3100 U/mintable movement:längs 470 mmtool taper:schwenkbar 0-6 °, 90° dre total power requirement:0,4 kWweight of the machine ca.:950 kgdimensions of the machine ca.:1100 x 1100 x 1500 mmDocuments:vorhanden
max. grinding diameter:50 mmgrinding length:250 mmworkpiece length:300 mmtotal power requirement:0,7 kWweight of the machine ca.:330 kgdimensions of the machine ca.:1000 x 1000 x 1400 mm
grinding length: 4000 mmgrinding width: 1450 mmworkpiece height: 1250 mmcontrol: Siemens 840 D workpiece weight: 11000 kgcolumn daylight: 1460 mmtable surface area: 4000 x 1250 mmtable feed: 1 - 45 m/mincross rail - adjustment: 1250 mmtotal power requirement: 40 kWdimensions of the machine ca.: 12,3 x 6 x 4,8 mEquipment/Accessories:- 1 universal grinding support, 7.5 kW Swivel range grinding spindle +/- 110° grinding disc dimensions Ø 500 x 60 mm Vertical adjustment 350 mm with puller- 1 peripheral grinding support, 22.5 kW Grinding wheel dimension Ø 600 x 100 mm Vertical adjustment 150 mm with puller- with 6 magnetic plates arranged on the table- seperate clamping table - various grinding wheels and flanges- Technical documentationThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding length:600 mmgrinding width:250 mmworkpiece height:380 mm:Sinumerik max. dia. of grinding wheel:300 mmweight:4000 kgtotal power requirement:12,5 kWgrinding wheels:Ø 400 mmmax. width of grinding wheel:100 mmgrinding wheel hole diameter:127 mmturning speeds:470 - 12030 1/minx-axis:600 mmy-axis:300 mmz-axis:250 mmgrinding range:450 x 200 mmdistance spindle nose and table:500 mmtable load:250 kgdimensions of the machine ca.:2600 x 2100 x 2400 mmswitchgear cabinet:1300 x 800 x 2000 mmhydraulical unit::450 x 350 x 500 mmDocuments:vorhanden
grinding diameter: 630 mmgrinding length: 3000 mm: 2500 kggrinding wheel: grinding stand diameter x wid: 750x100x305 mmgrinding head swivellable +/-: +30, -10 °: 840,970 1/min: 1 mm: 3450 mmtable speed -stepless-: 0.05-3.6 m/mintable swivelabel +/-: +/- 5 °Rotation speed of the work piece spindle area 1: 8 - 50 Rotation speed of the work piece spindle area 2: 50 - 315 1/minworkpiece-spindle swiveling: 90 °Motor of the grinding spindle head: 15 kWtotal power requirement: 31 kVAweight of the machine ca.: 15 tEquipment/Accessories:-4 flanges-Balancing stand-Various tips-Various spare parts-Paper belt filter-Technical documentationThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
grinding length:1250 mmgrinding width:400 mmworkpiece height:550 mmworkpiece weight:750 kgtable-size:1720 x 400 mmmagnetic clamping plate:1250 x 400 mmdist. center of grinding spindle - table:750 mmturning speed range - grinding wheel:3000 U/minLength movement of the table:1300 mmgrinding wheel size:Ø 400 x 50 x 127 mmswitchgear cabinet:inkl. hydraulic power unit:inkl. coolant:inkl. voltage:380 Vtable load:max. 1100 total power requirement:13,8 kWweight of the machine ca.:6000 kgdimensions of the machine ca.:5000 x 3400 x 2400 mmDocuments:inkl.
internal diameter:315 mmgrinding depth:315 mmswing diameter:420 mmnumber of spindle speeds:32 - 360 U-minwheel box:-drehzahl 100 - 8000 U/minface diameter:500 mmtotal power requirement:12 kWweight of the machine ca.:5900 kgdimensions of the machine ca.:3400 x 1750 x 2000 mm
total power requirement:10,5 kWweight of the machine ca.:4800 kgdimensions of the machine ca.:3000 x 2100 x 2000 mmcentre distance:1200 mmHeight of centres:200 mmgrinding-table stroke max.:X -Achse 1000 mmtable-size:2060 x350 mmz-axis:Querhub 250 mmFeed speed:0,005 - 5 m/min.grinding head - swivable:360 °taper ISO:50 control:Sinumerik System 8 Documents:vorhanden
grinding length:1000 mmgrinding width:250 mmworkpiece height:400 mmtotal power requirement:12 kWweight of the machine ca.:3,8 tdimensions of the machine ca.:3.300 x 1.800 x 2.300 mmhydraulic power unit:400 x1000 x 1500 mmcontrol cabinet:2 Stück, 1000 x 1400 x 1500 mm
grinding length:150 mmtotal power requirement:3 x 380 /220 Vweight of the machine ca.:2100 kgdimensions of the machine ca.:1200 x 1700 x 2000 mmgrinding wheel diameter:280 - 350 mmgrinding wheel width max.:20 mmworkpiece diameter:65 - 120 mmworkpiece turning speeds:1,5 -20 U/minDocuments:vorhanden
working width:880 mmworkpiece height:1- 70 mmwork height max.:1000 mmFeed speed:4- 8 m/min.voltage:50 Hz, 400 Vweight of the machine ca.:2.800 kgdimensions of the machine ca.:2500 x 1715 x1675 mmwidth:min. 350 mmSanding cylinder diameter:420 mmelectr. connected load:20 KWRequired air-pressure:1 x R3/ 8 " pressure:5 bartank:des Bandfilter ca.200 lautomatic magnetic filter unit:vorhanden grinding tools:1540 x 900 mmaccessories::9 Bänder Documents:vorhanden
grinding length:1370 mmgrinding width:560 mmworkpiece height:800 mmtotal power requirement:50 kWdimensions of the machine ca.:9 mABA Z&B 2000, profile grinding machine with swivel dresser Mounting fixtures: magnet, dividing head E-axis dresser B-axis dividing head
total power requirement:16,5 kWweight of the machine ca.:3,8 t
total power requirement:380V, 50Hz, 7,9A kWweight of the machine ca.:1 tdimensions of the machine ca.:4 x 3 m
grinding length:600 mmgrinding width:200 mmtotal power requirement:5 kWweight of the machine ca.:1,4 tdimensions of the machine ca.:3 x 3 m
grinding diameter:4000 mmcentre height:310 mmweight of the machine ca.:17 tdimensions of the machine ca.:10.5 x 3.6 x 1,9 m
grinding wheel diameter:300 mmvoltage:380 Vtotal power requirement:1,5 kWweight of the machine ca.:310 kgdimensions of the machine ca.:1100x900x1250 mm
grinding length:1500 mmweight of the machine ca.:12 tKarstens EMAG H310 Universal Grinding MachineYear of manufacture: 2004Center distance: 1500 mmCenter height: 325 mmReinforced workpiece spindle, load capacity up to 250 kgDriven C-axis for polygon, thread, and eccentric grinding.3 individually mounted grinding spindles.Siemens 840D control system
