Suitable for automatic grinding of tooth faces and tooth backs on carbide-tipped circular saw blades., Accessories:, Total enclosure including coolant system,, Motorized setting of the rake and clearance angle,, Preselection of the direction of rotation of the grinding wheel and automatic change of direction of rotation,, Grinding speed and grinding path stepless adjustable,, Operating system modified Windows version,, Storage of approx. 4,000 programs possible,, Standard software package for tooth geometries according to the program overview,, Program for grinding saw blades with group teeth, with different tooth geometries,, Program for newly fitted and broken teeth,, Software package for multi-surface machining on the positive chip and flank face,, oscillating grinding on the face and top,, Automatic grinding wheel compensation,, Automatic central lubrication,, Feed pawl 2 mm,, 1 sawb ...
Suitable for automatically grinding chip breaker grooves in HSS and segmented circular saws. Accessories: Control system for automatic offset of grinding spindle,, coolant system,, stepless adjustable working rate,, machine light., 1 sawblade mount., Circular saw blade diameter: 165 - 630 mm, Tooth pitch: 3 - 50 mm, Saw blade thickness: 2 - 6 mm, Working speed: continuously adjustable from 24 - 50 z/min., Grinding wheel diameter: 25 and 30 mm, Grinding wheel width: 0.3/0.4 and 0.5 mm, Connected load approx.: 0.4 kW (400 V / 50 Hz), Weight approx.: 210 kg, Dimensions W x D x H approx.: 1020 x 900 x 1620 mm, colour: light grey RAL 7047
Operating voltage: 220/380 VFrequency: 50 HzRated current: 1.4/0.8 AConnection: 300 WSpeed: 3000 rpmGrinding wheel dimensions: 175 x 25 x 32 mmReference: Apprentice workshop part 2 - Lot 3
Voltage: 380V; Magnetic clamping plate 360x150 mm; Power: 1.75kW
Technical data Machine Type: Grinding workstation with belt sanding machines and double grinding machine Manufacturer: Metabo, Optimum Maschinen Germany Model belt sander: Metabo BS 175 Model belt sander: Optimum SL-2 Model Double Grinding Machine: Optimum OPTIgrind GU 25S Configuration Workbench with grinding workstation 2 belt sanders available Double grinding machine available AEG angle grinder available Machine vise available Signs of use and dirt present
General data Brand: HOUSES Manufacturer: Henri Hauser AG, Biel Switzerland Type: 3.S.M. Machine Type: Coordinate Grinding Machine Serial Number: 51 Machine No.: 407-542 Control/Display: Heidenhain Digital Display Display axes: X / Y Technical data Working area: 550 x 320 mm Table adjustment range: 400 x 250 mm Vertical slide stroke: 400 mm Max. distance from spindle to table: 470 mm Grinding wheel Ø max.: approx. 100 mm Grinding diameter with intermediate plate: 190 mm Max. included angle during conical grinding: 3° Grinding head Vertical stroke grinding spindle: infinitely variable 5 – 90 mm Lifting speed: 1.80 m/min Speed planetary movement: approx. 10 – 300 rpm, infinitely variable Number of grinding spindle speeds: 12 Grinding spindle speed: 16,000 – 80,000 rpm Accuracy Reading on the partial drums: 0.001 mm Reading on the vernier: 0.001 mm Guaranteed accuracy of slide adj ...
Belt sander from MAFAC ; TYPE K 100 BJ 1979 and a double sander from BOSCH, incl. replacement sanding belts

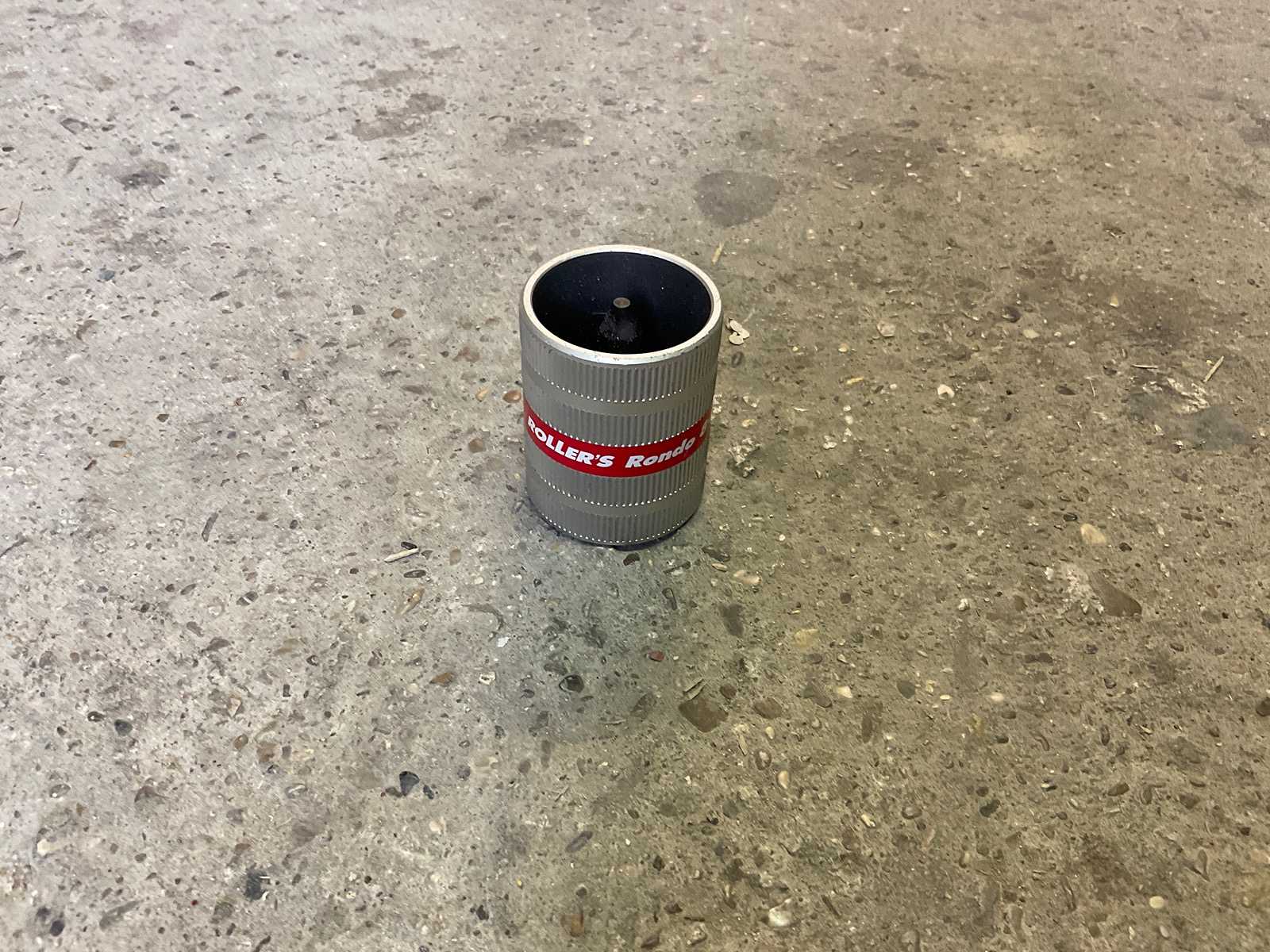

Product: ROLLER'S Rondo 8–35 deburring machine (8–35 mm) The model is an inner and outer tube deburring for: Stainless steel pipes, steel pipes Copper, Brass Aluminium Plastic pipes Technical data: Tube diameter: 8–35 mm Material: Metal housing/hardened cutting edges Weight approx. 220 g Features: Many specially hardened cutting edges → easy, fast deburring For external and internal deburring Solid and durable Non-slip housing, chatter-free working
Tube grinding/satin finishing machine - For sanding, satin finishing, and high-gloss polishing - Large wrapping angle of 270° for efficient work - Belt speed infinitely adjustable - Flexible and handy - perfect for railing construction Connection voltage 230Volt Power 800W Tape dimension 40 x 760mm For pipe diameters up to 180mm Condition: never used / new (5)

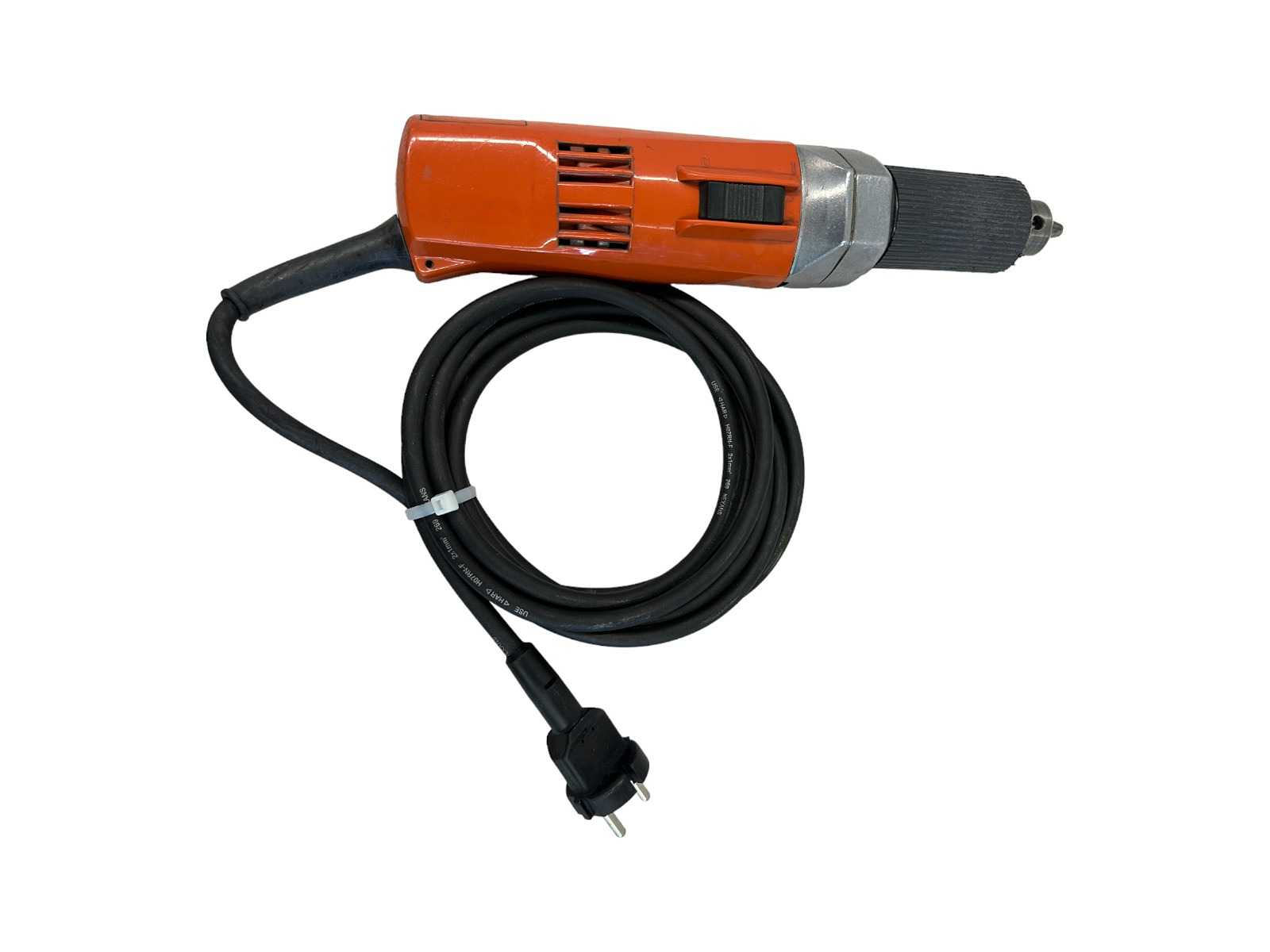

Model: Fine AH 636c (also called AHSI 636c) Type: Straight Grinder / Stick Grinder Power: 280 W Voltage: 220/230 V, 50/60 Hz No-load speed: approx. 5,500 rpm Tool holder: Gear ring drill chuck up to Ø 10 mm Max. abrasive media: Ø 50 mm Weight: approx. 1.7 kg Cable length: 3 m Use: Brushing, polishing, grinding, light drilling work Weight incl. packaging approx. 3kg
Finishing machine single-sided machining or double-sided machining, second-hand3 FLAKKO units with 4 disc tools each:Drive power 7.5kWSpindle speed 300 - 2500 rpmFeed speed 2-20 m/minWet machiningTool diameter 230mmWorking width 400mm for single-sided machiningWorking width 200mm for double-sided machining with turning deviceSpecial magnetic insertsdesigned for hot machiningIPC control with PLCConnected load 3x 400V 50HzConnected load approx. 52 kWOverhaul of all units with conversion to new 4-point bearing between 2021 and 2023.Special-price 25.000 EURO, net -free loaded truck- Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

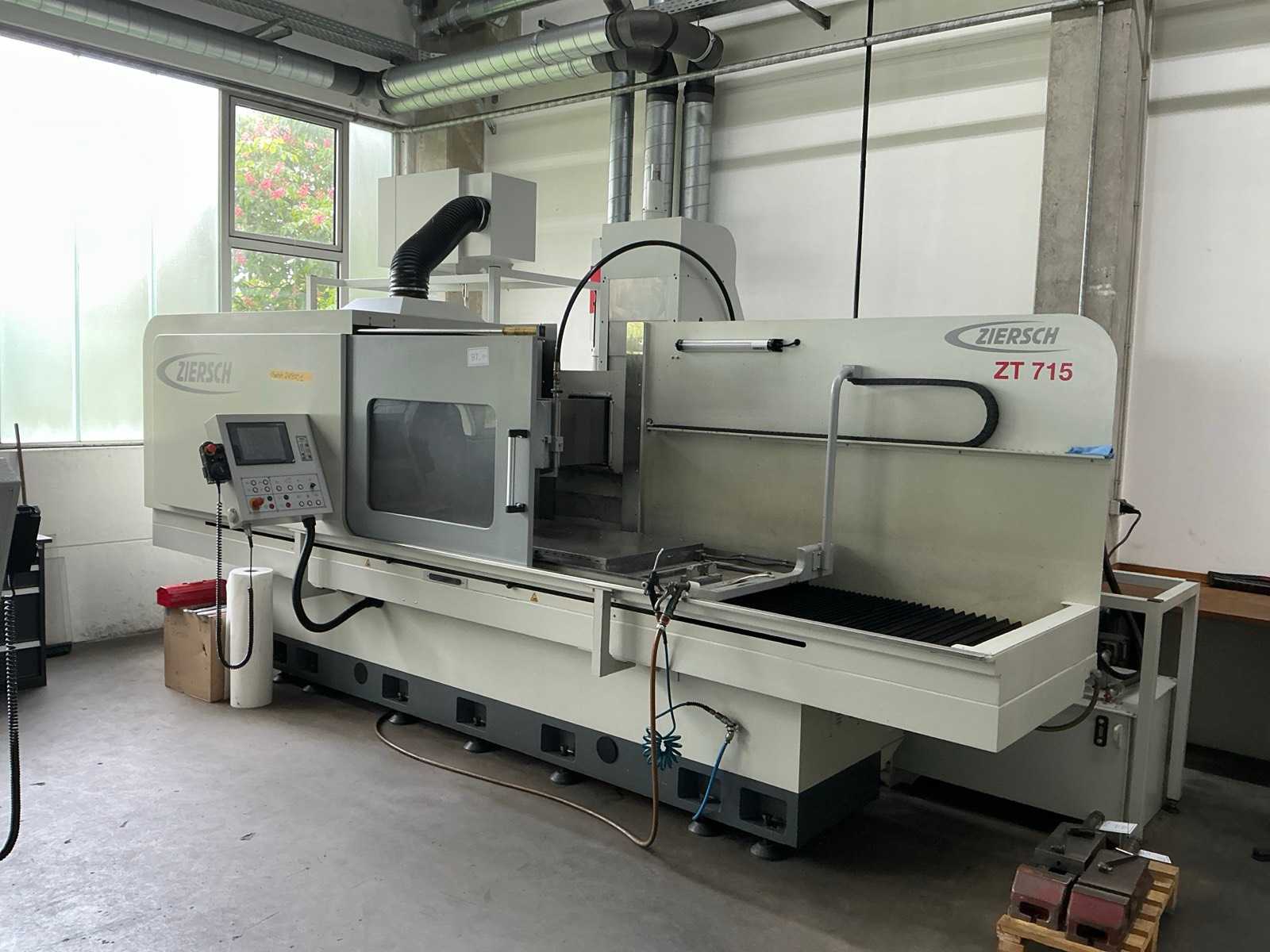

Technical data Manufacturer: ZIERSCH GmbH Type: ZT 715 Year of Make: 2013 Machine No.: 0601269 Grinding area: 1500 x 800 mm Transverse movement: 750 mm Longitudinal movement: 1900 mm Distance table to spindle center: 700mm (column increase from 600 mm to 700mm) Table load incl. magnet: 1400 kg Grinding wheel: 400 x 80 x 127 mm Speed range: 1000 – 3000 1/min Connection: 400 V / 50 Hz Nominal power: 23.5 kW Machine weight: 11,000 kg Configuration - CNC surface grinding machine - SAV magnetic clamping table - Mitsubishi GOT1000 touch panel - Electronic handwheel / control unit - Full protection cabin - Coolant device - Central lubrication - Paper belt filter system + spare roll of filter paper available - Air holes available for ejection - SAV Magnetic Clamping Plate Type ZI-243-70-1500x700 P25 - Attached Air-Fresh-Service industrial filter system / extraction and filter unit - Machine ...
Pipe grinding machine with 11 grinding rollers: 38 - 42 - 48 - 52 - 60 - 74 - 90 - 102 - 116 - 138 - 170 mm Tube clamping area 170mm Documentation (English) Belt width 200 mm Belt length 1600 mm Pipe diameter 38 - 170 mm Connection voltage 400 V Total power requirement 3.0 kW Machine weight approx. 0.25 t Space requirement approx. 1.4 x 0.8 x 1.35 m Condition: never used / new (5)
Ziersch ZT 612 Anno di produzione: 2018 Controllo: Mitsubishi GOT 2000 Lunghezza di rettifica: 1200 mmLarghezza di rettifica: 600 mm____________Description: Attrezzature: Anno di produzione: 2018 Sistema di controllo: Mitsubishi GOT 2000X-asse: 1.600 mm-Asse Z:650 mmDimensioni della ruota da levigatura: 400 x 50 x 127 mmIntervallo di velocità: 1.000–2.500 rpmPotenza: 11 kWMTavolo di lavoro agnetico: 1,200 x 600 mmAlimentazione del liquido refrigerante: Sistema di raffreddamento con filtroSeparatore di nebbia a emulsione: RevenModalità di setup: Volante elettronico
Dimensioni della piastra di serraggio magnetica: 400x800mm, con schemi elettrici in formato digitale. È possibile un'ispezione in loco.
Offerta 26067 Dati tecnici: - Intervallo di esercizio 1,5 - 60 mm - Angolo di affilatura regolabile da 40° a 180° - Mot. Dispositivo di affilatura - 6 Lo Squalo Chuck - Dispositivo di raffreddamento - Illuminazione - Testa di levigatura di trasmissione 400 V / 0,38 kW - Trasmissione elettromestrina 400 V / 0,18 kW - Requisiti di spazio approssimative. L 750 x H 1200 x D 750 mm - Peso approssimativo. 100 kg
Macchina per decantare il posizionamento dei retro dei denti delle lame della sega circolare; completamente revisionata e ridipinta
Macchina per affilare coltelli per affilare, piallare e scheggiare coltelli; Lunghezza di carteggiatura 1300 mm; revisionata e parzialmente verniciata;
Macchina automatica per la levigatura del petto e della schiena di lame circolari con punta in carburo; Ristrutturazione e ridipinta
Suitable for automatic grinding of tooth faces, tooth backs, and bases on carbide-tipped circular saw blades in a single setup. All common tooth geometries (flat, alternate, trapezoidal, etc.) can be ground automatically and in a single pass. Accessories: Full enclosure Measuring probe Grinding device with oil cooling Automatic fire extinguishing system Grinding mist extraction system N 183 Alphanumeric keypad Oil drip tray Machine light, saw diameter: 80-840 mm, Bore diameter: from 10 mm, sheet thickness: < 8 mm, Tooth pitch: 6 - 120 mm, Cutting length:
Macchina per levigatura per lame di sega circolare HM. Completamente rivisto e verniciato. Adatto per il raffreddamento a olio ed emulsione. Lama della sega Ø 150 - 1000 mm, passo del dente 0 - 120 mm.
Macchina automatica per affilare seghe circolari completamente revisionata. Per l'affilatura completamente automatica delle lame della sega circolare HM, di tutte le forme di denti comuni. Equipaggiato per raffreddamento a olio e apparecchiature per estinzione incendio. Dati tecnici: seghe circolari Ø con robot da 130 a 600, senza robot da 130 a 840 mm, passo dei denti da 8 a 50 mm, senza robot da 8 a 120 mm. Disponibile su richiesta con robot caricatore ND 230, sistema di estrazione.
È offerta una rettifica cilindrica convenzionale. Impostato su ZRO 40.10, classe di protezione: IP54/IP32, sistema di controllo: elettronico Erfurt. Dotato di armadio di controllo integrato, sistema di alimentazione per pezzi, pannello di controllo separato e sistema di raffreddamento. Peso: circa 380kg, dimensioni complessive X/Y/Z: circa 2500mm/1800mm/2000mm. Ispezione possibile su accordo.
È offerta una macinatrice interna di precisione. Portata di grinding: massimo. 357mm x 315mm, sistema di controllo: sistema di controllo CNC. Dotato di involucro completo, testa mandrino del pezzo, supporto mandrino di levigatura, armadio di controllo separato, instradamento per tubi di estrazione. Peso: circa 5200kg, dimensioni complessive X/Y/Z: circa 3500mm/2000mm/2200mm. Ispezione possibile su accordo.
Suitable for automatic, double-sided tooth flank grinding on carbide-tipped circular saw blades., Accessories:, Total enclosure., Coolant System,, Automatic central lubrication,, Expansion of diameter range from 80 – 1,430 mm, Circular sawblade outer diameter: 80 to 1430 mm, Circular sawblade bore diameter: 10 - 220 mm, sheet thickness: up to 14 mm, rake angle: -15° to +40°, Radial free angle: -6° to 6°, Tangential free angle: up to +8°, Grinding path: Max. 30 mm, Grinding speed: 0.5 - 20 mm/s, Tooth pitch: 6 - 120 mm, Grinding wheel diameter: 80 to 125 mm, Grinding wheel bore diameter: 32 mm, Connected load approx.: 3,6 kW (400 V / 50 Hz), Dimensions W x D x H approx.: 2395 x 1590 x 1970 mm, colour: green/grey, Weight approx: 1750 kg
Corrente nominale: 22A, carico collegato: 15kVA, con accessori estesi, la macchina è completamente funzionante. È possibile un'ispezione in loco.
control: Fanuc Series 31i - B workpiece length - max.: 300 mmgrinding wheel diameter: 356 mmgrinding wheel width: 75 mmquill stroke: 45 mmThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
