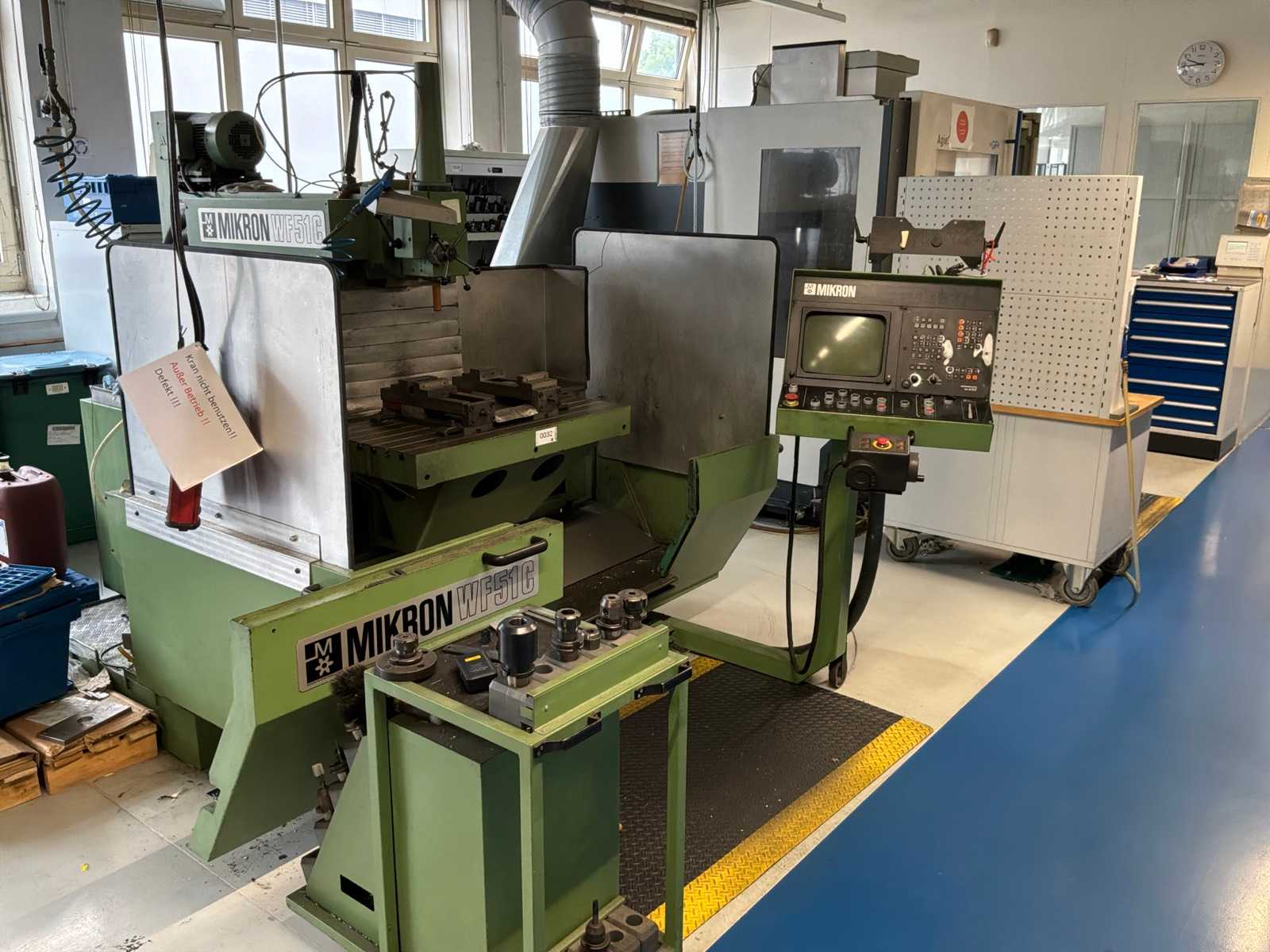

MIKRON - WF51C/155 - 1980 - 3 Axis CNC Milling Machine Without tools and clamping devices Control not working Pick-up date:12.08 - 14.08
KUNZMANN WF 650 CNC tool milling machine (2006) Serial Number: 650033 Operating hours: Control On (read): approx. 4487 hrs Machine On (read): approx. 3895 hrs Program runtime (read): approx. 797 hours Spindle running time (read): approx. 4556 hours Control: HEIDENHAIN iTNC 530 Travels: X-axis: 650 mm Y-axis: 500 mm Z-axis: 450 mm Rapid traverse (X/Y/Z): 25/25/20 m/min. Feed: 0 – 4000 mm/min Table dimensions: approx. 1000 x 600 mm Max. table load: 400 kg Max. spindle speed: 12000 rpm Spindle power: 13 kW Tool holder: SK40 Number of tool positions: 20 Without machine vise and tools Feel free to take a look at the video about this machine
Year of manufacture approx. 1980, wheel diameter: 406mm, wheel width 420mm, module min.-max.: 0.5-+4.3, milling cutter speeds 49-246 rpm
Year of construction: approx. 1981 Accessories: - Universal milling head, tangential milling head, - Interchangeable wheels - 2 cutting equipment, - little used
x-travel: 2400 mmy-travel: 1500 mmz-travel: 810 mmControl: Heidenhain iTNC530 total power requirement: kWweight of the machine ca.: 7.8 tdimensions of the machine ca.: mThe data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
A Deckel CNC universal milling machine is offered. Travel X/Y/Z: 700mm/600mm/550mm, quill stroke: 80mm, milling head swivel range: +/-90°, spindle power: 12kW, max. spindle speed: 6300rpm, feed torque X/Y/Z: 13Nm/13Nm/21Nm, feed rate X/Y/Z: 6m/min, rapid traverse X/Y/Z: 6m/min, tool holder: SK40, measuring resolution: 0.001mm, 4th axis resolution: 0.001°, max. slide load: 1000kg, number of T-slots: 1, T-slot width: 14H7mm, mounting holes for table accessories: M12, control: Deckel Dialog 11. Machine weight: approx. 3900kg, electrical cabinet weight: approx. 475kg, 5110mm/4654mm/2335mm, floor space X/Y: approx. 6200mm/5700mm, floor load: 3500kg/m². Documentation available. Inspection by appointment possible.
usato
GeneralUniversal Machining Centre in monoBLOCK construction; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical40000/40000/40000 mm/minRapid traverse longitudinal/transverse/vertical40/40/40 m/minWorking area 1Longitudinal735 mmCross650 mmVertical560 mmTool changerTool changer planevertical Type of gripperDouble gripper Number of tools60 Max. tool length315 mmMax. tool diameter with occupied adjacent pockets80 mmMax. tool dia. with free neighbouring pockets160 mmFloor space/WeightWeight approx.14500 KgDirect measuring systemDirect path measuring systemCabineFull protection cabinChip removalChip removal: manual, from the chip troughCoolant supplyCoolant supply: Multi-jet strip at spindle head, switchable from coolant to air (max. 6 bar / 90 psi, 6 water jets, 6 air jets) Pump capacity: 70 l/min / 18 gallon/min (theoretical pump perform ...
usato
GeneralVertical Machining Center; Control: Control SIEMENS SINUMERIK ONE CharacteristicsTable surface850 x 650 mmDimensions (L x W x H)3,07 x 2,67 x 2,84 mRapid feed X / Y / Z24/24/24 m/minMovement X / Y / Z550/550/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with24 PositionsMax. torque83 NmTorque (100% DC)57 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.12000 rpmWeight approx.5600 KgMechanical preparation for Oil-Mist Extractor UnitMechanical preparation for Oil-Mist Extractor Unit (opening diameter: D200 mm)4th Axis package4th Axis package Option includes: - rotary table type EA-510.L NE with indirect measuring system - electrical and pneumatic preparation - software preparation to work with rotary table - cycle TRACYL which allows to define contour on the cylinder - swTropical PackageTropical Package Option includes: - Active cooling unit for electrical cabine ...
usato
GeneralUniversal milling and turning machining centre with duoBLOCK construction; Control: CELOS X with HEIDENHAIN TNC7 Technical DataFeed rate longitudinal/transverse/vertical60000/60000/60000 mm/minRapid traverse longitudinal/transverse/vertical60/60/60 m/minWorking area 1Longitudinal800 mmCross1050 mmVertical850 mmTool changerApplicationUniversal Type of magazineWheel Tool changer planehorizontal Type of gripperDouble gripper Number of tools123 NC mill-turn table with palletNC mill-turn table with pallet number of T-slots: - 1x cross slot 14 H7 / 0.55 H7 - 12x star slots 14 H11 / 0.55 H11 / 22.5° max. table speed milling operation: 30 rpm turning operation: 780 rpm integrated balancing sensor Pallet changer for 2 palletsType of Measuring system Direct measuring systemTable surface Ø 800 x 630 mmCentre bore 50 mmMaximum load (table centre) 1400 Kg4. Axes (swivelling range) 360 x 0,0 ...
Working AreaX-axis travel 3,900 mmY-axis travel 2,940 mmZ-axis travel 1,100 mmB-axis (swivel head) 90° freely interpolatingNC rotary table Ø 2,800 mmMax. workpiece weight 15,000 kgSpindleTool holder SK 50Spindle power 63 kWMax. torque 200 NmMax. speed 6,000 min⁻¹FeedRapid traverse X/Y/Z 30 / 30 / 25 m/minFeed force 9,000 NTool magazineTool positions 20Max. tool diameter 110 mmWith free adjacent positions 180 mmMax. tool length 400 mmRotary TableClamping surface Ø 2,800 mmMax. transport load 15,000 kgTangential moment 40,000 NmTilting moment 90,000 NmElectrical connection values 3 × 400 V / 50 HzEquipmentHEIDENHAIN iTNC 530 HSCINC rotary table Ø 2,800 mmFreely interpolating swivel headPortal designFull enclosureAutomatic central lubricationCoolant systemChip conveyorControl panel on swivel arm
This 3-axis HAAS VF-2SS was manufactured in 2014. It features advanced capabilities including tool measuring and a probe for enhanced precision. With a feed cutting time of 5327 hours, this vertical machining centre is designed for efficient operations. If you are looking to get high-quality machining capabilities, consider the HAAS VF-2SS machine we have for sale. Contact us for further details.
The BRETON MATRIX 1300 DY K30 is a 5-axis CNC gantry machining center with a movable gantry design for high-precision complete machining of large workpieces. The rigid steel construction, combined with direct measuring systems and high-dynamic axis drives, ensures high positioning accuracy and consistently stable machining quality.The machine is equipped with a HEIDENHAIN iTNC 640 HSCI CNC control system, including AFC (Adaptive Feed Control), AVD (Active Vibration Damping), and CTC (Cross Talk Compensation). These functions optimize the machining process, reduce vibrations, and improve surface quality and process reliability.The 40 kW high-speed spindle with up to 28,000 rpm features programmable internal cooling (IKZ) from 40 to 70 bar and is suitable for demanding milling operations on a wide variety of materials.The equipment includes a direct-drive NC rotary table Ø 3,500 mm with a ...
È disponibile una macchina universale Maho CNC per fresare e forare utensili. Corsa X/Y/Z: 800mm/450mm/500mm, Dimensioni del tavolo X/Y: 1200mm/600mm, Portautensili: SK40, Velocità: 3150 rpm, Velocità di avanzamento: 1500mm/min, Rotazione rapida: 3m/min, Corsa della penna: 50mm, Risoluzione: 0,001mm. Dimensioni della macchina X/Y/Z: circa 3850mm/4400mm/2050mm, Peso: circa 4100kg, Controllo: Philips CNC 432. La macchina è stata parzialmente revisionata nel 2006. Documentazione vorhanden. È possibile un'ispezione in loco.
Fatti Tecnici Chiave – IBARMIA ZVH 58/D1750 Escursione dell'asse EXTREMEX: 3.000 mmEscursione dell'asse Y: 1.000 mmEscursione dell'asse Z: 1.100 mmVelocità massima del mandrino: 9.000 giri/minoPotenza del mandrino: 35 kW (S1 servizio)Commutatore automatico degli utensili (ATC): 60 posizioni (tipo casuale)Interfaccia utensile: ISO 50 (DIN 69871)Refrigerante passante del mandrino (TSC): Sì, fino a 60 barTrasportatore a chips: Doppio nastro trasportatore a coclea Asse B: Asse inclinabile, ±asse 105C: Tavola rotante NC (FIBRO), 1.750 mm
È disponibile una fresatrice universale Maho revisionata nel 2020. Corsa X/Y/Z: 600mm/400mm/400mm, dimensioni del tavolo X/Y: 900mm/460mm, carico massimo del tavolo: 250kg, portautensili: SK40, posizioni utensili: 16, velocità del mandrino: 4500rpm, velocità di avanzamento: 4m/min, rotazione rapida: 5m/min. Dimensioni della macchina X/Y/Z: circa 2450mm/3200mm/1900mm, peso: circa 2800kg, controllo: Maho CNC 234. La macchina presenta un sospetto difetto sulla scheda di controllo. Documentazione disponibile. È possibile un'ispezione in loco.
This 3-axis Roders RFM 760 vertical machining centre was manufactured in 2005. It features a spindle speed range of 3,000 to 42,000 rpm and travel paths of 760 mm in X, 550 mm in Y, and 300 mm in Z. Equipped with Röders RMS 6 V3.6 control, it offers precise machining capabilities. If you are looking to get high-quality milling capabilities, consider the Roders RFM 760 machine we have for sale. Contact us for further details regarding this machine.
This 4-axis SCHÜCO Profilbearbeitungscenter 299 650 was manufactured in 2004. It features a powerful 21 kW motor and operates at a voltage of 380 V. With a maximum operating pressure of 0.8 MPa and a weight of 5,000 kg, this machine is designed for robust performance. If you are looking to get high-quality machining capabilities, consider the SCHÜCO Profilbearbeitungscenter 299 650 universal machining centre we have for sale. Contact us for further details.
This 5-axis SCHÜCO AS 100 was manufactured in 2022. It features a machine bed length of 9,000 mm and allows for 6-sided processing with two 5-axis towers. The machine includes 5 movable clamping blocks with independent drives and a saw blade diameter of 450 mm. If you are looking to get high-quality profile machining capabilities, consider the SCHÜCO AS 100 universal machining centre we have for sale. Contact us for further details.
Ref.nr 00912 Nome della macchina per l'ingranaggio La macchina è adatta alla produzione economica di ingranaggi cilindrici, ingranaggi e ingranaggi nella produzione individuale e in serie. Grazie al suo design robusto e all'elevata precisione, la PFAUTER è ancora una macchina ricercata nel campo della Costruzione di utensili e cambio Produttore: Pfauter Modello P160HI Costruita nel 1970 Dati tecnici: Diametro della ruota: max. 160 mm Larghezza delle ruote: massimo 355 mm Intervallo dei moduli: 0,5 – 4,5 Diametro della fresatrice: max. 115 mm Lunghezza della fresatrice: massimo 105 mm Intervallo di rotazione della testa di fresatura: 120 Velocità: 400 giri/min Larghezza centrale: 410 mm Dimensioni della macchina (L x Largo x A): circa 2.000 x 1.500 x 2.000 mm Condizioni tecnicamente a posto, attualmente in condizioni di smantellamento nel magazzin ...
Questa Hyundai Wia F500 a 3 assi è stata prodotta nel 2012. Ha una dimensione del tavolo di 1.000 × 450 mm e un carico massimo del tavolo di 600 kg. La velocità del mandrino può raggiungere fino a 10.000 giri/min, con una potenza continua di 15 kW. Se desideri ottenere capacità di lavorazione di alta qualità, considera il centro di lavorazione verticale Hyundai Wia F500 che abbiamo in vendita. Contattaci per ulteriori dettagli.
A CNC vertical machining center by Saeilo requiring repair is available. Travel X/Y/Z: 1120mm/700mm/700mm, table dimensions X/Y: 1200mm/700mm, max. table load: 1000kg, spindle nose to table distance range: 100mm-800mm, tool holder: SK40, power: 16.5kW, tool stations: 30, rapid traverse: 20m/min, feed rate: 15m/min, positioning accuracy: +/-0.005mm, repeatability: +/-0.003mm. Machine dimensions X/Y/Z: approx. 4000mm/3000mm/2650mm, weight: approx. 7800kg, control: Heidenhain, operating hours: approx. 50550h, spindle hours: approx. 13000h. The machine geometry must be checked. Furthermore, the tool changer is sticking, leaking oil and the lighting has defects. Documentation available. An inspection on site is possible.
A CNC gantry milling machine Kao-Ming requiring repair is available. Travel X/Y/Z: 3200mm/1400mm/700mm, table dimensions X/Y: 3000mm/1250mm, column clearance: 1500mm, spindle nose-to-table distance range: 200mm-900mm, max. table load: 8000kg, tool holder: BT50, speed: 5200rpm, tool positions: 30, rapid traverse: 12m/min, feed rate: 8m/min. Machine dimensions X/Y/Z: approx. 8100mm/4100mm/3800mm, weight: approx. 23000kg, control: Heidenhain iTNC530, operating hours: approx. 23000h, spindle hours: 8210h. The machine geometry must be adjusted. Furthermore, the tool changer occasionally jams, and the spindle has an oil leak. Documentation available. An on-site inspection is possible.
A CNC vertical milling machine DMG in need of repair is available. Travel X/Y/Z: 750mm/600mm/520mm, table diameter: 700mm, swivel B: -5°/110°, max. workpiece diameter: 800mm, max. workpiece height: 590mm, max. workpiece weight: 350kg, tool holder: SK40, speed: 14000rpm, tool positions: 30, rapid traverse: 24m/min, feed: 20m/min, positioning accuracy: +/-0.01mm, repeatability: +/-0.006mm. Machine dimensions X/Y/Z: approx. 5600mm/5000mm/3000mm, weight: approx. 6000kg, control: Heidenhain iTNC530 3D, operating hours: approx. 62250h, spindle hours: approx. 15550h. The geometry of the machine must be checked and it shows deviations in the axes, including the rotary axis. Documentation available. An on-site inspection is possible.
Questo CNC KNUTH X-MILL 1500 a 3 assi è stato prodotto nel 2011. Presenta una corsa impressionante all'asse X di 1500 mm, una corsa all'asse Y di 800 mm e una corsa all'asse Z di 700 mm. La macchina include una robusta dimensione del tavolo di 1700 x 800 mm con una capacità di carico di 1500 kg. Se desideri ottenere capacità di lavorazione di alta qualità, considera il centro di lavorazione verticale KNUTH X-MILL 1500 CNC che abbiamo in vendita. Contattaci per ulteriori dettagli.
Diametro della fresatrice: 300 mm Larghezza massima di intaccatura di 350 mm Profondità massima di intaccamento: 110 mm Altezza massima del profilo: 150 mm Lunghezza di avanzamento: 500 mm Corsa tra 20° - 90° - 20° Morsetti pneumatici per pezzi da lavoro Dispositivo di spruzzatura di quantità minima Alimentazione pneumatica del materiale tramite interruttore a piede Peso: circa 280 kg
A CNC high-speed machining center OPS Ingersoll in gantry design is available. Materials: graphite/copper/aluminum/plastics/hard machining, travel X/Y/Z: 700mm/550mm/450mm, table dimensions X/Y: 850mm/700mm, max. workpiece weight: 2000kg, tool holder to table distance range: 20mm-520mm, tool holder: HSK-E40, spindle: Fischer mW 9/10-4, speed: 42000rpm, spindle power: 17kW, spindle runout accuracy: µm, rapid traverse: 30m/min. Machine dimensions X/Y/Z: approx. 3200mm/2500mm/2700mm, weight: approx. 9000kg, control: Andronic 2060. Documentation available. An on-site inspection is possible.
POS POSmill CE 1000Year of manuf. : 2022 Control : Heidenhain TNC 640 Speed : 10000 rpmMovement X/Y/Z : 1000/600/600 mmTool holder : SK40 ____________Description:Spindle:Technology:Belt driveSpeed:10,000 rpmTool holder:SK40Media feed-through:Blown air + cooling lubricantWorking table:Clamping surface:1,200 x 600 mmTableloading (max.):750 kgGeneral:Tool magazine:40 stationsFeatures/Accessories:Coolant Management:IKZ system with filter and high pressure, 20 barChip Management:Chip conveyorWorkpiece Measurement:25.50-HDRTool Measurement:Pick UP wireless 35.40 TSPosition Measurement System:Heidenhain linear measurement system (direct) X/Y/ZSetup Mode:Electronic handwheel
Questa POSmill H 800 U a 5 assi è stata prodotta nel 2023. Presenta una corsa impressionante all'asse X di 670 mm, una corsa all'asse Y di 830 mm e una corsa all'asse Z di 600 mm. La macchina ha un diametro del tavolo di 800 mm e una velocità del mandrino di 18.000 giri/min. Se vuoi ottenere capacità di lavorazione di alta qualità, considera il centro di lavorazione verticale POSmill H 800 U che abbiamo in vendita. Contattaci per ulteriori dettagli.
Per profili in alluminio e PVC Diametro massimo del taglio: 280 mm Lunghezza massima di fresatura: 400 mm Profondità massima di fresatura: 110 mm Altezza massima di frenatura: 150 mm Tenditori pneumatici di materiali Alimentazione automatica Quantità minima di spruzzatura Peso: circa 200 kg
