Il centro di lavorazione orizzontale CNC HELLER H 2000 è stato costruito nel 2022 da Heller Maschinenfabrik GmbH. La macchina rappresenta la quarta generazione della serie H, progettata appositamente per l'uso in condizioni di produzione impegnative. Si distingue per l'ampia attrezzatura e l'utilizzo di numerose soluzioni tecniche all'avanguardia che garantiscono un funzionamento affidabile durante tutta la sua vita operativa. La HELLER H 2000 è utilizzata per la lavorazione precisa a 4 assi di pezzi con un peso massimo di 800 kg. Il design della macchina fornisce le basi per un'elevata produttività e accuratezza nella lavorazione meccanica. Tutti i componenti strutturali in ghisa sono stati accuratamente ottimizzati per garantire la massima stabilità e un'eccellente smorzamento delle forze. La cinematica in tutti e 4 gli assi, a turno, consente un posizionamento preciso dello str ...
Heller MC16 Nr 31-43514 BJ. 2009 Giri del mandrino 1/min. 45-16000 Psbmlb Sswffd Ssaljrd SK40 Distanze di percorrenza mm x 630 Y 630 Z 630 Velocità di marcia mm/min 1-40000 Numero di utensili: 80 Diametro utensile mm 70/150 (per spazi secondari liberi) Lunghezza utensile mm 320 Numero di pallet 2 Dimensioni pallet 400 x 500 Carico massimo pallet KG 500 Asse B NC Sistema di controllo Sinumerik 840D Sonda Heidenhain Sì Power kVA 60 Macchina n. 73 ATL iTM400HP n.14916 BJ.2009 Power kVA 30 Camera standard di sbavatura 400 / 400 mm Pressione massima di riempimento del gas 20 bar Siemens Multipanel con sistema operativo Windows CE
Heller MC16 Nr31-43487 BJ. 2009 Giri del mandrino 1/min 45-16000 SK40 Escursioni mm X 630 Y 630 Pobmlb Saowfd Eusljrd Z 630 Velocità di marcia mm/min 1-40000 Numero di utensili: 80 Utensile mm 70/150 (per spazi secondari liberi) Lunghezza utensile mm 320 Numero di pallet 2 Dimensioni del pallet 400 x 500 Massimo carico pallet kg 500 Asse B NC Sistema di controllo Sinumerik 840D Sonda Heidenhain Sì Power kVA 60 Macchina n. 63
Questo centro di lavorazione orizzontale HELLER H2000 a 4 assi è stato prodotto nel 2017. Dispone di un controllo Siemens 840D Solution Line, una rotazione rapida di 60.000 mm/min e una velocità del mandrino di 10.000 giri/min. La macchina può gestire pezzi fino a 720 mm di diametro e 850 mm di altezza, con un carico massimo sul tavolo di 600 kg. Considera l'opportunità di acquistare questo centro di lavorazione orizzontale HELLER H2000. Contattaci per maggiori informazioni su questa macchina.
x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:20 t dimensions of the machine ca.:6,80 x 3,0 x 3,20 m Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to
x-travel:1000 mm y-travel:800 mm z-travel:1100 mm weight of the machine ca.:15,2 t Tool bore:SK50 Tool taper:HSK-A 100 turning speed range:45-6.000 U/min size of pallet:630x800 mm change time of pallets:21 sec Mechanical processing of cylinder heads and cylinder crankcases Machines have been in single-shift operation since 2013 Service and maintenance intervals were adhered to
x-travel:450 mm y-travel:450 mm z-travel:450 mm b-axis:360.000 x 0.001 ° main spindle speeds::45-10000 1/min weight of the machine ca.:14 t dimensions of the machine ca.:7 x 2.45 x 3.4 m size of pallet:320 x 320 mm number of spindles:2 tool taper:HSK63 tool numbers:2 x 40 spindle drive motor:25/36 (100% / 40% ED) kW Double spindle 4-axis machining center Horizontal 4 machine plates Renishaw probe Control Siemens Sinumerik 840D Working space (X / Y / Z): 450x450x450 mm Load pallet / table max .: 300 kg Acceleration: 10 m / s² Rapid traverse: 60 m / min Pallet size: 320 x 320 mm Chip-to-chip time: 2.6 s Workpiece height max .: 700 mm Tool holder: HSK 63 Tool places: 2x 60 Tool spindle: 10,000 rpm, 95 Nm Speed increase to 18,000 rpm Infrared receiver for probe, Make Renishaw Vaf72a0p Tool magazine with 60 places Control panel on the workstation Control panel on the tool installation site ...
x-travel:630 mm y-travel:630 mm z-travel:630 mm pallet size::400 x 500 mm spindle taper::HSK 63 spindle turning speed - stepless:10 - 16000 U/min total power requirement:55 kW weight of the machine ca.:11 t Machine with SIEMENS 840 D control for 4 axis - digital drives - palette changer 4-fold - tool changer 160-fold - coolant device with coolant through spindle - full B-axis - chip conveyor - hydr. workpiece clamping
x-travel:630 mm y-travel:630 mm z-travel:630 mm control:Unipro 90 Pallet changer 2x:400 x 500 workpiece - installed height:800 mm max. clampable workpiece diameter:720 - 850 mm spindle taper::SK 40 spindle turning speed - stepless:10 - 8000 1/min Spindle power:20 / 30 kW Spindle Torque:95/143 Nm tool magazin::80 SK 40 total power requirement:55 kW weight of the machine ca.:11 t Machine with Unipro 90 control for 5 axis - twin palette changer - tool magazine 80 HSK-A 63 - coolant device with coolant through spindle 7 pressure levels - full A & B-axis - chip conveyor
Manufacturer: HELLER Model: MCH 250 Machine Type: Horizontal Machining Center Application Type: Milling Year: 2007 Control Unit: • Control Brand: SIEMENS • Control Model: 840D Movement: • Number of Axes: 4 • X-Axis Travel: 800 mm • Y-Axis Travel: 800 mm • Z-Axis Travel: 800 mm Technical Specifications: • Spindle Speed: 6,000 RPM • Tool Holder: BT50 • Number of Tool Positions: 100 Additional Information: • 4th-axis rotary table with 1 degree indexing • Workpiece/tool probing system (touch probe) Find more here - .ucymachines/ Contact us at - sales@ucymachines
x-travel: 630 mm y-travel: 630 mm z-travel: 630 mm Control: Siemens type: 840 D size of pallet: 400x500 mm numbers of pallets: 4 : 360 ° turning speeds: 10-16000 U/min Tool changer: 160 Pos. Cooling through the spindle: spindle taper:: HSK 63 chip conveyor: total power requirement: 55 kW weight of the machine ca.: 11 t dimensions of the machine ca.: m Machine with Siemens 840 D control for 4 axes - Digital drive technology, direct position measuring systems - 4-position pallet changer - Full B-axis - Coolant system with internal coolant supply - Hydraulic workpiece clamping - Filtration system The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 i ...
throat: 600 mm tool adaptor: 50,60 SK power requirement: . kW flange:: 500x500 mm Width of nail head: 270x220 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
throat: 600 mm tool adaptor: 60,60 SK power requirement: . kW flange:: 500x500 mm Width of nail head: 320x300 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
x-travel: 800 mm y-travel: 630 mm z-travel: 560 mm total power requirement: 60 kW weight of the machine ca.: 12.5 t dimensions of the machine ca.: m H E L L E R (Germany) 5 Axis - CNC Controlled Horizontal Machining Centre Model FST- MC 160 / 800 / E Year 1998 Only approx. 500 hours in operation _______________________________________________________ Working range: Longitudinal stroke X axis 800 mm Vertical stroke Y axis 630 mm Cross stroke Z axis 560 mm NC rotary table Tilting A axis 180 ° Turning B axis 360 ° Size of pallet, approx. 250 x 620 mm Tool holder HSK 63A Spindle speeds, infinitely variable 63 - 20,000 rpm Feeds / quick feeds XYZ 1 - 70,000 mm/min Spindle drive 24 kW Total electrical load, approx. 60 kW - 400 V - 50 Hz Weight, approx. 12,500 kg Accessories / Special Features 5-Axis SIEMENS CNC Path Control, Mode ...
This 4-axis HELLER H5000 horizontal machining centre was manufactured in 2021. It features a working range of 800 mm in all axes and a maximum workpiece diameter of 900 mm. The machine includes a tool taper of HSK-A 100 and a tool magazine capacity of 100 slots. If you are looking to get high-quality machining capabilities, consider the HELLER H5000 machine we have for sale. Contact us for further details.
This 4-axis HELLER MCH 250 was manufactured in 2001. It features a robust coolant/filter unit, ensuring efficient operation. If you are looking to get high-quality machining capabilities, consider the HELLER MCH 250 horizontal machining centre we have for sale. Contact us for further details.
This 4-axis HELLER H5000 was manufactured in 2009. It features a Fanuc 310i control system, ensuring reliable operation. If you are looking to get high-quality machining capabilities, consider the HELLER H5000 horizontal machining centre we have for sale. Contact us for further details.
HELLER MC16 Centro di fresatura orizzontale a 4 assi YOM 2000 Controllo del percorso CNC SIEMENS a 4 assi, modello SINUMERIC 840 D Asse X longitudinale 630 mm Asse Y verticale 630 mm Asse Z trasversale 630 mm Tavola rotante NC Inclinazione asse B 360.000 x 0,001 Dimensioni pallet 400 x 500 mm Dimensione max. pezzo x altezza 720 x 800 mm Peso massimo del pezzo 500 kg Tempo di cambio pallet 9 sec. Velocità di rotazione asse B 40 giri/min Cono portautensili HSK 63 Dimensioni utensile x lg. x peso 150 x 227 x 12 mm/kg Numero di giri del mandrino regolabile in continuo 45 – 24.000 giri/min Avanzamenti / avanzamenti rapidi XYZ: 1 – 60.000 mm/min Forza di avanzamento 10.000 nm Coppia di torsione 48/72 nm Azionamento mandrino 30 kW Carico elettrico totale, circa 60 kW - 400 V - 50 Hz Peso totale 12,5 tonnellate Accessori / Caratteristiche speciali : -Magazzino utensil ...
CONTROLS CNC controls UNI-PRO CNC 90 WORKING RANGE -CUBIC- number of processing axes (excl parallel axes): 4 X-axis travel: 800 mm Y-axis travel: 800 mm Z-axis travel: 710 mm ATTACHMENTS chip conveyor: yes Machine in production, under power Still available for sale: HELLER MCS-H 400 2001 DECKEL MAHO FP5-80 1994 HELLER MCH 200 1998
CONTROLS CNC controls SIEMENS 840 D WORKING RANGE -CUBIC- number of processing axes (excl parallel axes): 4 .. among of them simultaneous CNC axes: 3 X-axis travel: 1000 mm Y-axis travel: 800 mm Z-axis travel: 1100 mm SPINDLE / HEAD tool fixture: HSK E100 AUTOMATIC WORKLOAD EQUIPMENT number of store positions: 4 ELECTRICAL SPECIFICATIONS mains voltage: 400 V mains frequency: 50 Hz DIMENSIONS / WEIGHTS space requirements -left/right-: 6800 mm space requirements -front/back-: 3000 mm total height: 3200 mm total weight approx.: 20000 kg
Questo HELLER MC 16 con pool di pallet è stato prodotto nel 1999. Dispone di un sistema Control Uni Pro, di un caricatore da 120 utensili e di un portautensili HSK-63A. Il mandrino funziona a una velocità di 16.000 giri/min. Considera l'opportunità di acquistare questo centro di lavorazione orizzontale HELLER MC 16. Contattaci per maggiori informazioni.

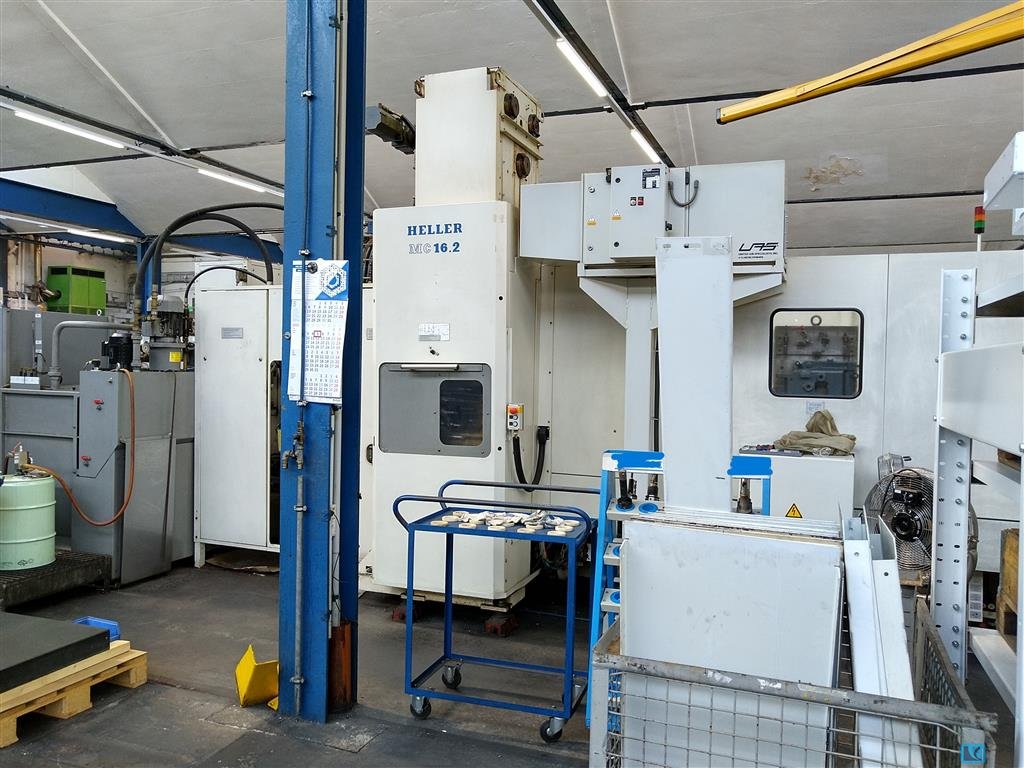

Questo HELLER MC 16-2 a 4 assi è stato prodotto nel 1999. Dispone di un sistema di controllo Siemens, un robusto caricatore attrezzi con 160 slot e un portautensili HSK-63A. Il mandrino funziona a una velocità di 10.000 giri/min, ideale per lavori di lavorazione dettagliati. Se vuoi ottenere capacità di fresatura di alta qualità, considera la macchina HELLER MC 16-2 che abbiamo in vendita. Contattaci per maggiori informazioni su questa macchina.
Heller H 6000Year of manuf. : 2024 Control : Siemens Sinumerik ONE Movement X/Y/Z : 1000/1000/1000 mmTool holder : HSK-A100 ____________Description:Spindle:Technology:Gearbox SpindleSpeed:8.000 rpmPower (max.):60 kWTorque (max.):1.146 NmTaper:HSK-A100NC-Roundtable:B-Axis:0,001°Palletsize:630 x 630 mmIn general:Toolmagazine:425 stationsRapid travers in X/Y/Z:50 m/minEquipment/Accessory:Positionsensor:Direct Scales in all AxesChipmanagement:Chip conveyorCoolingmanagement:Internal cooling unit with paperbelt-filter and high-pressure, 70barWorkpiecemeasurement:Touchprobe, Renishaw RMP60Toolbreakagecontrol:TaktilSoftwareoption:Process-integrated tool monitoringAutomation I:Palletchanger, 2 stationsAutomation II:Interface FASTEMS MLSOilmistseparation:Interface mechanical preparedFurther Accessory:Rinsing pistol
This 4-axis HELLER MCH 250 was manufactured in 2002. It features a generous X, Y, and Z-axis travel of 800 mm each, along with a B-axis travel of 360,000 x 0.001°. The machine is equipped with a Siemens 840D control unit and a tool magazine with 100 positions. If you are looking to get high-quality machining capabilities, consider the HELLER MCH 250 horizontal machining centre we have for sale. Contact us for further details.
This 4-axis HELLER MCH 250 was manufactured in 2003. It features a robust X-axis travel of 800 mm, Y-axis travel of 800 mm, and Z-axis travel of 800 mm. The machine is equipped with a Siemens 840D control unit and a tool magazine with 100 positions. If you are looking to get high-quality machining capabilities, consider the HELLER MCH 250 horizontal machining centre we have for sale. Contact us for further details.
4 BAZ Heller 3 x BAZ Heller H5000 BJ 2019 e 2021 1 x BAZ Heller MCH 250 BJ 2001/2009
This 4-axis HELLER MCI 16 vertical machining centre was manufactured in 2005. It features a robust X, Y, and Z-axis travel of 630 mm, with a maximum spindle speed of 10,000 rpm and a tool magazine capacity of 40 pockets. The machine has a total connected load of approximately 69 kVA and weighs 9,000 kg. If you are looking to get high-quality machining capabilities, consider the HELLER MCI 16 vertical machining centre we have for sale. Contact us for further details.
This 4-axis HELLER MC 16 was manufactured in 2001. It features a generous X, Y, and Z-axis travel of 630 mm each, along with a tool magazine capacity of 80 pockets. The machine is equipped with a rotary table capable of handling a maximum clamping weight of 500 daN. If you are looking to get high-quality machining capabilities, consider the HELLER MC 16 horizontal machining centre we have for sale. Contact us for further details.
This 4-axis HELLER MCI 16 was manufactured in 2004. It features a robust X, Y, and Z-axis travel of 630 mm, with a maximum spindle speed of 10,000 rpm and a spindle power of 38 kW. The machine includes a tool magazine capacity of 40 pockets and a rotary table with a maximum clamping weight of 500 daN. If you are looking to get high-quality machining capabilities, consider the HELLER MCI 16 horizontal machining centre we have for sale. Contact us for further details.
Key data: 1400 mm, 1200 mm, 1400 mm
Horiz. Centro di lavorazione con cambiatore pallet a 2 pieghe e caricatore a scaffale Dimensione del pallet 800 x 800 mm Peso massimo di serraggio 2000 kg Numero di pallet 2 Tavolo rotante NC 360.000 posizioni Velocità del mandrino fino a 8.000 1/min Potenza di trasmissione 60 KW - 1146 Nm Traversata rapida 50 m/min Caricatore utensili 260 posizioni utensile Portautensili HSK 100 - Sistema di raffreddamento: KNOLL - IKZ 70 bar - Scarico dell'area di lavoro - Sonda a contatto Renishaw - Controllo freni del trapano - Dispositivo di soffiamento del parabrezza - Monitoraggio degli utensili e delle collisioni - Trasportatori a trucioli - Controllo della temperatura di raffreddamento - Indicatore della forza di avanzamento - Controllo CNC Siemens 840D SL
