Key data: 530 mm
KELCH KALI-tec Un presetter utensili costruito in Germania nel 2004 è un dispositivo high-tech per la misurazione accurata, la preimpostazione e il restringimento simultaneo dell'utensile. Il presetter utensili KELCH all'avanguardia con bobina a induzione integrata viene offerto con apparecchiature che includono, ad esempio, il sistema di misurazione elettronico con elaborazione intelligente delle immagini KELCH EasyVision e il software informatico KELCH Easy Webset per la misurazione e l'ispezione degli utensili. La lunghezza dell'utensile è determinata dagli adattatori di regolazione prima della fase di riscaldamento del mandrino. La macchina di misura e presettatura degli utensili KALI-tec A imposta automaticamente l'utensile esattamente alla lunghezza target durante la fase di apertura del mandrino mediante riscaldamento, mentre per compiti di misura più complessi o utensili in ...
measuring range X-axis:-50 . 530/830/1030 mm measurement range Z =:605/805/1005 mm tool taper:30 & 40 VDI compressed air:6 bar dimensions:2200 x 1200 x 2100 m machine weight ab.:900 kg Vertical Toolsetter with Cutting Edge detection via Camera System. Operating over CNC Control yb PC System or Manually, 3 axes, CNC Equipped with Modular Prescision Spindle with CNC Rotary Axis. Digital Glas Scale in all Axis and Linear Roller bearing in all Axis of the Slide Carriage. Electronic measuring equipment: PC electronics with intelligent KELCH EasyVision image processing 17" TFT colour monitor Optional: second 17" TFT monitor for full screen measuring window The CNC Toolsetter is in good condition and ready for immediate use.
measuring range X-axis: 330 mm measuring range Z-axis: 400 mm range L-W-H: 880 x 520 x 990 mm Spindle type: SK 50 (pneumatically fixable, 4×90°) Measuring systems: Heidenhain optoelectronic (LS series) Measurement: via integrated projector (20× magnification) Device weight: approx. 250 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
measuring range X-axis: 330 mm measuring range Z-axis: 400 mm 1 tool presetter Make: KELCH, type: Kalimat C34, year 2002 Measuring range X/Z 330 x 400 mm Easy-Wrap Set measuring software 2 adapters VDI / HSK, tool table The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
Intervallo di misura Asse X: 0 - 200 mm Intervallo di misura Asse Z: 0 - 300 mm Adattatore utensile: SK 40 / BT 40 Risoluzione: 0,01 mm Accuratezza ricorrente: 0,01 mm Temperatura amminente: 0 - 40 C Dimensioni della macchina ca.: 0,30 x 0,19 x 0,64 mweight: 44 kg Presetter Tool KELCH - linea impostata V123 I dati per questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.
campo di misura asse X: 330 mmcampo di misura asse Y: 400 mm cono mandrino: SK 40/50 dimensioni della macchina ca.: 1080 x 660 x 1080 mmxmmxmmpeso: 175 kgI dati di questo annuncio sono stati creati con ModulMWS - la soluzione software di LogoTech oHG.
Kelch KENOVA set line V346CYear of manuf. : 2024 ____________Description:Technical Data:Toollength (max.):600 mmTool-ø (max.):400 mmElectric connection:230V/50HzAirpressure:6 barIn general:Control system:Kelch EASY 10Display:24 TFTTaper:High-precisionspindle UWS-II SK50Handling:CNCEquipment/Accessory:Positionsensor:Direct ScalesTurningcentermeasuring:Incidentlight camTool adapters:HSK63Dataoutput:LabelprinterFurther Accessory:Autofocus (CNC-Drive in C-Axis)
Tool carrier for SK 30 holders -made of: polypropylene copolymer -Impact and scratch resistant, insensitive to heat -resistant to: mineral oil and various chemicals -Price: complete
Tool holder, milling tool holder -Number: 21x SK50 recording -Receptacles: Ø 22-50 mm -Drill chucks: Surface clamping chucks, reducing sleeves, cutter heads, end mills -Sale: only complete set -Weight: 90 kg
Tool holder, milling tool holder -Number: 8x SK50 recording -various versions -Drill chucks: Surface clamping chucks, reducing sleeves, cutter heads, end mills, spindle tools -only sold as a complete set -Weight: 26 kg
Tool holder for SK 40 chucks -made from: Polypropylene copolymer Impact and scratch resistant, heat resistant -resistant to: mineral oil and various chemicals Price: complete
Tool holder, milling tool holder -Recording: SK50 -End milling cutter: MK5 -Drill chucks: Surface clamping chucks, reducing sleeves, cutter heads, end mills -Weight: 6 kg
Tool carrier, tool holder for milling holders, spindle head holder, modular tool pocket, tool holder set, assembly trolley, CNC transport trolley -Manufacturer: Chalice, TUL tool carrier tool holder 182 pieces -Type: SK50 -Price/tax: complete -Transport dimensions: 1200/800/H1170 mm -Weight: 221kg
Tool holder, milling holder, milling tool, adapter, intermediate sleeve, presetting device -Milling holders: Adapter for tool presetting device 7 pieces -Types: HSK 63 HSK 100 SK 40/50 ANSI/CAT see photos -Levy/Price: complete -Total dimensions: 500/300/H170 mm -Weight: 34.4 kg
Tool trolley -SK50 recordings: 10 pieces -Tool trolley: with 5 plastic handles -various cutter heads -various roller milling cutters
Tool holder, milling holder, milling tool, adapter, intermediate sleeve, reducing sleeve -Milling attachments: Adapter intermediate sleeve reducing sleeve SK40 MK1 M16 -Type: 40 x 1 Dimensions: 60/55/H178 mm -Weight: 0.9 kg
Tool holder, milling holder, milling tool, adapter, intermediate sleeve, reducing sleeve -Milling holders: Adapter intermediate sleeve reducing sleeve SK40 MK2 M16 -Type: 40x2 -Dimension: 60/55/H178 mm -Weight: 0.9 kg
Tool holder, milling holder, milling tool -15x recordings: SK40 -Adapter -Take: SK40 -Tool holder: 3x MK1/1x MK2/3x MK3/8x MK4 -Total length: mm -Sale: only complete -Weight: 23 kg
Tool holder, milling holder, milling tool -8x recordings: SK40 -1x diameter: 22 x 14 mm -1x diameter: 27 x 22 mm -4x diameter: 27 x 32 mm -1x diameter: 32 x 25 mm -1x diameter: 40 x 40 mm -Sale: only complete -Weight: 15.4 kg
for milling chucks, spindle head -for: Assembling and disassembling tool combinations -in: vertical and horizontal arrangement -Recording: SK45 -Weight: 8 kg
tool holder, milling holder, milling tool -7x shots: SK40 -Adapter -Mounting: SK40 -Holder tool: MK4 -Drill chucks, face chucks, reducing sleeves, cutter heads, shell end mills, spindle tools -Sale: only complete -Weight: 9.4 kg
Tool holder, milling tool holder -Number: 21x SK50 recording -various versions -Drill chucks, surface chucks, reducing sleeves, cutter heads, end mills, spindle tools -Price/Sale: complete -Weight: 82 kg
Tool holder, milling holder, milling tool -Adapter -Adjustment: SK50 -Tool holder: MK4 -MK4 with tightening thread -Bore chucks, flat chucks, reducing sleeves, cutter heads, shell end mills, spindle tools -Number: 1x recordings available -Price: per piece -Weight: 4 kg/piece
Tool holder, milling holder, milling tool -8x recordings: SK40 -Adapter -Take: SK40 -Tool holder: MK3 -Bore chucks, flat chucks, reducing sleeves, cutter heads, shell end mills, spindle tools -Total length: mm -Sale: only complete -Weight: 9 kg
Tool holder, milling holder, milling tool -11x recordings: SK40 -Adapter -Take: SK40 -Tool holder: MK2 -Bore chucks, flat chucks, reducing sleeves, cutter heads, shell end mills, spindle tools -Total length: mm -Sale: only complete -Weight: 9.3 kg
Tool holder, milling holder, milling tool -10x recordings: SK40 -Adapter -Take: SK40 -Tool holder: MK1 -Bore chucks, flat chucks, reducing sleeves, cutter heads, shell end mills, spindle tools -Total length: mm -Sale: only complete -Weight: 8.5 kg
Tool holder, milling holder, milling tool -Number: 2x SK40 holders -Adapter -Take: SK40 -1x mounting tool: Ø 13 x 22 mm -1x mounting tool: Ø 27 x 55 mm -suitable for: tool changer -Sale: only complete -Weight: 3.4 kg

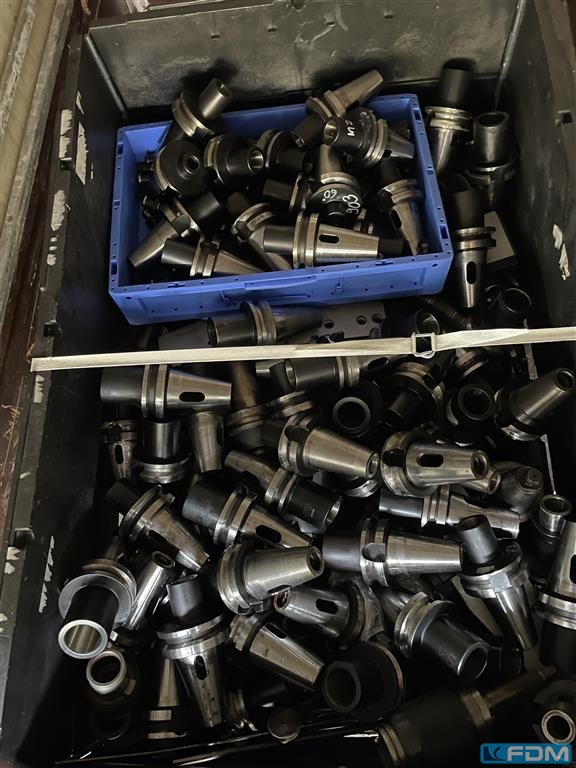

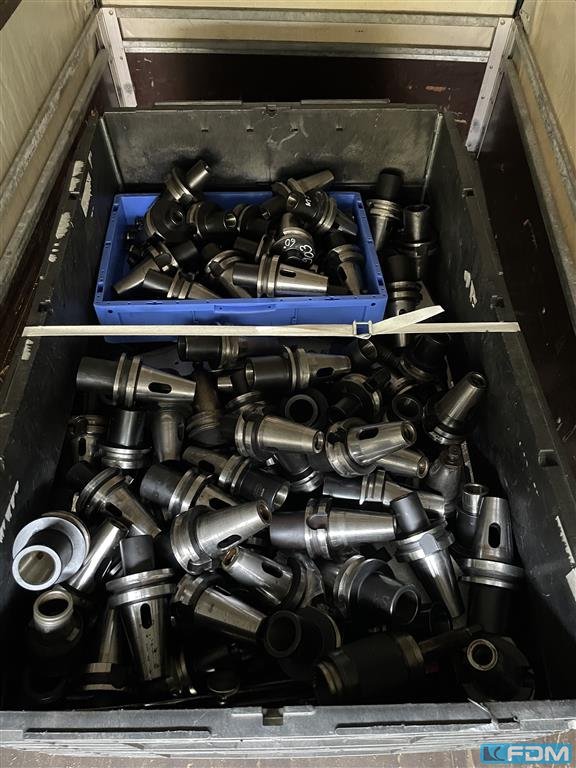

Tool holder, milling tool holder -Quantity: 20x SK50 recording -Receptacles: Ø 22-50 mm -Drill chucks: Surface clamping chucks, reducing sleeves, cutter heads, end mills, spindle tools -Sale: only complete set -Weight: 70 kg
Tool holder, milling tool holder -Number: 6x SK50 recording -various versions -Ø 56 x 110 mm -Ø 46 x 130 mm -Ø 52 x 90 mm -Ø 42 x 80 mm -Ø 42 x 55 mm -Ø 32 x 60 mm -End milling cutter -Price/Sale: complete -Total weight: 24 kg
