x-travel:550 mmy-travel:300 mmz-travel:425 mmCNC-control:Sinumerik table-size:950 x 350 mmmax. table load:500 kgspindle taper ISO:30 spindle turning speed range:20 - 10500 U/minspindle drive motor:5,5 kWtool change unit:12 Pos. coolant:inkl. voltage:380 Vtool adaptor:Steilkegel 40 groove width:32/28 mmno. of flutes:3 rapid speed:40.000 mm/mintotal power requirement:15 kVAweight of the machine ca.:3,3 tchip conveyor:inkl. dimensions of the machine ca.:2000x 3000 x2500 mmDocuments:vorhanden - Serial Number: 186 - 78- Control: FANUC O-M- with various tool holders- coolant equipment
x-travel:500 mmy-travel:400 mmz-travel:330 mmtable-size:710 x 410 mmspindle taper ISO:40 quill stroke:100 mmcontrol:HEIDENHAIN TNC 335 B table load:180 kgno. of flutes:8 groove width:14/25 mmtool taper:SK 40 speeds::20 - 3000 U/minfeeds:infinitely variable1-1250 mm/minrapid traverse:5000 mm/mintotal power requirement:13 kWweight of the machine ca.:2500 kgdimensions of the machine ca.:2000 x 2800 x 2300 mmYear:ca. 1984 Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel
x-travel:800 mmy-travel:250 mmz-travel:350 mmtable-size:1130 x 250 mmno. of flutes:4 groove width:14/25 mmtaper MK:4 spindle turning speed range:56 - 2800 U/mintotal power requirement:9,5 kWweight of the machine ca.:2009 kgdimensions of the machine ca.:1400 x 1700 x 2800 mmDocuments:vorhanden
x-travel:1190 mmtotal power requirement:25 kWfeeds::3 - 2000 mm/minweight of the machine ca.:4,3 ttable-size:1600 x 400, 5 Spannbacken mmdimensions of the machine ca.:4000 x 3600 x 2200 mmspeeds:45 - 1800 U/miny-travel:530 mmz-travel:540 mmtool taper:ISO 50 control cabinet:940 kg
x-travel:700 mmy-travel:450 mmz-travel:500 mmtotal power requirement:23,4 kWweight of the machine ca.:3100 kgdimensions of the machine ca.:3200 x 4000 x 2500 mmtool taper:ISO 40 feeds:0,2 - 0,6 - 0,12 mm/Uspindle speeds::20 - 3150 , direkt programmierbar /minfeed range:1 - 3000, in B=0,01 - 3 U/minrapid traverse in x-y-z axis:6m/ min, B = 7,6 U/minwork table::NC Rundtisch(B-Achse) D=630 mm, 9T-nuten control:CNC432
x-travel:100 mmy-travel:100 mmz-travel:100 mmtotal power requirement:0,6 kWweight of the machine ca.:130 kgdimensions of the machine ca.:1600 x 1000 x 1300 mmmilling depth:0-50 mm

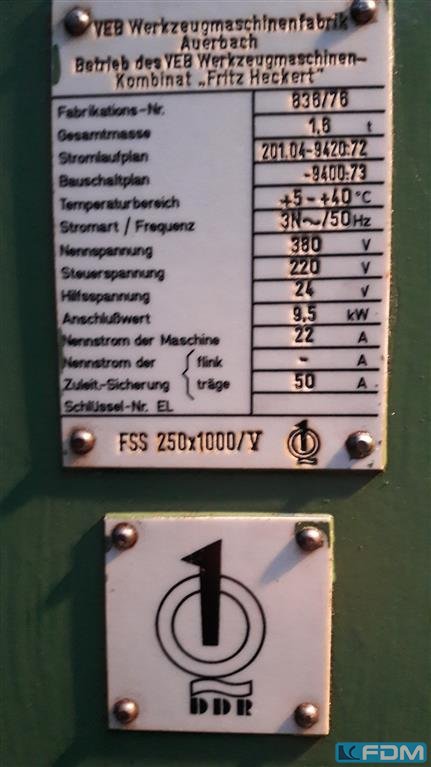

x-travel:630 mmy-travel:200 mmz-travel:360 mmtotal power requirement:7,5 kWweight of the machine ca.:2,5 tdimensions of the machine ca.:1500 x 1800 x 1900 mmspindle taper:SK40 table-size:250 x 1100 mm
x-travel:500 mmy-travel:400 mmz-travel:330 mmtable-size:400 x 710 mmspindle taper ISO:40 quill stroke:100 mmcontrol:HEIDENHAIN TNC 335 table load:180 kgno. of flutes:8 groove width:14/45 mmtool taper:ISA 40 speeds::20 - 3000 /28- 4000 U/minfeeds:infinitely variable1-1250 mm/minrapid traverse:5000 mm/mintotal power requirement:13 kWweight of the machine ca.:2500 kgdimensions of the machine ca.:2000 x 2800 x 2300 mmDocuments:inkl. Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel

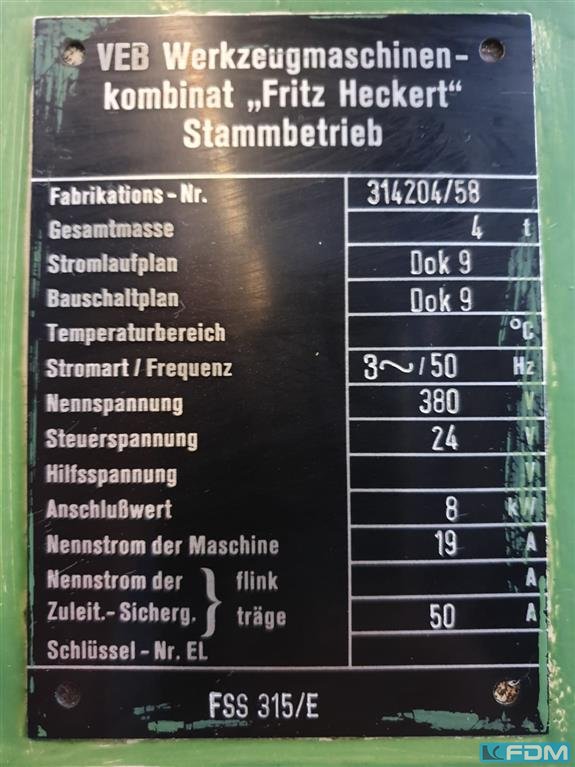

x-travel:850 mmy-travel:280 mmz-travel:355 mmtotal power requirement:8 kWweight of the machine ca.:4 tdimensions of the machine ca.:2 x 2 x2.40 mrevolutions per minute: 28-1.400 U/mintable-size:1.200 x 370 mmsurface area:1.060 x 260 mmspindle taper:SK 50

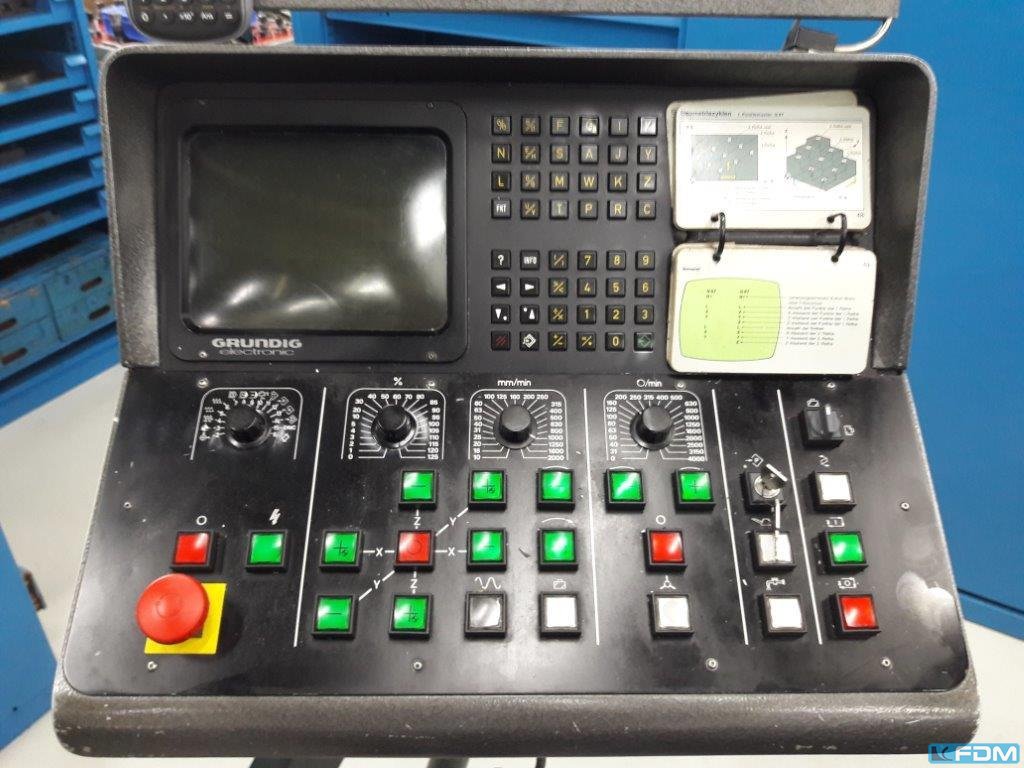

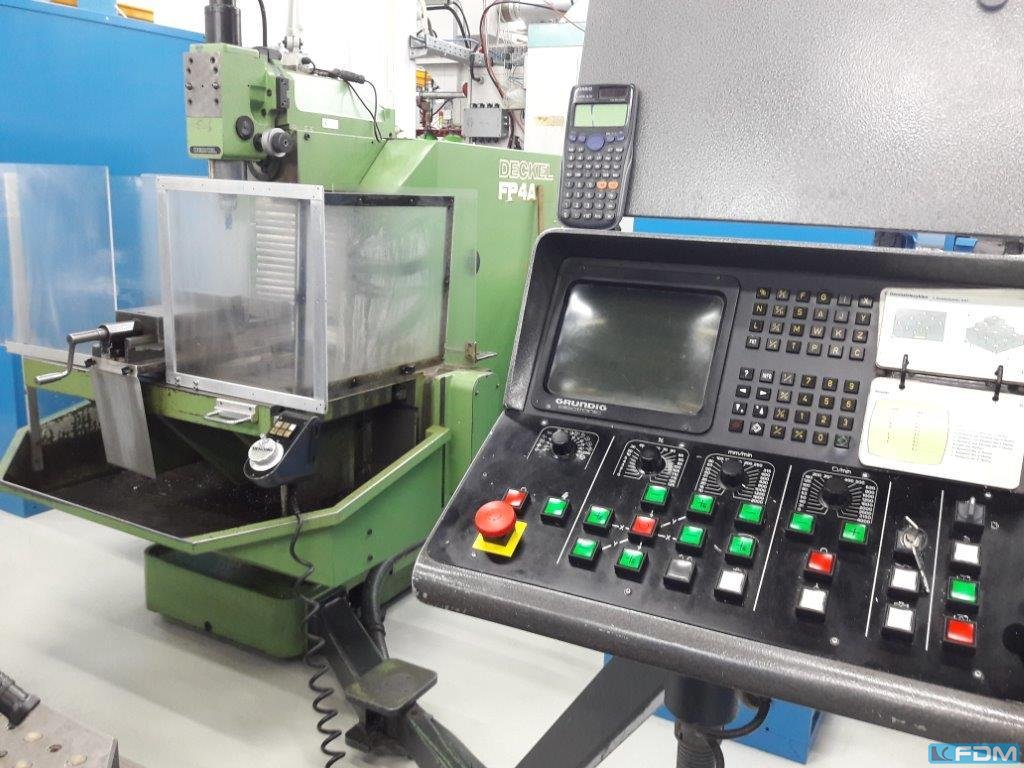

x-travel:560 mmy-travel:500 mmz-travel:450 mmtotal power requirement:16,5 kVAweight of the machine ca.:2700 kgdimensions of the machine ca.:2,30 x 3,0 x 1,90 mcontrol:Grundig quill stroke:80 mmtool taper:SK 40 spindle speeds::40..4000 1/minfeed:2 .3600 mm/minrapid traverse:4000 mm/minDocuments:vorhanden

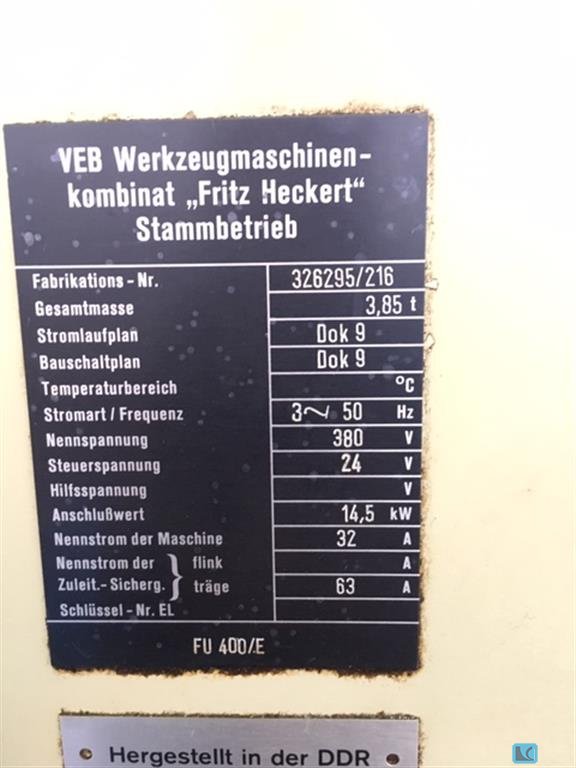

x-travel:1120 mmy-travel:345 mmz-travel:400 mmtotal power requirement:14,5 kWweight of the machine ca.:3,85 tdimensions of the machine ca.:3.500 x 2.920 x 2.710 mmtable-size:1600 x 400 mmspindle taper:SK 50
total power requirement:2,4 kWweight of the machine ca.:1150 kgdimensions of the machine ca.:1550 x 1615 x 1630 mmtable clamping surface LxW:315 x 710 mmmax. tool weight:200 kgT - slots distance:63 mmT - slots - width:12 mmtaper bore:Spindel SK 40 spindle turning speed range:56 - 1800 U/minfeed speeds:11,2 -355 mm/minDocuments:vorhanden
x-travel:600 mmy-travel:400 mmz-travel:380 mmtotal power requirement:6 kWweight of the machine ca.:1700 tdimensions of the machine ca.:1800 x 2130 x 1980 mmTable dimensions:400 x 800 mmT-slots:7 St.,14 x50 table load:300 kgspindle:SK40 turning speed range:63-250 U/minspeed steps work spindle:18 spindle speeds::50- 2500 n/minfeeds:10-500 mn/minDocuments:vorhanden

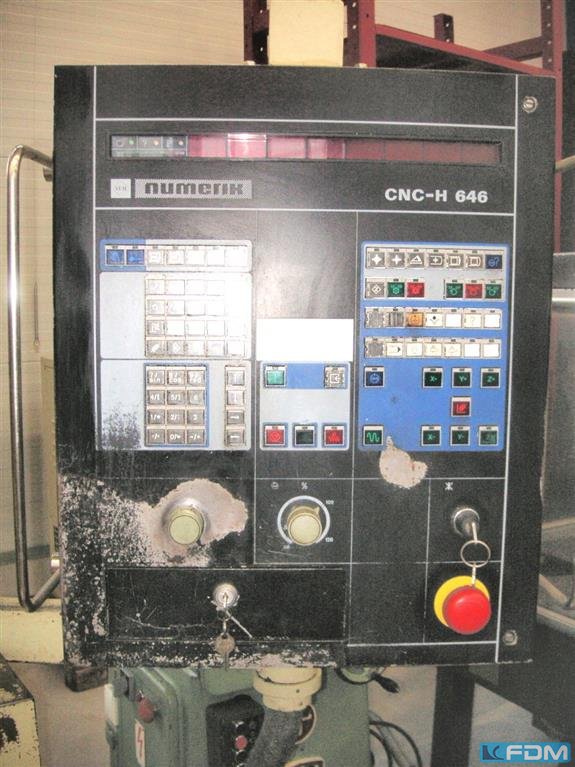

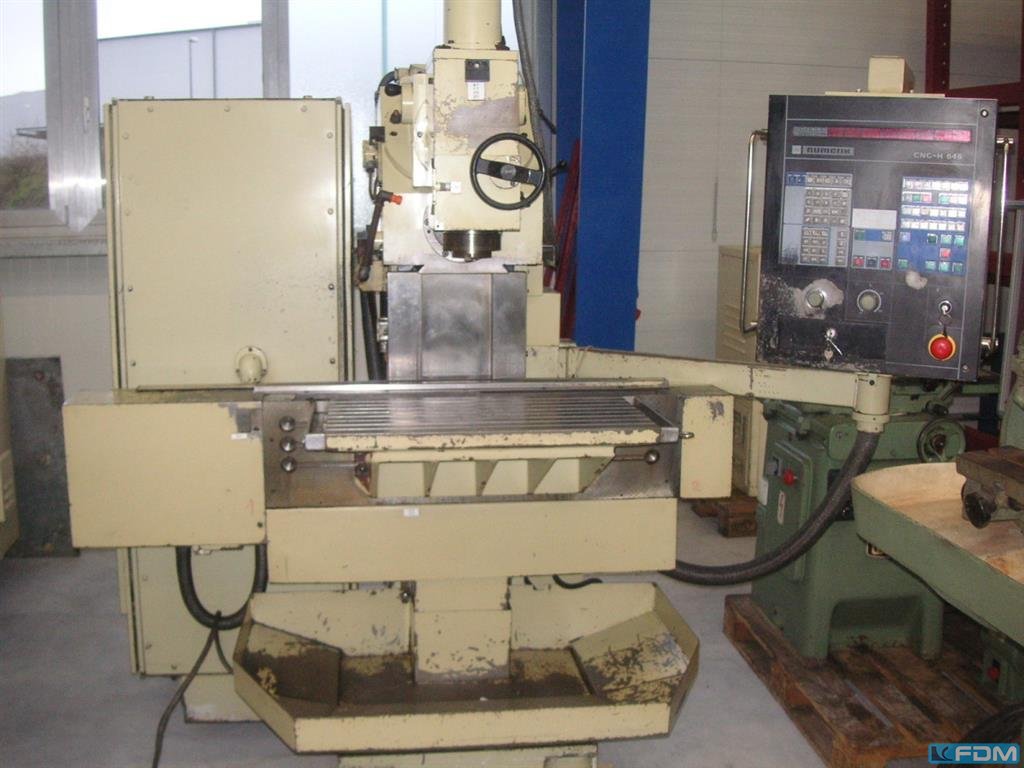

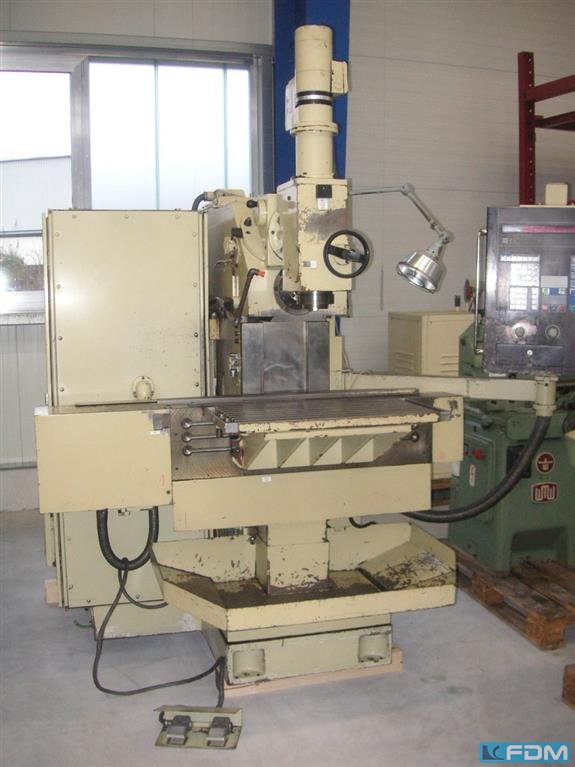

x-travel:500 mmy-travel:400 mmz-travel:340 mmwork table::800 x 400 mmcontrol:Numerik CNC - H 646 spindle turning speed - stepless:20 - 3000 U/mintotal power requirement:14 kWweight of the machine ca.:2400 kgdimensions of the machine ca.:2100 x 1800 x 2400 mm
x-travel:600 mmy-travel:500 mmz-travel:400 mmspindle diameter:90 mmspindle turning speed range:45 - 2000 U/mintable length:1250 mmtable width:200 mmgroove width:14 mmtable rotating:45 °total power requirement:4,2 kWweight of the machine ca.:2000 kgdimensions of the machine ca.:2000 x 1800 x 1550 mmYear:ca.1957 Documents:vorhanden

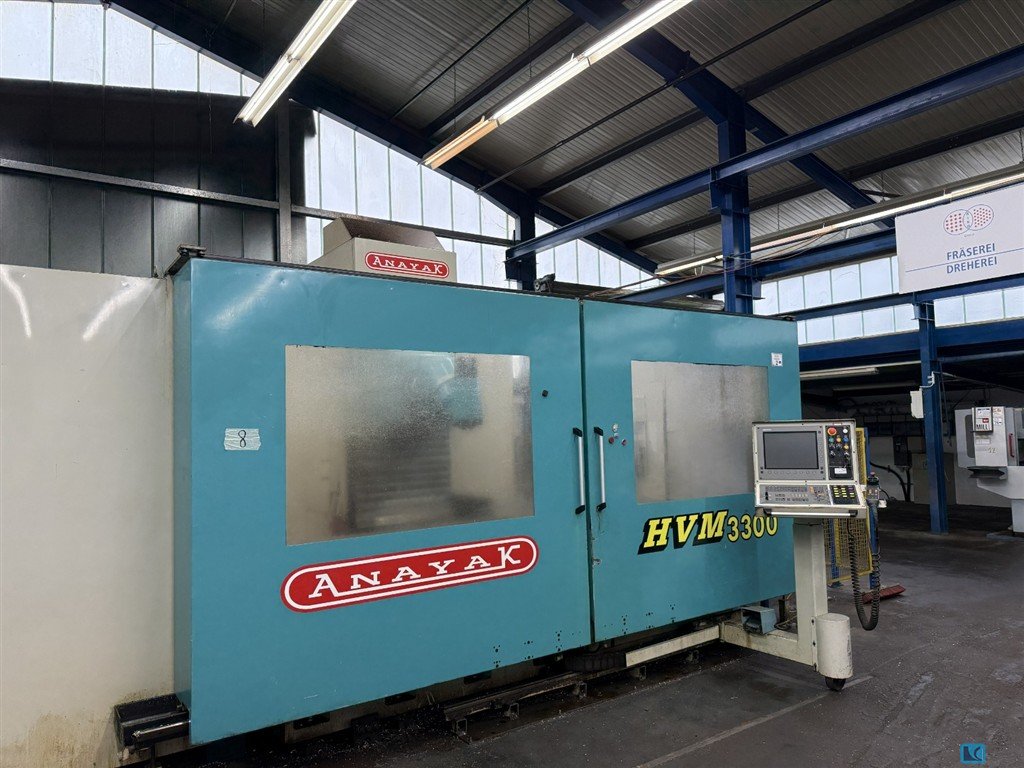

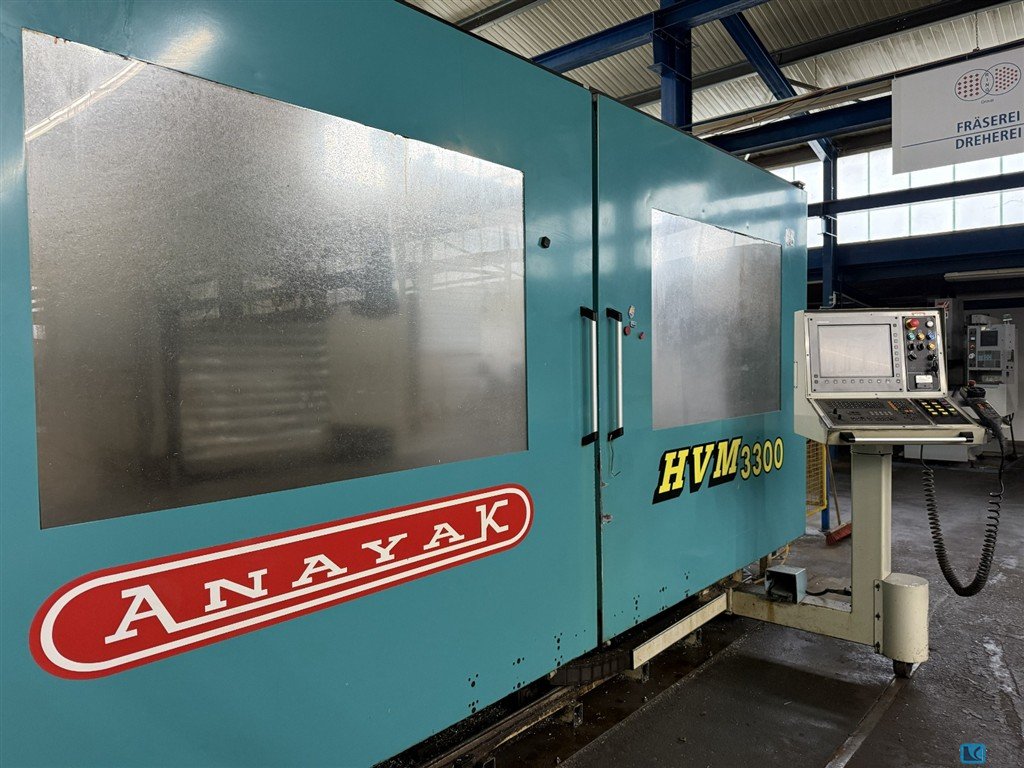

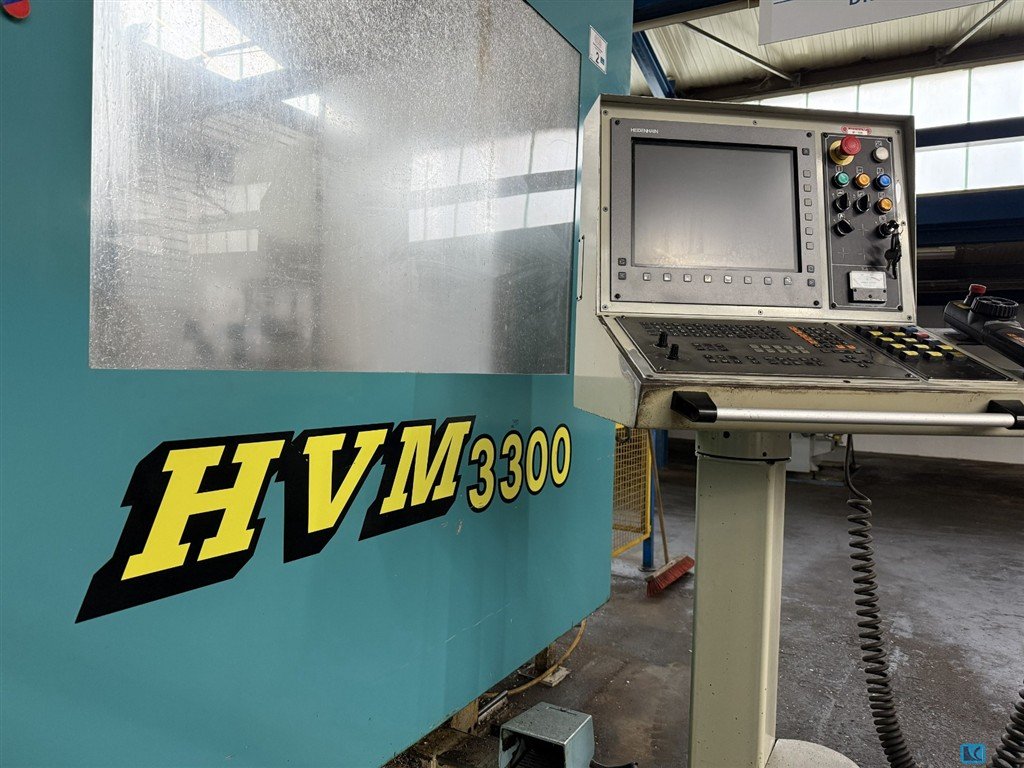

x-travel:2700 mmy-travel:1000 mmz-travel:1050 mmT-slots:7x22 feed speeds:10000 mm/min- Pallet Diameter : 3.300x1.000 mm- Max. Feedrate X/Y/Z: 10.000 mm/min

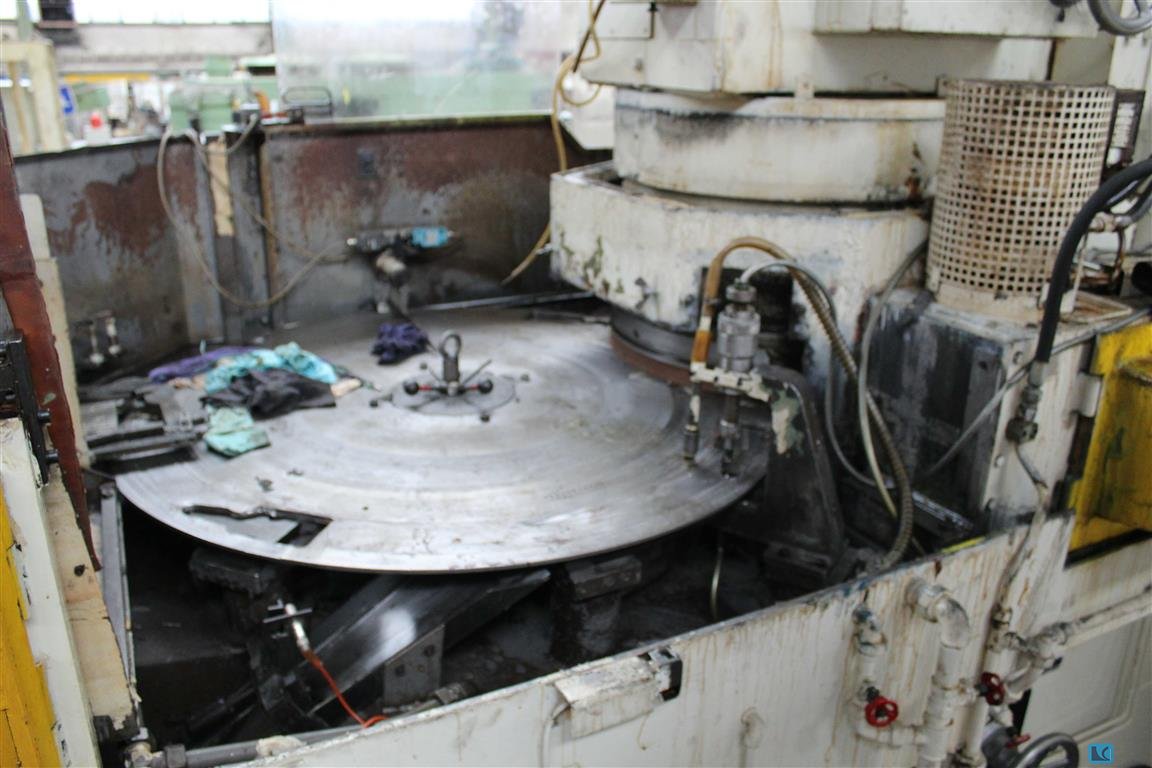

adjustment drive of the grinding spind.slide:0,0025 - 0,05 mmtotal power requirement:100 kWadjustment of grinding head slide:150 mmweight of the machine ca.:17 tgrinding spindle drive:2 x 37 kWgrinding width:30-150 mmperipheral speed:34 m/secworkpiece speeds:60 - 300 mm/Sek.grinding height:70 mmgrinding wheel diameter:750 mmgrinding tools:750 x 75 x 350 mmgrinding wheel turning speeds:870 U/Min.max. workpiece diameter:250 mm

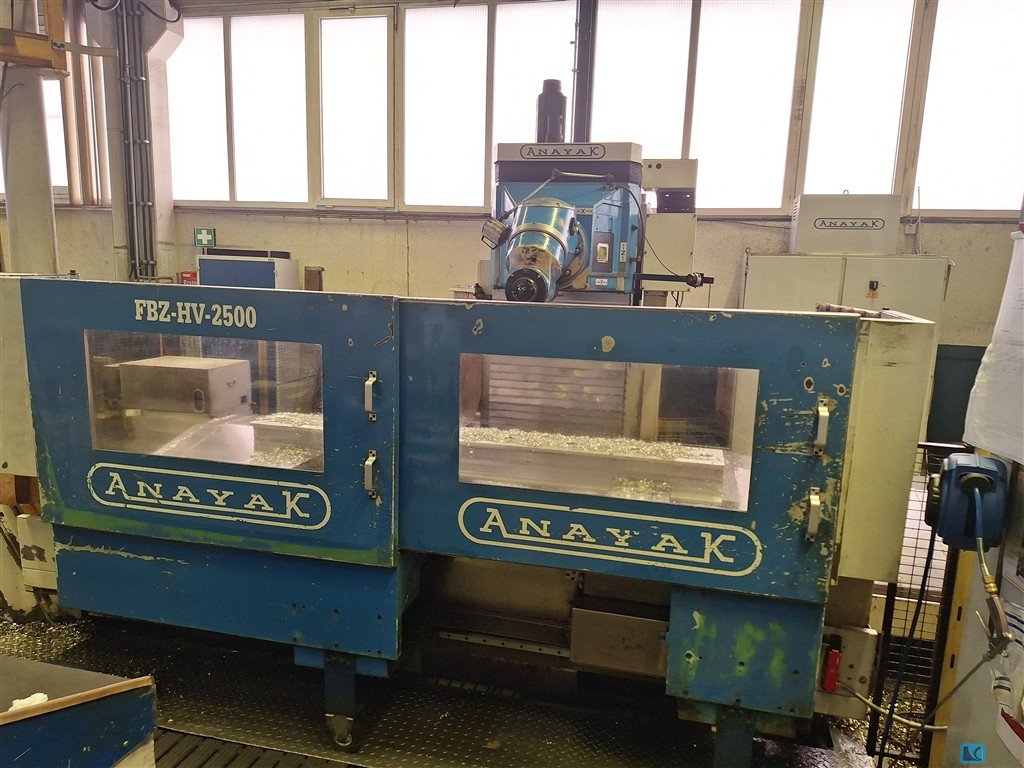

x-travel:2500 mmy-travel:935 mmz-travel:1000 mmtable surface area:I 1615 x 800 mmtable surface area:II 800 x 800 mmspindle taper ISO:50 milling head speed:60 - 3000 U/minfeed speeds:1 - 3000 mm/minrapid speed:10 m/mintotal power requirement:45 kWweight of the machine ca.:18,5 tdimensions of the machine ca.:5 x 5 x 4 mwith CNC HEIDENHAIN TNC 426Universa Milling Head -C-axis automatic Horiz-Vertical - Intermediate angles manual table II 800 x 800 mm as B-axis ( rotary table )coolant attachment diverse accessories
x-travel:850 mmy-travel:630 mmz-travel:500 mmspindle taper ISO:40 milling head speed:25 - 4200 U/mintable surface area:560 x 1200 mmtotal power requirement:15 kWweight of the machine ca.:4 tdimensions of the machine ca.:4,3 x 4,4 x 2,3 mwith CNC HEIDENHAIN TNC 415
x-travel:200 mmy-travel:100 mmz-travel:100 mmtotal power requirement:1,5 kWweight of the machine ca.:1,1 tdimensions of the machine ca.:0,6 x 0,6 x 1,8 mtable-size:350 x 150 mmNew class condition milling machine with vize and dividing head- Original year of manufacture unknown
x-travel:14000 mmy-travel:3100 mmz-travel:1.200 mm (220 - 1.420) mmdistance between columns:4.417 mmtable-size:14.000 x 2.500 mmworkpiece weight:15.000 kg/mdrive capacity - spindle motor:25 kWspindle cone:63 HSKspindle turning speed range:18000 rpmmilling feeds:30000 mm/mindimensions of the machine ca.:15.000 x 8.418 x 6.033 mmweight of the machine ca.:135 tCNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach
x-travel:2000 mmy-travel:800 mmz-travel:800 mmtable-size:2.000 x 700 mmworkpiece weight:3500 kgdrive capacity - spindle motor:17 kWspindle cone:50 ISOspindle turning speed range:3000 U/mindimensions of the machine ca.:5265 x 3250 x 2730 mweight of the machine ca.:9 tCNC controller:HEIDENHAIN TNC-426 :manuell used universal bed type milling machine with chip conveyor, automatic 2 position (vertical/horizontal) head 3000Rpm The retrofitting jobs done in this machine, are the same than those done to all of our machines.- Completely repair of the head, replacing bearings, shafts and engaging gears.- Completely replacement of all the bearings of the machine.- Replacing the joining screws of the bodies.- Completely repair of spindles.- Adjustment and repair of axis.- Grinding and adjusting all guides, because of deterioration.- Grinding and adjusting of the guide ways of the ram.- Repairing o ...

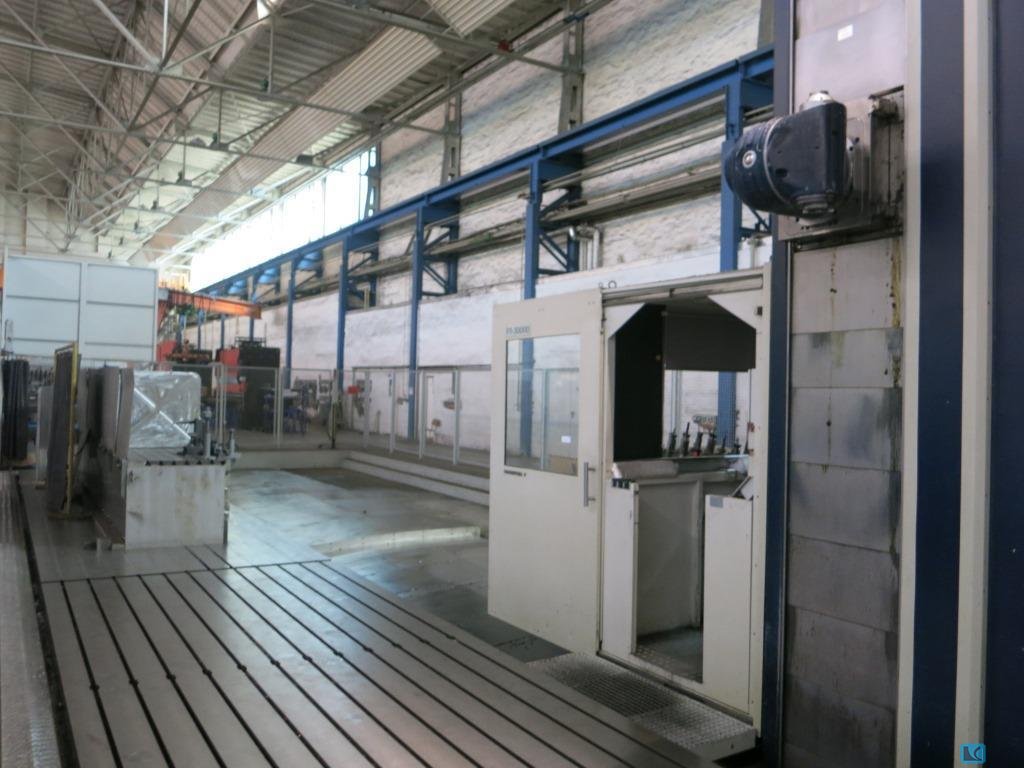

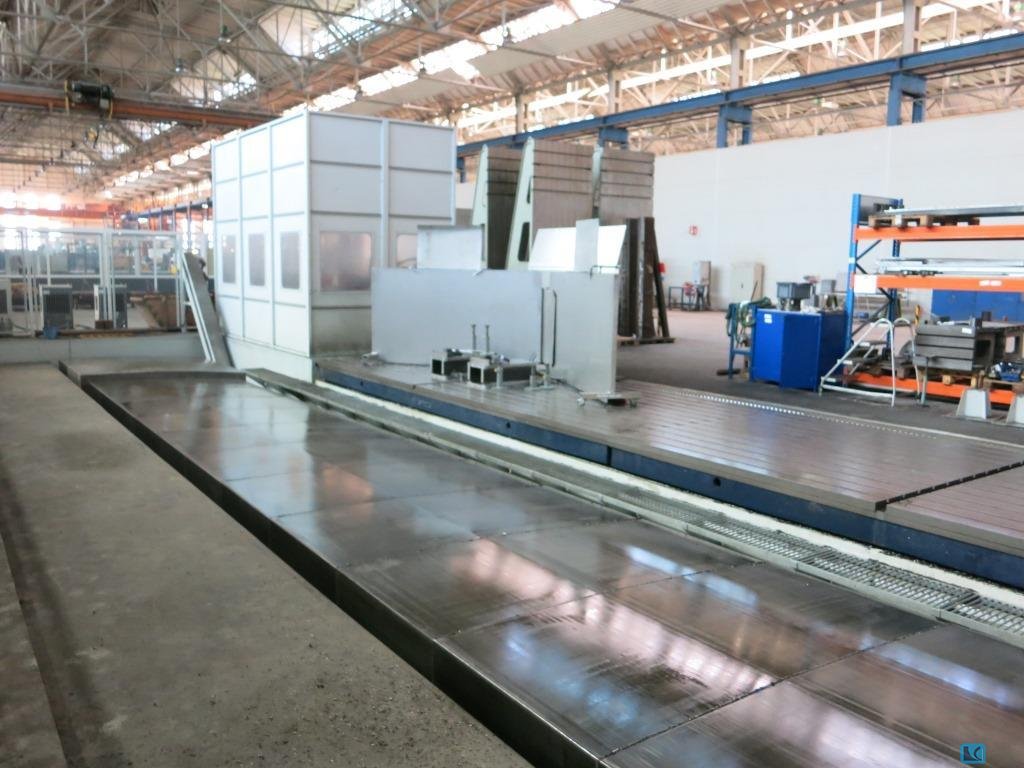

x-travel:30000 mmy-travel:3600 mmz-travel:1900 mmmilling head speed:1 - 4000 U/minspindle taper ISO:50 feed speeds:1 - 10000 mm/minrapid traverse:25 m/minmilling spindle motor:46 kWtotal power requirement:85 kWdimensions of the machine ca.:45 x 8,7 x 5,5 ü.F. mwith CNC HEIDENHAIN iTNC 530autom. milling head indexing 2,5° floor plate field 31000 x 2500 mm ( 4 floor plates 6000 x 2500 mm + 1 floor plate 7000 x 2500 mm )2 chip conveyors, coolant attachment
x-travel:2000 mmy-travel:1500 mmz-travel:1460 mmmilling spindle motor:35/30 kWspindle taper ISO:50 spindle turning speed range:24 - 3000 U/mintable surface area:1350 x 1550 mmtable load:6 tfeed speeds:10 - 3000 mm/minrapid speed:10 m/mintotal power requirement:48 kWweight of the machine ca.:24 tCNC HEIDENHAIN TNC 426B-axis table roundHoriz. and Vertikal automatic positioning Milling Headdiverses accessories
x-travel:3600 mmy-travel:1250 mmz-travel:1600 mmtable load capacity:8000 kptable clamping surface::4100 x 1050 feed range:10 - 5000 mm/minrapid traverse feeds:10000 mm/minspindle motor:29 kWspindle taper::ISO 50spindle turning speed range:5 - 4000 U/mintotal power requirement:70 kWweight of the machine ca.:28 tdimensions of the machine ca.:8,5 x 5,4 x 3,2 mMachine with Heidenhain TNC 430 Steuerung- tool changer 30-fold- milling head indexable 2,5°- 4. axis turn table
