Capacity, ton 1250 Stroke, mm 500 Min number of no-load stroke: 8 /per min Slider adjustment, mm 215 Max. shut height between bolster plate and slider (stroke down, adjustment up), mm 860 Table size, mm 1600 x 1850 Slider size, mm 1300 x 1400 Table gap size, mm 1100 x 1100 Distance between columns, mm 1630 Distance between slides, mm 1580 Cushion travel, mm 200 Cushion capacity, ton 200 main motor power, kW 90 Press weight, kg 130000

PKZZ 250 Double Column Crank stamping Press Completely overhauled. Electric and Control- Not available. Table 2500 x 1400 mm Ram 2320 x 1250 mm Distance between uprights 2525 mm Window in table width 2300 mm Window in table depth 850 mm Stroke 400 mm Strokes per minute SPM 12 Adjustment of ram 120 mm Shutheight 550 mm Table cushion force 50 to Cushion stroke 160 mm Motor 32 kW Weight ca. 39 tons

Capacity 100 ton Table 880x715 mm Max. sheet thickness 3 mm Stroke per min. 360 Stroke 25 mm Ram adjustment 70 mm Distance Ram-table 400 mm 15 kW Dimensions LxWxH 3300x1600x2600 mm Total weight 10 tons  ...

• more information

pressure: 100 t distance between columns: 400 mm stroke: 20 - 140 mm table surface area: 900 x 710 mm ram surface: 560 x 450 mm ram adjustment: 80 mm dayligth: 470 mm no. of strokes: 70 Hub/min total power requirement: 10,5 kW weight of the machine ca.: 9 t dimensions of machine L x W x H: 1,98 x 1,60 x 3,10 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Stage Press / Eccentric Press Erfurt Pressen Erfurt 3, Maintenance No. 156, press force 320 t, year of construction approx. 1980, with 15 press punches, electronic transfer line, conversion by PBK, system consisting of double unwinding reel PBK, straightener PBK, feed, blank cut (Machine is partially dismantled after defect, without tools)

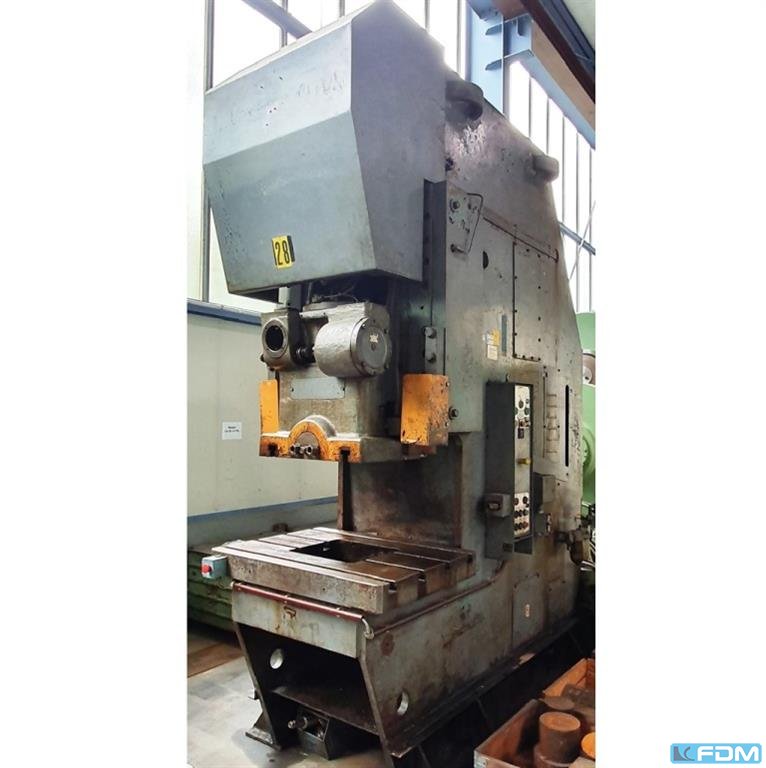

pressure:250 t throat:450 mm stroke:36 - 126 mm no. of strokes:40 /min distance table/ram, max. stroke up, adjustment up:525 mm table surface area:1000 x 750 mm hole in the table:400 x 360 mm table height over floor:1000 mm ram surface:600 x 500 mm ram adjustment:111 mm power requirement:19,0 kW weight:13,5 t Dimensions (WxDxH):1,3 x 3,2 x 3,35 m clutch:pneumatic overload protection in ram:mechanical ram adjustment:motoric

effort 250 ton stroke 315 mm slide adjustment 160 mm distance slide- table 800 mm die height 555 slide 620x950 mm table 800x1180 mm 28 kW Total weight 25t  ...

• more information

cutting effort 1000t the number of strokes (no load) 17 /min course a support of the blades 140mm Max. cutting diameter of rounded workpiece, mm 190 Max. cutting diameter of squared workpiece, mm 180 for 450 N/mm2. Machine weight, kg 60000  ...

• more information

cutting effort 800t the number of strokes (no load) 20 /min single strokes 16 /min course a support of the blades 125mm Main drive motor 55 kw in 1475 rev / min cutting power Strength of the material Tensile N/mm2 450 500 600 700 800 900 N/mm2 square mm 160 150 132 118 106 100 round mm 170 160 140 125 112 106 strip steel 425x 67 60 53 47 42 38 320 x 80

course of the blade slide 100 mm number of moves at idle position 25 / min Main drive motor 30 kw in 1480 rev / min cutting power Strength of the material Tensile N/mm2 450 500 600 700 800N/mm2 square mm 125 118 105 95 85 round mm 132 125 112 100 90 flat 375x 60 45 40 35 32 Weight 23,000 kg (50,692 lb) Length x width x height 1850 mm × 2450 mm × 3750 mm
