DMG MORI DMC 635 V Ecoline CNC machining center was built in 2014 in
Poland by FAMOT Pleszew Sp. z o.o. The machine, designed for precision
machining of workpieces, is the perfect solution for both unit and
series production. The machining process is performed fully
automatically by means of a reliable electro-spindle and tools taken
from a 20-position magazine. Process stability, in turn, is ensured by
an extremely rigid bed, which continuously eliminates any vibration
and oscillation. All this is complemented by an easy-to-use HEIDENHAIN
CNC control with many useful functions. The DMG MORI DMC 635V Ecoline
CNC vertical machining center weighs 3900 kg.
Technical specifications of the DMG MORI DMC 635 V Ecoline CNC milling
machine
- HEIDENHAIN TNC 620 CNC control with workpiece and machining 3D
simulation
- feed in the X/Y/Z axis: 635/510/460 mm
- rapid traverse in the X,Y,Z axis: 30 m/min
- work table dimensions (L x W): 790 x 560 mm
- maximum electro-spindle rotational speed: 12000 rpm
- electro-spindle drive power (40%/100%ED): 13/9 kW
- 20-position tool magazine with cup slots and double gripper
- tool holder: SK40 DIN69871
- tool clamping: acc. to DIN 69872
- PROGRESSline display of remaining machining time and number of
produced pieces

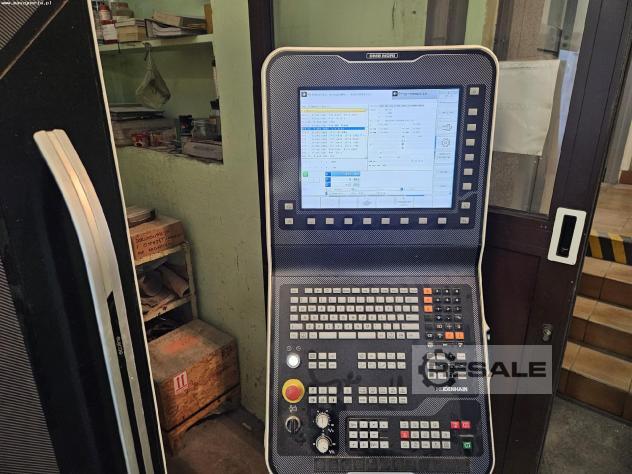

- DMG MORI SLIMline touchscreen control panel
- PLANONlight energy-saving LED lighting
- power supply: 400 V; 50 Hz
- weight of the DMC 635 V ECO machine: 3900 kg
