complete screw and barrel dia. 45 mm for Battenfeld /1000 injection moulding machine is good condition  ...

• more information

Battenfeld TM 100/525 Year of Make: 2007 Injection unit: Screw diameter: 40 mm Injection weight: 228.4 g Spray pressure: 2100 bar Dosing volume: 251 ccm Clamping unit: Clamping force: 100 t Spar spacing: 420x420 mm Size of the clamping plates: 640x640 mm Ejector: hydraulic Clamping unit: toggle lever Control: UNILOG B2 Additional equipment: Euromap 67 Robot interface Hydraulic core pull x 1 Control with hot runners x 12 Injection unit is wear-resistant and resistant to corrosion Central lubrication Automatic tool height adjustment Dimensions: Weight: 3900 kg Length/Width/Height: 4.46x1.33x1.78 m Drive: Pumps/motor: 18.5 kW Heating capacity: 12.1 kW Tot ...

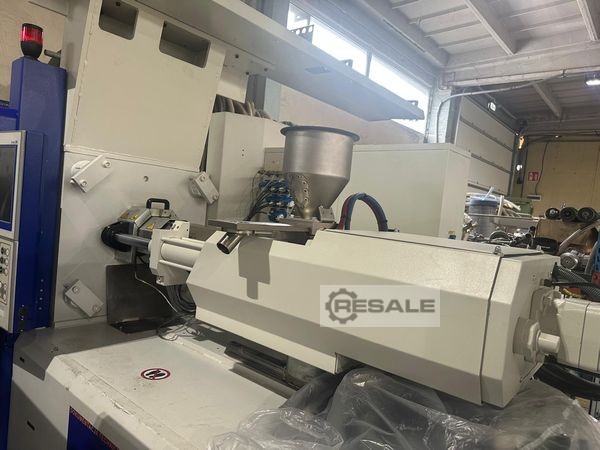

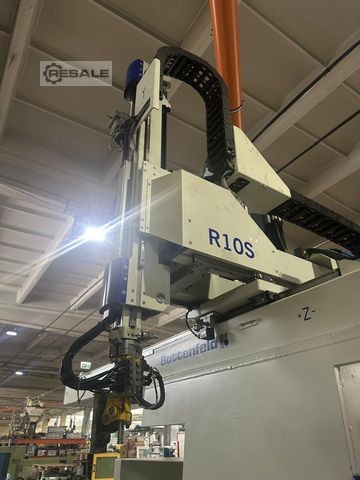

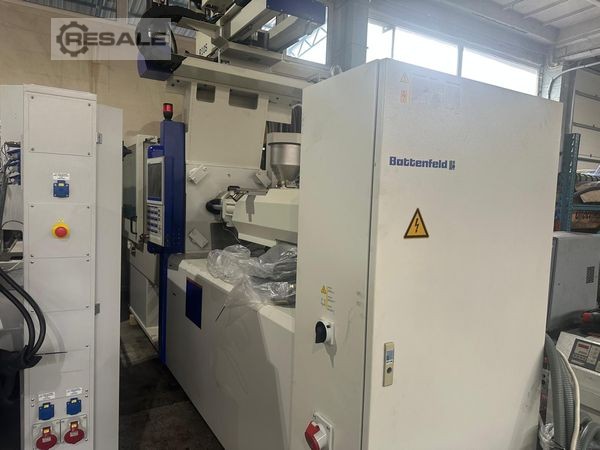

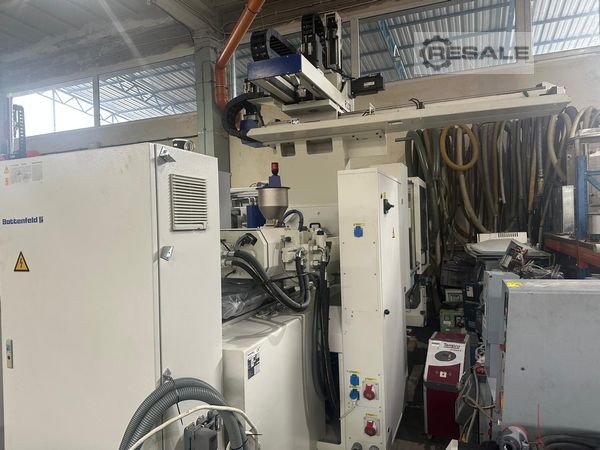

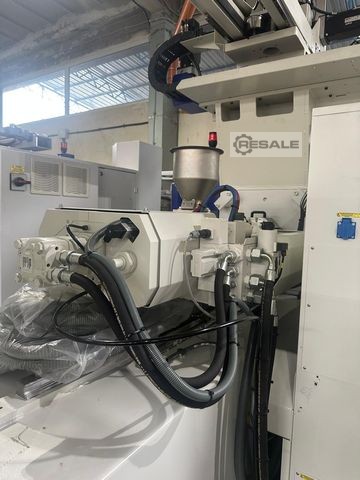

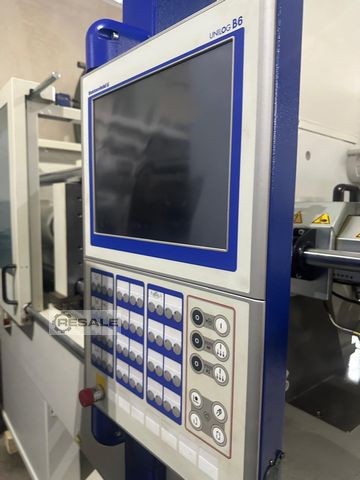

Battenfeld HM 100/525 with the Battenfeld R10S robot / Operating hours: approx. 19,000 in automatic mode Year of Make: 2008 Injection unit: Screw diameter: 40 mm Injection weight: 228.4 g Spray pressure: 2100 bar Dosing volume: 251 ccm Clamping unit: Clamping force: 100 t Handlebar spacing: 470x420 mm Size of the clamping plates: 680x663 mm Ejector: hydraulic Clamping unit: hydraulic Control: UNILOG B6 - Touch Screen Additional equipment: Machine in very good technical condition Operating hours: approx. 19,000 in automatic mode Total number of operating hours: 26,580 Euromap 67 Robot interface Air Valve x 1 Hydraulic core pull x 1 Injection unit is wear-resistan ...

Battenfeld VM 150/525 R1280 Servo Power / Vertical Injection Molding Machine with the Rotary Year of Make: 2015 Injection unit: Screw diameter: 35 mm Injection weight: 175.6 g Spray pressure: 2743 bar Dosing volume: 193 cc Clamping unit: Clamping force: 150 t Spar spacing: 0x0 mm Size of the clamping plates: 1280 mm Ejector: hydraulic Clamping unit: hydraulic Control: UNILOG B6 Additional equipment: Vertical Injection Molding Machine with the Rotary Molding Machine Hybrid machine: high-speed, energy-saving and very quiet Air Valve x 5 Hydraulic core pull x 1 Control with hot runners x 12 Injection unit is wear-resistant and resistant to corrosion Rotary table dia ...

Screw diameter 30 mm Foundation plan / installation plan (see machine layout above in the appendix), an extra foundation for the plant was not poured here Operating hours 12455h on 28.01.2021 Automatic cycle counter 743558 processed material PBT-GF 30 Ultradur B4300 G6 Q16 black Find more here - /

Battenfeld UTR 300 heating controller for control of Unilog 4000 B  ...

• more information

with spare screw, high-pressure hose and various spare parts - see pictures  ...

• more information

various spare parts incl. ...

• more information

The BATTENFELD BA 600 CDC injection molding machine was built in Austria in 2002. It is equipped with Unilog B4 control. It has a closing force of 600 kN forms. The screw diameter is 33 mm and the injection volume is 99 cm3. The machine has plates for mounting injection molds with dimensions of 511 x 511 mm, and the clearance between the columns is 320 x 320 mm. The injection molding machine is equipped with a receiving robot, hot runners, a conveyor belt for collecting moldings, four pillows, a string of cores and technical documentation. Technical parameters of the BATTENFELD BA 600 CDC injection molding machine – control: Unilog B4 – dimensions of tool plates: 511 x 511 mm – c ...

Wittmann Battenfeld Injection Moulding Machine Here we offer you a SmartPower 210/1330 Thermoset machine. Wittmann Battenfeld injection moulding machine with UNILOG B8 control system Plant was serviced by the manufacturer WITTMANN BATTENFELD Deutschland GmbH in January 2021 / checked and brought up to date As part of the complete review, various updates were installed and the hydraulic oil (600 liters) was refilled. In addition to the already normally existing pressure switches, the system consists of the possibility to install additional internal mold pressure switches 2 pieces Kistler module for mold internal pressure switching range 1: 20,000 pC, range 2: 10,000 pC). The par ...
