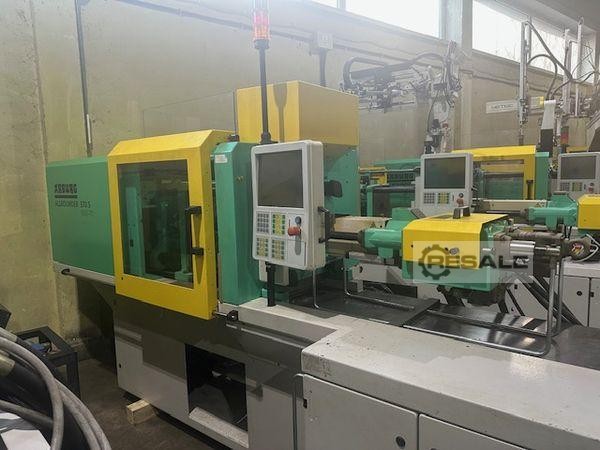

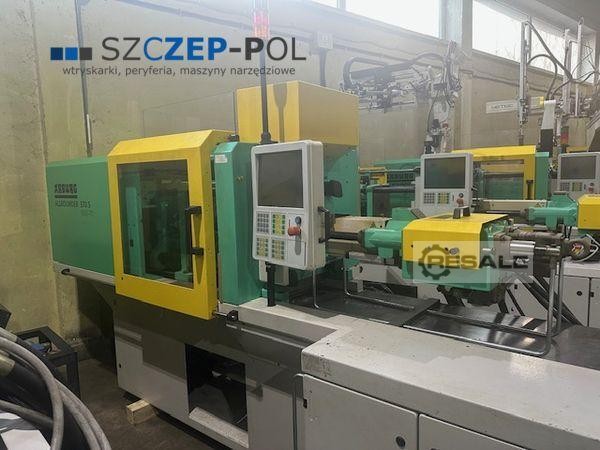

Arburg 370S 600-70 Year of Make: 2008 Injection unit: Screw diameter: 25 mm Injection weight: 40 g Spray pressure: 1550 bar Dosing volume: 44 ccm Clamping unit: Clamping force: 60 t Tiebar spacing: 370x370 mm Size of the clamping plates: 510x510 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Euromap 67 Robot interface Air Valve x 8 Hydraulic core pull x 1 Control with hot runners x 6 Hardened injection unit - Bimetal Built-in sorting flap Integrated original Arburg sprue picker on the side Possibility of adjusting the vertical injection unit with the help of special brackets It is possible to change the scr ...

Arburg 370S 500-100 Year of manufacture: 10.2010 Injection unit: Screw diameter: 30 mm Injection weight: 65 g Spray pressure: 1390 bar Dosing volume: 71 ccm Clamping unit: Clamping force: 50 t Tiebar spacing: 370x370 mm Size of the clamping plates: 510x510 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Euromap 67 Robot interface Hydraulic core pull x 1 Control with hot runners x 12 Injection unit is wear-resistant and resistant to corrosion Proportional valve on the injection unit – precise injection The machine worked in a clean production Dimensions: Weight: 3300 kg Length/Width/Height: 3.48x1.46x2.0 ...

Arburg 370S 500-70 Year of manufacture: 08.2010 Injection unit: Screw diameter: 25 mm Injection weight: 40 g Spray pressure: 1550 bar Dosing volume: 44 ccm Clamping unit: Clamping force: 50 t Tiebar spacing: 370x370 mm Size of the clamping plates: 510x510 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Euromap 67 Robot interface Air Valve x 8 Hydraulic core pull x 1 Control with hot runners x 6 Hardened injection unit - Bimetal Possibility of adjusting the vertical injection unit with the help of special brackets It is possible to change the screw diameter to 22, 25 or 30 mm Dimensions: Weight: 3170 kg Le ...

Manufacturer/Manufacturer: Arburg Type/Type: 370C 600-250 Bau-year year: 1999 Control/Controller: Selogica Clothing Power/Clamping Force: 600 kN Schliessart/Clamping Type: Hydraulisch/Hydraulic Holmabstand/Dist.Betw.Tiebars: 370 mm x 370 mm Plate Groesse/Platen Size: 570 mm x 570 mm WZ Einbauhoehe/Mould hight: min 250 mm Oeff-weg/opening stroke: 500 mm Plate distance max/Max. Open Daylight: 750 mm Snail/Screw size: 40 mm Lifting volume/shot volume: 188 cc/158 gram hp Spez. Spray./injection pressure: 1900 bar General General Motor/Motor Power: 11 kW Heating/heating power: 8.1 kW Dimensions: 4.3 m x 1.7 m x 1.8 m Weichtt/Weight: 3180 kg Screen text/Language: Deutsch/Germa ...

Manufacturer/Manufacturer: Arburg Type/Type: 370C 600-250 Bau-year/Year: 2000 Control/Controller: Selogica Clothing Power/Clamping Force: 600 kN Schliessart/Clamping Type: Hydraulisch/Hydraulic Holmabstand/Dist.Betw.Tiebars: 370 mm x 370 mm Plate Groesse/Platen Size: 570 mm x 570 mm WZ Einbauhoehe/Mould hight: min 250 mm Oeff-weg/opening stroke: 500 mm Plate distance max/Max. Open Daylight: 750 mm Snail/Screw size: 40 mm Lifting volume/shot volume: 188 cc/158 gram hp Spez. Spray./injection pressure: 1900 bar General General Motor/Motor Power: 11 kW Heating/heating power: 8.1 kW Dimensions: 4.3 m x 1.7 m x 1.8 m Weichtt/Weight: 3180 kg Screen text/Language: Deutsch/Germa ...

Manufacturer: Arburg Type: 320 C 600 - 250 Year of construction: 2003 Control: Selogica Closing type: Hydraulic Closing force: 600 kN Tie bar spacing: 320 mm x 320 mm Plate size: 446 mm x 446 mm Tool height: min 200 mm Opening distance: 350 mm Plate spacing max.: 550 mm Screw: 35 mm Stroke volume: 106 ccm / 89 gram PS Injection pressure: 2470 bar general Engine: 15 kW Heating: 5.5 kW Dimensions: 3.4 m x 1.5 m x 1.6 m Weight: 2080 kg Screen text: German Optional extras Core train x1 Robot interface Sorting flap Hot channel integrated

Manufacturer: Arburg Type: 370 C 600 - 250 Year of production: 2004 Control: Selogica Closing type: Hydraulic Closing force: 600 kN Tie bar spacing: 370 mm x 370 mm Plate size: 570 mm x 570 mm Tool height: min 250 mm Opening distance: 500 mm Max distance between plates: 750 mm Screw: 40 mm Stroke volume: 188 ccm / 172 gram PS Injection pressure: 1390 bar General Motor: 11 kW Heating: 5,5 kW Dimensions: 4,2 m x 1,5 m x 1,7 Weight: 3400 kg Screen text: German

clamping force: 600 kN injection volume: 144 cm³ screw diameter: 35 mm platen size: 570 x 570 mm closing stroke: 500 mm Condition: used Specification: Horizontal injection moulding machine clamping unit: - Clamping force max.: 600 kN - clamping platens: 570 x 570 mm - clear column distance: 370 x 370 mm - Distance between the mould mounting platens: 750 mm - Mould installation height: 250 mm - Opening stroke max.: 500 mm - Ejector travel hyd. Ejector stroke: 175 mm - Ejector force max.: 40 kN Injection unit: - Screw diameter: 35 mm - Screw length: 20D - Screw stroke max.: 150 mm - Max. dosing volume: 144 cm³ - Moulded  ...

Arburg 320C-600-250 Injection Moulding Machine Number: 238 Availability: in stock Year of production: 2008 Producer: Arburg Screw diameter[mm]:35 Injection weight [g]: 132 Injection pressure [bar]: 1820 Gap spacing [mm]: 320×320 Panel size [mm]: 446 x 446 Min. Form Height [mm]: 200 Control Type: Selogica Tongue: German Installed power [kW]: 23.9 Working hours [h]: 76550 Weight [kg]: 2330 Dimensions [mm]: 3500×1500 Feed hopper: NO Robot Nest: Yes Core String: 1x

Injection moulding machine Arburg 320C 600/250 BJ 2002  ...
