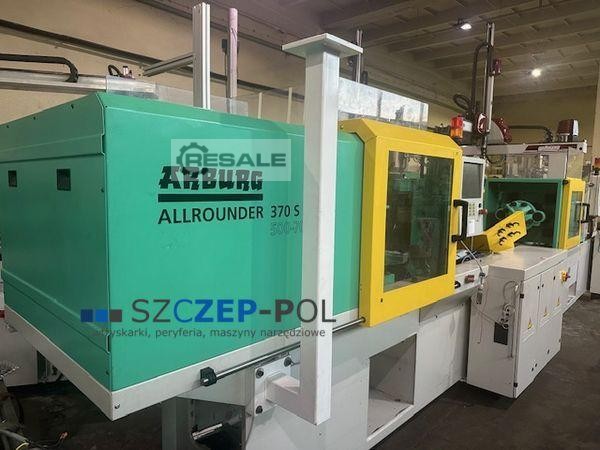

Arburg 370S 500-100 Year of manufacture: 10.2010 Injection unit: Screw diameter: 30 mm Injection weight: 65 g Spray pressure: 1390 bar Dosing volume: 71 ccm Clamping unit: Clamping force: 50 t Tiebar spacing: 370x370 mm Size of the clamping plates: 510x510 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Euromap 67 Robot interface Hydraulic core pull x 1 Control with hot runners x 12 Injection unit is wear-resistant and resistant to corrosion Proportional valve on the injection unit – precise injection The machine worked in a clean production Dimensions: Weight: 3300 kg Length/Width/Height: 3.48x1.46x2.0 ...

Arburg 370S 500-70 Year of manufacture: 08.2010 Injection unit: Screw diameter: 25 mm Injection weight: 40 g Spray pressure: 1550 bar Dosing volume: 44 ccm Clamping unit: Clamping force: 50 t Tiebar spacing: 370x370 mm Size of the clamping plates: 510x510 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Euromap 67 Robot interface Air Valve x 8 Hydraulic core pull x 1 Control with hot runners x 6 Hardened injection unit - Bimetal Possibility of adjusting the vertical injection unit with the help of special brackets It is possible to change the screw diameter to 22, 25 or 30 mm Dimensions: Weight: 3170 kg Le ...

Arburg 370S 600-70 Year of Make: 2008 Injection unit: Screw diameter: 25 mm Injection weight: 40 g Spray pressure: 1550 bar Dosing volume: 44 ccm Clamping unit: Clamping force: 60 t Tiebar spacing: 370x370 mm Size of the clamping plates: 510x510 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Euromap 67 Robot interface Air Valve x 8 Hydraulic core pull x 1 Control with hot runners x 6 Hardened injection unit - Bimetal Built-in sorting flap Integrated original Arburg sprue picker on the side Possibility of adjusting the vertical injection unit with the help of special brackets It is possible to change the scr ...

Manufacturer/Manufacturer: Arburg Typ/Type: 320S 500-350 Bau-year year: 1998 Control/Controller: Selogica Clothing Power/Clamping Force: 500 kN Schliessart/Clamping Type: Hydraulisch/Hydraulic Holmabstand/Dist.Betw.Tiebars: 320 mm x 320 mm Plate Groesse/Platen Size: 446 mm x 446 mm WZ Einbauhoehe/Mould hight: min 225 mm Oeffning weg/opening stroke: 350 mm Plate distance max/Max. Open Daylight: 575 mm Snail/Screw size: 40 mm Lifting volume/shot volume: 182 cm/153 gram hp Spez. Spray./injection pressure: 2050 bar General General Motor/Motor Power: 18.5 kW Heating/heating power: 6.3 kW Dimensions: 3.7 m x 1.2 m x 2.1 m Weicht/Weight: 2600 kg Screen text/Language: Deutsch/G ...

Manufacturer: Arburg Type: 320 C 500 - 170 Year of construction: 11/2006 Control: Selogica Closing type: Hydraulic Closing force: 500 kN Tie bar spacing: 320 mm x 320 mm Plate size: 446 mm x 446 mm Tool height: min 200 mm Opening distance: 350 mm Plate spacing max.: 550 mm Screw: 35 mm Lifting volume: 115 ccm / 105 gram PS Injection pressure: 1470 bar general Engine: 11 kW Heating: 9.4 kW Dimensions: 3.4 m x 1.4 m x 1.9 m Weight: 2430 kg Screen text: German Additional equipment Core train x1

clamping force: 500 kN injection volume: -- cm³ screw diameter: 25 mm platen size: 400 x 400 mm Condition: used, Specification: horizontal injection molding machine, - used injection unit: - Screw diameter: 25 mm - shot volume max.: -- cm³ - injection pressure approx.: 1290 bar - heating zones: 4 - Heating power: 4 kW clamping unit: - clamping force: 500 kN - opening stroke max.: 325 mm - platen distance max.: 550 mm - clamping platen size approx.: 400 x 400 mm - tie bar distance: 270 x 270 mm - pump motor: 15 kW - total power: 19 kW - operating voltage: 380V, 50Hz - Weight approx.: 1.870 kg The data  ...

Manufacturer: Arburg Type: 320 C 500 - 150 Year of production: 2000 Control: Selogica Closing type: Hydraulic Closing force: 500 kN Tie bar spacing: 320 mm x 320 mm Plate size: 498 mm x 498 mm Tool height: min 225 mm Opening distance: 350 mm Plate spacing max.: 575 mm Screw: 35 mm Stroke volume: 106 ccm / 89 gram PS Injection pressure: 1610 bar General Motor: 15 kW Heating: 4,8 kW Dimensions: 3.4 m x 1.4 m x 1.7 m Weight: 2250 kg Screen text: German Additional equipment: Machine with handling Multilift Robotinterface Core pull hydraulic: x1 Air valve: Yes Tool heater x 6 Conveyor

Manufacturer: Arburg Type: 320 C 500 - 250 Year of production: 2002 Control: Selogica Closing type: Hydraulic Closing force: 500 kN Tie bar spacing: 320 mm x 320 mm Plate size: 446 mm x 446 mm Tool height: min 200 mm Opening distance: 350 mm Max distance between plates: 550 mm Screw: 35 mm Stroke volume: 144 ccm / 132 gram PS Injection pressure: 1820 bar General Motor: 15 kW Heating: 6,5 kW Dimensions: 3,4 m x 1,4 m x 1,7 m Weight: 2830 kg Screen text: German Additional equipment Robot interface Core pull hydraulic: x1

Injection moulding machine Arburg 270 D 500-210 with control cabinet, functional, built in 1990, power 20kW, weight 1,850 kg, Clamping force 500 kn  ...

• more information

Used machine in good condition. Available for immediate delivery. - Screw diameter: 30 mm - Shot weight max: 97 g - Injection volume: 106 cm? - Clamping force: 500 kN - Daylight between platens max: 550 mm - Platen size (h x v): 446 x 446 mm - Distance between tie-bars (h x v): 320 x 320 mm - Power: installed max: 21,5 kW - Dimensions (long x wide x high): 3.410 x 1.475 x 1.990 mm - Weight: 2.330 kg
