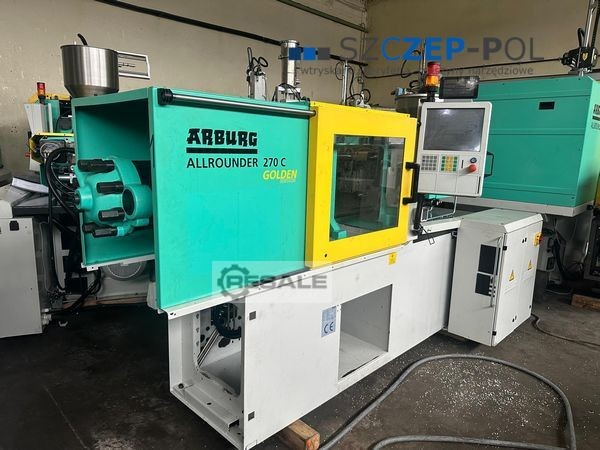

Arburg 270C 400-70 Year of Make: 2007 Injection unit: Screw diameter: 22 mm Injection weight: 31 g Spray pressure: 2000 bar Dosing volume: 34 ccm Clamping unit: Clamping force: 40 t Tiebar spacing: 270x270 mm Size of the clamping plates: 446x446 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Euromap 67 Robot interface Air Valve x 2 Hydraulic core pull x 1 Control with hot runners Hardened injection unit - Bimetal Proportional valve on the injection unit – precise injection It is possible to change the screw diameter Dimensions: Weight: 2370 kg Length/Width/Height: 2.99x1.43x1.98 m All offered machin ...

Arburg 270C 400-70 e² with the Arburg Multilift robot / hybrid machine Year of Make: 2016 Injection unit: Screw diameter: 22 mm Injection weight: 31 g Spray pressure: 2000 bar Dosing volume: 34 ccm Clamping unit: Clamping force: 40 t Tiebar spacing: 270x270 mm Size of the clamping plates: 446x446 mm Ejector: hydraulic Clamping unit: hydraulic Control: SELOGICA - Touchscreen Additional equipment: Hybrid machine: energy-saving and very quiet Euromap 67 Robot interface Air Valve x 2 Hydraulic core pull x 1 Hardened injection unit - Bimetal Main motor of the machine - Servo motor driven by inverter - Energy saving Proportional valve on the injection unit – precis ...

2007 Arburg 270C 300-100 Manufacturer: Arburg Type: 270C 300-100 Machine running time / h: 59885 Construction year: 2007 Locking force (KN): 300 Screw diameter [mm]: 20 Injection weight [g]: 28 max. spec. Spray pressure [bar]: 2500 max. Dosiervolumen [cm³]: 31 Centering DS / AS [mm]: 110 / 110 Knee lever yes/no: NO max. opening distance [mm]: 550 Find more here - / Contact us at -

Manufacturer: Arburg Type: 270C 400 - 100 Built: 2000 Control: Selogica Closing force: 400 kN Closing type: Hydraulic Tie bar distance: 270 mm x 270 mm Plate size: 446 mm x 446 mm Tool installation height: min 200 mm Opening distance: 350 mm Plate spacing max.: 550 mm Screw: 30 mm Lifting volume: 70 cc / 64 gram hp Spray pressure: 1550 bar General Engine: 11 kW Heating: 5.9 kW Dimensions: 3.42 m x 1.5 m x 1.7m Weight: 1980 kg Screen text: German Additional equipment Core train: x1 Robot interface

Manufacturer: Arburg Type: 270 C 400 - 100 Year of construction: 1998 Control: Selogica Closing force: 400 kN Closing type: Hydraulic Tie bar spacing: 270 mm x 270 mm Plate size: 446 mm x 446 mm Tool height: min 200 mm Opening distance: 350 mm Plate spacing max.: 550 mm Screw: 30 mm Stroke volume: 70 ccm / 64 gram HP Injection pressure: 1550 bar general Engine: 11 kW Heating: 5.9 kW Dimensions: 3.42 m x 1.5 m x 1.7m Weight: 1980 kg Screen text: German Additional equipment Core train: x1

Arburg 520S-1500-400 (217) General information SKU: (217) Availability: In stock Year of construction: 2008 Brand: Arburg Specifications Spray weight: 141 g Clamping force: 1,500 kN Screw diameter: 35 mm Spray pressure: 2000 bar Tie bar spacing: 520 x 520 mm Clamping plate size: 688 x 688 mm Tool installation height min.: 250 mm Control: Selogica Language: English,German Power: 33.9 kW Hours: 45343 h Weight: 6490 kg Dimensions: 4.9 x 1.7 m Funnel: No Core Train: Yes Euromap: Yes Air Valve: Yes Heating cans: Yes C90fn8e

Manufacturer: ARBURG Type: Allrounder 630 H 2500-400 Control: Selogica Year of Make: 2019 Technical data closing page Clamping force: 2500 kN Wooden dimensions h x v: 630 x 630 mm Panel size h x v: 900 x 900 mm Min. installation height: 300 mm Max. installation height: 750 mm Plate spacing max.: 1300 mm Opening travel: 550 mm Ejector stroke: 225 mm Ejector force: 86 kN Centering of movable plate D: 160 mm Centering fixed plate D: 160 mm Technical Data Spray Side Screw diameter: 40 mm Displacement: 201 cc Spray pressure: 2000 bar Worm torque: 550 N Outdoor injection flow: 251 g/s hp Dimensions & Weight Machine dimensions LxWxH: 7.05m x 2.05m x 2.35m Total Weight: ...

An almost like-new injection moulding machine Arburg is available. Clamping force: 1600kN, tie bar distance: 520mm, clamping stroke: 364mm, ejector stroke: 150mm, ejector force: 40kN, injection unit: 400, injection pressure: 2500bar. Machine dimensions X/Y/Z: approx. 6000mm/1800mm/2200mm, weight: approx. 6000kg, control: Selogica, operating hours: approx. 67h. Includes enclosure with clean air supply FilterFanUnit and removal robot. Documentation available. An on-site inspection is possible.

clamping force: 1500 kN injection volume: 141 g/PS screw diameter: 35 mm platen size: 470 x 470 mm Condition: used, Specification: horizontal injection moulding machine, Type: Allrounder 470C 1500-400 GE GOLDEN EDITION Injection unit: - Screw diameter: 35 mm (wear-resistant) - Centring ring diameter: 125 mm - Max. shot weight: 141 g (PS) - Injection pressure: 2,500 bar Closing unit: - Clamping force: 1,500 kN - Max. opening stroke: 750 mm - Mould installation height: min. 250 mm - Mould clamping plates: 470 x 470 mm - Approx. operating hours: 79,000 h (still in use) - Operating voltage: 3x 400 V, 50 Hz - Nominal motor heating current: 7 ...

ARBURG ALLROUNDER 520 H 1500-400 (2015) Injection molding machine + WITTMANN ROBOT + Conveyor belt In operation Hours: 68946 h. Clamping force: 1500 kN Clamping unit 520 H Opening force / stroke: 450 mm. Fixed / variable mould mounting height: 250-550 mm. Fixed / variable platen spacing: 700-1000 mm. Column spacing: 520 x 520 mm Mold clamping platens (width x height) 695 x 695 mm. Weight of movable mould half: 1000 kg max. Force – Ejector stroke: 40 kN – 175 mm Idle cycle time: Conformt Min 1.5 – s- 364 Screw diameter: 40 mm. Effective screw length: 20 L/D Screw stroke: 160 mm. Calculated injection volume: 201 cm3 Weight per injection: 184 g. Ps. Material flow rate: 2 ...
