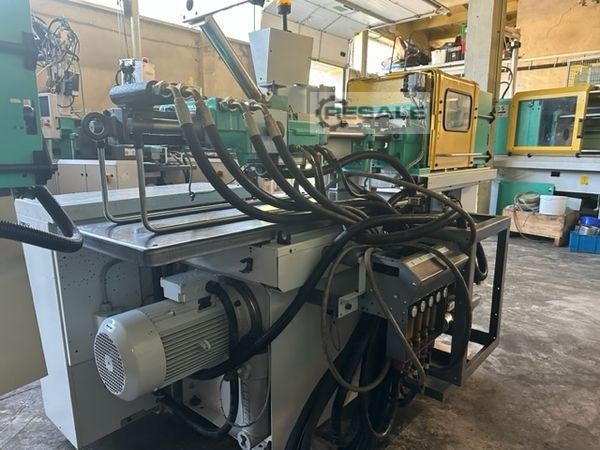

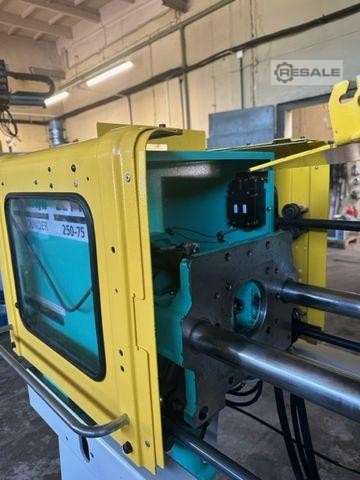

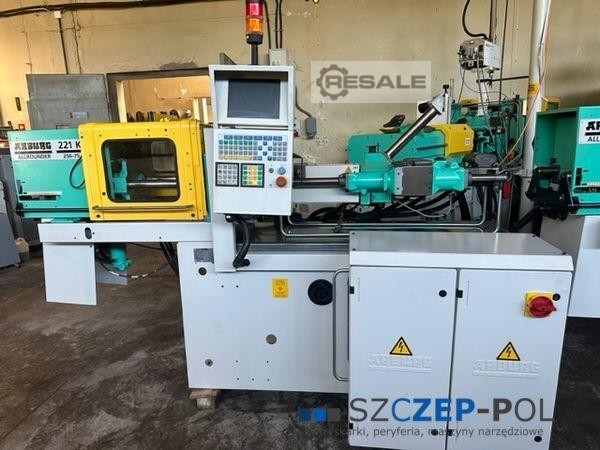

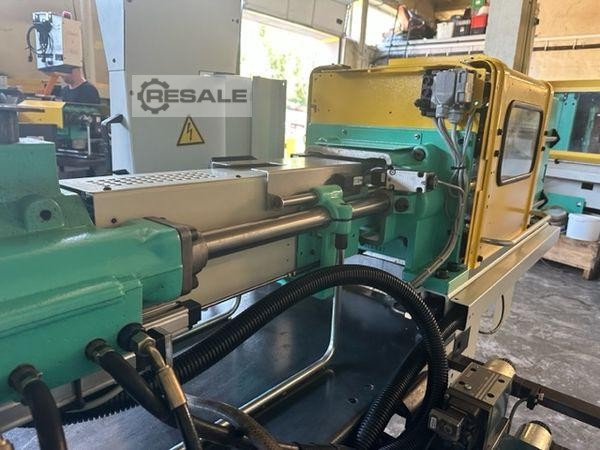

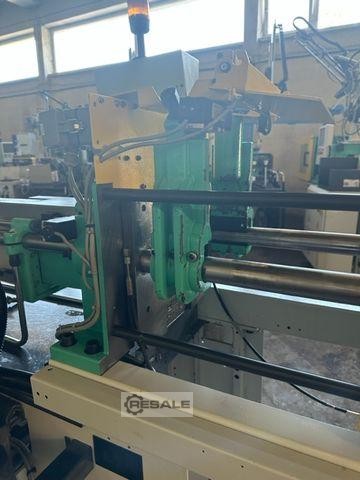

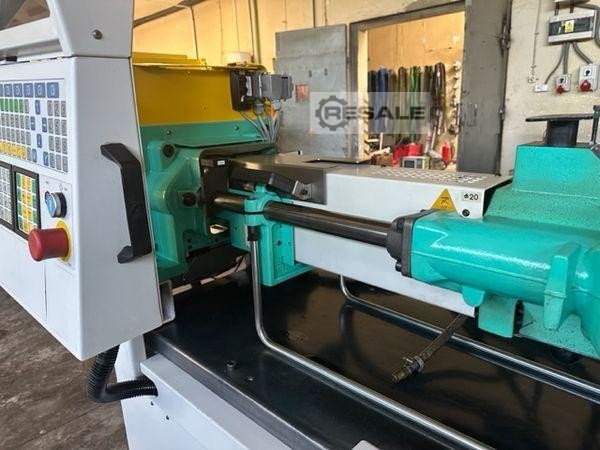

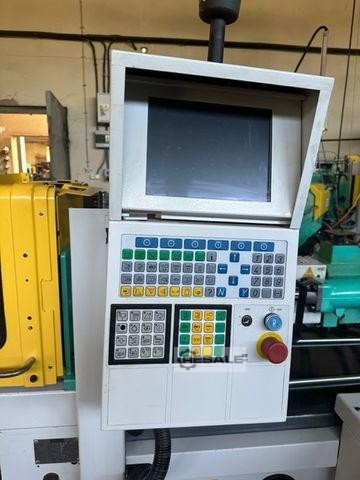

Arburg 221KS 250-75 / Universal machine Year of Make: 1999 Injection unit: Screw diameter: 20 mm Injection weight: 26 g Spray pressure: 2350 bar Dosing volume: 31 ccm Clamping unit: Clamping force: 25 t Tiebar spacing: 221 mm Size of the clamping plates: 342x250 mm Ejector: hydraulic Clamping unit: toggle lever Control: SELOGICA Additional equipment: Universal machine - injection unit can run both vertically and horizontally Control with air valve Core train control Hardened injection unit - Bimetal Clamp for fastening the injection unit vertically Dimensions: Weight: 1150 kg Length/Width/Height: 2.63x1.34x1.93 m Drive: Pumps/motor: 5.5 kW Heating power: 4. ...

Awaiting refurbishment is this Arburg 221KS 350/100 U injection moulding machine. Fitted with a Selogica controller. This is a universal machine from Arburg which allows for the clamp unit to be pivoted vertically, ideally suited to insert moulding. These small machines are sought after for the many moulding options they can suit, from a very compact machine. Occasional vertical moulding requirement? These machines are ideal. In standard horizontal configuration, they operate the same as any traditional machine. Any machines awaiting refurbishment with us can be reserved with a 10% deposit and we then prioritise the refurbishment and aim to have the machine available for inspection within ...

Manufacturer/Manufacturer: Arburg Type/Type: 370C 600-250 Bau-year year: 1999 Control/Controller: Selogica Clothing Power/Clamping Force: 600 kN Schliessart/Clamping Type: Hydraulisch/Hydraulic Holmabstand/Dist.Betw.Tiebars: 370 mm x 370 mm Plate Groesse/Platen Size: 570 mm x 570 mm WZ Einbauhoehe/Mould hight: min 250 mm Oeff-weg/opening stroke: 500 mm Plate distance max/Max. Open Daylight: 750 mm Snail/Screw size: 40 mm Lifting volume/shot volume: 188 cc/158 gram hp Spez. Spray./injection pressure: 1900 bar General General Motor/Motor Power: 11 kW Heating/heating power: 8.1 kW Dimensions: 4.3 m x 1.7 m x 1.8 m Weichtt/Weight: 3180 kg Screen text/Language: Deutsch/Germa ...

Manufacturer/Manufacturer: Arburg Typ/Type: 370C 800-250 Bau-year year: 2003 Control/Controller: Selogica Clothing kraft/Clamping Force: 800 kN Schliessart/Clamping Type: Hydraulisch/Hydraulic Holmabstand/Dist.Betw.Tiebars: 420 mm x 420 mm Plate Groesse/Platen Size: 570 mm x 570 mm WZ Einbauhoehe/Mould hight: min 250 mm Oeff-weg/opening stroke: 500 mm Plate distance max/Max. Open Daylight: 750 mm Snail/Screw size: 34 mm Lifting volume/shot volume: 144 cc/132 gram hp Spez. Spray./injection pressure: 1820 bar General General Motor/Motor Power: 15 kW Heating/heating power: 8.6 kW Dimensions: 4.2 m x 1.7 m x 1.8 m Weichtt/Weight: 3180 kg Screen text/Language: Deutsch/German ...

In our stock in Wellingborough, Northamptonshire is this fully refurbished Arburg 420C 1000 – 250 VU injection moulding machine with vertical clamp and injection. Ideal for insert moulding as an operator can easily and ergonomically load inserts. The vertical clamp means inserts are more likely to stay in place. This machine has a 30mm plasticising unit which gives a maximum shot weight of 89 (PS) (g). As you’d expect from us, this machine has been fully refurbished and is now completely fault & leak free. With low lifetime hours of only 23k, it really is in excellent condition throughout. The plasticising unit is holding max pressure throughout the range, the pump is quiet, the platens ...

Manufacturer: Arburg Type: 370 C 600 - 250 Year of production: 2004 Control: Selogica Closing type: Hydraulic Closing force: 600 kN Tie bar spacing: 370 mm x 370 mm Plate size: 570 mm x 570 mm Tool height: min 250 mm Opening distance: 500 mm Max distance between plates: 750 mm Screw: 40 mm Stroke volume: 188 ccm / 172 gram PS Injection pressure: 1390 bar General Motor: 11 kW Heating: 5,5 kW Dimensions: 4,2 m x 1,5 m x 1,7 Weight: 3400 kg Screen text: German

Nv. Num. : 7150 Type: ALLROUNDER 275 V 250 Producer: ARBURG Generated: Parameters: Clamping force: 250 kN Height of clamping plate: 150-250 mm Ejector stroke length: 225 mm Opening the mold: 375-475 mm  ...

• more information

clamping force: 600 kN injection volume: 144 cm³ screw diameter: 35 mm platen size: 570 x 570 mm closing stroke: 500 mm Condition: used Specification: Horizontal injection moulding machine clamping unit: - Clamping force max.: 600 kN - clamping platens: 570 x 570 mm - clear column distance: 370 x 370 mm - Distance between the mould mounting platens: 750 mm - Mould installation height: 250 mm - Opening stroke max.: 500 mm - Ejector travel hyd. Ejector stroke: 175 mm - Ejector force max.: 40 kN Injection unit: - Screw diameter: 35 mm - Screw length: 20D - Screw stroke max.: 150 mm - Max. dosing volume: 144 cm³ - Moulded  ...

Used machine in good condition. Available for immediate delivery. - Screw diameter: 30 mm - Shot weight max: 97 g - Injection volume: 106 cm? - Clamping force: 500 kN - Daylight between platens max: 550 mm - Platen size (h x v): 446 x 446 mm - Distance between tie-bars (h x v): 320 x 320 mm - Power: installed max: 21,5 kW - Dimensions (long x wide x high): 3.410 x 1.475 x 1.990 mm - Weight: 2.330 kg

Arburg 320C-600-250 Injection Moulding Machine Number: 238 Availability: in stock Year of production: 2008 Producer: Arburg Screw diameter[mm]:35 Injection weight [g]: 132 Injection pressure [bar]: 1820 Gap spacing [mm]: 320×320 Panel size [mm]: 446 x 446 Min. Form Height [mm]: 200 Control Type: Selogica Tongue: German Installed power [kW]: 23.9 Working hours [h]: 76550 Weight [kg]: 2330 Dimensions [mm]: 3500×1500 Feed hopper: NO Robot Nest: Yes Core String: 1x
