taşlama makineleri kullanılmış satılık (2,321)

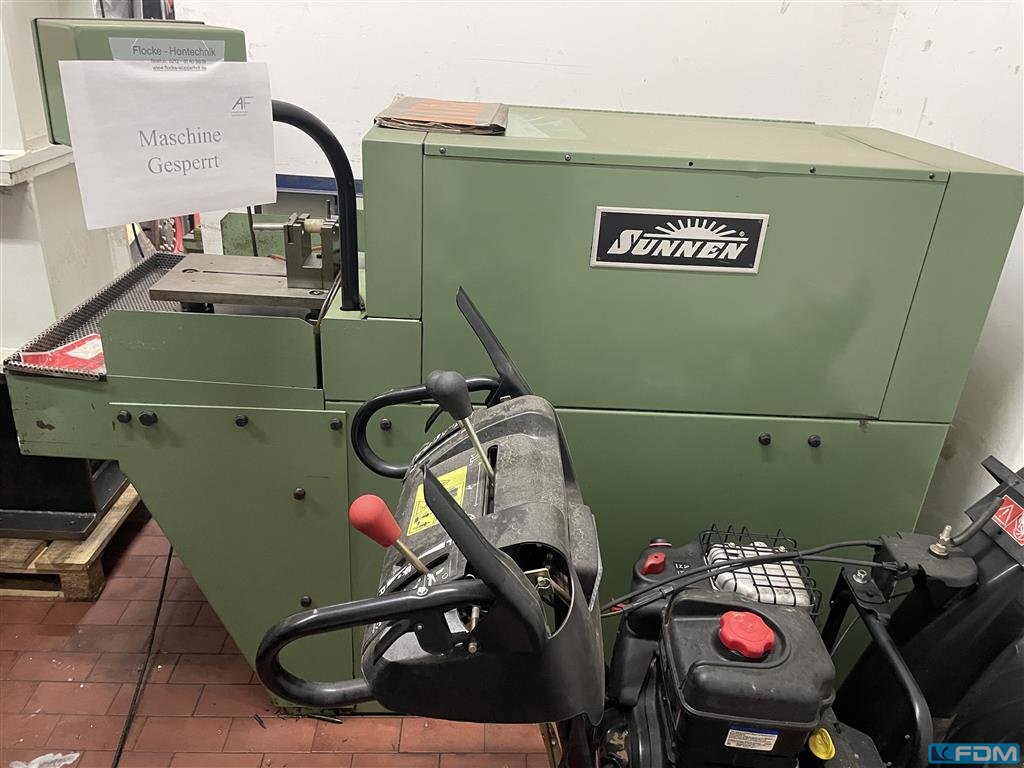

honing diameter:51 mmstroke:300 mmspindle speeds::600 - 3000 U/minfeed range:1500 - 5000 mm/minspindle drive:1,1 kWweight of the machine ca.:0,8 ttotal power requirement:4 kWdimensions of the machine ca.:1,1 x 1,9 x 1,5 m

: neu : ca. 2 Wochen ab Auftragse : Italien : 17940 €: 344.45 €: Dm. 200x78x78 mm: 2800 1/min: 300 mm: 300x150x55 mm: 350x150 mm: 500x160 mm: 3.6 kW: 1020 mm: 820 mm: 2170 mm: 440 kgThis Grinding machine with fixed table derives from the model R.V. 500 but it differs from it as it isequippedwith a long column supported by four bearings and is opportunely stiffenedby a sturdy column support.This Surface grinding machine, due to its stiffness and geometrical stability,is highly suitable for grinding with precision pieces of notable height: single or mass-produceddie-shop components, moulds, punches, gears and others.Moreover, the nuts of the vertical translation screw and the dowels to realign the wheel motorto the axis,equipping this model of Grinding machine with fixed table,allow preserving perfect work conditions over the years, too.CAST IRON BED to maintain the geometric stability ...

grinding diameter:300 mmgrinding length:600 mmcentre height:190 mmz-axis:865 mmx-axis:250 mmclamping length:1000 mmperipheral speed:45 m/secgrinding slide swivable +/-:8 °grinding wheel width x diameter:80 x 508 mmwork piece spindle speed:1 - 800 U/minweight of the machine ca.:5 tMachine with SIemens 840 C control- coolant device- Marposs measuring device

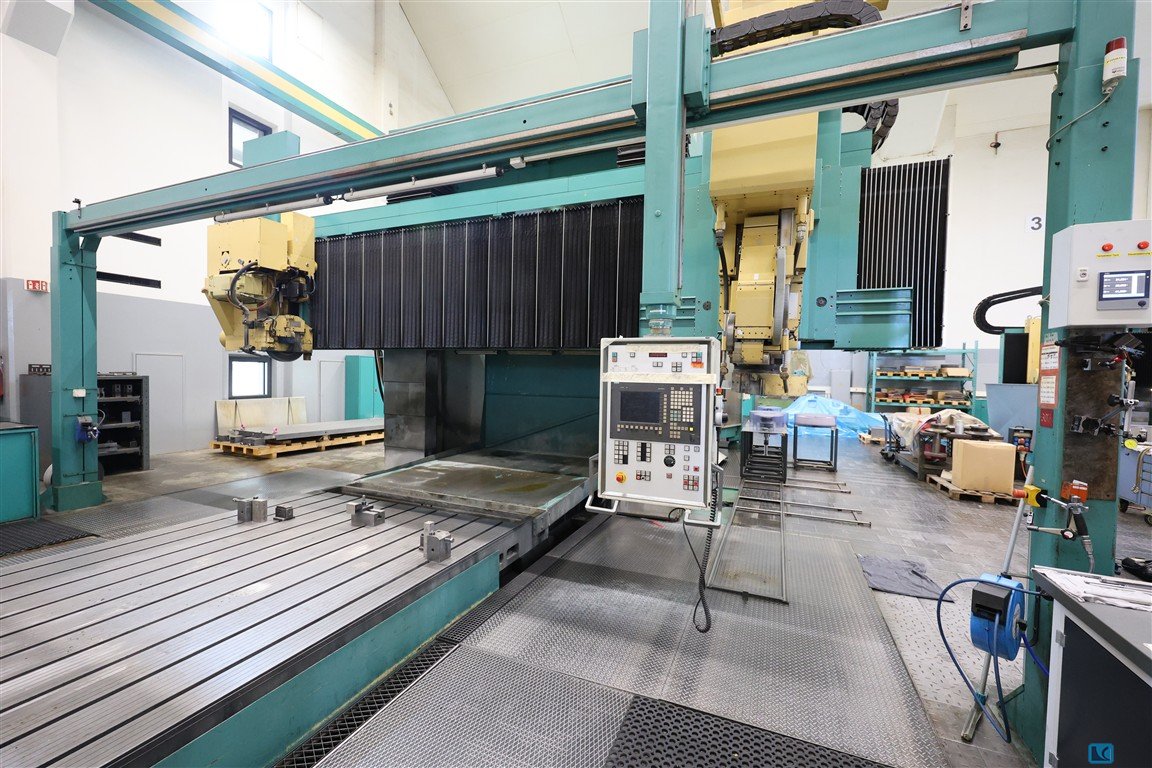

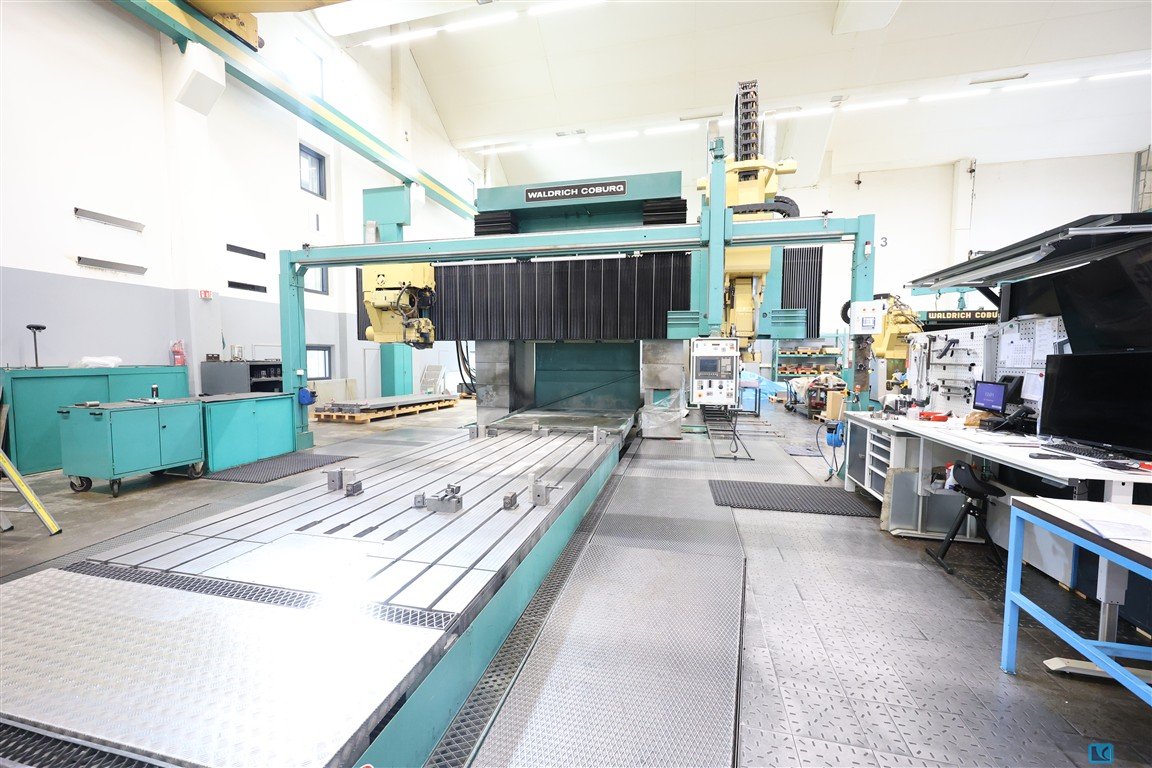

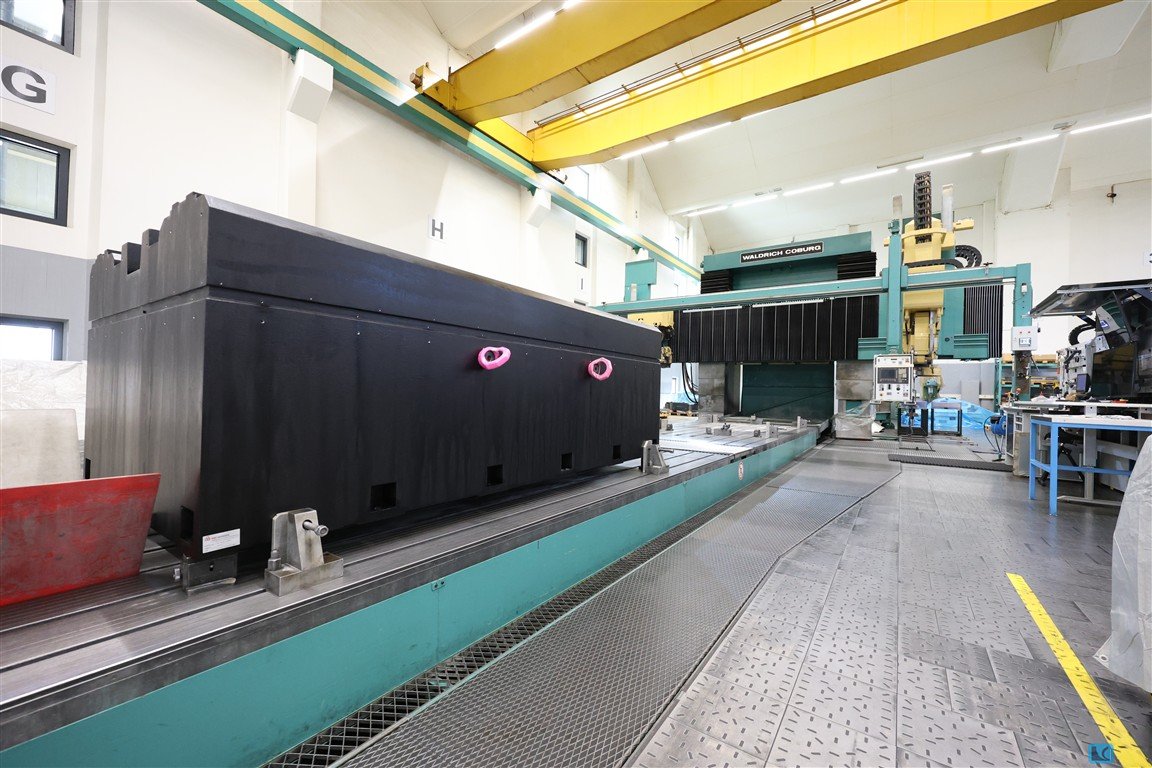

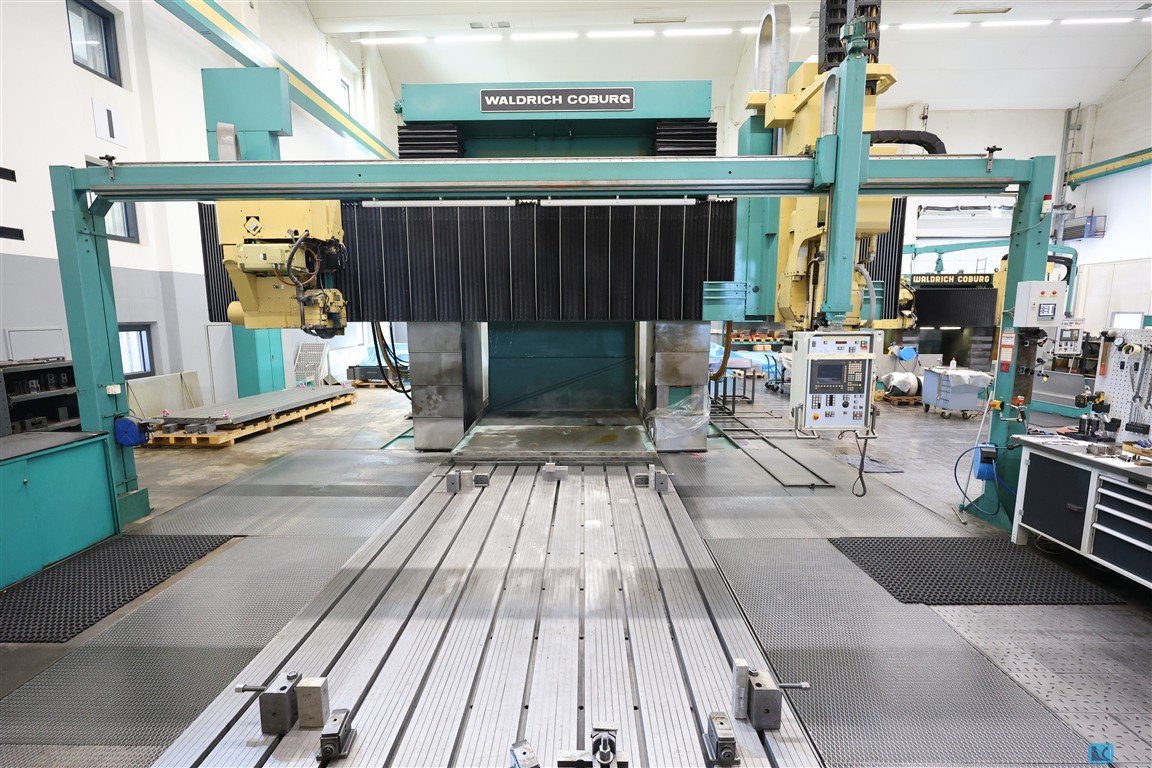

grinding length:12000 mmgrinding width:2800 mmworkpiece height:2510 mmmax. workpiece weight:24.000 kgtable surface area:11990 x 2500 mmdistance between columns:2820 mmcross rail adjustment:2510 mmtable feed:1 - 40 m/mintotal power requirement:110 kWweight of the machine ca.:151 tdimensions of the machine ca.:32,5 x 9 x 6,73 m.machine is in top condition for high precision work!with CNC SIEMENS 840 D1 universal grinding head, 22 kW swivelling of the grinding spindle +/-110°grinding wheel dimension 700 x 130 mmvertical stroke 1000 mmwith dressing unit1 surface grinding head, 30 kWgrinding wheel dimension 600 x 150 mmvertical stroke 230 mmwith dressing unitcoolant and filtering unitdiverse grinding wheel flanges

grinding length:1250 mmgrinding width:600 mmworkpiece height:730 mmtable surface area:1720 x 500 mmheadstock: dist. table - spindle center:900 mmmax. longitudinal movement:X-1450 feed range:10 - 20.000 mm/minvertical movement:Y-730 mmfeed range:0,2 - 3.000 mm/mincross travel:Z-550 mmfeed range:5 - 5.000 mm/minpower capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/mincutting speed:max. 80 m/sec.weight of the machine ca.:11 twith CNC SIEMENS 840 Cauto. dynamic balncing system integrated in the grinding conusprofile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpmtwo magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

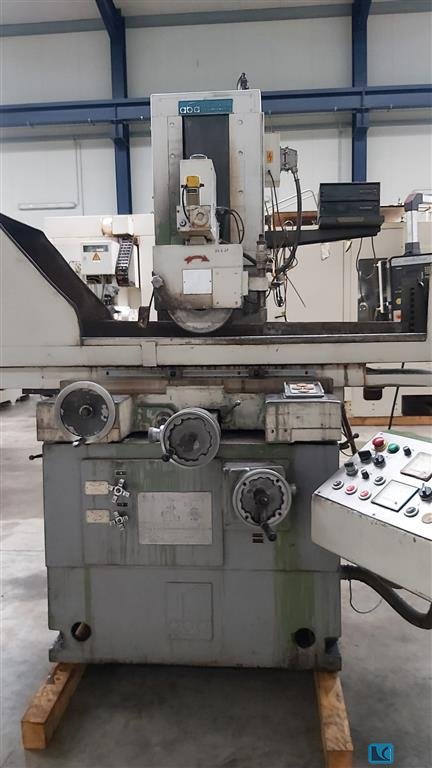

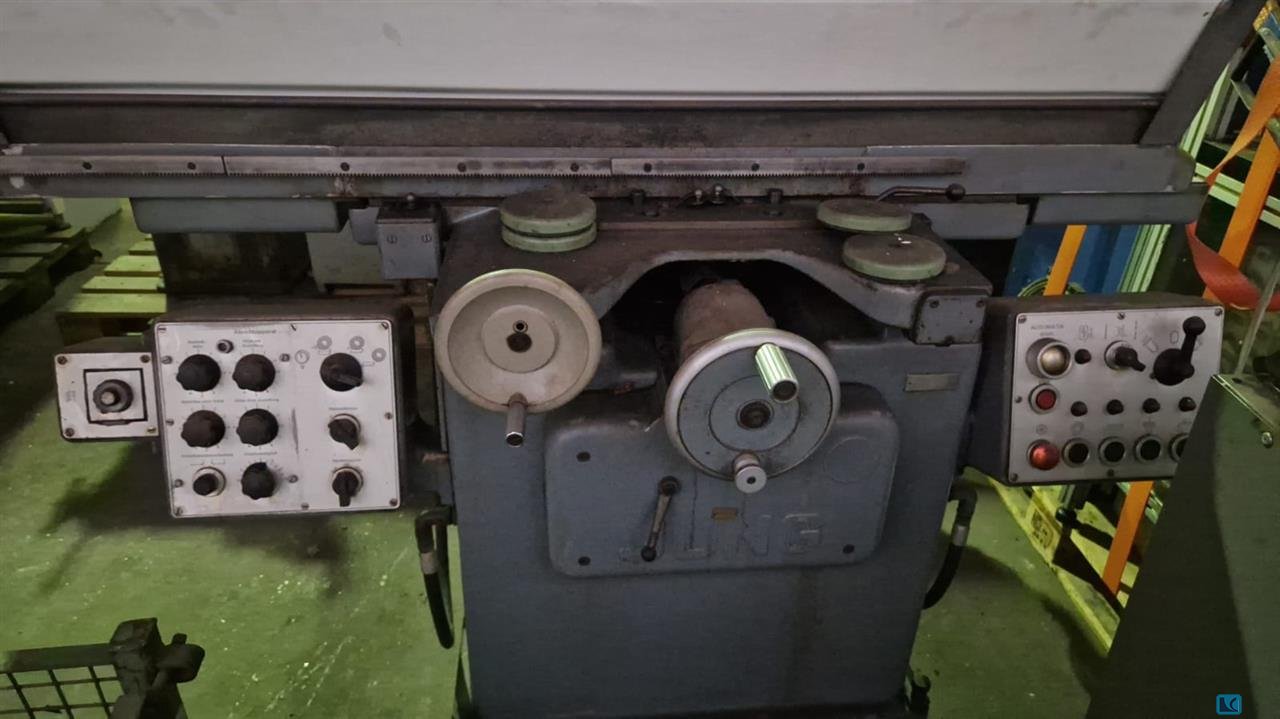

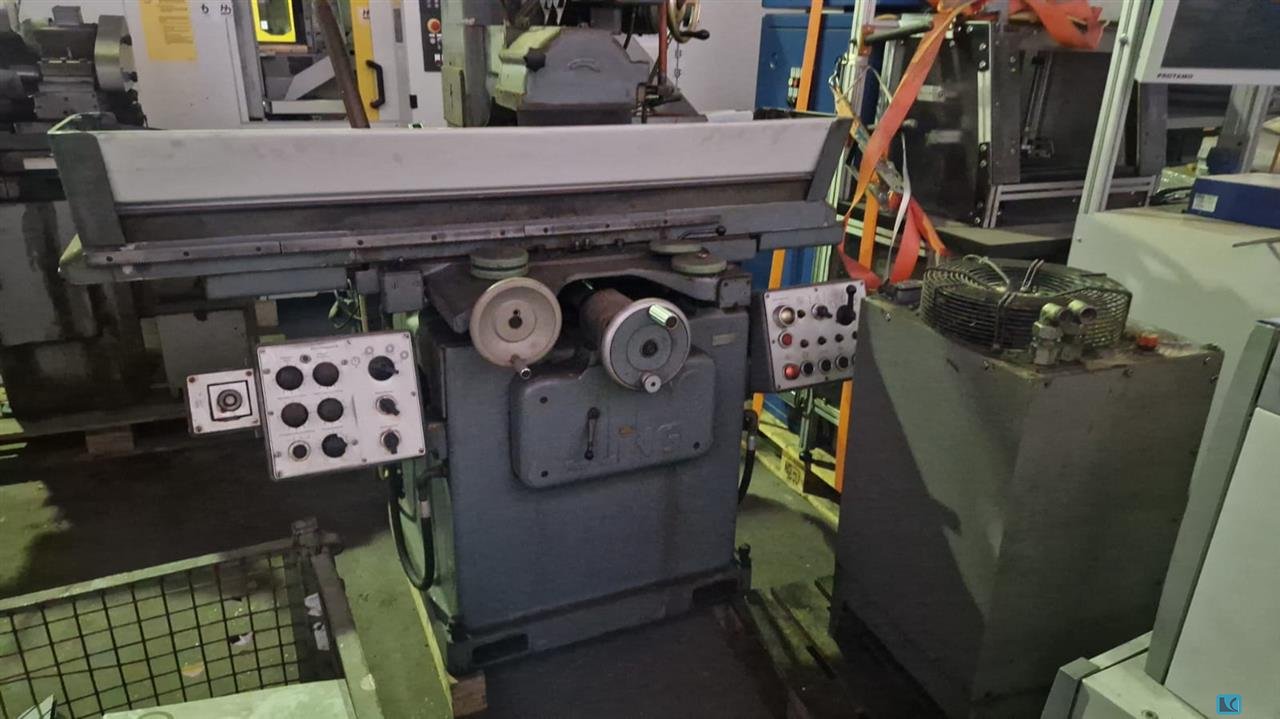

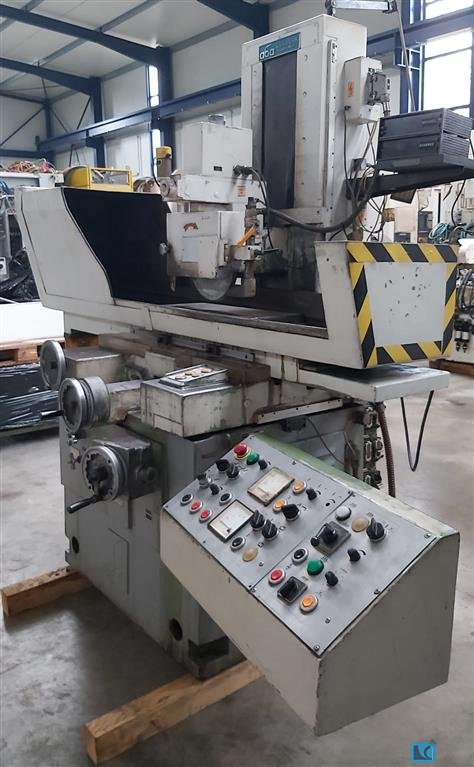

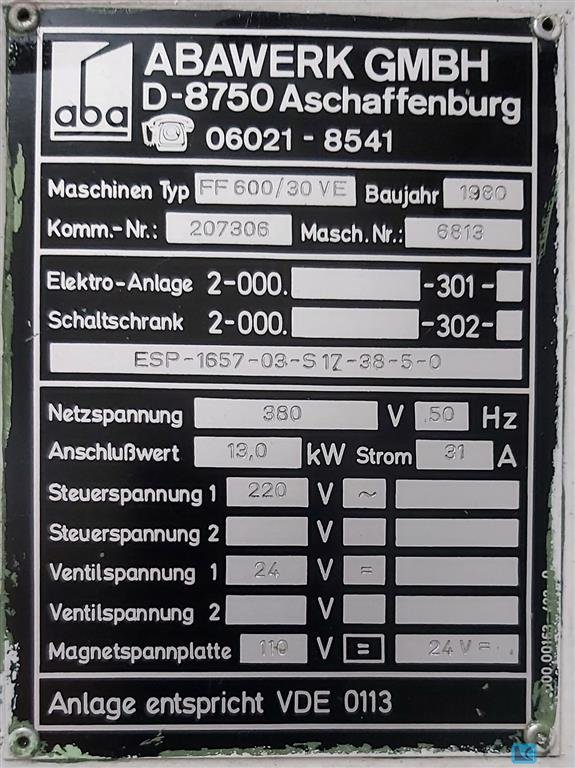

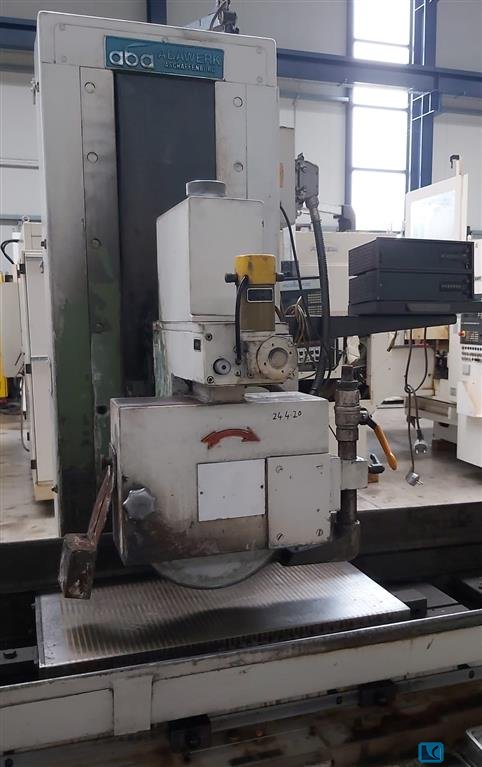

grinding length:600 mmgrinding width:300 mmtotal power requirement:7,5 kWnumber of spindle speeds:0-3000 grinding wheel motor:7,5 kWgrinding wheel diameter:300 mmdimensions of grinding wheel:76 x 20 mmABA magnetic table flat grinding machine

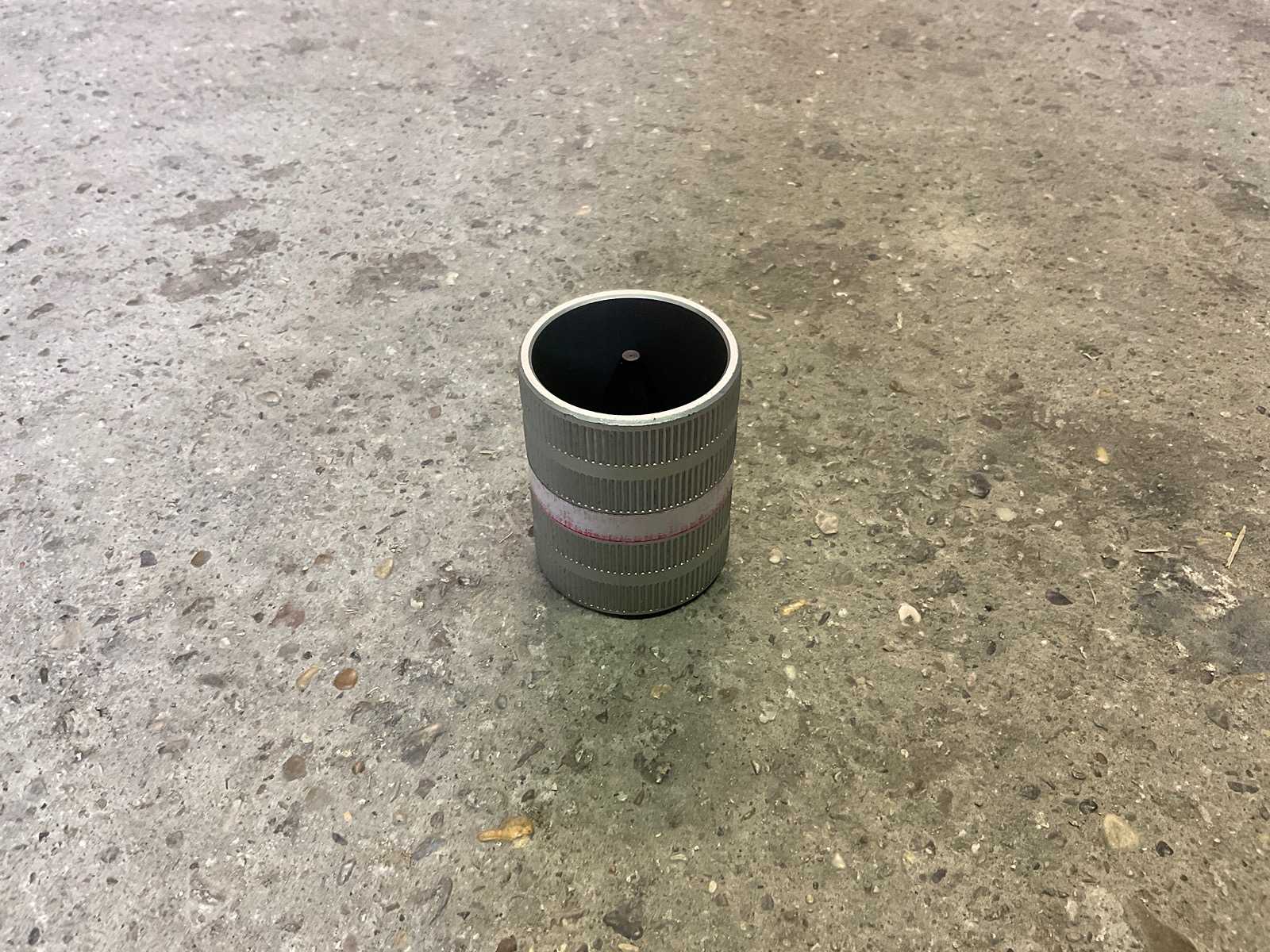

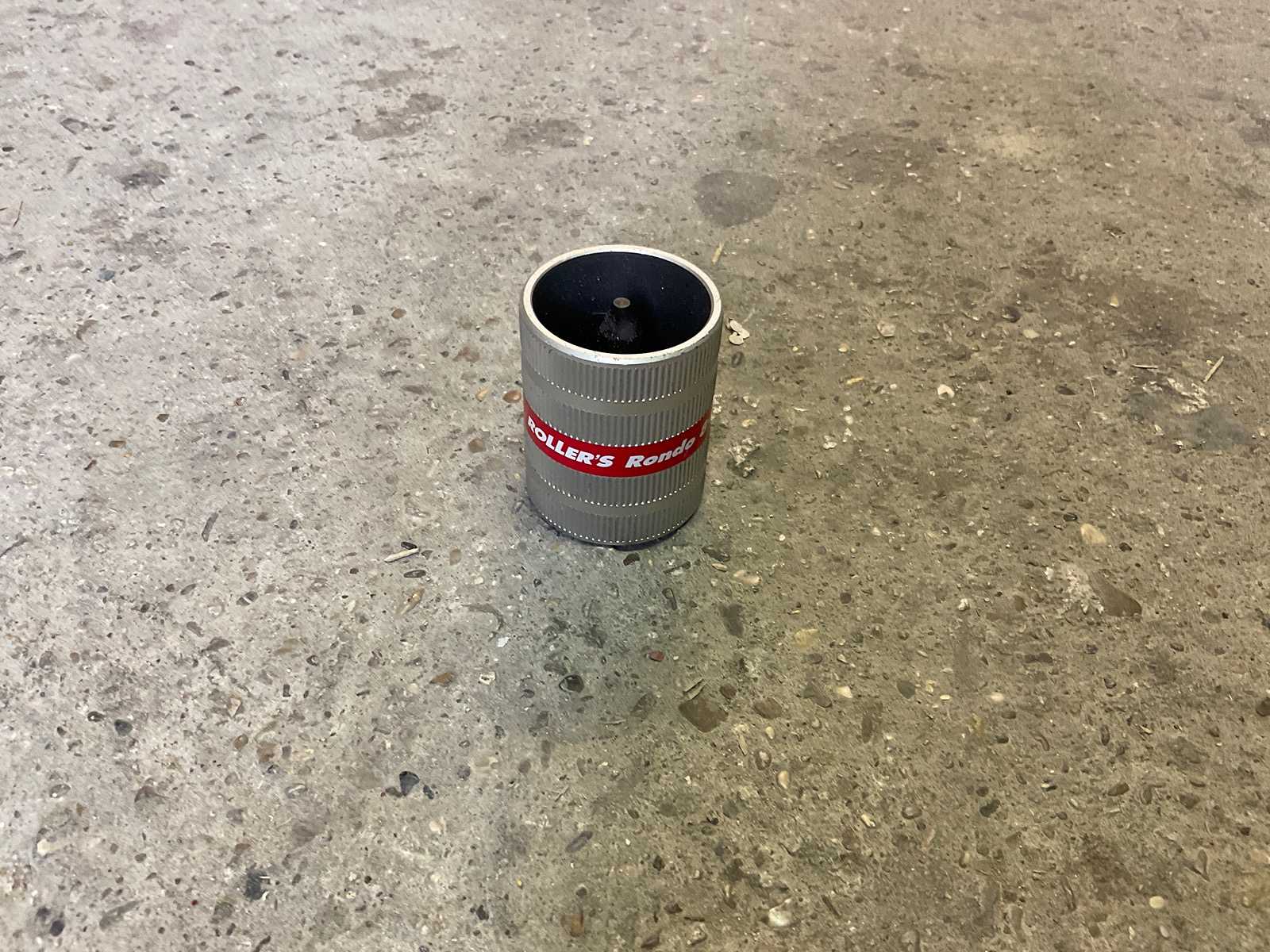

Product: ROLLER'S Rondo 8–35 deburring machine (8–35 mm) The model is an inner and outer tube deburring for: Stainless steel pipes, steel pipes Copper, Brass Aluminium Plastic pipes Technical data: Tube diameter: 8–35 mm Material: Metal housing/hardened cutting edges Weight approx. 220 g Features: Many specially hardened cutting edges → easy, fast deburring For external and internal deburring Solid and durable Non-slip housing, chatter-free working Auction-ID: A1-45208-42

grinding diameter:280/320 mmgrinding length:750 mmcentre height:170 mmweight of the machine ca.:22,5 tdimensions of the machine ca.:4,7 x 3,65 x 3,0 m

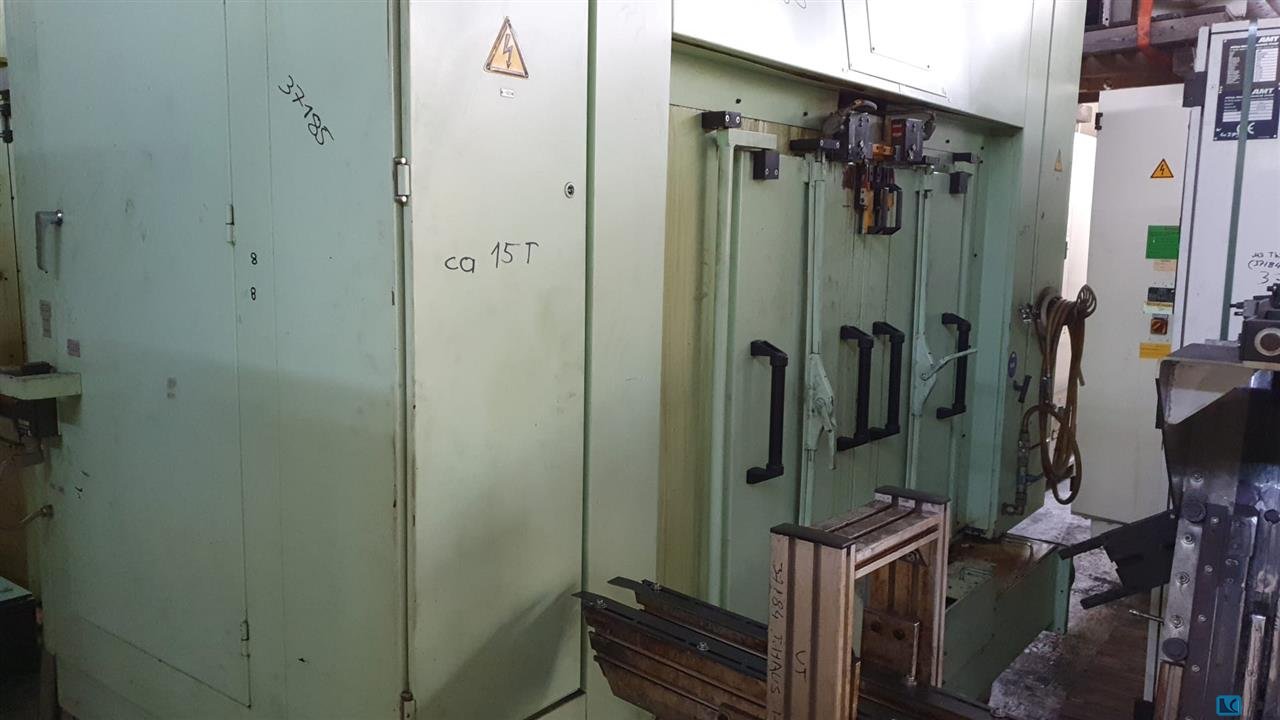

weight of the machine ca.:15 t

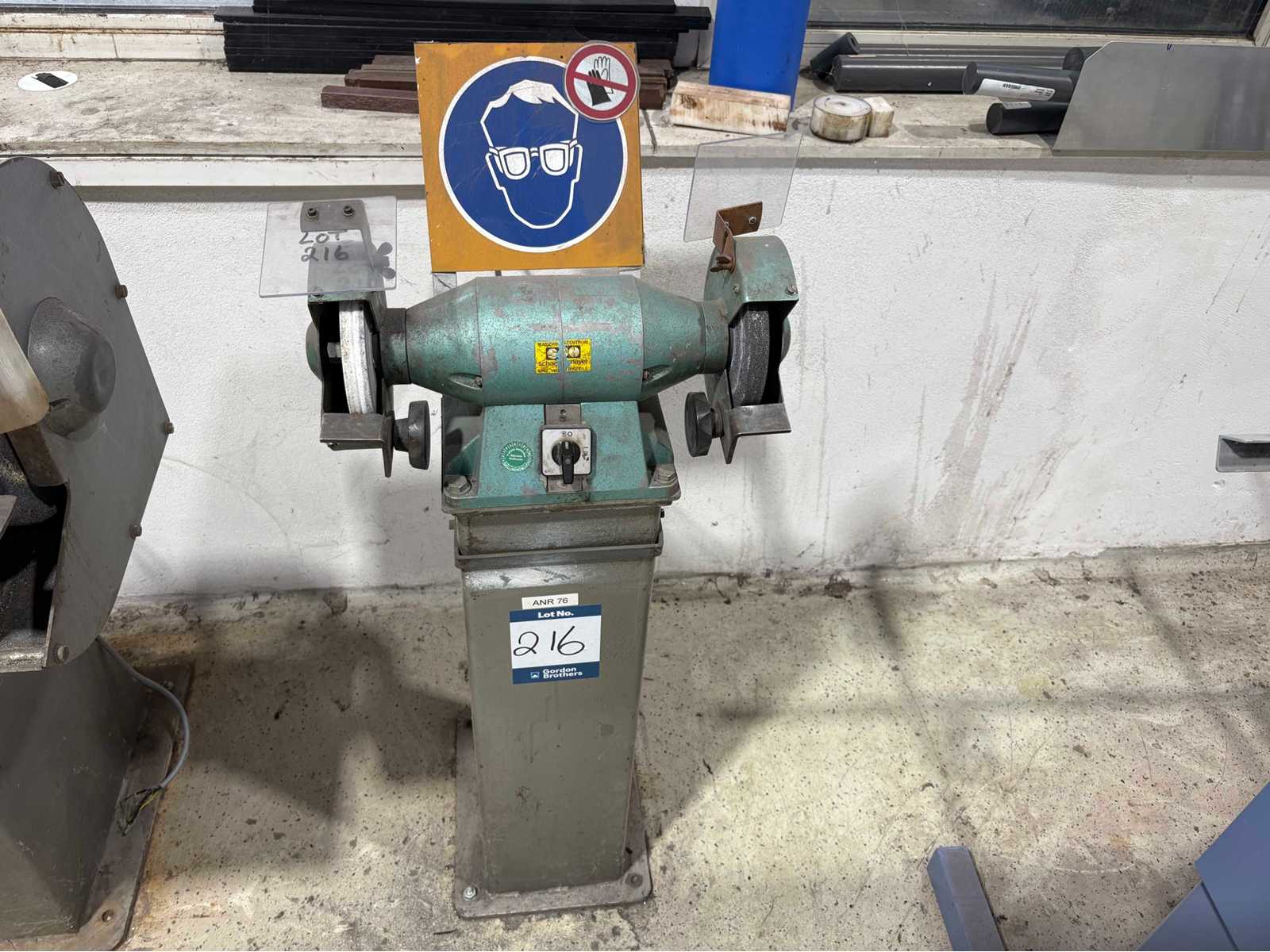

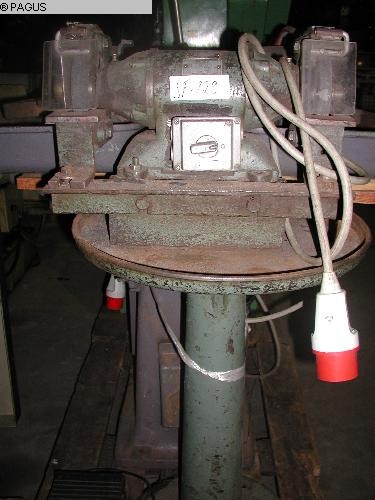

Double ended pedestal grinder, ANR 76 Auction-ID: A1-45187-216

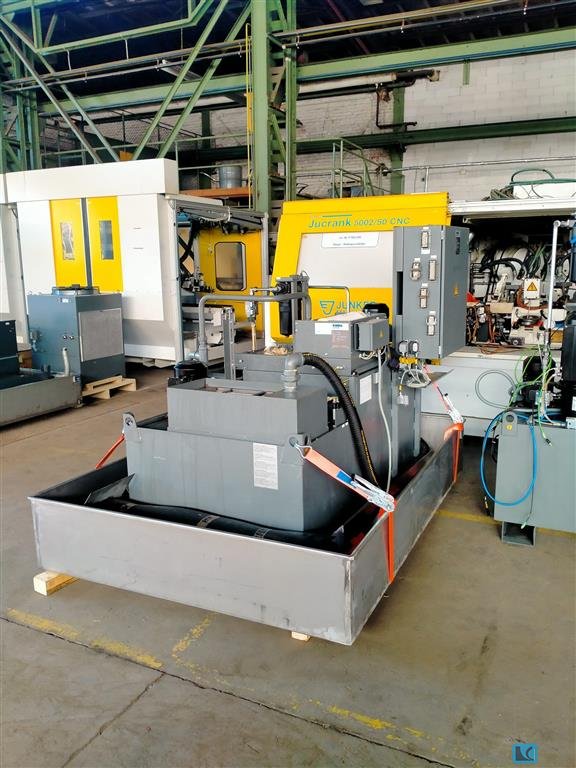

weight of the machine ca.:24 tdimensions of the machine ca.:3900 x 3500 x 2500 m-the machine has no B axis -two grinding spindles with one grinding wheel each -The transport instructions can be found in the documentation (attachment). including Hoffmann KSM filter system Loading list availableOperating data v. 03/27/2023: Operating time: 21727 h / production time: 11960 h Machine documentation: 1 set of circuit diagrams, electrical plans, operating instructionsAccessories: 2 replacement measuring heads Marposs S/500; prism supports Other: Hoffmann KSM filter system Machine condition: according to age, due to processing with emulsion

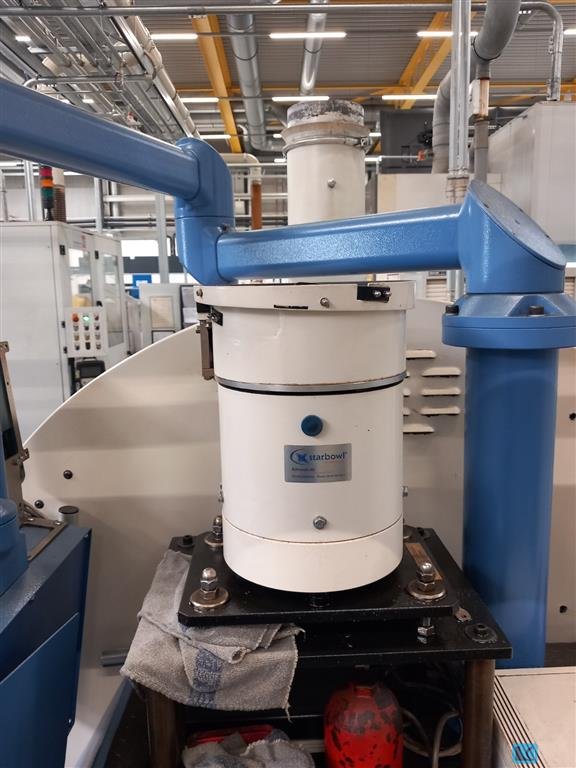

KSS/filter/cooling systemsEmulsion

grinding length:400 mmworkpiece weight:250 kgweight of the machine ca.:4,1 tswing diameter:250 mmgrinding spindle speed:2387, 2938 U/min

grinding diameter:20 mmgrinding length:20 mmmax. workpiece diameter:20 mmmin. workpiece diameter:1 mmgrinding wheel diam. min/max.:300-400 grinding wheel turining speeds:2.000-7.000 U/minWeight:950 kgdimensions: 1200 x 2100 mm

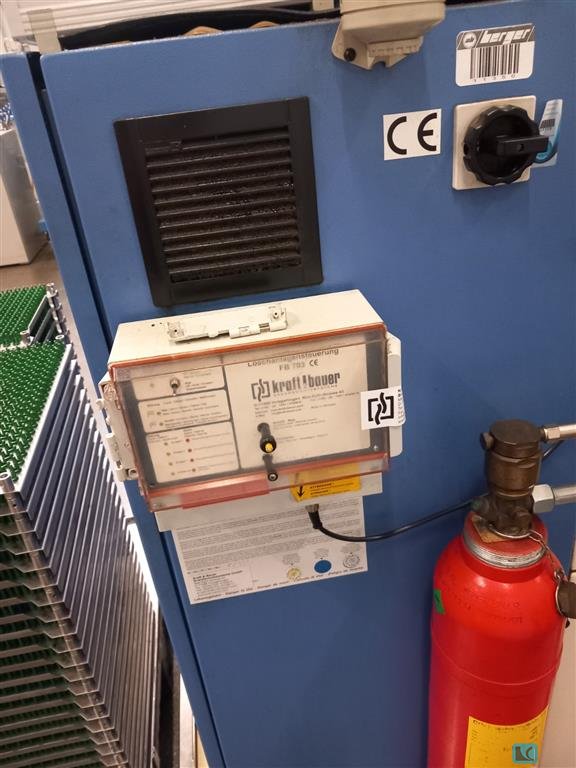

grinding length:600 mmcentre height:180 mmswing dia.:360 mmworkpiece weight:80 kgmax. dia. of grinding wheel:500 mmgrinding wheel width:80 mmgrinding wheel hole diameter:203,2 mmperipheral speed:45 m/secThere is also a 3200 liter coolant tank including cooling unit + fire extinguishing system.

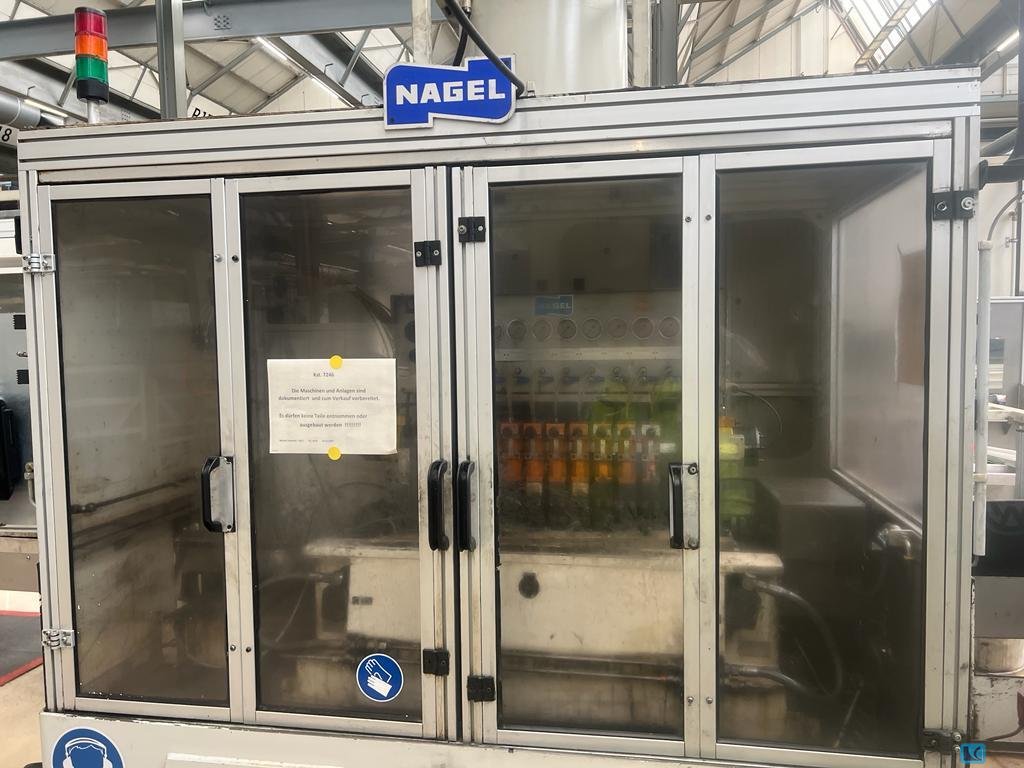

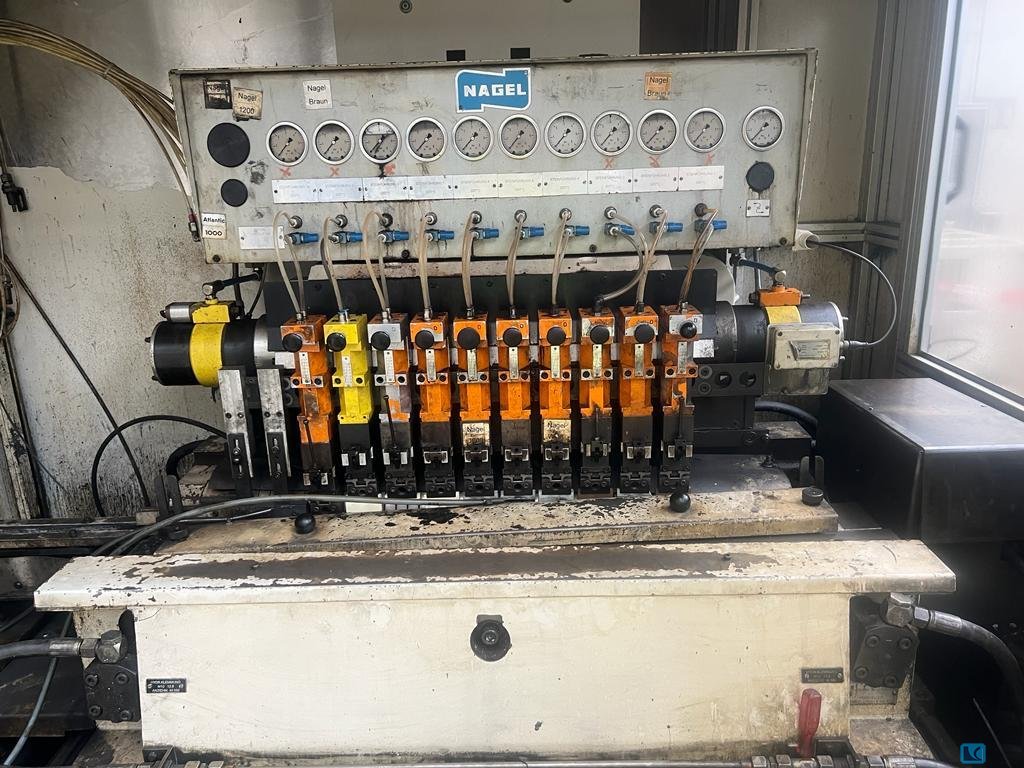

workpiece diameter:26 mmswing diameter:- mmworkpiece length:66 mmtotal power requirement:12 kWweight of the machine ca.:4 tdimensions of the machine ca.:3,14 x 1,69 x 2,2 mThe machine has so far processed the parts in a stream, i.e. without interruption. Piston rods are usually machined with a clearance, requiring the finishing stone to be placed only when the part passes under the stone.1. Feed Roller2. Stone holder, 10 pieces, 50 mm new guides can be made between approx. 15 to 40 mm The Roller of Nagel:Dia: approximately 120 mmL: app. 880 mm

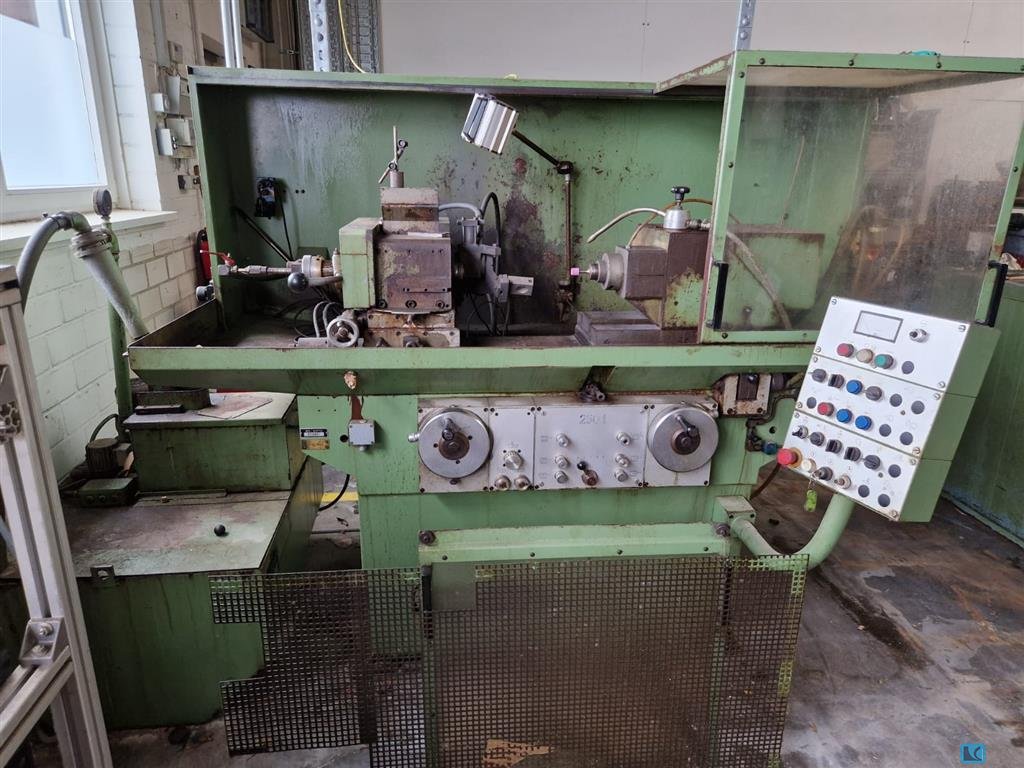

internal diameter:140 mmtotal power requirement:5,5 kWweight of the machine ca.:1,8 tdimensions of the machine ca.:2,8 x 2,5 mmax. workpiece weight:15 kgclamping dia. max.:140 mmclamping length:250 mmmax. bore diameter to be ground:0,8-90 mmmin./max. hole to grind:160 mmcentre height:90 mmworkpiece spindle stepless:112-1000 U/min

dimensions of the machine ca.:3,5 x 2,0 x 2,5 m

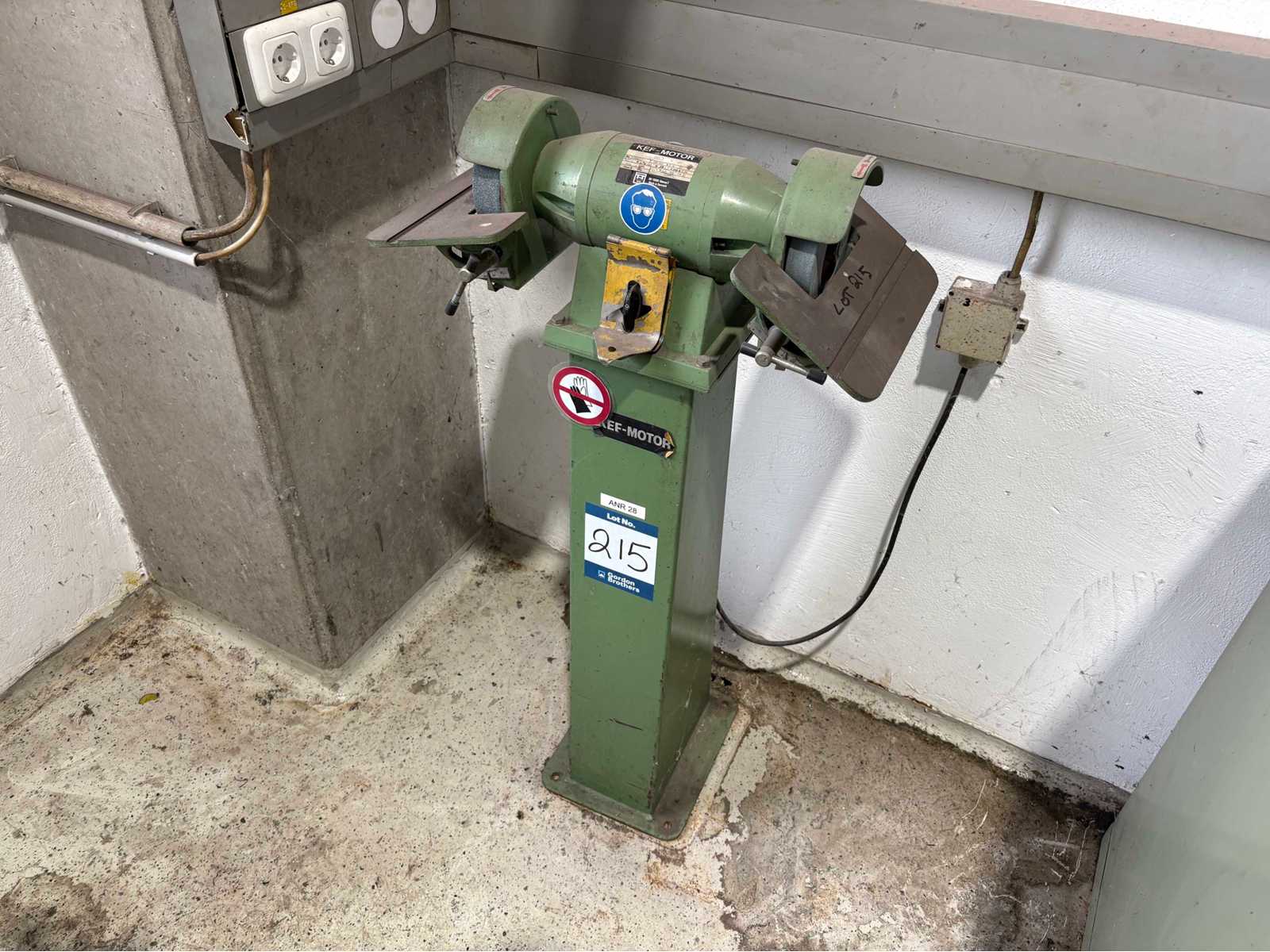

Double ended pedestal grinder, S/No 15383452, ANR 28 Auction-ID: A1-45187-215

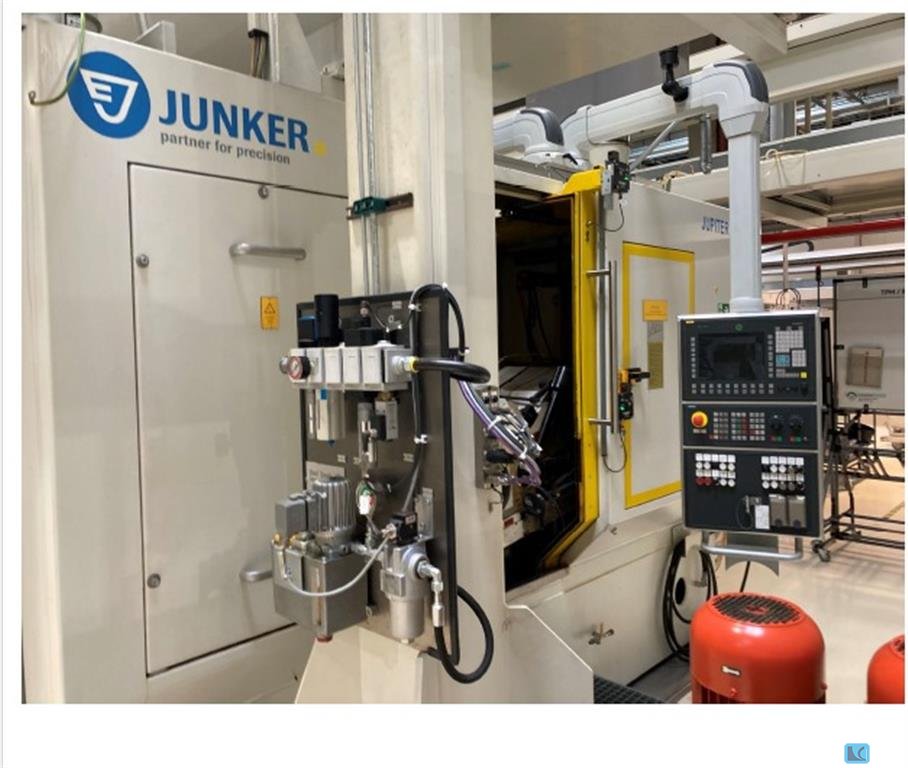

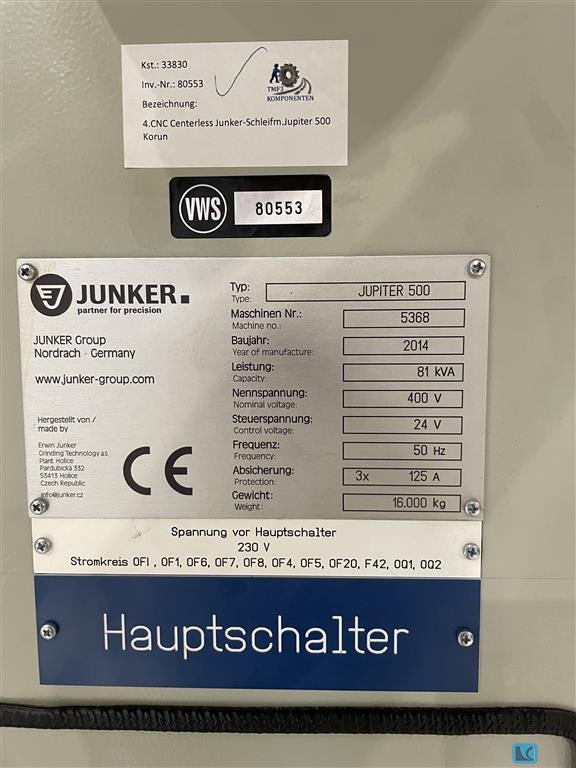

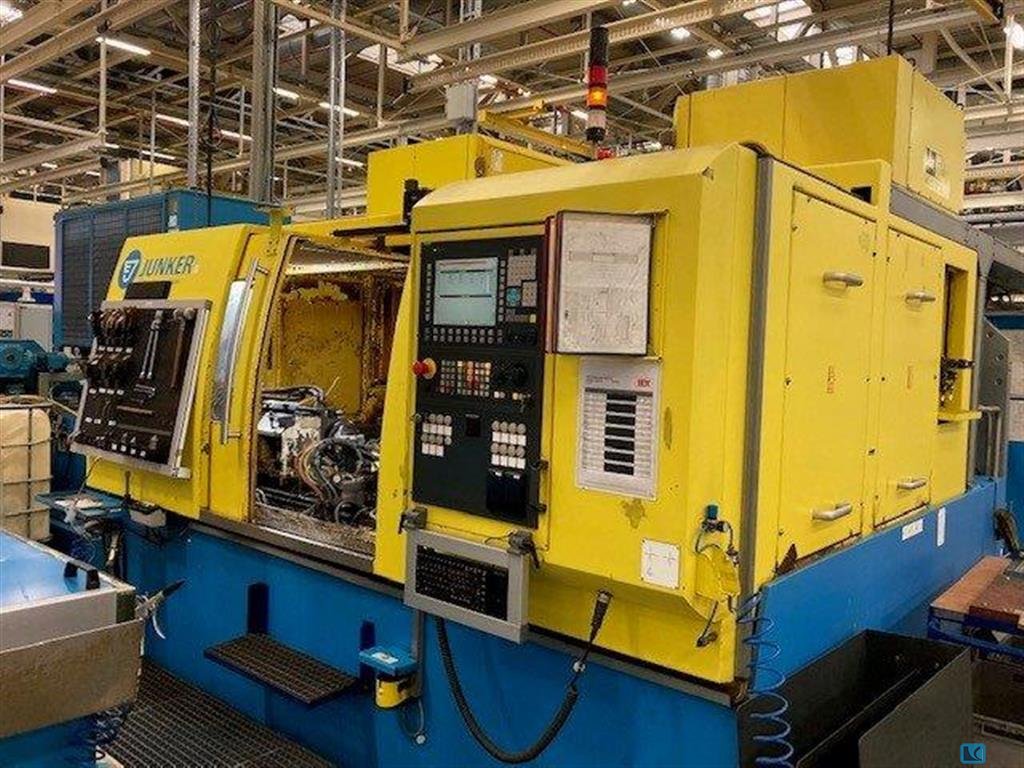

grinding diameter max.:3-220 mmregulating wheel width:500 mmmax. width of grinding wheel:500 mmweight of the machine ca.:16 t.dimensions of the machine ca.:12 x 10 x 8 m.grinding wheel diam. min/max.:420-610 grinding wheel diameter - width-internal grin:304,8 x 500 mmRegulatin wheel diameter min/max.:300-350 mmThe machine is currently designed for plunge grinding JUPITER's Centerless grinding, also available with CBN. Junker this circular grinding method with CBN grinding wheels, which opens up significant productivity benefits from the long service life of the grinding wheel, especially at high volumes. In addition, the simultaneous removal takes on the entire Schleswig-Holstein, which provides both in mass production and in small batches for significantly reduced processing times.The grinding process with JUPITERWhen centerless grinding, there are two grinding processes: the through gr ...

Product: ROLLER'S Rondo 8–35 deburring machine (8–35 mm) The model is an inner and outer tube deburring for: Stainless steel pipes, steel pipes Copper, Brass Aluminium Plastic pipes Technical data: Tube diameter: 8–35 mm Material: Metal housing/hardened cutting edges Weight approx. 220 g Features: Many specially hardened cutting edges → easy, fast deburring For external and internal deburring Solid and durable Non-slip housing, chatter-free working Auction-ID: A1-45208-44

max. grinding diameter:160 mmstations:2 sanding width:30 mmtotal power requirement:0,37 kWweight of the machine ca.:100 kgdimensions of the machine ca.:520 x 520 x 1160 mm

no. of working stations:1 Stücktool adaptor:1650 W revolutions per minute:2990 U/mintotal power requirement:380V, 2,7 Aweight of the machine ca.:33 kg

no. of working stations:1 Stücktool adaptor:1650 W revolutions per minute:2990 U/mintotal power requirement:380V, 2,7 Aweight of the machine ca.:33 kg

grinding diameter:5-55 mmgrinding length:500 mmtotal power requirement:44 kW-- Intended use and general information --Fully automated external and surface grinding of synchronous ringsCentre height: 200 mmGrinding length: 500 mmGrinding wheel arrangement: right, 30° angled Grinding wheel dimensions: 600 x 30 x 203.2 mmDrive power: 7 kW X/Z axis drive: ball screw Travel speed: 0.01 - 10,000 mm/min. Resolution: 1 µm Concentricity of workpiece spindle: < 1 µmWorkpiece changing system: Fanuc robot Control: Siemens Sinumerik 840-DMachine weight: 7,000 kgCentre height: 200 mmGrinding length: 500 mm

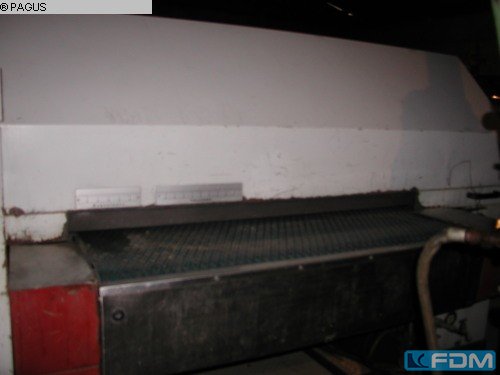

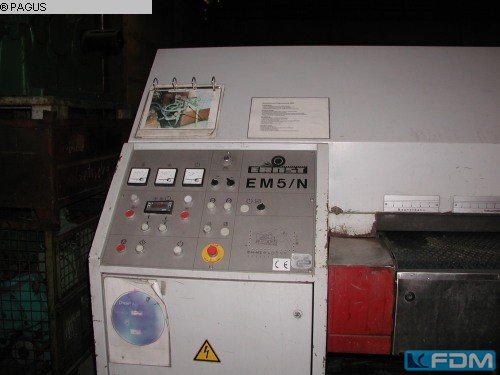

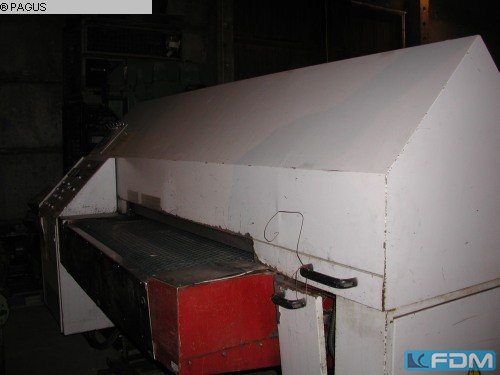

working width:1400 mmWorkpiece thickness max.: 80 mmwork height max.:1000 mmFeed speed:4m/min I Stufe, 8 II Stuf m/min.Required air-pressure:max. 5 barvoltage:50 Hz, 380 Vworkpiece length:320 mmworkpiece thickness min.:1 mmweight of the machine ca.:3500 kgDocuments:vorhanden

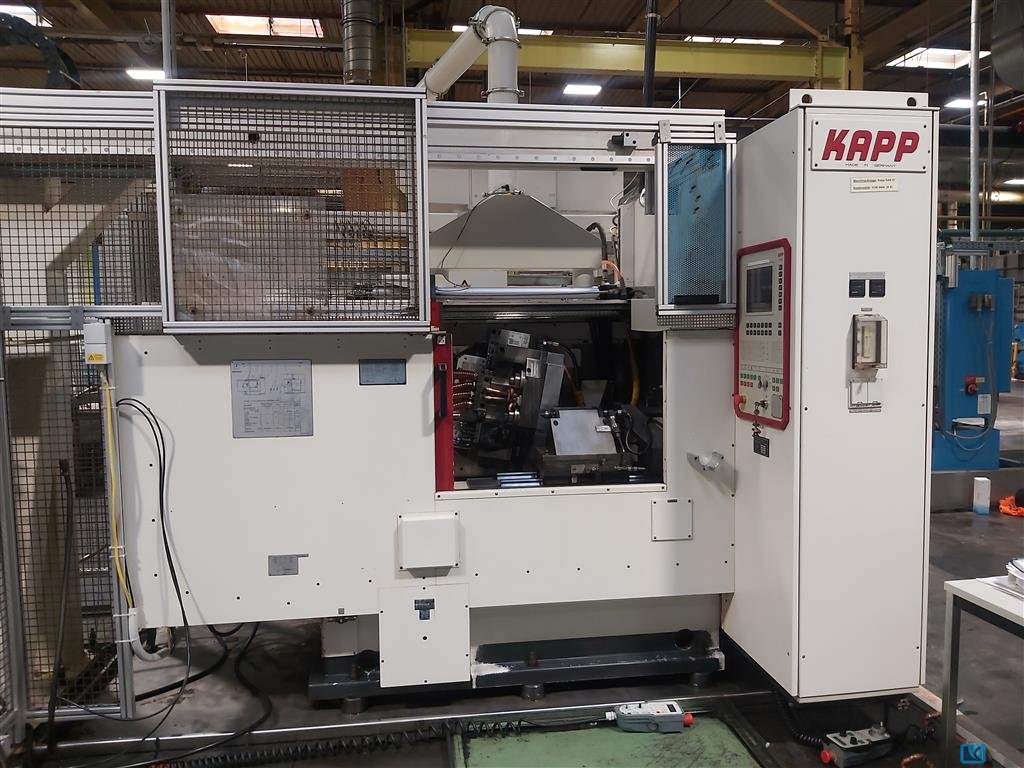

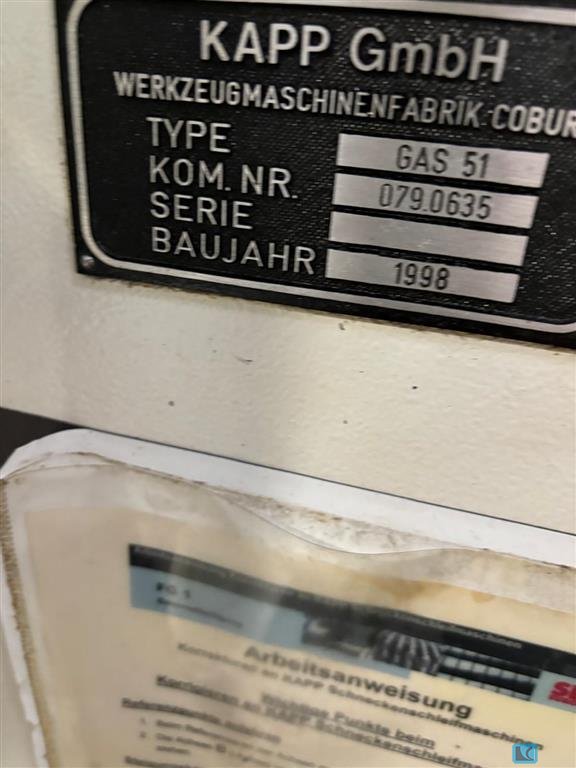

grinding diameter:200 mmgrinding length:320 mmtotal power requirement:3,5 kWweight of the machine ca.:9 tspace required L x W X H:5,28 x 4,5 x 2,4 mmax. wheel dia.:200 mmSpindle drives Arena SiemensFor Worm grinding we have not module, but pitch. Pitch is freely programmable from 0.001 to big value i.e. 500mm

workpiece length:350 mmwork piece width:150 mmdiameter:Tellerradius 200 mmtool taper:M32 x 1,5 spindle diameter:32 mmgrinding width:max.450 mmturning speeds:3385 U/minwork table::Höhe 1000 mmworkpiece height max.:100 mmtotal power requirement:1,1 kWweight of the machine ca.:300 kgdimensions of the machine ca.:700 x 800 x 1170 mm
