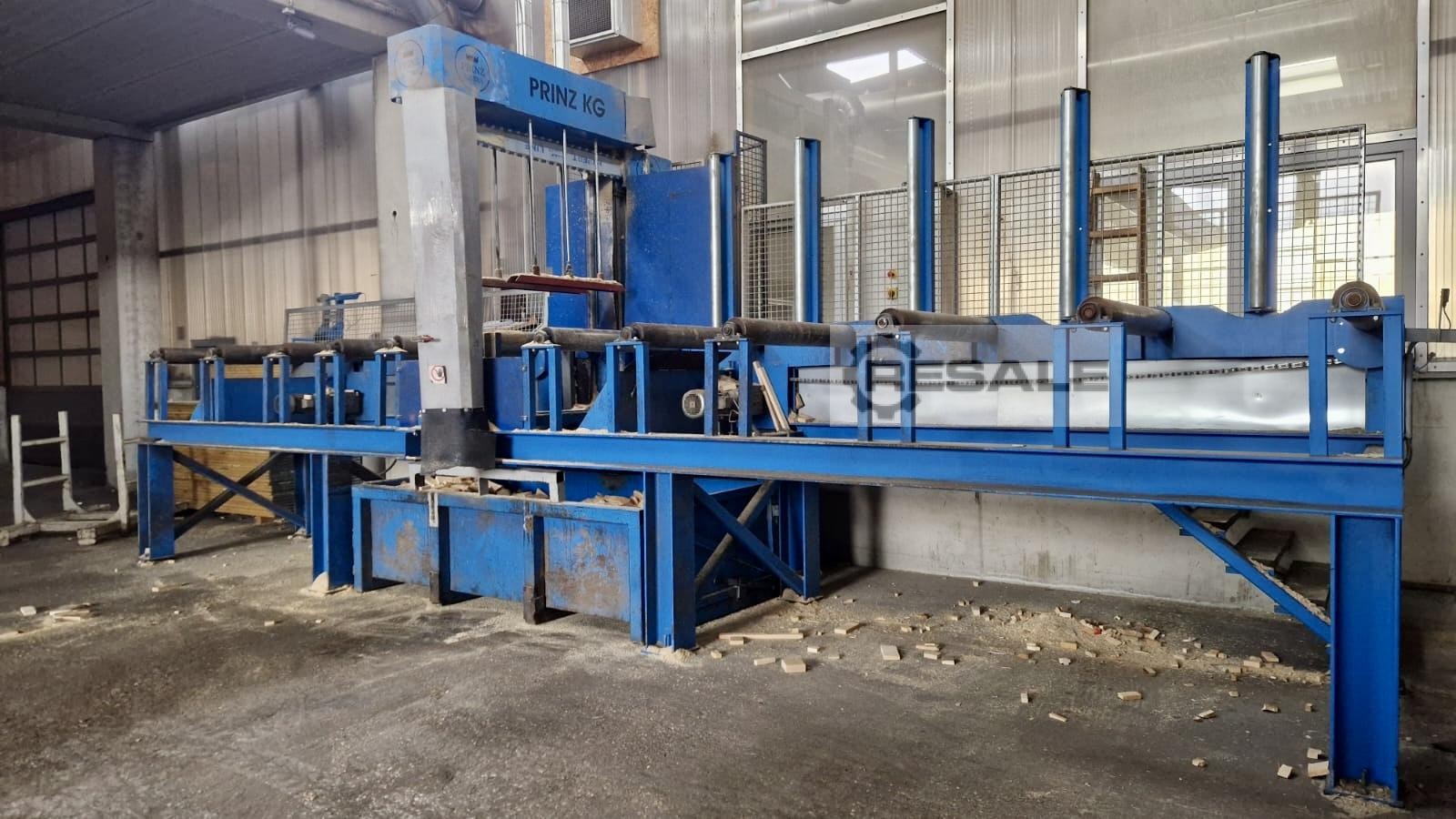

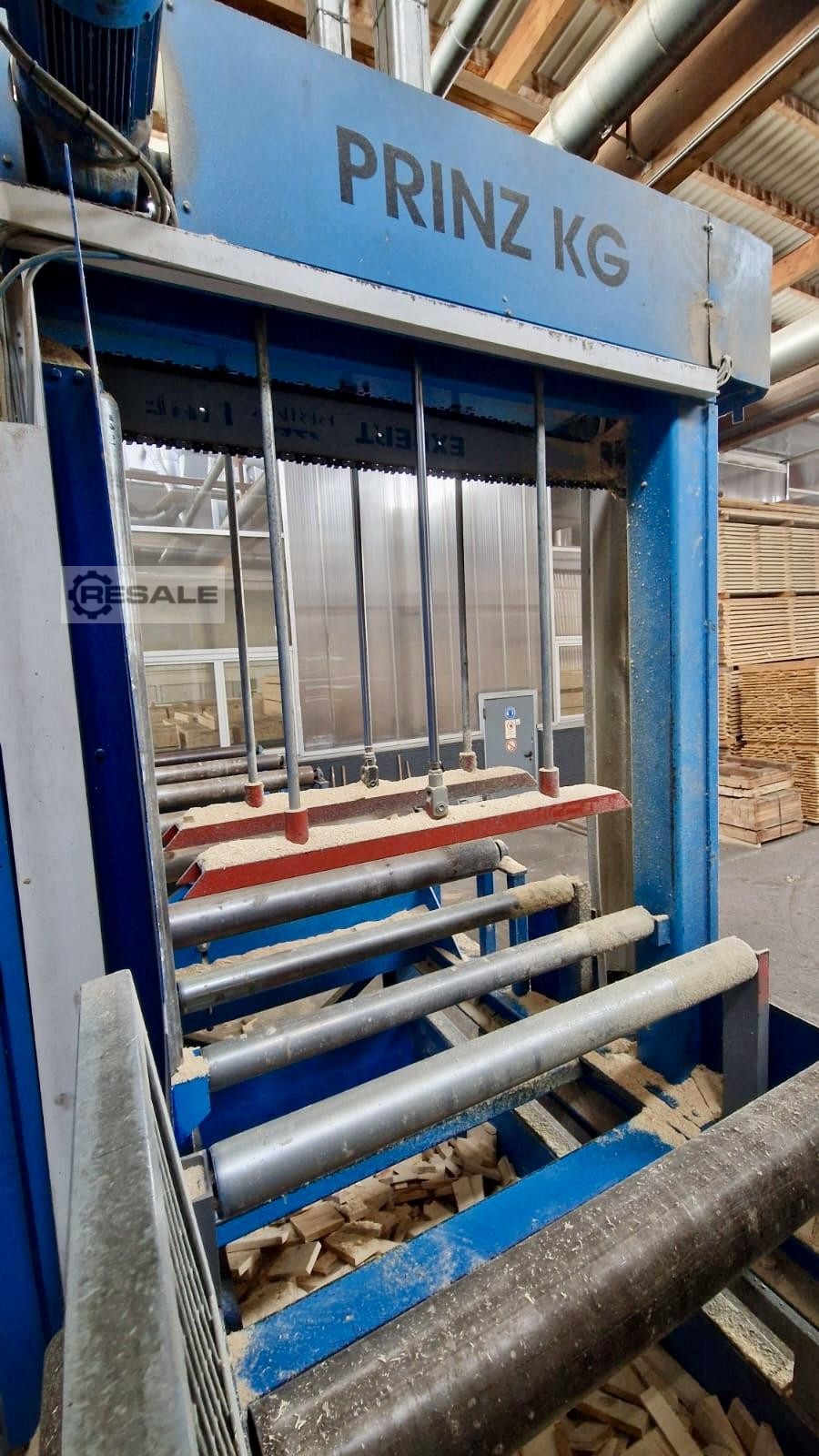

The PRINZ KG cross-cut station PC120 is a robust and precise
horizontal cross-cut saw for industrial use in sawmills and wood
processing.
The system is ideal for cutting timber packages to length and
impresses with its stable design, high cutting accuracy and reliable
technology.

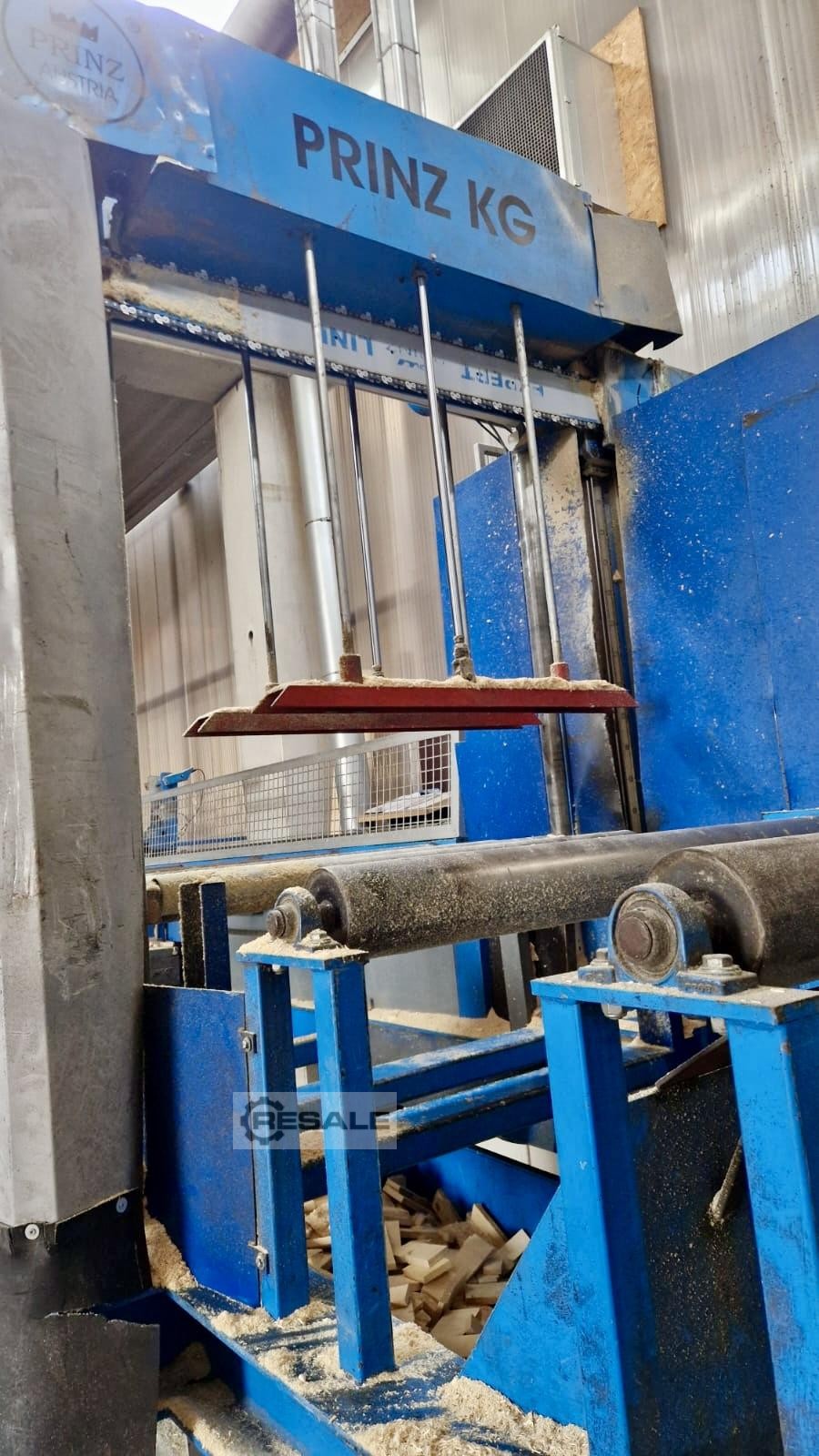

Equipped with a pneumatic hold-down device, the material is securely
fixed during the cutting process. The machine is designed for
continuous operation and is already prepared for extraction.
Technical data
Manufacturer: PRINZ KG
Type: PC120 horizontal cross-cut saw
Voltage: 3 x 400 V / 50 Hz
Power: 11 kW (15 hp)
• Max. Package Size:
Width: approx. 1200 mm
Height: 370 mm – 1300 mm
Max. cutting width: approx. 1370 mm
• Hold-down device:
Pneumatic
Stroke: 1000 mm
Operating pressure: approx. 6 bar
Conveyor technology: integrated roller table
• Suction:
Connection Ø 180 mm
Recommended capacity: approx. 2290 m³/h
Chain lubrication: fully automatic with tank
