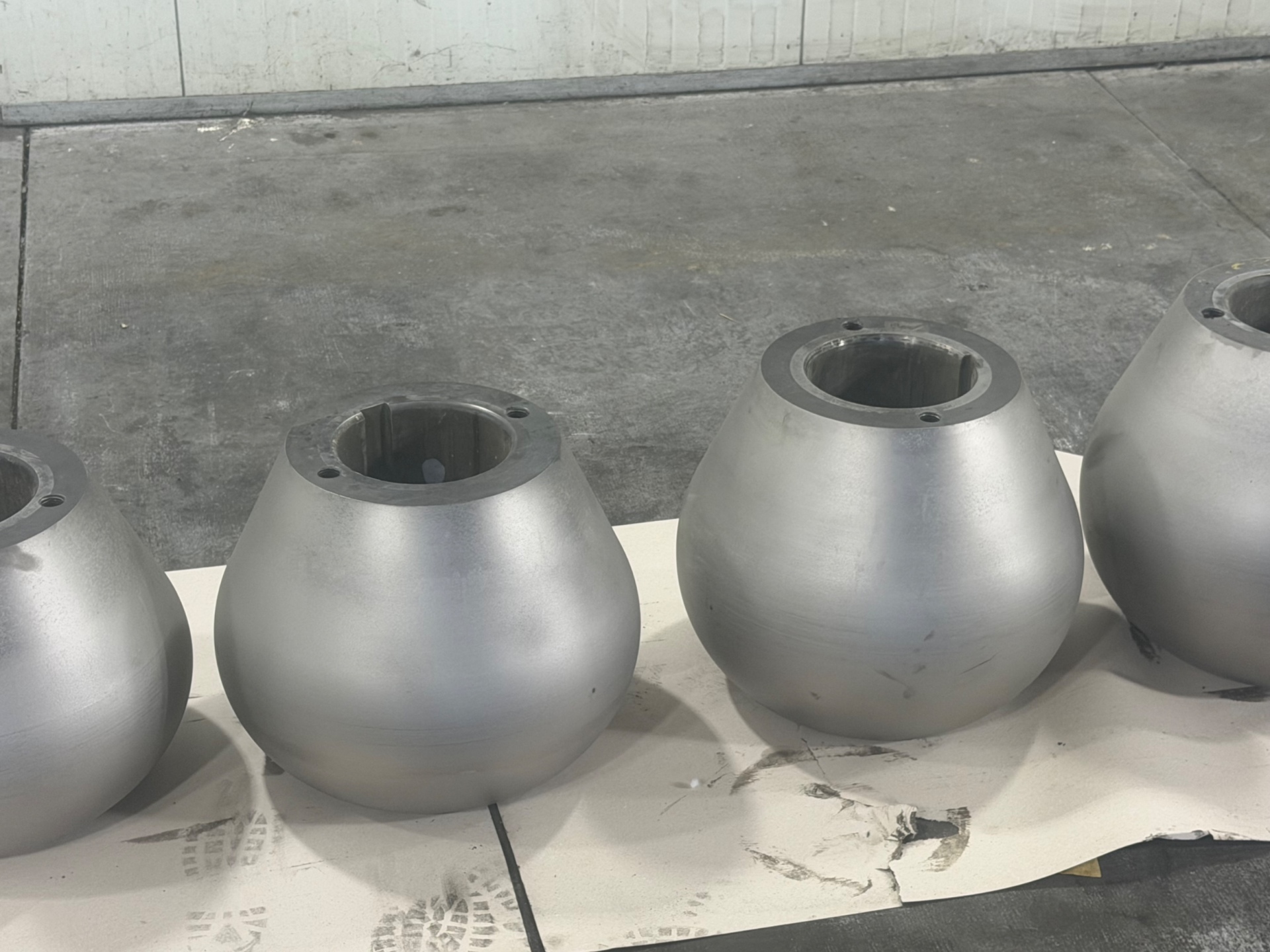

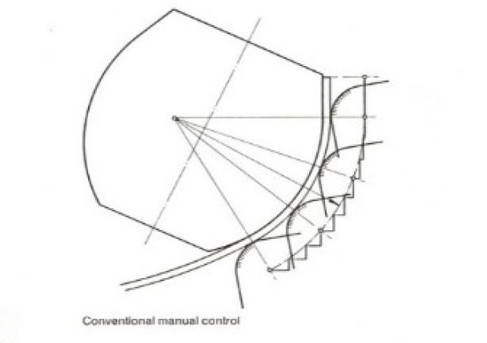

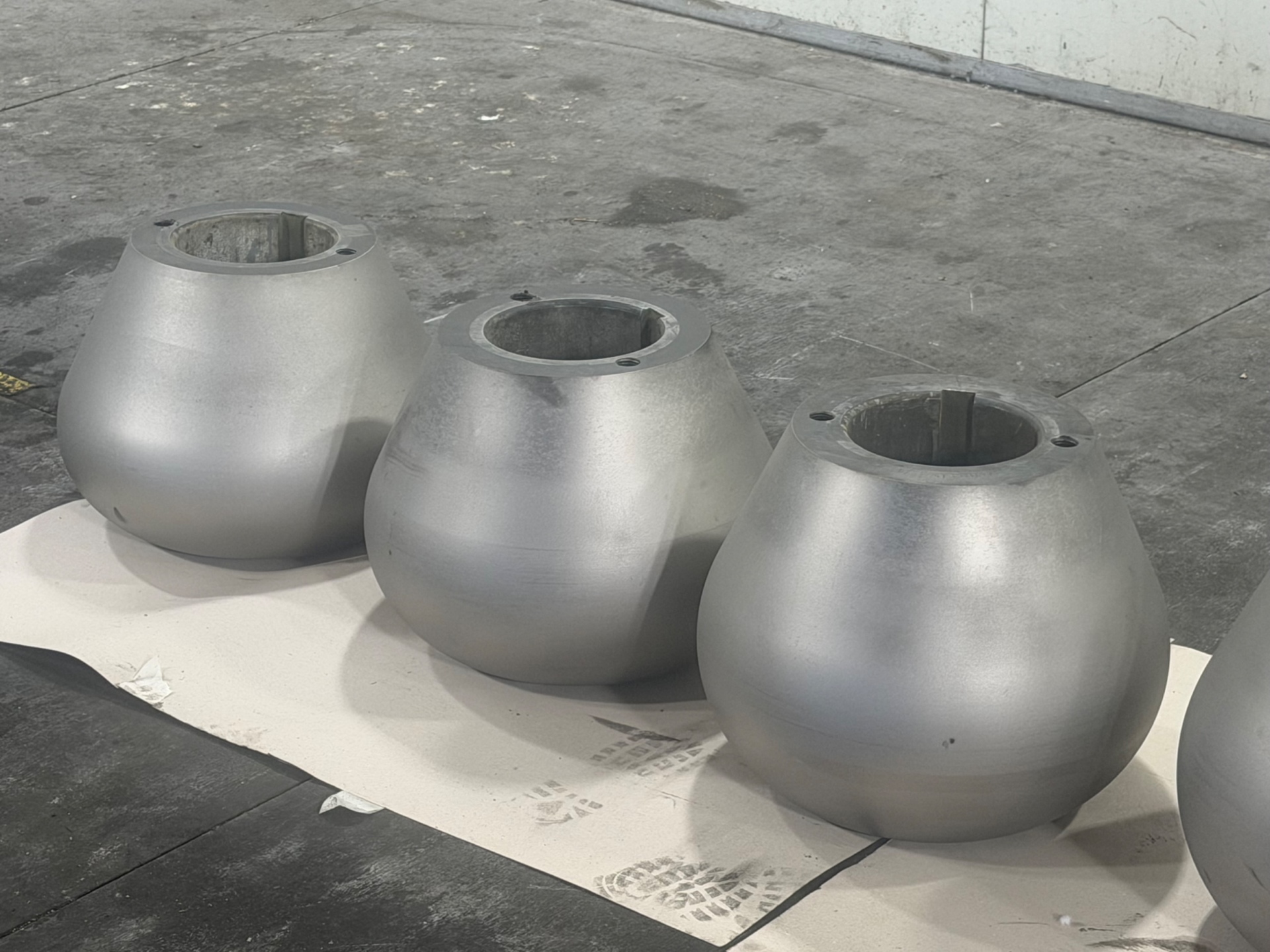

Tank Head Manufacturing Dishing and Flanging machine up to 12 mm in 260 Nm/mm2Forming roll optional for sale Radius 50 / 70 / 100 / 150 / 200 / 250 / 300Fully hydraulic machineField off aplication heads, bottoms for vessel, tanks, beverage manufacturing tanks, beer tanksTorispherical headsEllipsoidal headsSpherical bottomsDished bottem tank constructionFlat bottemsSperical dished bottomsCones
Deburring and fine grinding machine for sheet metal / flat material, newThe compact machining centre for deburring, slag removal, rust removal, oxide layer removal, edge rounding, fine grinding through to polishing metal surfaces.Working height: variable from 0,5mm ? 150mm adjustableWorking width: 1150 mmMaximum part weight: 300 kgWide belts with abrasive belt unwinding: 2200 mmAs standard with vacuum hold system, optional with magnetic hold systemDue to the modular design of the machines, it is possible to offer the optimal configuration for the customer's machining task.The machine structure can accommodate up to 3 internal machining units and an additional external machining unit.Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
Deburring and fine grinding machine for sheet metal / flat material, newThe compact machining centre for deburring, slag removal, rust removal, oxide layer removal, edge rounding, fine grinding through to polishing metal surfaces.Due to the fixed working height, this machine can also be optimally integrated into a production line and is suitable for machining large parts.Working width: 1350 mmMaximum part weight: 400 kgWide belts with abrasive belt unwinding: 2620 mmAs standard with vacuum hold system, optional with magnetic hold systemBy using 2620 mm long abrasive belts, you get a uniformly smooth surface and reduce consumption costs, as these belts have a longer service life.Due to the modular design of the machines, it is possible to offer the optimal configuration for the customer's machining task.The machine structure can accommodate up to 3 internal machining units and an addition ...
Deburring and fine grinding machine for sheet metal / flat material, newThe compact machining centre for deburring, slag removal, rust removal, oxide layer removal, edge rounding, fine grinding through to polishing metal surfaces.Due to the fixed working height, this machine can also be optimally integrated into a production line and is suitable for machining large parts.Working width: 1150 - 1350 mmMaximum part weight: 500 kgWide belts with abrasive belt unwinding: 2620 mmAs standard with vacuum hold system, optional with magnetic hold systemBy using 2620 mm long abrasive belts, you get a uniformly smooth surface and reduce consumption costs, as these belts have a longer service life.Due to the modular design of the machines, it is possible to offer the optimal configuration for the customer's machining task.The machine structure can accommodate up to 5 internal machining units and 2 ad ...
Deburring and fine grinding machine for sheet metal / flat material, newThe compact machining centre for deburring, slag removal, rust removal, oxide layer removal, edge rounding, fine grinding through to polishing metal surfaces.Machine is suitable for heavy-duty use.Due to the fixed working height, this machine can also be optimally integrated into a production line and is suitable for machining large parts.Working width: 650 - 1650 mmMaximum part weight: 2000 kgWide belts with abrasive belt unwinding: 3250 mmAs standard with vacuum hold system, optional with magnetic hold systemBy using 3250 mm long abrasive belts, you get a uniformly smooth surface and reduce consumption costs, as these belts have a longer service life.Due to the modular design of the machines, it is possible to offer the optimal configuration for the customer's machining task.The machine structure can accommodate up ...
band width:2000 mmplate thickness:1.8 mmnumber of rolls:13 Controls:SIEMENS DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diameter of coil:2000 mm - min. internal diameter of coil:610 mmFEEDERS:. - sheet width max:2000 mm - sheet thickness max:2 mm - feeding step max.:4000 mmLEVELER UNIT:. - sheet width max:2000 mm - sheet width (min):400 mm - sheet thickness max:1.8 mm - sheet thickness (min):0.6 mm - number of leveler rolls:13 - diameter of leveler rolls:50 mm
sheet width:5040 mmplate thickness:2 mmtotal power requirement:12 kWweight of the machine ca.:9,4 tdimensions of the machine ca.:6200× 1300 ×1900 mmworking width:5000 mmcontrol:Fasti Matik stroke of upper beam:500 mmadjustment of lower beam:u.Biegewange 80 mmcontrol cabinet:1000 x 850 x1450 mmDocuments:vorhanden
material width:180 mmcoil weight:0,75 tmaterial thickness:2,0 - 6,0 mmcoil external diameter:400 - 1250 mmno. of straightening rolls:5 number of draw-in rolls:2 band speed:20 m/minpower requirement:4,0 kWweight:2,8 tdimensions (WxDxH):1,4 x 2,45 x 1,85 msnubber roll:pneumatic
material width:150 mmmaterial thickness:1,5 mmpower requirement:3,0 kWno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:4 weight:0,67 tDimensions (WxDxH):1,3 x 1,1 x 1,6 m
material width:150 mmmaterial thickness:2,5 mmfeed length:100 mmcompressed air:6 barclamping force of fastening pincer:2000 Nclamping force of moving pincer:2000 Nfeeding force:1200 Nweight:0,1 tDimensions (WxDxH):0,35 x 0,85 x 0,5 m
material width:850 mmmaterial thickness:0,3 - 1,5 mmno. of straightening rolls:8 straightening roll diameter:40 mmnumber of draw-in rolls:2 diameter of draw-in rolls:160 mmmaterial thickness with 600 mm material width:1,9 mmmaterial thickness with 400 mm material width:2,3 mmspeed:5 - 25 m/minmin. material width:200 mmweight:2,8 tDimensions (WxDxH):1,6 x 2,2 x 2,3 m
material width:850 mmmaterial thickness:0,3 - 1,5 mmno. of straightening rolls:8 straightening roll diameter:40 mmnumber of draw-in rolls:2 diameter of draw-in rolls:160 mmmaterial thickness with 600 mm material width:1,9 mmmaterial thickness with 400 mm material width:2,3 mmspeed:5 - 25 m/minmin. material width:200 mmweight:3,1 tDimensions (WxDxH):2,2 x 1,5 x 2,8 m
material width:300 mmmaterial thickness:- 3,0 mmno. of straightening rolls:7 Stückstraightening roll diameter:60 mmweight:0,8 tDimensions (WxDxH):0,9 x 1,5 x 1,4 m
table length:2000 mmtable width:600 mmtable height:300 mmmounting surface:700 x 600 mmcentre distance:1200 mmcentre height:160 mmDimensions (WxDxH):2,0 x 0,6 x 0,3 m
material width:380 mmcoil weight:1,0 tmaterial thickness:2,5 mmcoil external diameter:1000 mmno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:2 diameter of draw-in rolls:90 mmweight:0,8 tDimensions (WxDxH):0,8 x 1,3 x 1,7 m
material width:500 mmmaterial thickness:0,6 - 1,6 mmno. of straightening rolls:7 straightening roll diameter:60 mmnumber of draw-in rolls:2 + 2 inlet roll diameter:60 mmmax. material thickness:2,0 mmmaterial thickness at 150 mm material width:2,0 mmmaterial thickness at 500 mm material width:1,6 mmweight:0,5 tdimensions (WxDxH):0,8 x 1,0 x 1,2 m
material width:400 mmcoil weight:3,0 tmaterial thickness:0,5 - 4,0 mmcoil internal diameter:460 - 530 mmcoil external diameter:1500 mmno. of straightening rolls:9 straightening roll diameter:50 mmno. of lower support rolls:12 no. of upper support rolls:10 diameter of support rolls:90 mmmaterial cross-cut:1600 mm²speed of coil line:0 - 20 m/minpower requirement:35,0 kWweight:10,5 tdimensions (WxDxH):10,0 x 2,5 x 2,9 mstraightening machine:KRE 50.400/9 adjustment of straightening rolls :motoric insertion wedge:hydraulic adjustable decoiler:3000.1 snubber roll:hydraulic expansion:hydraulic sideway adjustment:motoric pivoting:manual roll feed:Servo; WVE 160/400 intermittant lifting:hydraulic
material width:300 mmmaterial thickness:0,6 - 2,5 mmno. of straightening rolls:7 straightening roll diameter:60 mmnumber of draw-in rolls:2 + 2 diameter of draw-in rolls:60 mmmax. material thickness:3,5 mmmaterial thickness at 30 mm material width:3,0 mmmaterial thickness with 300 mm material width:2,5 mmweight:0,3 tDimensions (WxDxH):0,9 x 1,0 x 1,1 m
material width:550 mmmaterial thickness:0,4 - 1,6 mmno. of straightening rolls:11 straightening roll diameter:60 mmnumber of draw-in rolls:4 diameter of draw-in rolls:60 mmband speed:4 - 50 m/minpower capacity:3,0 kWweight:1,7 tDimensions (WxDxH):2,5 x 2,0 x 1,7 m
material width:320 mmcoil weight:2,6 tmaterial thickness:0,5 - 2,0 mmcoil internal diameter:400 - 510 mmcoil external diameter:1200 mmno. of straightening rolls:7 straightening roll diameter:50 mmnumber of draw-in rolls:2 band speed:0 - 30 m/minpower capacity:1,5 kWweight:1,5 t
material width:120 mmmaterial thickness:0,4 - 4,0 mmno. of straightening rolls:19 straightening roll diameter:24 mmmaterial cross-cut:120 mm²:40 mmbending speed:5 - 25 m/minweight:0,85 tdimensions (WxDxH):1,2 x 1,7 x 1,6 infinitely variable drive:Stöber
material width:400 mmmaterial thickness:0,6 - 2,8 mmno. of straightening rolls:5 straightening roll diameter:40 mmno. of pulling rolls:2 + 2 material thickness at 400 mm material width:1,8 mmmaterial thickness at 65 mm material width:2,8 mmpower capacity:3,0 kWweight:0,45 tDimensions (WxDxH):0,8 x 1,8 x 1,35 m
material width:250 mmmaterial thickness:0,2 - 2,0 mmno. of straightening rolls:7 straightening roll diameter:60 mmrun-in height:1250 mmpower capacity:4,0 kWweight:0,65 tDimensions (WxDxH):1,05 x 1,25 x 1,5 m
material width:250 mmmaterial thickness:0,4 - 3,5 mmno. of straightening rolls:9 straightening roll diameter:30 mmspeed:3 - 15 m/minmaterial thickness at 250 mm material width:3,0 mmmaterial thickness at 200 mm material width:3,5 mmpower capacity:1,8 kWweight:0,9 tDimensions (WxDxH):1,45 x 1,4 x 1,55 m
max. ram stroke:220 mmtotal power requirement:1,5 kWweight of the machine ca.:880 kgdimensions of the machine ca.:1.500 x 1.000 x 2.200 mmslot-milling length:220 mmtoolhead swivelling: +/- 10° ° Gradtable::650 x 250 mmtable adjustment: vertical:360 °mmtable adjustment: quer/längs: 170/400 °mmstrokes per minute:45 / 78 / 125 Hub/min feed:: 0,1 / 0,2 / 0,3 in 3 step
max. ram stroke:220 mmtotal power requirement:1,5 kWweight of the machine ca.:880 kgdimensions of the machine ca.:1.500 x 1.000 x 2.200 mmslot-milling length:220 mmtoolhead swivelling: +/- 10° ° Gradtable::650 x 250 mmtable adjustment: vertical:360 °mmtable adjustment: quer/längs: 170/400 °mmstrokes per minute:45 / 78 / 125 Hub/min feed:: 0,1 / 0,2 / 0,3 in 3 step
material width:200 mmmaterial thickness:0,8 - 3,0 mmno. of straightening rolls:6 straightening roll diameter:53 mmnumber of draw-in rolls:2 diameter of draw-in rolls:96 mmmaterial cross-cut:400 mm²speed:3 - 15 m/minpower capacity:0,75 kWweight:0,5 tDimensions (WxDxH):1,0 x 1,0 x 1,4 m
material width:300 mmcoil weight:2 x 1,25 tmaterial thickness:0,4 - 1,2 mmcoil internal diameter:320 - 420 mmcoil external diameter:1300 mmno. of straightening rolls:9 straightening roll diameter:30 mmnumber of draw-in rolls:2 roll diameter:30 mmspeed:3 - 30 m/minfeed length:0 - 9999,9 mmpower requirement:3,0 + 2,5 kWweight of decoiler:0,7 tdimensions decoiler (WxDxH):2,1 x 1,4 x 1,5 mmweight of straightening machine:0,45 tdimensions straightener (WxDxH):1,5 x 0,8 x 1,1 mmweight of the feeder:0,4 tdimensions feeder (WxDxH):1,2 x 0,8 x 1,1 mmuniversal straightening machine:SC 12-FQ double decoiler:2352 B-FPS expansion:hydraulic lag brake:pneumatic electronic roll feed:WAV-RDS-2Z, Modell 1082 B intermittant lifting:pneumatic control:Siemens S 5
material width:150 mmcoil weight:1,5 tcoil internal diameter:500 mmcoil external diameter:940 mmstrip material:20 x 1,0 - 50 x 4,0 / 200 x 2,0 mmwire diameter:1,0 - 5,0 mmpower requirement:0,7 kWweight:0,7 tDimensions (WxDxH):1,0 x 1,7 x 2,0 mpalett decoiler:motoric driven
material width:300 mmcoil weight:0,5 tmaterial thickness:0,4 - 3,0 mmcoil internal diameter:420 - 520 mmcoil external diameter:1200 mmno. of straightening rolls:9 straightening roll diameter:50 mmnumber of draw-in rolls:2 diameter of draw-in rolls:50 mmpower requirement:1,5 kWweight:1,55 tdimensions (WxDxH):2,5 x 1,2 x 1,8 m
