usato
Indicazioni: - larghezza massima di lavoro 3050 mm - capacità di taglio massima St 40 6 mm - Angolo di taglio regolabile mot. 0,5 - 3 - Regolazione manuale della distanza di taglio - Numero di pressori idraulici 18 pz -Mot. - Registro posteriore 10 - 750 mm - Battuta angolare anteriore + bracci di supporto - Numero di corse in base all'angolo di taglio e alla lunghezza di taglio 9 - 17 giri/min - Azionamento idraulico 400 V / 7,5 kW - Altezza tavola 770 mm - Ingombro incluso calibro posteriore, senza bracci di supporto anteriori -ca. L 3750 x H 1600 x P 1650 mm - Peso ca. 4500 kg - con: - E. - Interruttore a pedale - Illuminazione della linea di taglio
usato

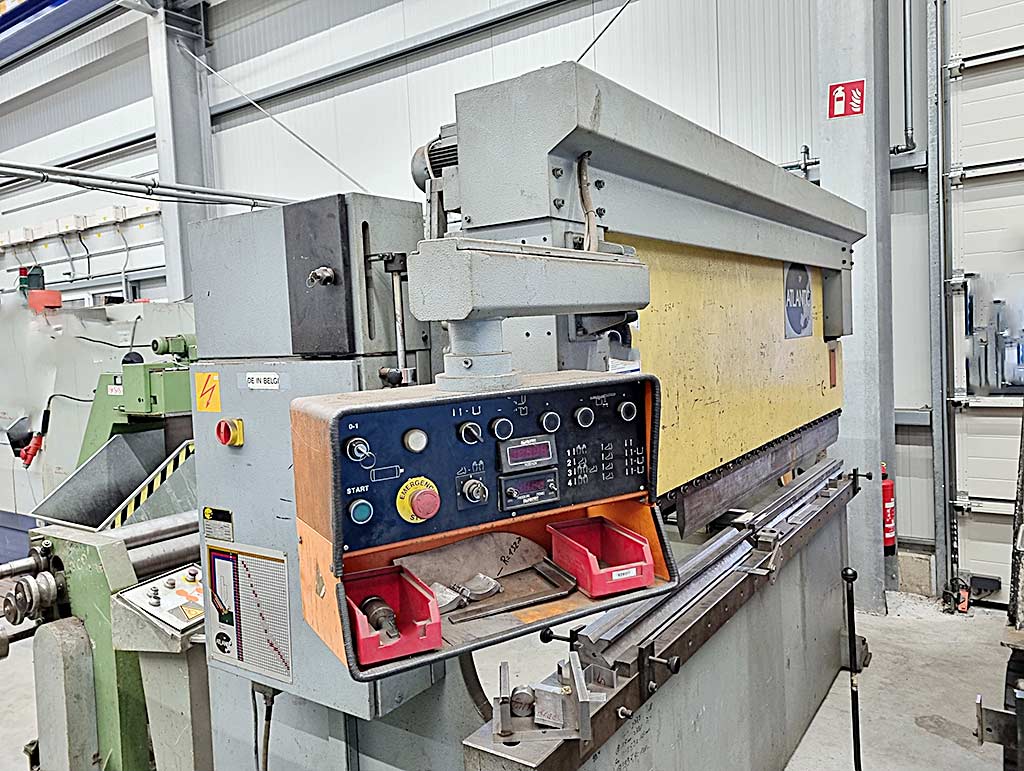

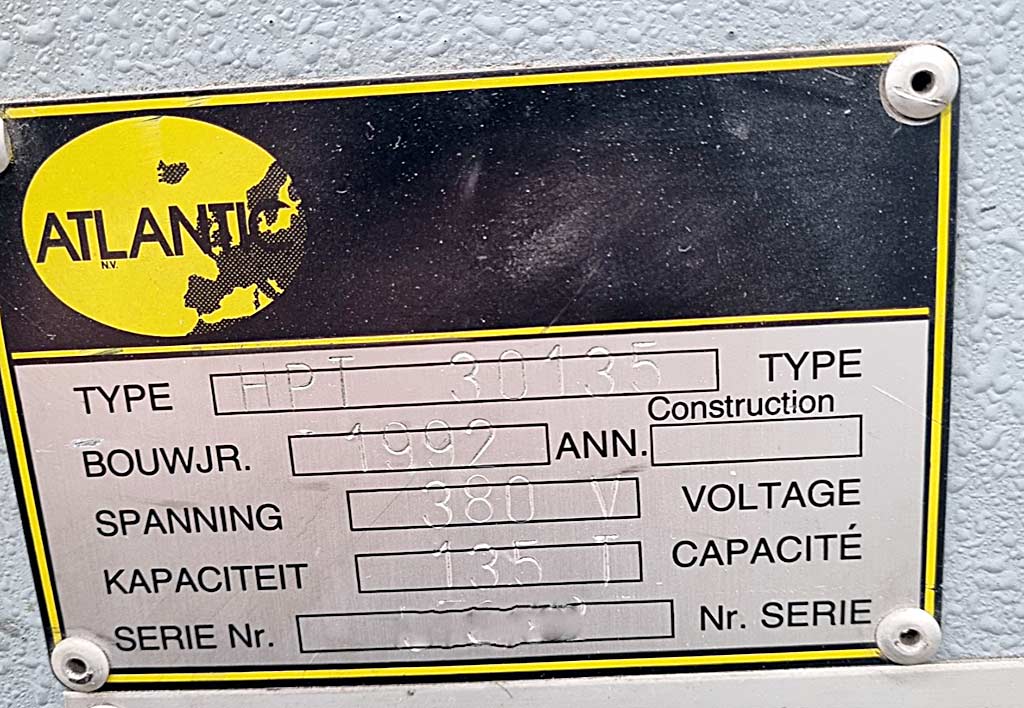

Offerta 24027 Indicazioni: - Capacità di stampa 135 t - Larghezza di lavoro 3100 mm - Passaggio tra i montanti 2600 mm - Larghezza tavola 180 mm - Sporgenza 250 mm - Altezza di installazione 325 mm - Velocità di avanzamento 70 mm/sec. - Velocità di lavoro 7 mm/sec. - Velocità di retrazione 60 mm/sec. - Corsa pistone 120 mm - Campo di regolazione della battuta fissa 120 mm - Azionamento 400 V / 7,5 kW - Riempimento dell'olio ca. 300 l - Ingombro ca. L 3300 x H 2300 x P 1600 mm - Peso ca. 7500 kg - Con: - Pannello di controllo a braccio orientabile con visualizzazione del valore reale LC - per la regolazione della profondità di pressatura + pressione di pressatura + manometro posteriore - Registro posteriore motorizzato - Matrice universale a 4 pieghe + strumento di affilatura + utensile a zampa di cervo - Pannello di co ...
usato
Forza di compressione: 135 t Larghezza di lavoro: 4100 mm Larghezza supporto trasparente: 3150 mm Proiezione stand: 250 mm Altezza massima di installazione: 310 mm Velocità di lavoro: 7 mm/sec Velocità corsa ritorno: 50 mm/sec elettr. Connessione: 400 V, 11 kW Bcyhrjh9qri Peso: 10.8 t Requisiti di spazio: 4250 x 1800 x 2400 mm
usato
Tipo/tipo: ATSL 3013 Fabr./ marca: Atlantic Anno costruzione/ anno: 1992 Numero di Stock: 0969 Spessore della lamiera con larghezza maggiore/ spessore max. lunghezza di taglio: 13 mm (acciaio dolce) 6 mm (acciaio inossidabile / acciaio di alta qualità) Lunghezza di taglio: 3050 mm Peso/peso: circa 8.6 t Specifica: Backstop
usato
Cesoie idrauliche a ghigliottina Produttore Atlantic Tipo ATS3000 Data di costruzione 1996 spessore massimo di taglio 6,0mm lunghezza di taglio 3050mm Nuovo coltello sulla macchina Inoltre ci sono 2 coltelli più 1 moncone una volta nuovo La macchina è perfettamente funzionante, non è stata eccitata per 4 mesi Anschäge, circolazione e documentazione disponibile.
usato
Hydraul. Forbici da tavolo, usate, pronte per la dimostrazione sotto l'elettricità tagliatrice idraulica a piastre, utilizzata, sotto potenza, pronta per il funzionamento Tipo: XTSL 3016 Fabr./ make : Atlantico Anno di costruzione/ anno: 1993 Spessore foglio con la larghezza del foglio più grande/ spessore al massimo lunghezza di taglio: 16 mm (acciaio strutturale / acciaio dolce) 12 mm (acciaio inossidabile / acciaio di alta qualità) Larghezza di taglio/lunghezza di taglio: 3100 mm Peso/peso: circa 14 t Specifiche: Arresto posteriore / backstop
usato
Forza di pressione: 400 t Larghezza di lavoro: 4100 mm larghezza del supporto leggero: 3150 mm Estensione stand: 330 mm Elettr. Collegamento: 400 V, 37 kW Peso: circa 25 t Fabbisogno di spazio: 4100 x 2300 x 3910/530 mm
usato
sheet width: 3050 mm plate thickness: 6,0 mm cutting angle: 0,5 - 3,0 ° down holder: 18 Stück no. of strokes: 9 / 14 Hub/min back stop - adjustable: max. 750 mm Control: konv. engine output: 10,0 kW weight: 4800 kg range L-W-H: 3750 x 1600 x 2450 mm Furnishing: - electro-hydraulic / slide-guided sheet metal shears - front control panel, left - easy to use - with electro-hydraulic cutting angle adjustment - with manual cutting gap adjustment, from the rear - electro-motorized back gauge 10-750 mm - with analogue position display + handwheel for fine adjustment - 1x extra long, robust side stop .. 3,000 mm - 1x extra long, robust support arm - 1x freely movable foot switch - front finger/encroachment protection - 2x EMERGENCY stop buttons at the front - User manual (PDF) Machine link: http://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php?machineno=1008 -9325333 The data for this ad ...
usato
sheet width: 3050 mm plate thickness: 6.0 mm cutting angle: 0.5 - 3.0 ° down holder: 18 Stück no. of strokes: 9 / 14 Hub/min back stop - adjustable: 750 mm Control: SC7p engine output: 10.0 kW weight: 4800 kg range L-W-H: 3750 x 1600 x 2450 mm from a maintenance workshop well maintained condition - checked annually () Furnishing: - electro-hydraulic sheet metal shears - backdrop-guided - ATLANTIC NC control unit - model SC7p Target / actual information about the motorized back gauge Manual positioning possible via handwheel Digital display for backgauge position electro-hydraulic cutting angle adjustment Adjustable retraction from the back gauge before the start of the cut Front left control unit - electro-motorized back gauge 10-750 mm - manual cutting gap adjustment, from the rear - 1x front side stop, with mm scale - 3x front support arms - 1x freely movable foot switch - Fi ...
usato
sheet width: 3050 mm plate thickness: 12,0 mm ST plate thickness: 8,0 mm VA no. of strokes: 7 - 14 Hub/min down holder: 18 Stück cutting angle: 0,5 - 3,0 ° work height max.: 930 mm back stop - adjustable: 1000 mm Number of working hours: 18.822 h total power requirement: 22,5 kW weight: 8.500 kg range L-W-H: 4180 x 2030 x 2210 mm Furnishing: - Robust hydraulic, link-guided guillotine shears - Electro-motor backgauge with analogue display Fine adjustment via hand wheel, front left - Control panel, front left - manual cutting gap adjustment, from behind - electro-hydraulic cutting angle adjustment - Front finger protection - Stable front support table - 1x side stop with T-slot and millimeter scale - 3x support arms - 1x free moving footswitch - User manual (PDF) Machine link : http://mhp.logotech.de/hpm/v7/Datenblatt/datenblatt.php?machineno=1008 -9325234 The data for this ad was c ...
usato
Hydraulic pump, oil pump, gear pump, press brake, folding bench, folding machine, hydraulic punch, hydraulic punch -Spare part: Hydraulic pump from Atlantic press brake type: HPT 13536 -Manufacturer: Eckerle -Pump type: 1PF2GH3-12/013RE07MU2 -Drive: Loher type 132M-4 -Power: 7.5 kW 1440 rpm -Dimensions: 800/370/H300 mm -Weight 98 kg
usato
Hydraulic guillotine shear model Atlantic 3012 very good condition. - Year of manufacture - 1990. - Length of the cut sheet - 3000mm. - Max cutting thickness 12mm - The machine is equipped with an automatic bumper. - The machine has 1 set of spare original knives. - Weight 8000 kg.
usato
pressure: 200 t chamfer lenght: 3660 mm distance between columns: mm Control: total power requirement: kW weight of the machine ca.: 13,50 t dimensions of the machine ca.: m • 2 stop fingers, can be moved laterally • Block die with: V75, V50, V40, V25, V20, V10 (V50 and V25 defective at approx. 10cm in the middle) • Straight punch, height 200mm, length 3000mm, segmented • ATL 500 control for immersion depth (Y) and back gauge (X) • Centrally adjustable crowning • 2 support arms • Operation manual The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
usato
pressure: 180 t chamfer lenght: 4100 mm distance between columns: 3150 mm stroke - stepless adjustable: 200 mm column arm: 300 mm table height: 1090 mm dayligth: 450 mm working feed: 9,0 mm/sec return speed: 80,0 mm/sec Control: NC ATL 550 hydraulic: 235 bar voltage: 380 V total power requirement: 15,0 kW weight: 14200 kg range L-W-H: 4400 x 1900 x 3000 mm Furnishing: - NC controlled hydraulic press brake with torsion shaft - ATLANTIC NC control ATL 550 Positioning of backgauge ( X ) Depth setting positioning ( Y1+Y2 ) Possibility of programming different programs Storage capacity max. 200 programs - max. 400 sentences Pivoting control panel, front left - electric back gauge with 2 stop fingers, manually adjustable on ball screws - manual table crowning, with analogue display - divided deer foot upper tool 85° - divided MultiV - universal matrix block - rear protection - free-mo ...
usato
Sheet thickness: 13,00 mm Sheet width: 3000 mm Depth rear gauge: 1000 mm Guillotine Atlantic - XTSL 3013 MACH-ID 7122Make:AtlanticType:XTSL 3013Control:Robosoft SC5Year:1994 Control Robosoft SC5 Maximum sheet thickness13 mm Backgauge stroke X in mm1000 mm
usato
pressure: 230 t chamfer lenght: 3600 mm distance between columns: 3150 mm column arm: 300 mm table width: 200 mm dayligth: 450 mm stroke: 200 mm back stop - adjustable: 500 mm working feed: 7,0 mm/sec return speed: 80,0 mm/sec work height max.: 965 mm oil volume: 275 l Pressure power: 265 bar total power requirement: 18,7 kW weight of the machine ca.: 13300 kg. range L-W-H: 4100 x 2200 x 2670 mm Furnishing: - DELEM CNC control, model DA 56 (conversion in 2014) Pivoting control panel in front left - CNC electric backgauge (X axis) with 3x stop fingers, manually adjustable from the side - CNC pneumatic height adjustment of the stop fingers (R axis) - manual table crowning Adjustment by hand crank, with analogue display - 1x reversible MULTI V - universal die block - 1x complete set of upper tools - other / various application tools - free-moving 2hand/foot control The data for this ad ...
usato
pressure: 230 t chamfer lenght: 5000 mm distance between columns: 4050 mm : 800 mm : 500 mm : 300 mm : 600 mm : BC 45 Grafik : 18,7 kW : 22,0 t : 6,0 x 2,2 x 3,75 m - 4 stop fingers - Crowning device - Adjustment of the finger height manually via crank 140 mm - Groove in the front of the table - various tools The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
usato
pressure: 200 t chamfer lenght: 4100 mm distance between columns: 3150 mm stroke - stepless adjustable: 200 mm column arm: 300 mm table height: 1090 mm dayligth: 450 mm working feed: 9,0 mm/sec return speed: 80,0 mm/sec Control: NC ATL 550 hydraulic: 265 bar voltage: 380 V total power requirement: 18,7 kW weight: 15000 kg range L-W-H: 4400 x 1900 x 3000 mm Furnishing: - NC controlled hydraulic press brake, with torsion shaft - with ATLANTIC NC control ATL 550 Positioning of backgauge ( X ) Depth setting positioning ( Y1+Y2 ) Possibility of programming different programs Storage capacity max. 200 programs - max. 400 sentences Pivoting control panel, front left - electric backgauge, on ball screws with 2 stop fingers, manually adjustable - manual table crowning, with analogue display Adjustment at the front left, with a hand crank - divided deer foot upper tool 85° - reversible Mul ...
usato
larghezza lamiera: 3050 mm spessore piastra: 6 mmdistanza tra le colonne: 3100 mmtelaio posteriore - regolabile: 750 mm regolazione angolo taglio: 0,5 - 3,0 no. Numero di corse: 9 - 17 Altezza mozzo/mintable sul pavimento: 775 mmPotenza totale: 7,5 kWpeso della macchina ca.: 4,5 tdimensioni della macchina L x P x A: 3,75 x 1,65 x 1,7 mAccessori : elettroutensile, angolo frontale, prolunghe del tavolo, coltelli di ricambio
usato
larghezza lamiera: 3050 mm spessore piastra: 12 mm distanza tra le colonne: 3100 mm altezza tavola sul pavimento: 900 mm regolazione angolo taglio: 0,5 - 3 no. Numero corse: 6 - 13 Mozzo/min schienale - regolabile: 1000 mm portapiù: 18 Volume st oil: 350 l potere di potenza totale: 22,5 kW peso della macchina ca.: 8 t dimensioni della macchina L x P x A: 3,96 x 2,38 x 2,22 m Accessori: elettrico posteriore, coltelli di ricambio
