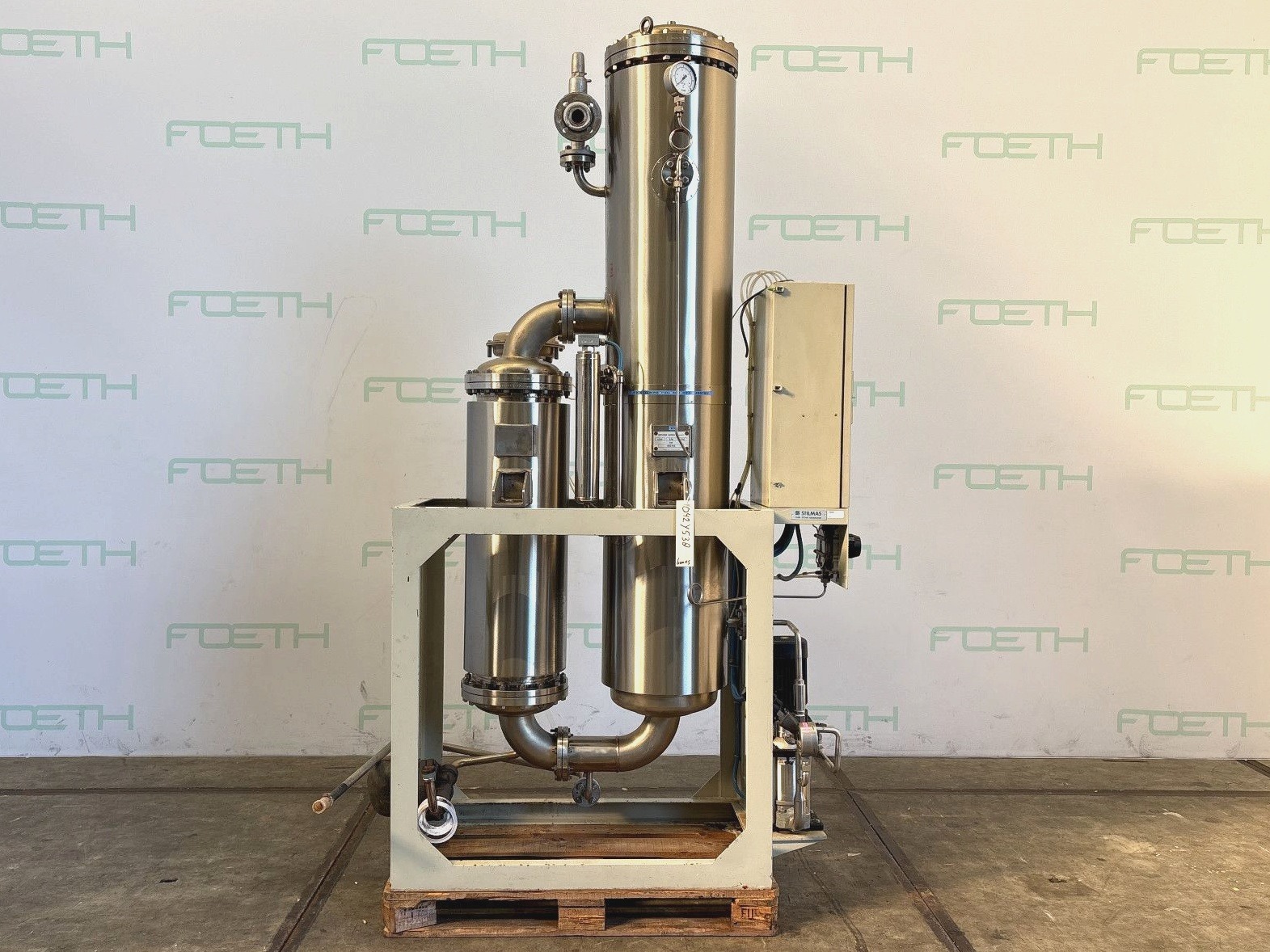

General SKU042Y538 MakeStilmas TypePSG-500 DTS No.3797/86 Year of construction1986 Mounted on framecheck Pressure Working pressure10 Bar Working pressure jacket10 Bar Working pressure tubes6 Bar Main Features Capacity1.35 Ltr./Hr. Specified Features - Distillation Distillation installationcheck Pure Steam Generator Vessel sizesø 320 x 1800: ø 280 x 1300 mm Number of columns:2 Electric heatedcheck MaterialStainless steel 1.4401 (316) Information LocationBarneveld With switchgearcheck Floorspace1,5 x 0,7 m Total height2,7 m Weight600 kg Extra SpecificationsStilmas Pure Steam Generator type PSG-500 DTS produces saturated, dry, pyrogen-free pure steam, used as heating ...

The teedwater is pre-heated in the exchanger E009, by steam condensation coming trom the last column, and in the pre-heaters F004-F001 by condensate produced in every effect. The teedwater evaporates partially in the first column (E001) as heated by industriai steam. The industriai steam passes through the pre-heater F001 and is drained by steam trap ST001. The produced pure steam trom the top and the water not evaporateci trom the bottom 1 -pass to the tollowing effect, where the process is repeated at lower pressure and temperature. The distillate produced by pure steam condensation goes to the pre-heater F002. The process is repeated for all columns in the same way. The steam produc ...

STILMAS pure steam generator - type PSG 3OO DTS - produce saturated dry pyrogen-free pure Steam by using industrial steam as heating fluid. Pure steam DN 50 PN 16 Sampling discharge: ½” Triclamp Industrial steam DN 40 PN 16 Condensate discharge: DN 25 PN 16 Cooling water outlet: ½” Triclamp Safety valve: DN 40 PN 16 Cooling water inlet: ½” gas M. Electric line 380 V/50 Hz Compressed air 6 bar Main components: A) E 020 DOUBLE TUBE SHEET EXCHANGER - Construction in AISI 316 - ISPESL tested - Design pressure: shell side 10 bar – tube side 6 bar B) ER 020 EVAPORATION CHAMBER AISI 316 L construction ISPESL tested - Design pressure: 6 bar C) SUPPORT FRAME Painted c ...

Pure steam generators Manufacturer Stilmas Type PSG 50 /DTS Clean steam volume 0-max. 50 kg/h at pure steam pressure 3 bar or pure steam volume 0-max. 100 kg/h at pure steam pressure 1 bar The process guarantees the production of dry, sterile, pyrogen-free, pure steam that is free of particles or metal bions.
