Dust Extraction Plant Manufacturer: Nestro Year: 1991 Filter unit: Filter hoses: 121 pcs.(arrangement 11 x 11) / D230 x 2600mm Filte surface 261 m2, Filter material: category G Automatic motorized vibration cleaning / 4 motors Fire-extinguishing ducts Return air system Fire damper Pipes, Pipe bends Ventilators: Ventilators 3 pcs. a 7,5 KW, D 350mm Ducting, Ducting bends, ducting shutters with chains Control unit Nestromat 3 x Transducer coils for start automatic: 15 x

0: 250 mm 0: 3530 m³/h 0: 2500 pa Dimensions (L/W/H): 3.350x1.020x2.290 mm engine output: 5,5 kW turning speeds: 2800 U/min compressed air: Pmax 8,0 bar weight: 1100 kg Nestro dust extractor NE 250 W For sale on behalf of the customer ex location -------------------------- Manufacturer description: Dust extractor with pneumatic shaking and automatic water extinguishing system Including suction nozzle d=300 mm, 5 m cable with plug and reversing switch, electric motor 5.5 kW 400V/50 Hz, on/off switch, potential-free Contact for machine monitoring, motor protection switch, Pressure difference display, 3 mobile dust bins Clamp bracket, 3 chip collection bags (PE) 600x600 mm, i=1100mm Housing ma ...

0: 160 mm 0: max./nom.: 1.780/1.447 m³/h 0: v.V./nom.: 3.160/2.450 pa Filter capacity: 12,3 m² weight: 430 kg Dimensions (L/W/H): 1.970 x 910 x 2.070 mm Dust extractor NE 160, J pneum. Filter regeneration ------------------------------------------------ For the extraction and filtering of wood dust and wood chips. GS and H3 testing according to GS-HO-07 (BGHM), vacuum filter with 2 swivel and 2 fixed castors including suction nozzle, with pneumatic Cleaning, 5 m cable with plug and reversing switch, fan included Integrated electric motor IE3 400V / 50Hz, with mobile bin and chip collection bag. Standard is intake manifold on the right / fan on the left. Suitable for standard Sea containers ...

0: 300 mm 0: max./nom: 6.000/5.085 m³/h 0: v.V./nom: 2.950/2.400 Pa pa Filter capacity: 36,2 m² m² weight: ca. 1.300 kg Dimensions (L/W/H): 3.880 x 1.020 x 2.250 mm Dust extractor NE-J 300 3 ton. m. Jet filter regeneration -------------------------------------------------- Including a new type of extinguishing device with a drop flap and oxygen extraction, 5 m cable for junction box, high-efficiency reluctance motor IE5, FU control, Wired 7 color touch panel, automatic start/stop start control and monitoring of up to 10 woodworking machines included automatic slide control, integrated emergency stop function and is of course H3 tested. The newly designed model fits into any standard shipp ...

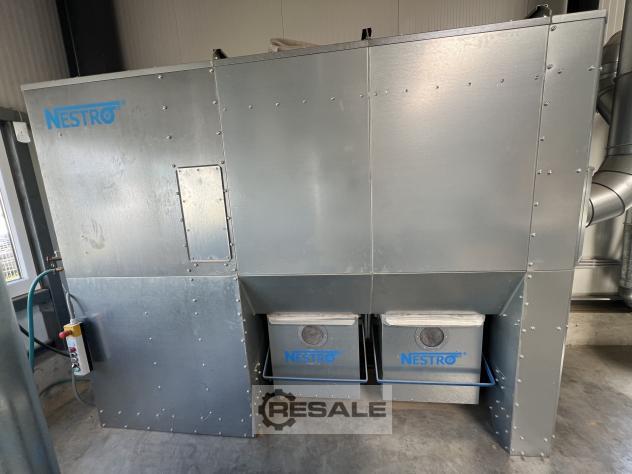

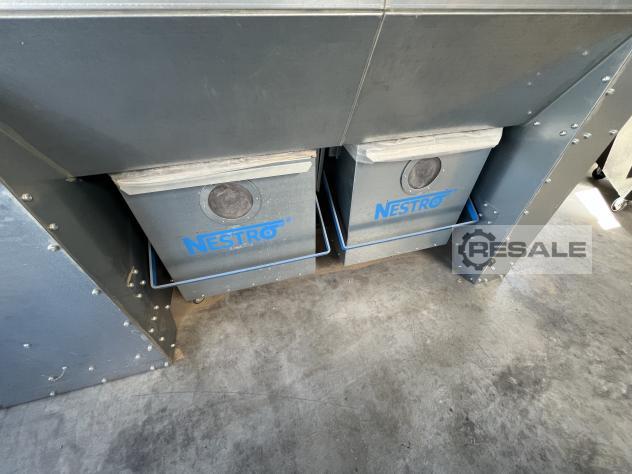

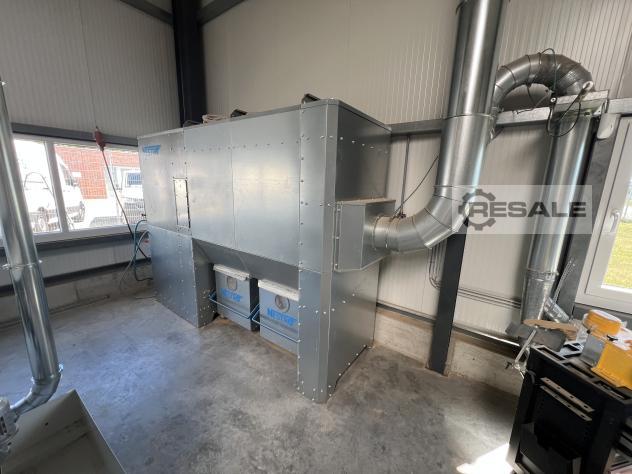

Manufacturer: NESTRO Model: NE 250 J Year of Manufacture: 2023 Type of Machine: Dust Extractor Operating hours: 551.3 h Technical Specifications - Rated Airflow Volume: 2,950 m³/h - Rated Negative Pressure: 2,526 Pa - Filter Area: 22.4 m² - Connection Diameter (Suction Port): 250 mm - Weight: 930 kg - Max. Compressed Air Pressure: 8 bar - Motor Power: 5.5 kW - Operating Voltage: 400 V - Rated Speed: 3,000 rpm - Rated Current: 9.5 A - Frequency: 50 Hz Find more here - / Contact us at -

A Schuko filter unit with a Nestro centrifugal fan is sold. Schuko STA filter system Filter area 90sqm Number of filters 90 Filter length 2000mm Dimensions approx. H= 3.9m Length = 3m Depth 1.15m Nestro 7.5kw/380V Volume flow 7650 m3/h Machine can and should be inspected and tried out on site, as warranty or guarantee is excluded.

Dimensions (L/W/H): 3500 x 3500 x 6000 mm Filter capacity: 216 m² Number of filters: 121 (11x11) St. From the closure of the window construction company ---------------------------- Nestro filter system with various fans Automatic shaking-extinguishing line including Heizomat feed for wood chips with transport to the silo ---------------------- Info: Outside: Intermediate filter, Heizomat, fans and pipes must be dismantled by yourself. Switch cabinets (fans, control, Heizomat feed) already disconnected by electrician and ready for shipping. Dimensions approx.: ---------------------- Filter system: upper part: length 3.4 m x depth 3.4 m x height 3.0 m lower part: length 3.0 m x depth 3.0 m x ...

Motor power: 1 kW; Filter area: 2500mm x 1600mm; Exhaust nozzle: 300mm; Current consumption: 2.3 A; Weight: approx. 120 kg; ...

• more information

Separator lock / rotary valve Nestro, built in 2012, for the separation / differentiation of paper chips or paper edge sections Specifications: Manufacturer: Nestro Lufttechnik GmbH Year of construction: approx. 2012 Motor: 4 kW Volume flow max. 28000 m³/h Diameter inlet max.: 450 mm Speed: 22 rpm Rotor width: 1500 mm Rotor diameter: 1200 mm Dimensions: 2200 x 2200 x 2500 mm (LxWxH) Weight: approx. 3000 kg Remark: The machine is in good condition. It was inspected and tested by us in 28816 Stuhr. You can find the video on our website or our Youtube channel. Viewings, also under power, are possible at any time by arrangement. We will also be happy to answer any questio ...
