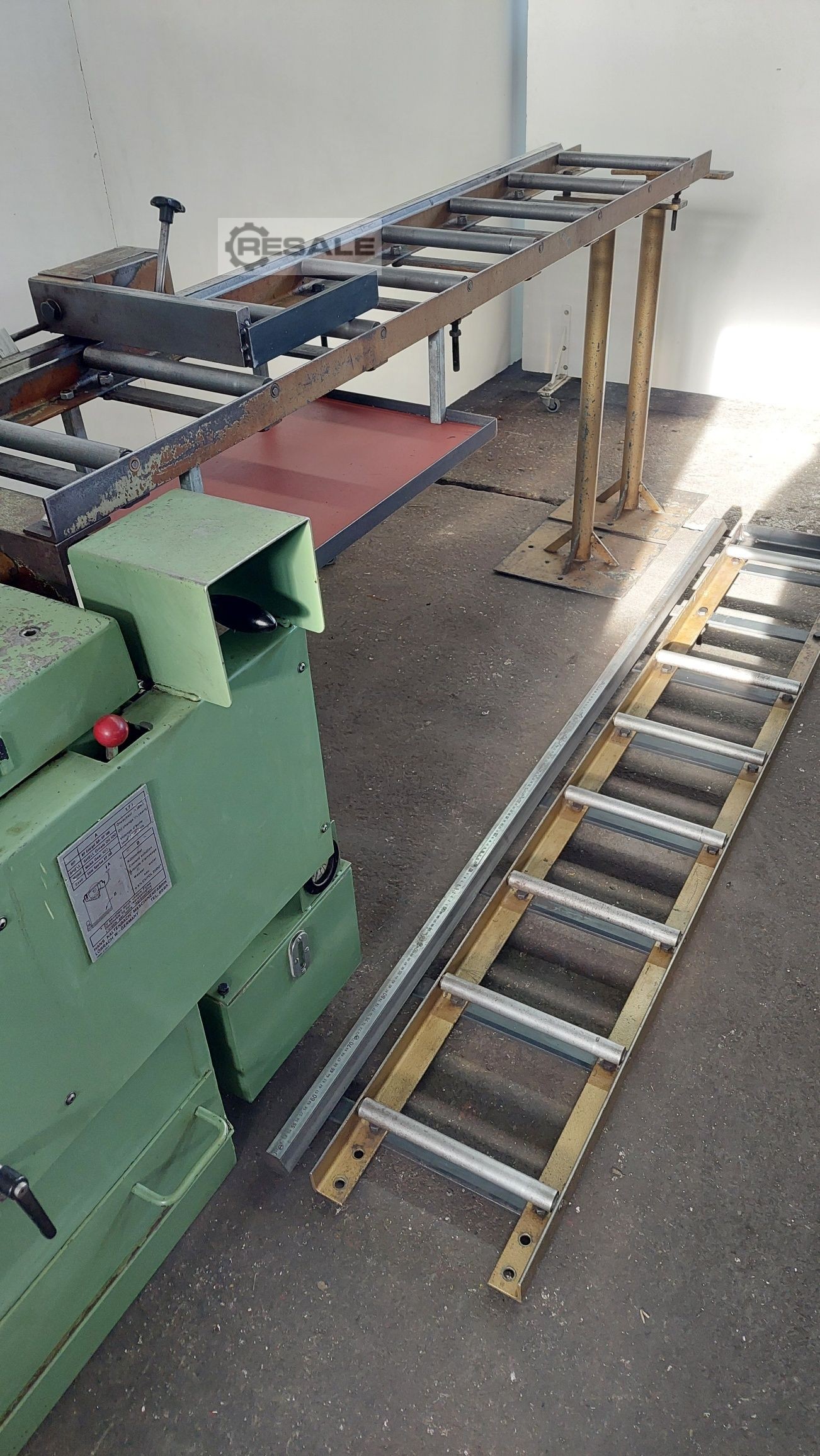

Includes roller conveyor (approx. 250cm infeed and 120cm with stop) Adjustable stop with scale Automatic clamping and feed Max. saw blade diameter 400mm Miter cut Coolant pump Documentation 400V  ...

• more information

Saw blades Carbide / HSS: 450 mm Power: 4,0 / 5,5 KW Speed infinitely variable 10 - 60 min-1 Cutting speed (450 mm) blade: 7-43, or 15-75/min Saw height control adjustable full electronic Square 90° maximum working range: 140 x 140 mm 45° max.: Flat workspace: 90° Max: 240 x 80 mm 45° max: work area round: 90° Max: 150 mm 45° max: supplies length easy stroke: 5-2000 mm Multiple stroke: 5-9999 mm Supply AC servo max speed: 500 mm / s Approximate weight: 3600 kg Dimensions Lxwxh: 3500 mm x 1300 mm x 2100 mm Lxw surface: 3500 x 1300 mm? Technical description of 401 k PPS / PPS 451 NA 2000 retrofit 401 k PPS / PPS 451 retrofit high-speed sawing machine fo ...

Saw blade diameter: 400 mm cutting capacity at 90 ° round: 130 mm cutting capacity at 90 ° square: 200 x 80 and 315 x 40 mm cutting capacity in MITRE at 45 ° square: flat/vertically 180 x 70 / 100 x 60 mm cutting speed: 19/28 m / min drive motor: 380 V, 1.7/2,6 kW space: 1100 x 1050 x 1620 mm weight: 850 kg

Code 96380 UMSCHREIBUNG Volautomatische Kaltkreissäge Fabrikat Kaltenbach Model KKS 400 NA Machine Nummer 1700 - 03004 Baujahr 1982 Rechtwinkeler Schnitt Rund à 90º 130 mm Viereckig à 90º 315 x 50 mm U-profiel à 90º 24 x 85 mm Sägeblatt Durchmesser..………………… 400 mm Sägeblatt in Graden verstellbar 0 – 180 º Drehzahlen 10 – 14 – 20 UpM Hauptmotor Leistung…………………… 0,9 – 1,2 – 1,8 PS Anschluss spannung……………………. 380 Volts Zubehör Lademagazin Automatische laden bis 1700 mm Maschine Maschine ist in gutem Zustand

Saw blade Ø: 400 mm Cutting range at 90° round: 130 mm Cutting range at 90° rectangle: 305 x 40 mm Cutting range in miter at 45° round: 130 mm Cutting area in miter at 45° rectangle: 245 x 40 mm Cutting speed: 10/20 m/min Drive motor: 380 V, 1.7/2.6 kW Space requirement: 1100 x 1000 x 1900 mm Weight: 700 kg

YOC 1994 Saw blade diameter (mm): 400 Cutting speeds (m/min): 13/26, 10/20,15/30 Engine power (kW) 1.7 /2.6 Working range approx. 90° / 45°: 130 Working range square 90° / 45°: 120 / 110 Working range flat steel 90° / 45°: 305X 40 / 245 x 30 Working range standing 90° / 45°: 120 X 55 Dimensions LxWxH (mm): 800 x 1070 x 1780 Weight (kg): 820 Work carried out: Replaced cable to motor, cooling water pump, and limit switch in the engine room Feed cylinder newly sealed Transmission oil replaced Hydraulic tank cleaned / oil and filter replaced Limit switch in the machine room replaced Other settings made

KALTENBACH KKS 400 NA automatic circular sawing machine built in Germany is used for the precise, fully automatic cutting of flat bars, angle bars, profiles and tubes. The machine uses a reliable drive with hardened and ground helical gears, which, in combination with the electronic cutting height adjustment and the fast reverse movement of the cutting disc, ensures smooth operation and short cutting times, even during the most demanding processing. A large workspace with a clamping element stiffens the material during cutting, ensuring that the workpiece is held firmly and securely on both sides of the 400 mm diameter blade. The KALTENBACH circular sawing machine is offered with, among oth ...

saw blade diameter: 400 mm cutting diameter: 130 mm stroke: 150 mm cutting range - square -: 120 x 120 mm cutting range - flat -: 300 x 40 mm capacity 45 degrees: round: 130 mm capacity 45 degrees: square: 110 x 110 mm capacity 45 degrees: flat: 245 x 40 mm mitter cutting - all-position: 90 ° cutting speed: 13 / 25 m/min control: minipos 807 total power requirement: 4,3 kW weight of the machine ca.: 850 kg dimensions of machine L x W x H: 1,20 x 1,20 x 1,82 m Accessories: ingoing and outgoing rollertrack each approx. 4000 mm long, NC length stop, coolant The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Saw blade Ø: 400 mm Cutting range at 90° round: 120 mm Cutting area at 90° rectangle: 200 x 80 mm Cutting area mitred at 45° rectangle: 150 x 70 mm Cutting speed: 13, 17, 26 m/min Drive motor: 380 V, 1.7/2.2/2.6 kW Space requirement: 1050 x 1000 x 1680 mm Weight: approx. 850 kg  ...

• more information

saw blade diameter: 400 mm miter: . : Kühlung weight of the machine ca.: 1 t number: 4 Stück The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.  ...
